The X10 is a high performance yet very compact two-way passive loudspeaker system which utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm. The rotatable 90° x 50° HF horn has equal horizontal and vertical mouth dimensions for directivity control in both planes.
Martin Audio Blackline X10
The loudspeaker shall be a passive, two-way system. Its transducers shall consist of a reflex-loaded 10” low frequency driver and a 1.4” diaphragm/1” exit compression driver mounted on a high frequency horn which shall be user-rotatable to enable vertical or horizontal orientation of the enclosure.
Horizontal dispersion shall be 90° and vertical dispersion shall be 50°. The on-axis frequency response shall be 65Hz-20kHz +/- 3dB and the loudspeaker shall produce a maximum SPL of 124dB peak calculated at 1 metre. Power handling shall be 250W AES, 1000W peak. Rated impedance shall be 8 ohms.
The rear connector panel shall be fitted with two NL4 type connectors. Low and high frequency sections shall be integrated by an internal 2.4kHz passive network. For optimal performance the loudspeaker shall be operated in conjunction with a dedicated electronic controller.
The symmetrical, multi-angle enclosure shall be made from plywood and finished with a black textured paint. Optional white and RAL colour finishes shall be available to special order. The enclosure shall be fitted with a pole-mount socket and M8 threaded inserts to accommodate eyebolt suspension and a wall bracket. The drivers shall be protected by a perforated steel grille with scrim cloth backing.
Dimensions (W x H x D) shall be 324mm x 522mm x 289mm (12.8in x 20.6in x 11.4in). Weight shall be 14kg (30.9lbs).
The loudspeaker shall be the Martin Audio Blackline X10.
Features
Compact passive two-way system
Symmetrical multi-angle plywood enclosure
User-rotatable 90° x 50° horn
Vertical and horizontal orientation
Screw-free, cloth-backed perforated steel grille
Integral ergonomic handle

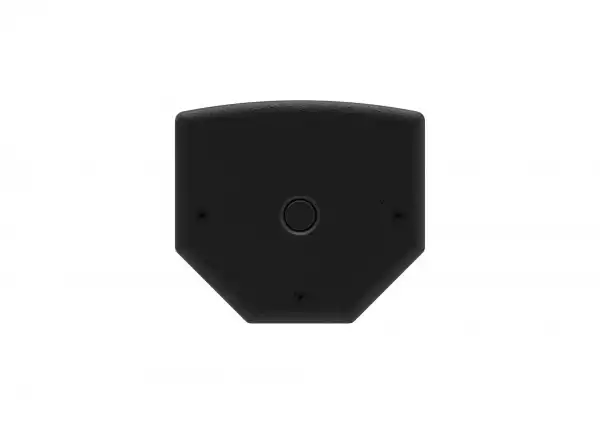

Pole-mount bung maintains clean lines
8Ω nominal impedance
Twin NL4 connectors
Flexible mounting options via M8 inserts
Applications
Portable sound reinforcement
Live music clubs
Bars and restaurants
Nightclubs
Unobtrusive stage monitoring
Corporate AV events and conferences
Weddings and parties
Main PA infill
Secondary stages at festivals
HoW, leisure centres and retail outlets
| TYPE | Compact, passive two-way system |
| FREQUENCY RESPONSE (5) | 65Hz-20kHz ± 3dB, -10dB @ 55Hz |
| DRIVER | LF: 10” (250mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 250W AES, 1000W peak |
| SENSITIVITY (8) | 94dB |
| MAXIMUM SPL (9) | 118dB continuous, 124dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 90° H x 50° V (user-rotatable) |
| CROSSOVER | 2.4kHz passive |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
| FITTINGS | 19 x M8 inserts, pole-mount socket, 1 x bar handle |
| DIMENSIONS | (W) 324mm x (H) 522mm x (D) 289mm (W) 12.8ins x (H) 20.6ins x (D) 11.4ins |
| WEIGHT | 14kg (30.9lbs) |
| ACCESSORIES | Wall bracket, eyebolts |
