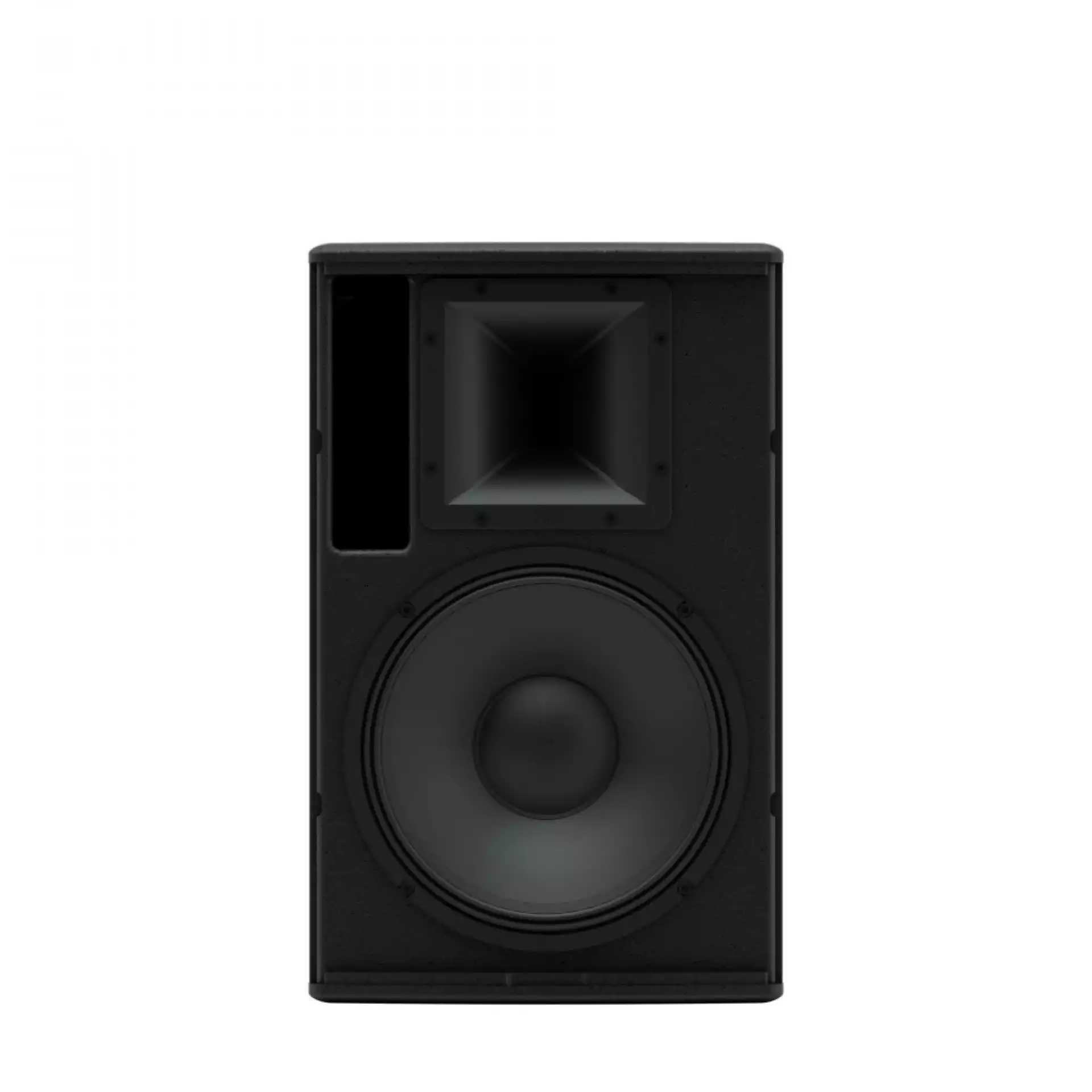

The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels — either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user-rotatable horn, its 80° x 50° dispersion pattern is ideal for medium throw applications.
Features
Compact passive two-way system
Symmetrical multi-angle plywood enclosure
User-rotatable 80° x 50° horn
Vertical and horizontal orientation
Screw-free, cloth-backed perforated steel grille
Integral ergonomic handle
Pole-mount bung maintains clean lines
8Ω nominal impedance
Twin NL4 connectors
Flexible mounting options via M8 inserts
Applications
Portable sound reinforcement
Live music clubs
Bars and restaurants
Nightclubs
Unobtrusive stage monitoring
Corporate AV events and conferences
Weddings and parties
Main PA infill
Secondary stages at festivals
HoW, leisure centres and retail outlets
SPECIFICATION
TYPE Compact, passive two-way system
FREQUENCY RESPONSE (5) 62Hz-20kHz ± 3dB, -10dB @ 50Hz
DRIVER LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2) 300W AES, 1200W peak
RECOMMENDED AMPLIFIER MA2.0, MA3.0, MA5.0Q
SENSITIVITY (8) 97dB
MAXIMUM SPL (9) 122dB continuous, 128dB peak
NOMINAL IMPEDANCE 8Ω
DISPERSION (-6dB) 80° H x 50° V (user-rotatable)
CROSSOVER 2.3kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 20 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS (W) 358mm x (H) 574mm x (D) 337mm
(W) 14.1ins x (H) 22.6ins x (D) 13.7ins
WEIGHT 17kg (37.5lbs)
ACCESSORIES Wall bracket, eyebolts
