Features

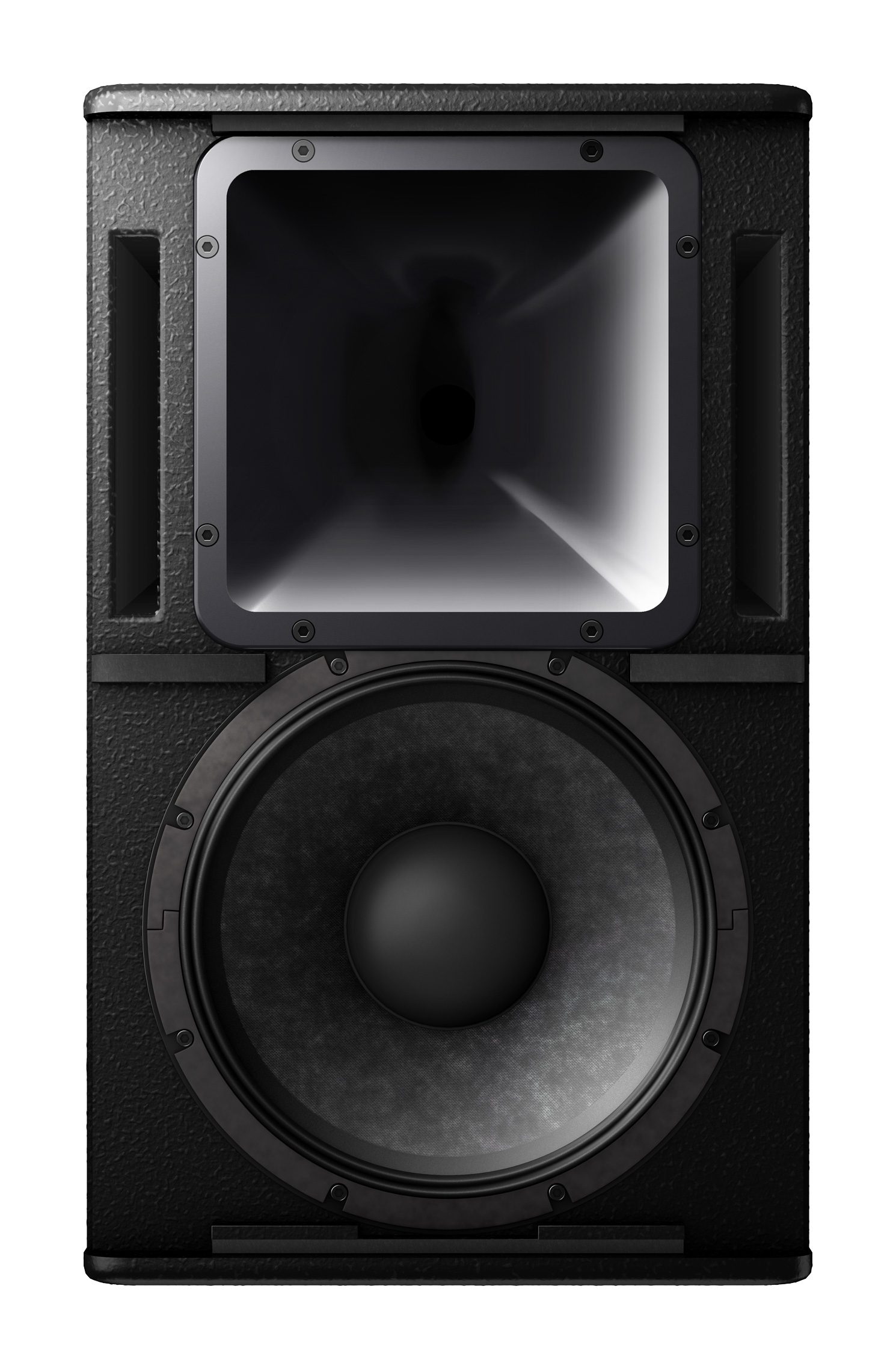

    Two-way full range speaker with 12-inch LF driver and a 1.4-inch compression driver.
    Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments.
    Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation.
    Designed for fixed and mobile applications, with a wide array of flying options.
    Features top hats for quick set-up.

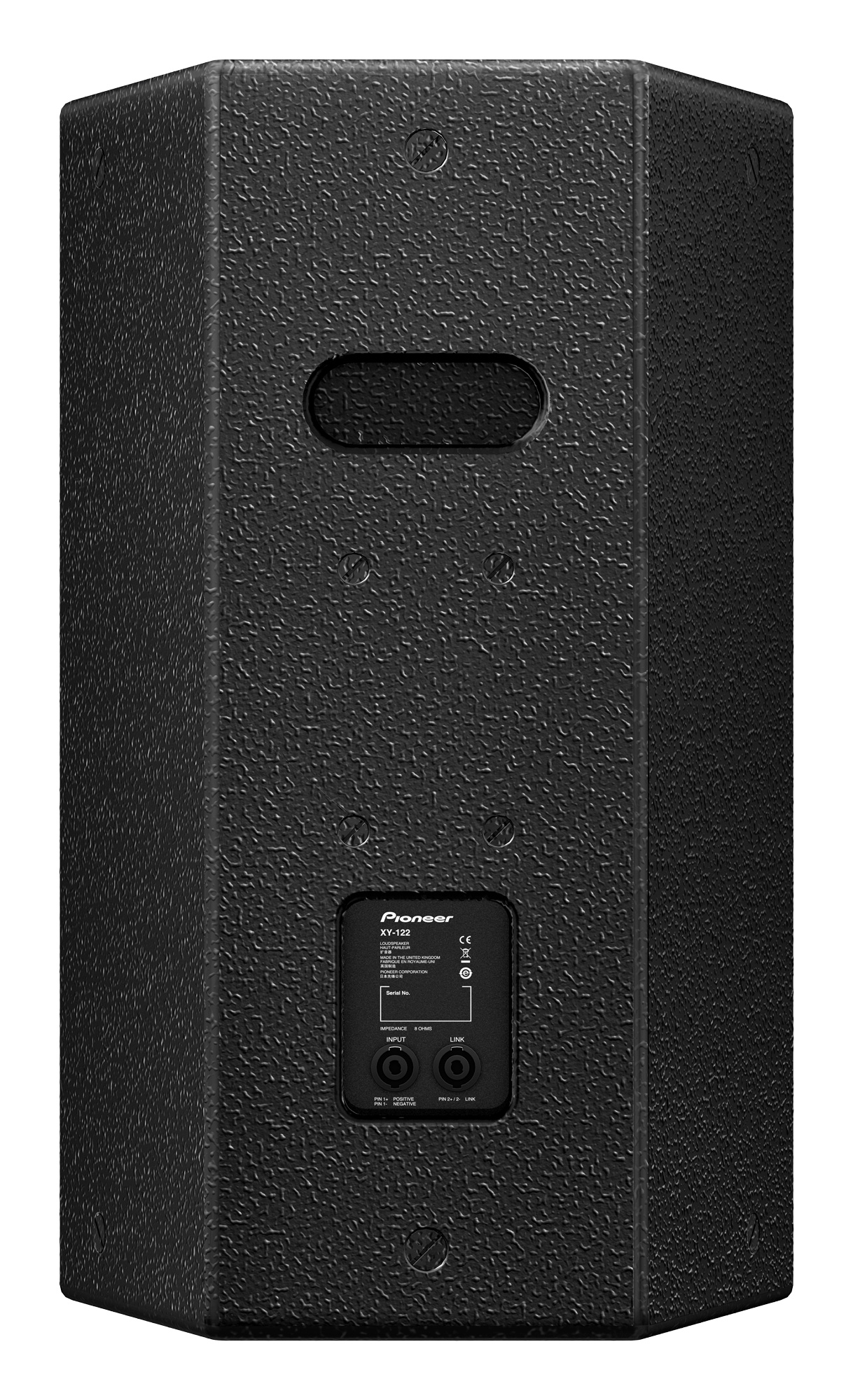

    NL4 INPUT and LINK OUT connections as standard.
    Robust enclosure made from premium multi-laminate birch plywood.
    Impact resistant textured paint finish.

SPECIFICATIONS
Enclosure type
Frequency response
Sensitivity (1 W/1 m)
Nominal Impedance
Power Handling
Maximum SPL
Dispersion
Driver Configuration
Crossover
Connectors
Dimensions (Y>/ x H x D)
Weight
Rigging and Hardware

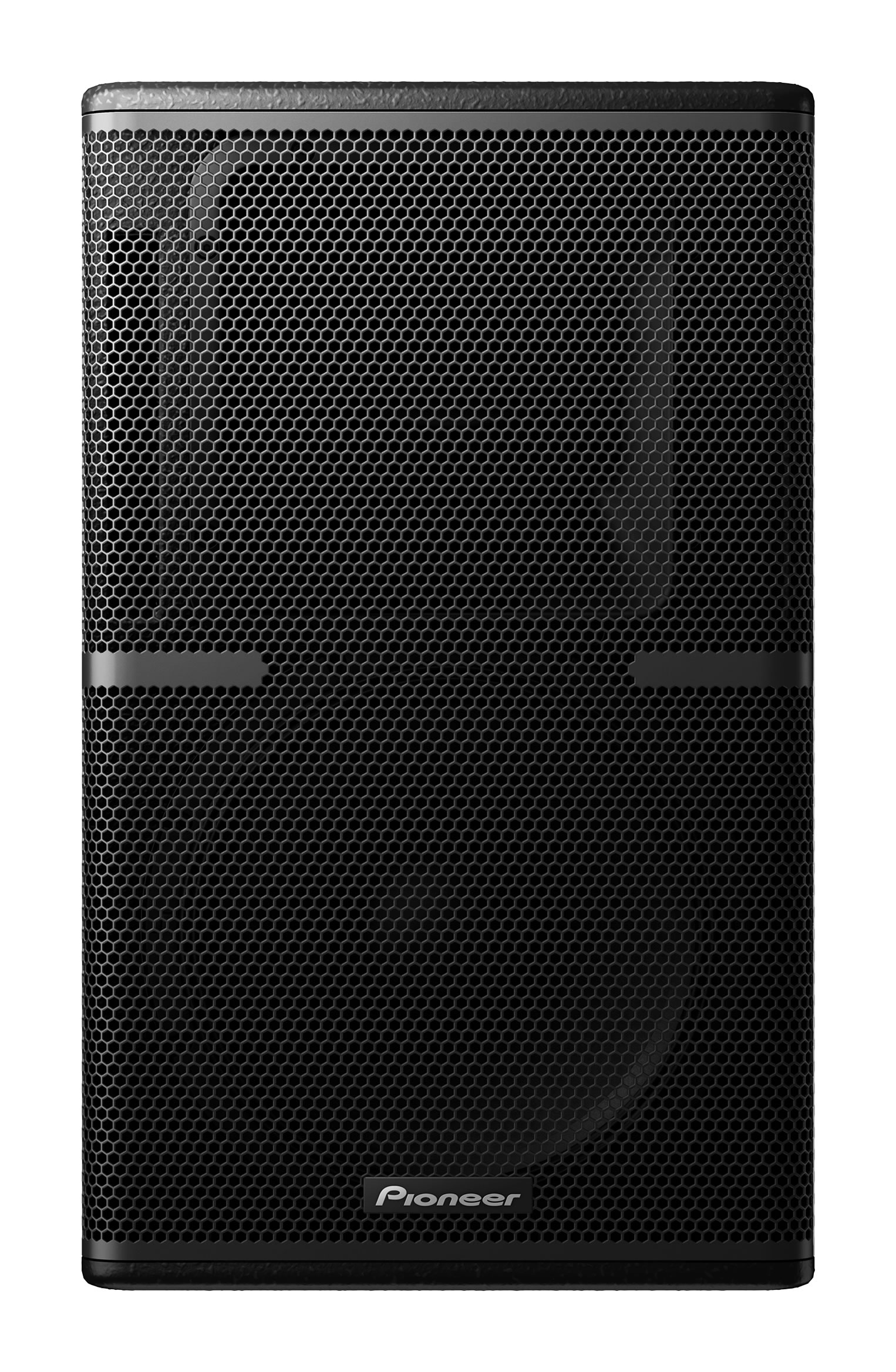

Grille
Enclosure
Finish
Suggested Power Amplifier
Accessories
Two-way passive, reflex-loaded
70 Hz to 20 kHz
101 dB
SQ
400 W RMS, 800 W Program
127 dB cont., 133 dB peak
90 °H x 60 °V, Rotatable
12 inch (320 mm) neodymium LF cone driver,
1.4 inch (36 mm)exit neodymium HF compression driver
Asymmetric internal passive crossover
2 x Neutrik SpeakON™ NL4
380 mm x 622 mm x 360 mm
(15 inch x 24.5 inch x 14.2 inch)
23 kg
(50.7 lb)
8 x M1O threaded mounting points (4 top/4 bottom),
2 x M10 threaded mounting points on rear,
4 x M10 threaded mounting points on side (2 lefV2 right),
4 x MB threaded points on rear (for wall mount bracket),
1 x flush handle on rear,
1 x 35 mm polemount socket
Hex punched steel
15 mm (0.6 inch) birch plywood
Impact-resistant, Black semi-matt textured
Recommended : K3DSP
Minimum : M30DHDSP
polemount socket cover
(-W model only)
