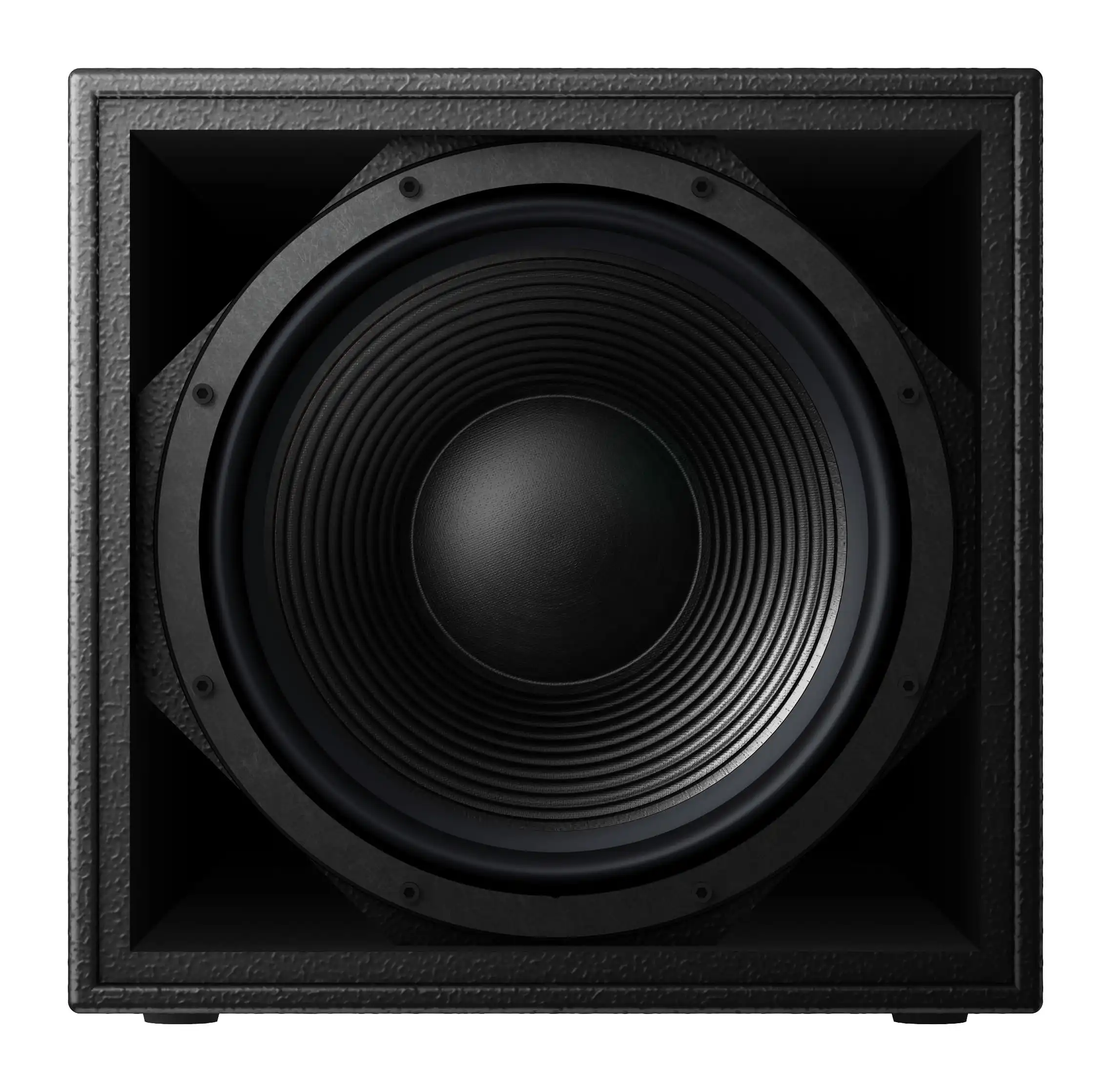

• High-power subwoofer with an 15-inch, low-frequency driver.
• Capable of reproducing deep bass as low as 45 Hz without distortion.
• Strong pillars installed in the cabinet ensure rigidity against the most powerful bass.
• Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-122,XY-101 and XY-81).

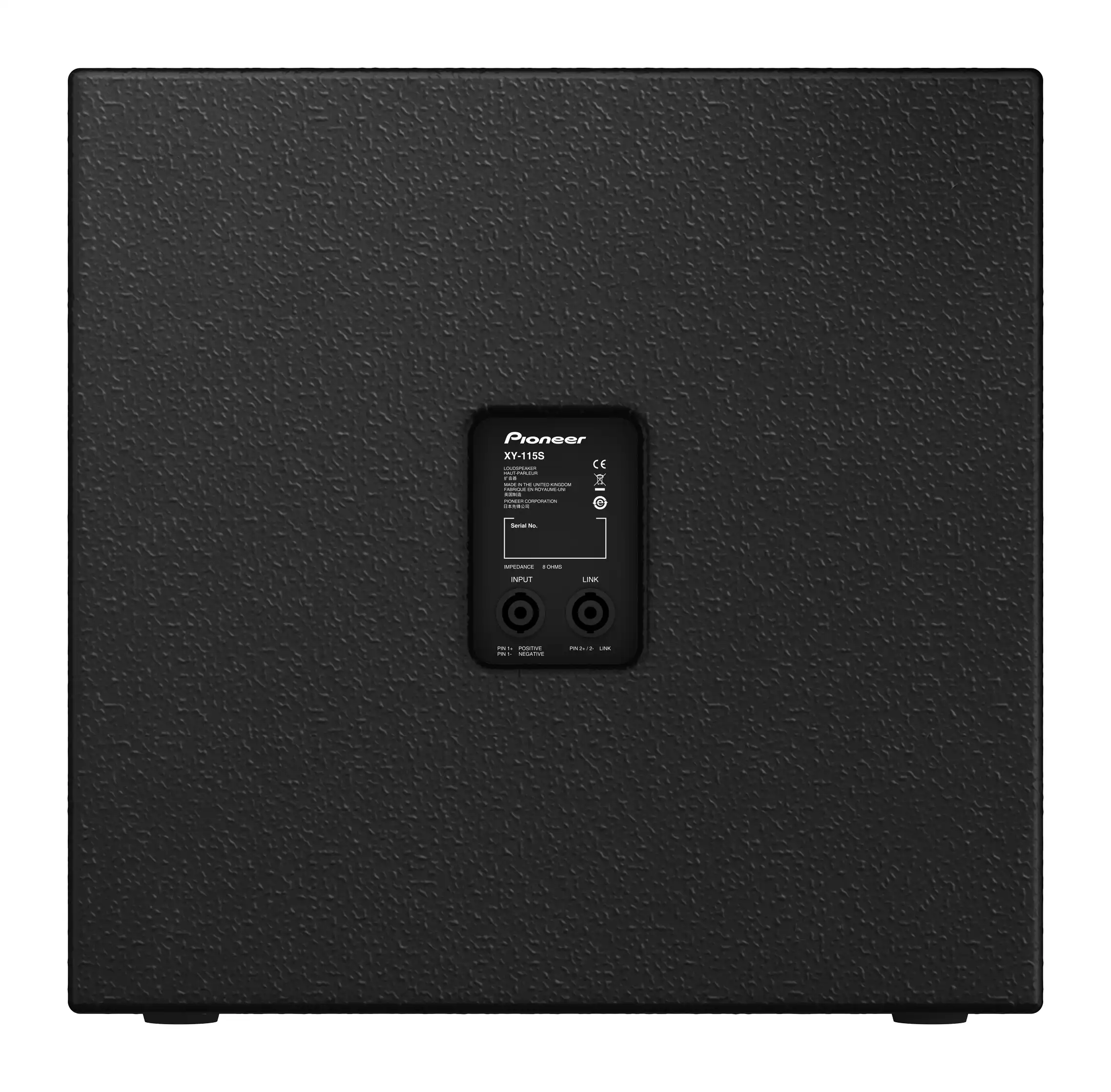

• NL4 INPUT and LINK OUT connections as standard.
• Pole mount for quick set-up with other Pioneer products.
• Robust enclosure made from premium multi-laminate birch plywood.

Hardware

Enclosure                               Type  Single driver, reflex-loaded subwoofer

Rigging and Hardware           2 × flush handles (1 left/1 right),
                                               1 × M20 polemount socket for mid/high enclosures,
                                               4 × rubber feet (bottom) and 4 ×mating recesses (top)

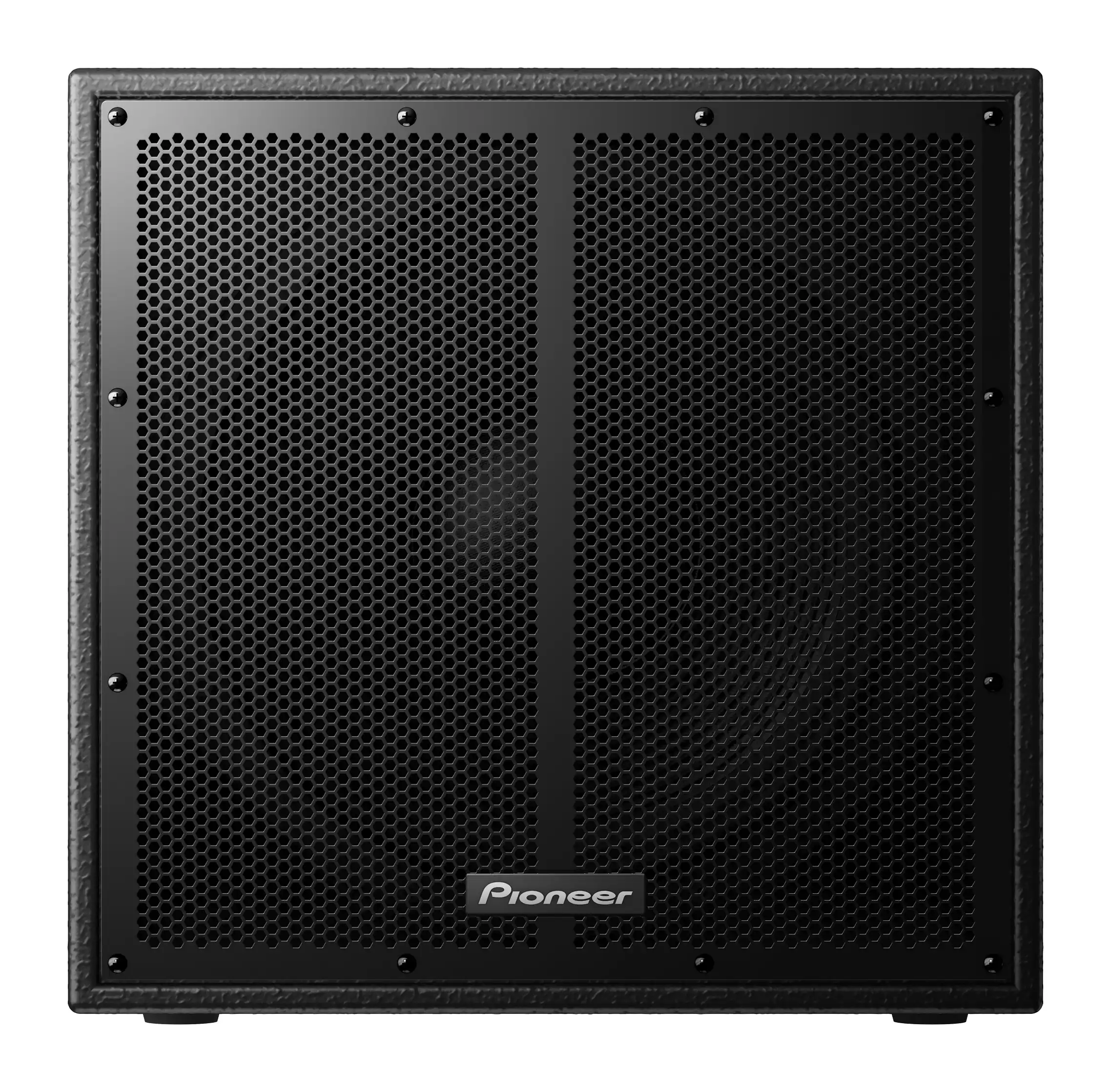

Grille                                      Hex punched steel

Enclosure                               15 mm (0.6-inch) birch plywood

Finish                                     Impact-resistant, Black semi-matt textured

System data

Frequency response               45 Hz to 150 Hz

Sensitivity (1W/1m)              96 dB (half space)

Nominal Impedance              8 Ω

Loudspeaker data

Power Handling                    700 W RMS, 1400 W Program

Power Handling AES            124 dB cont., 130 dB peak (half space)

Transformer taps                   15 inch (380 mm) neodymium LF cone driver

Dispersion                             2 × Neutrik SpeakON™ NL4

Dimensions / Weight

Dimensions ( W x H x D)     472 × 466 × 510 mm
                                              (18.6 × 18.3 × 20.1 inch)

Weight                                  30 kg (66.1 lbs)

Other

Suggested Power Amplifier  K3DSP

Accessories                           polemount socket cover
                                              (-W model only)
