Exterior Wash Pro M QUAD
Engineered for harsh conditions and creativity, Exterior Wash Pro M QUAD provides a logical, user-friendly and versatile lighting solution designed to illuminate medium sized structures and building facades. Featuring external micro lenses and an optional baffle snoot, this fixture provides configurable beam control. The Exterior Wash Pro M QUAD features unparalleled color performance. The factory color calibration ensures superior color consistency and provides a dedicated color temperature control channel spanning from 1000K to 12,500K, precisely following the black-body curve. The integrated color boost technology encompassing smart ratio between LED capacity and PSU capacity results in saturated and mixed colors up to three times brighter than previous models. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.
Features
Logic family of four sizes and lumen packages (S, M, L, XL)
Compact and slim design
Superior color consistency based on factory calibration
Color boost for bright saturated and mixed colors
Dedicated color temperature control channel

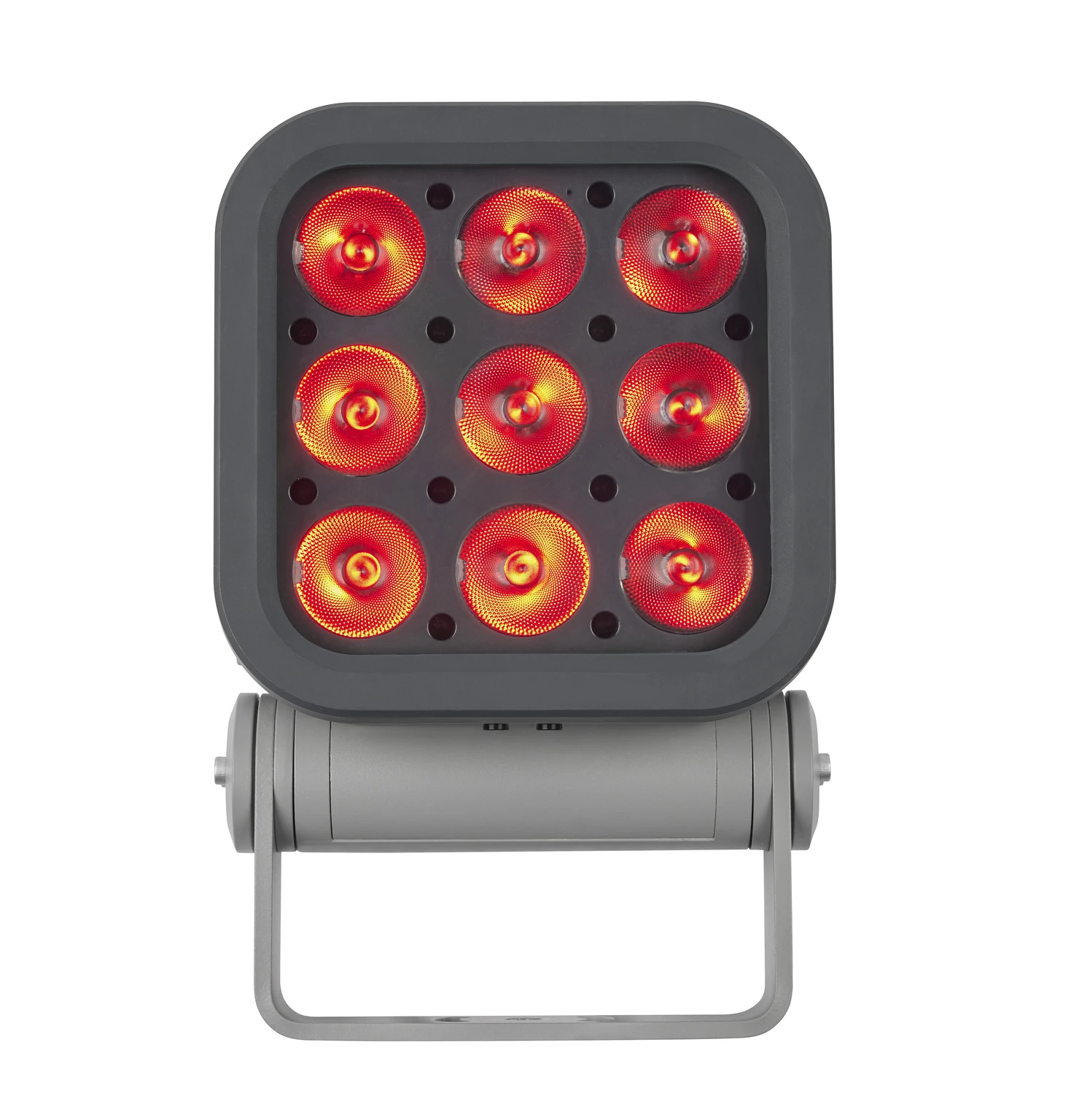

Narrow beam-angle using high-power RGBW LEDs

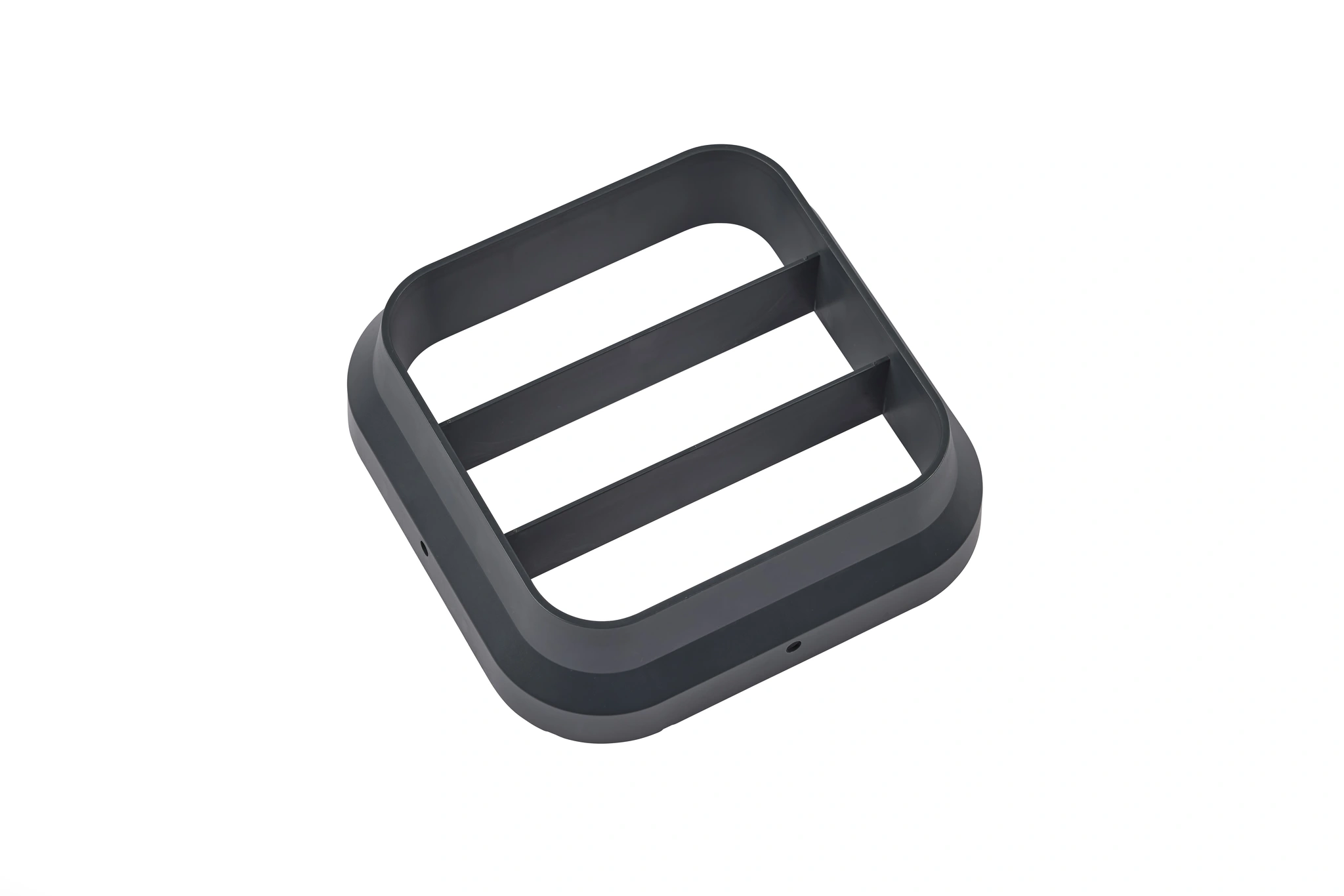

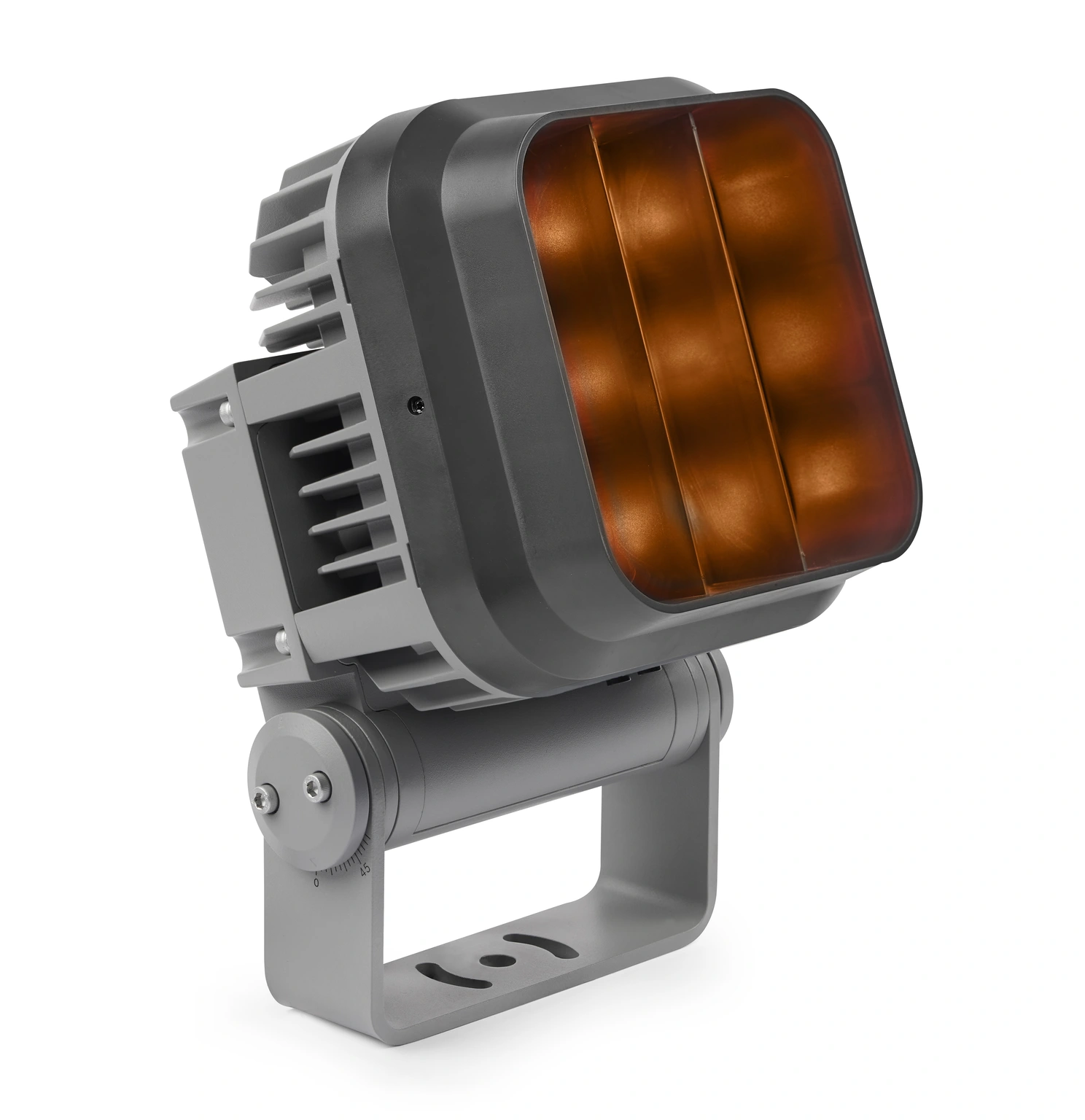

Optional baffle snoot
Externally mounted micro lens diffusers
RDM and DMX control
Local diagnostics and focusing via magnetic sensor
Power and DMX IN/OUT pre-mounted cables
Optional Hybrid IN/Out cable solution
Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
Shipped in FSC certified carboard packaging
5-year warranty
Specifications
Physical
Length: 152 mm (5.98 inch.)
Width: 201 mm (7.91 in.)
Height: 303 mm (11.93 in.)
Weight: 7.3 kg (16.1 lbs)
Dynamic Effects
Intensity: 0 - 100 %
Color mixing: RGB + CTC (Color Temperature Control)
Color temperature control: 1000 K - 12500K in 50K steps
Control and Programming
Control systems: DMX, RDM
User interface: Magnetic sensor for local diagnostics and focusing
Stand-alone control: Up to 20 scenes with individual fade/hold times
Control resolution: 8-bit DMX control of each color
Dimmer Resolution: 16-bit DMX control of intensity
DMX channels: 6/3/7/4 (Standard/Basic/Extended/Raw)
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
DMX/RDM Transceiver: Galvanic-isolated RS-485
Firmware update: Serial upload via DMX link
Optics

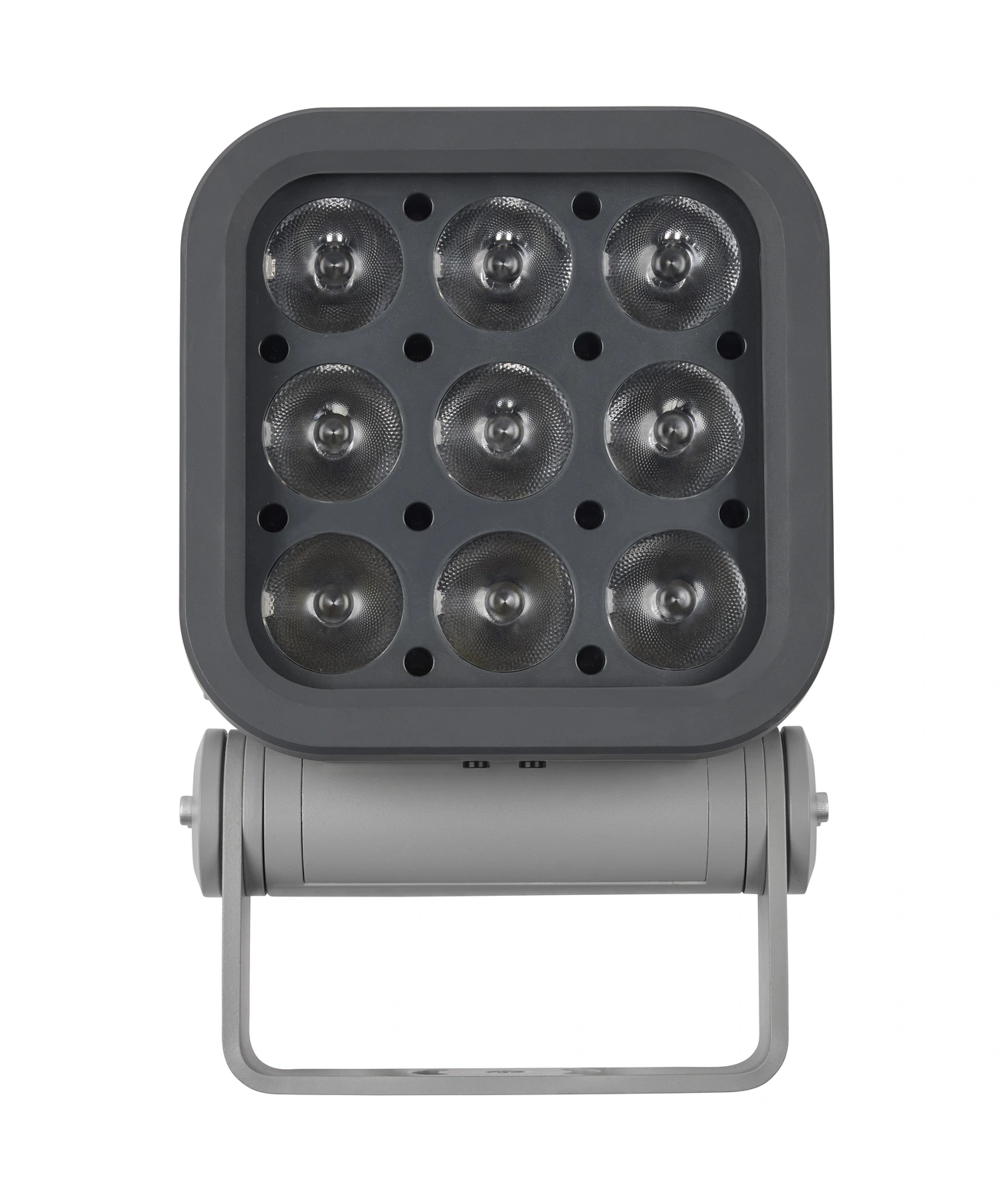

Light source: 9 x high-power RGBW LEDs
Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
LED manufacturer: Osram
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
*Figure obtained under manufacturer's test conditions at Ta = 25° C.
Beam Angle Options
Native beam angle: 8°
Narrow micro lens: 10°
Medium micro lens: 16°
Wide micro lens: 30°
Very Wide micro lens: 54°
Asymmetric micro lens: 9° x 56°
Photometric Data
CRI (Color Rendering Index) : > 70
CCT: 1000K - 12500K (Default 4000K)
LUMINOUS OUTPUT*
Full: 3700 lm
Red: 1260 lm
Green: 2490 lm
Blue: 940 lm
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.

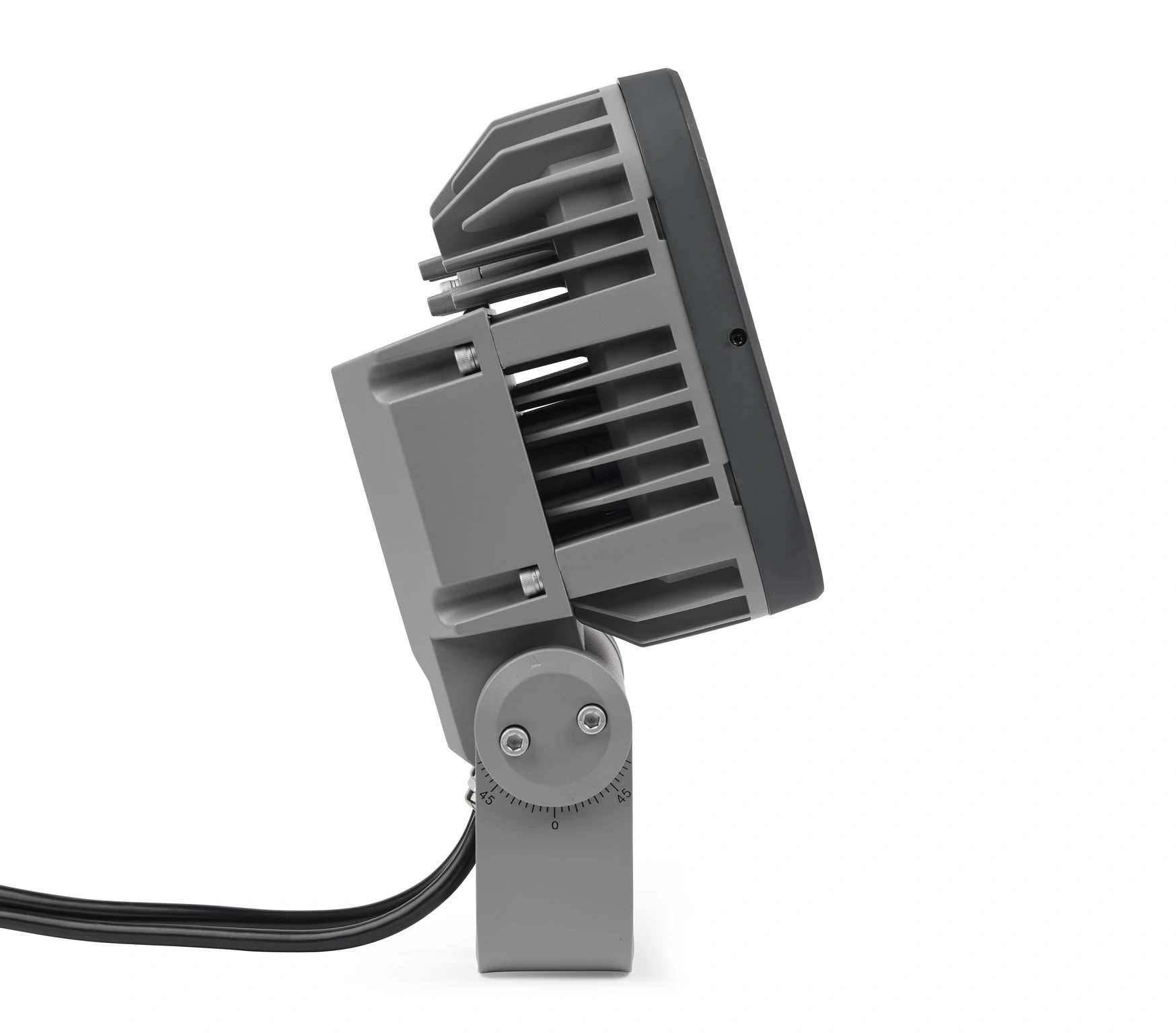

Construction
Housing: Cast Aluminum
Color: Traffic grey RAL 7042 or Traffic white RAL 9016 - other colors available on request
Surface treatment: Anodized and electrostatic powder-coated
Protection rating: IP66
Effective Projected Area (EPA): 0.056 m² / 0.072 m²
Impact resistance: IK08
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Mounting: Adjustable bracket
Orientation: Any
Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
Connections
Power connection: 2 m (6.5 ft.) cable tail open ended
Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE
Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
Data connection: 2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
Hybrid power/data cables (in & thru) 8-pin custom connectors available on request
Electrical
AC power: 100 - 240 / 277 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current: 12 A
Surge protection: 4 KV
Max earth leakage: 0.5 mA
Power factor: 0.99 @110 V / 120 V, 0.94 @208 V / 230V, 0.90 @277 V
Max current draw: 0.75 A @100 V, 0.62 A @120 V, 0.33 A @230 V, 0.27 A @ 277 V
Power Consumption
Maximum: 75 W (reduced mode 60W)*
Idle: 2.5 W*
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity
Thermal
Cooling: Convection
Maximum ambient temperature: 45° C (113° F)*
Minimum ambient temperature: -30° C (-22° F)**
Total heat dissipation (calculated, +/- 10%): 256 BTU/hr
*Above this temperature, the fixture regulates output to protect from overheating.
**Power must be maintained below -20° C (-4° F)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Packaging: FSC certified cardboard inlay and outer box
Efficacy (max output): 49 lm/W
LWR*: 507 lm/kg (230 lm/lb)*
*LWR = Lumen-to-Weight Ratio
