Features

Logic family of four sizes and lumen packages (S, M, L, XL)
Compact and slim design
Extended color temperature control from 2400K - 6500K
More than 60 lm/W efficacy
Narrow beam-angle using high-power LEDs

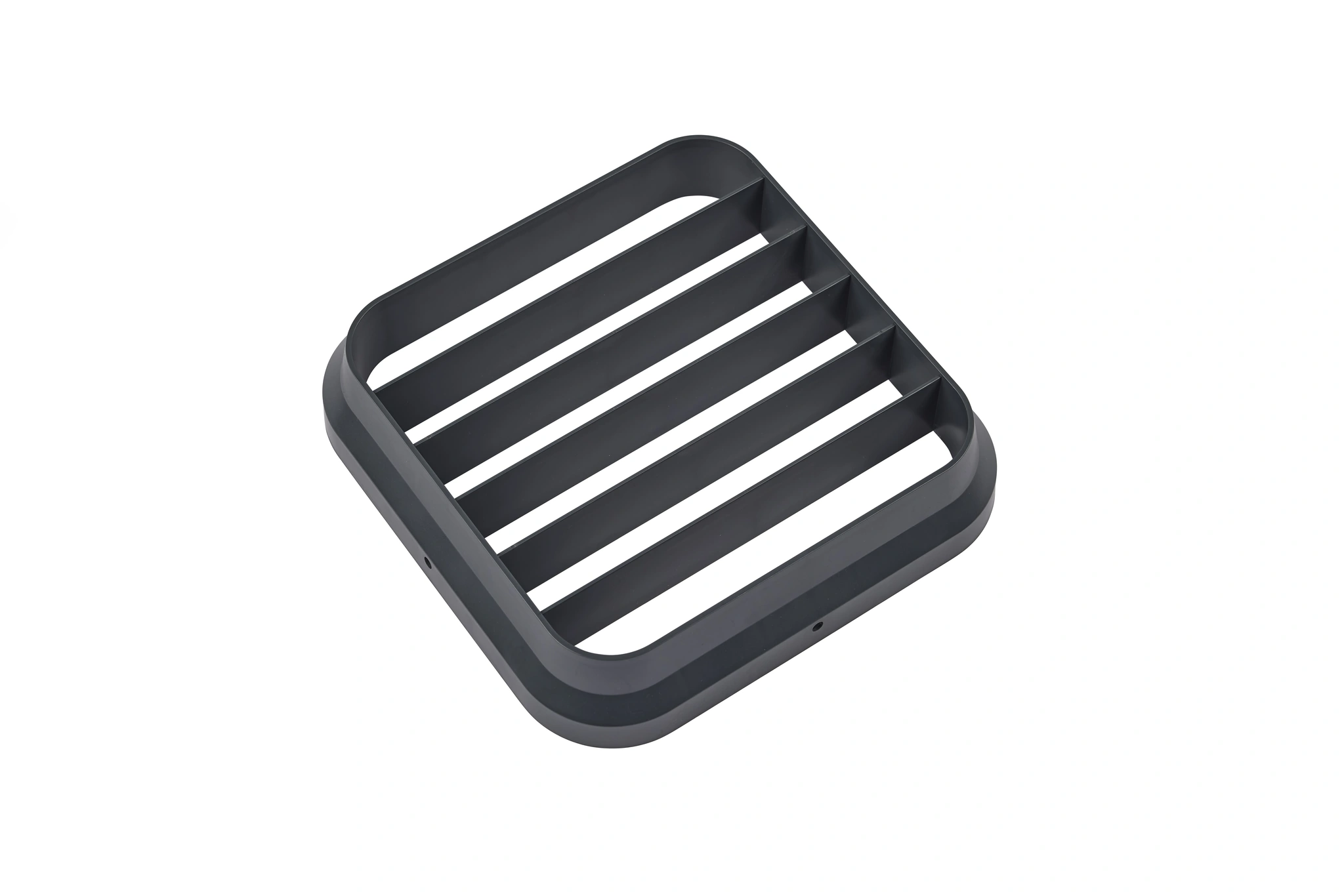

Optional baffle snoot
Externally mounted micro lens diffusers
RDM and DMX control

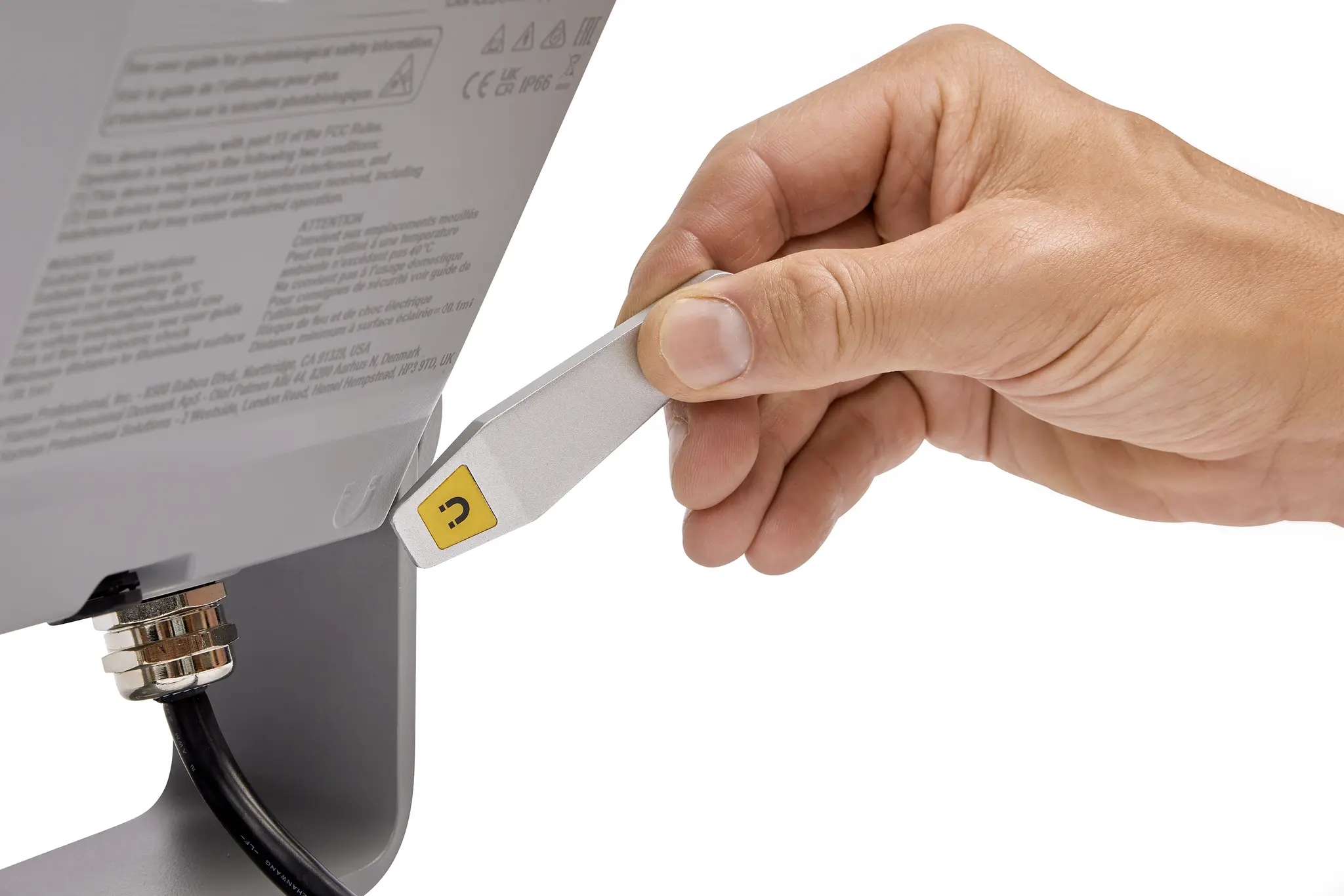

Local diagnostics and focusing via magnetic sensor

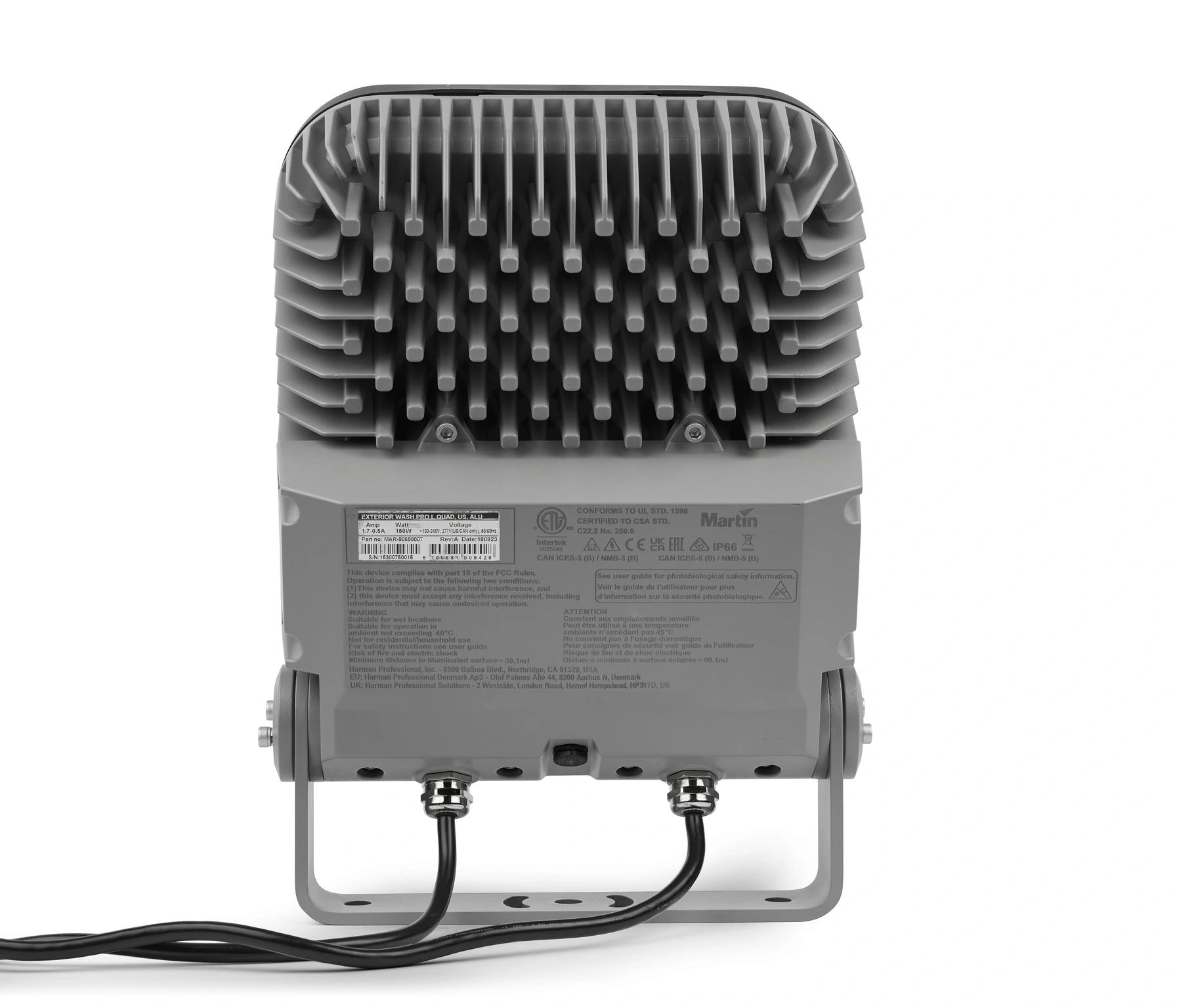

Power and DMX In/Out pre-mounted cables
Optional Hybrid In/Out cable solution
Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
5-year warranty

Specifications

Physical
Length: 165 mm (6.49 inch)
Width: 275 mm (10.83 inch.)
Height: 370 mm (14.57 inch.)
Weight: 12.4 kg (27.3 lbs)
Dynamic Effects
Intensity: 0 - 100 %
Color temperature control: 2400K - 6500K
Control and Programming
Control systems: DMX, RDM
User interface: Magnetic sensor for local diagnostics and focusing
Stand-alone control: Up to 20 scenes with individual fade/hold times
Control resolution: 8-bit DMX control of each color
Dimmer Resolution: 16-bit DMX control of intensity
DMX channels: 3/3 (Standard/Basic)
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
DMX/RDM Transceiver: Galvanic-isolated RS-485
Firmware update: Serial upload via DMX link
Optics

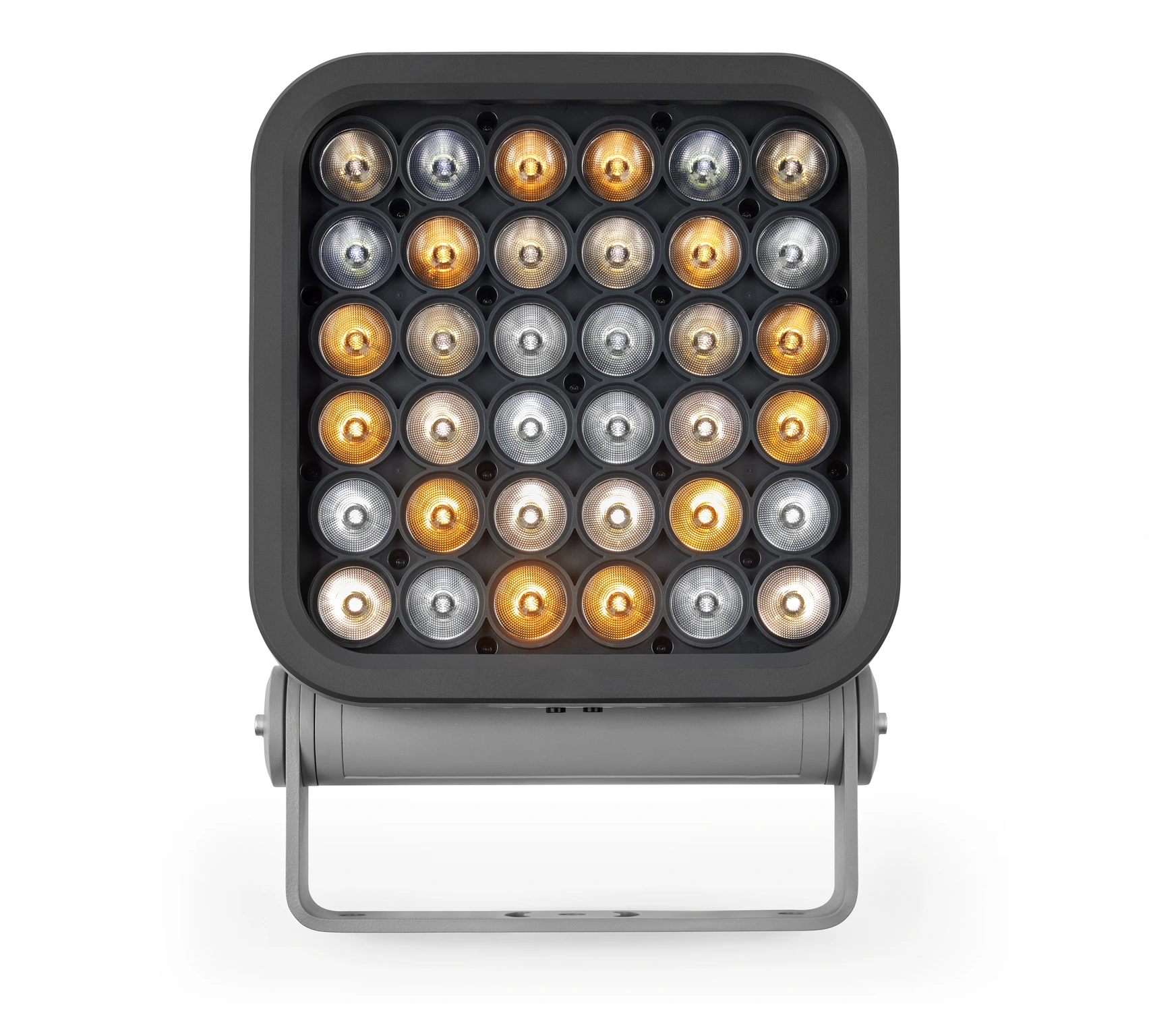

Light source: 12 x 2400K, 12 x 4000K, 12 x 6500K white color LEDs
Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
LED manufacturer: Cree
Binning: Tight color and flux binning
*Figure obtained under manufacturer's test conditions at Ta = 25° C.
Beam Angle Options
Native beam angle: 7°
Narrow micro lens: 9°
Medium micro lens: 15°
Wide micro lens: 30°
Very Wide micro lens: 50°
Asymmetric micro lens: 8° x 60°
Photometric Data
CRI (Color Rendering Index) : > 70
CCT: 2400K - 6500K (default 4000K)
LUMINOUS OUTPUT*
2400K: 4900 lm
4000K: 10500 lm
6500K: 7500 lm
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.
Construction
Housing: Cast Aluminum
Color: Traffic grey RAL 7042 - other colors available on request
Surface treatment: Anodized and electrostatic powder-coated
Protection rating: IP66
Effective Projected Area (EPA): 0.097 m² / 0.120 m²
Impact resistance: IK08
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Mounting: Adjustable bracket
Orientation: Any
Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
Connections
Power connection: 2 m (6.5 ft.) cable tail open ended
Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE
Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
Data connection: 2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
Hybrid power/data cables (in & thru) 8-pin custom connectors available on request
Electrical
AC power: 100 - 240 / 277 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current: 13 A
Surge protection: 4 KV
Max earth leakage: 0.5 mA
Power factor: 0.99 @ 110 V / 120 V, 0.95 @ 208 V / 230V, 0.92 @ 277 V
Max current draw: 1.50 A @ 100 V, 1.25 A @ 120 V, 0.65 A @ 230 V, 0.54 A @ 277 V
Power Consumption
Maximum: 150 W (reduced mode 120W)*
Idle: 3.5 W*
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity

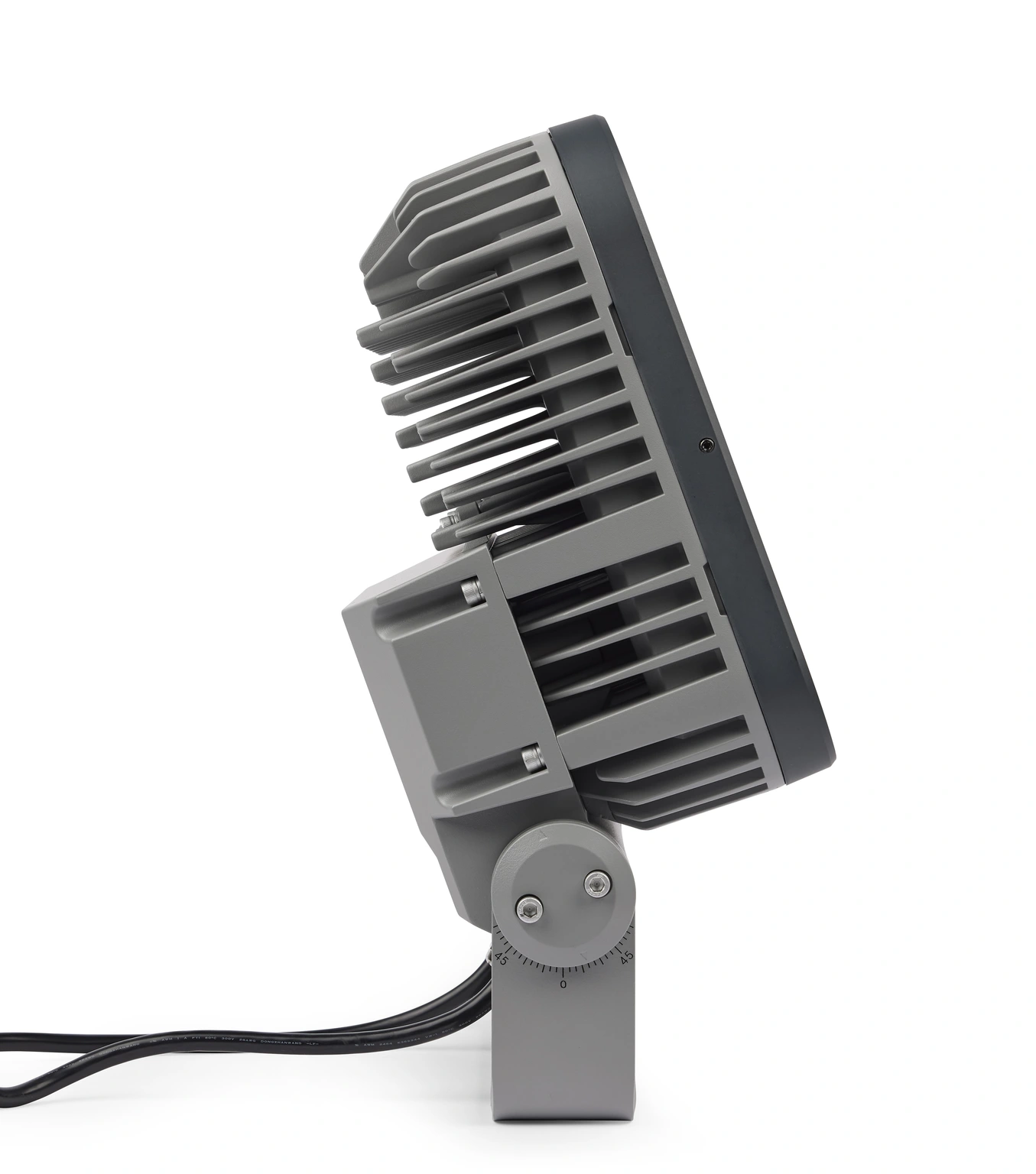

Thermal
Cooling: Convection
Maximum ambient temperature: 45° C (113° F)*
Minimum ambient temperature: -30° C (-22° F)**
Total heat dissipation (calculated, +/- 10%): 512 BTU/hr
*Above this temperature, the fixture regulates output to protect from overheating.
**Power must be maintained below -20° C (-4° F)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Packaging: FSC certified cardboard inlay and outer box
Efficacy (max output): 71 lm/W
LWR*: 847 lm/kg (385 lm/lb)*
*LWR = Lumen-to-Weight Ratio
