Martin Exterior Dot-1 Pro
Garantujemo najnižu cenu!
The Martin Exterior Dot-1 Pro is a lightweight string of individually-controllable RGBW-based Dots, useful in creating customized LED video solutions with maximum artistic flexibility and minimal effort. Each Exterior Dot is color- and brightness-calibrated for superior visual consistency across the entire installation. Exterior Dot-1 Pro is controllable via Martin P3 System Controllers or any sACN or Art-Net-based controller.
It is the perfect solution for integrating LED video technology into façades, landmarks, architectural elements or any other structure, indoors or out. Exterior Dot-1 Pro strings are fully configurable in terms of number of dots, pixel pitch, and length of lead-in cable for perfect integration into architectural elements.
Mapping video onto Exterior Dots is quick and intuitive via the P3 System Controller, eliminating the need for complex setups and time-consuming addressing. Each Exterior Dot-1 Pro includes one RGBW LED with a total luminous intensity of 5 candela.
Unifying unparalleled performance, adaptability, and intuitive operation, the Exterior Dot Pro family doesn’t just enable lighting designers and professionals to surpass the limitations of traditional systems, it inspires them to redefine the boundaries of creative video design.
Physical

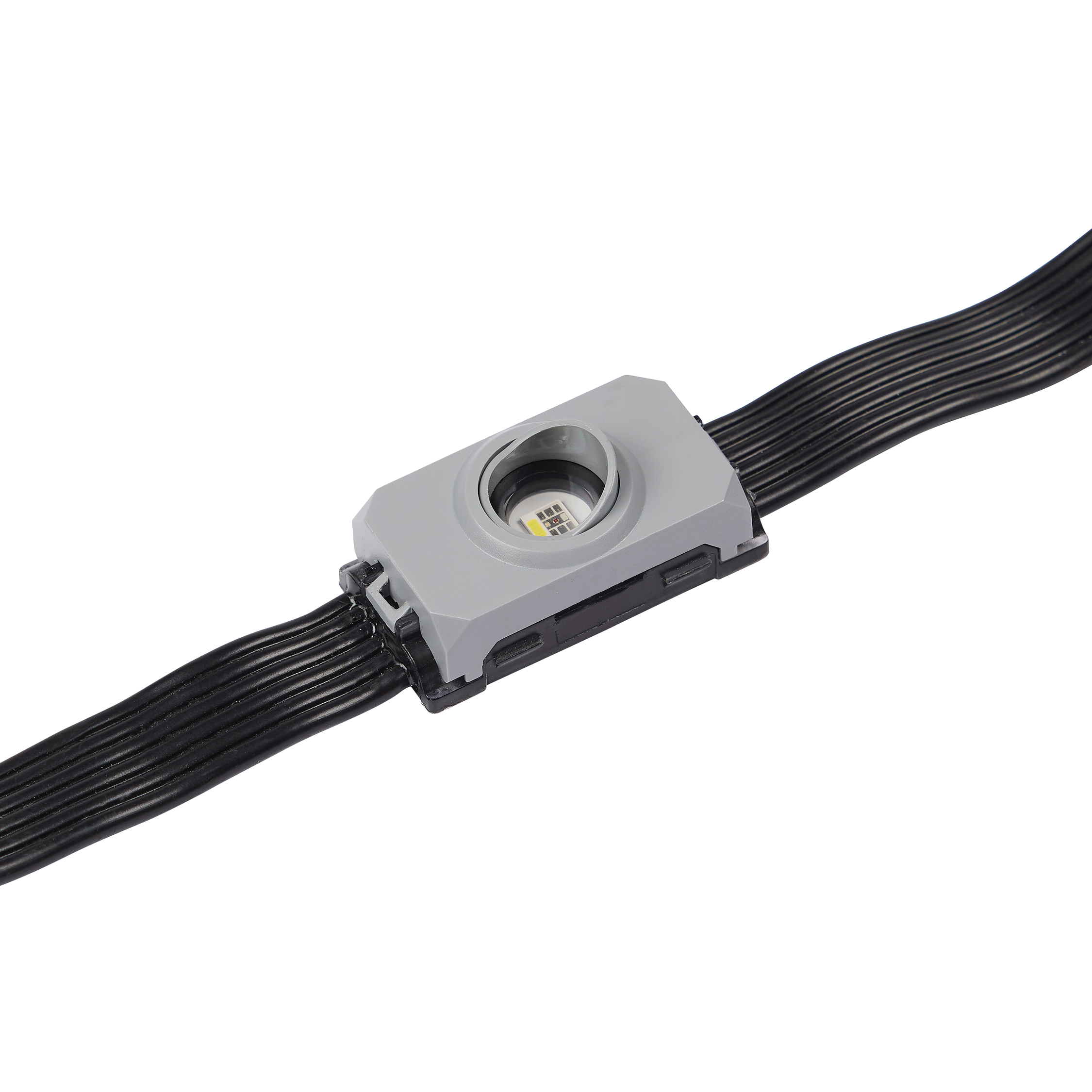

Pixel dimensions: 45 x 24.8 x 11.2 mm (1.77 x 0.98 x 0.44 in.)

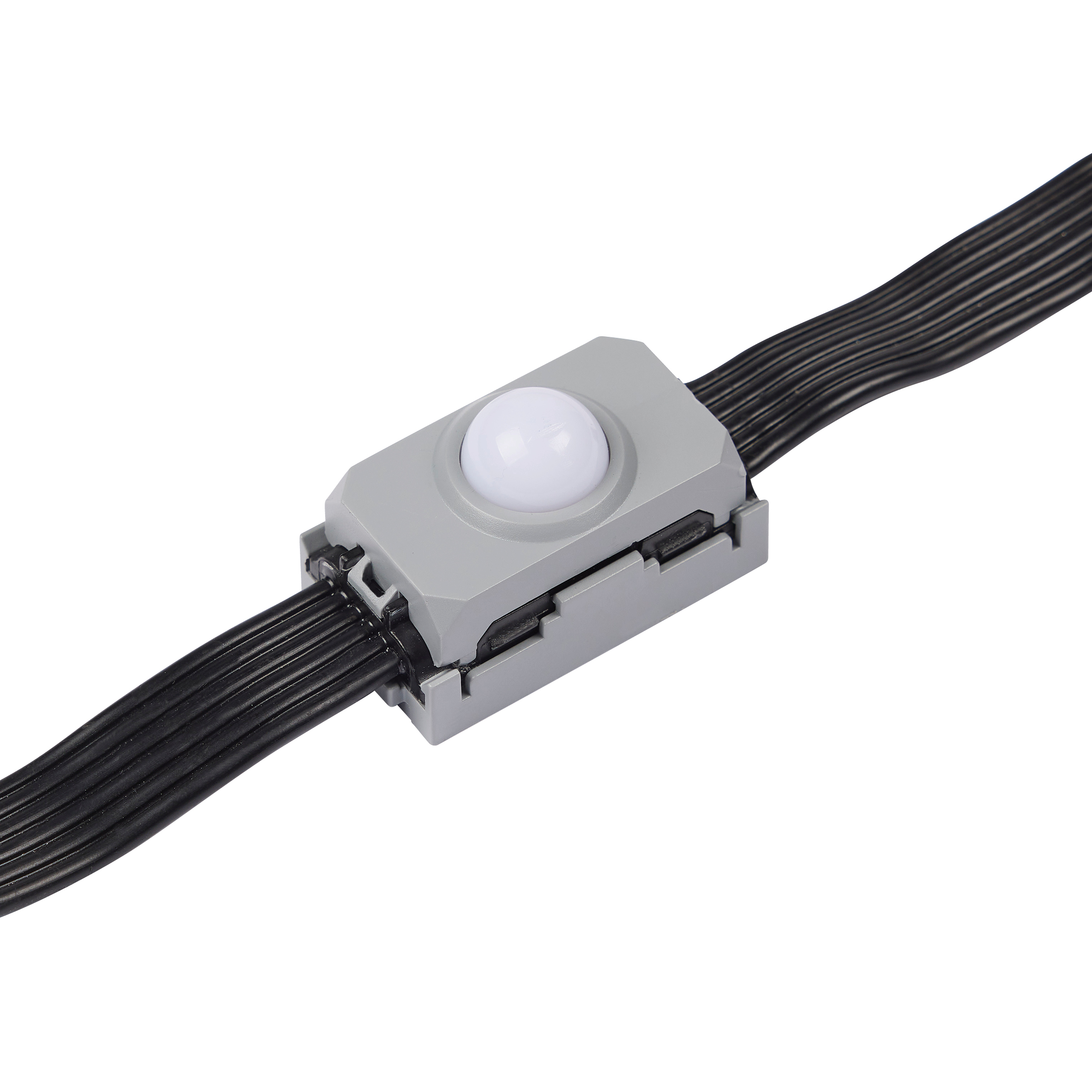

Pixel dimensions with dome: 45 mm x 25 mm x 22.2 mm (1.77 x 0.98 x 0.87 in.)

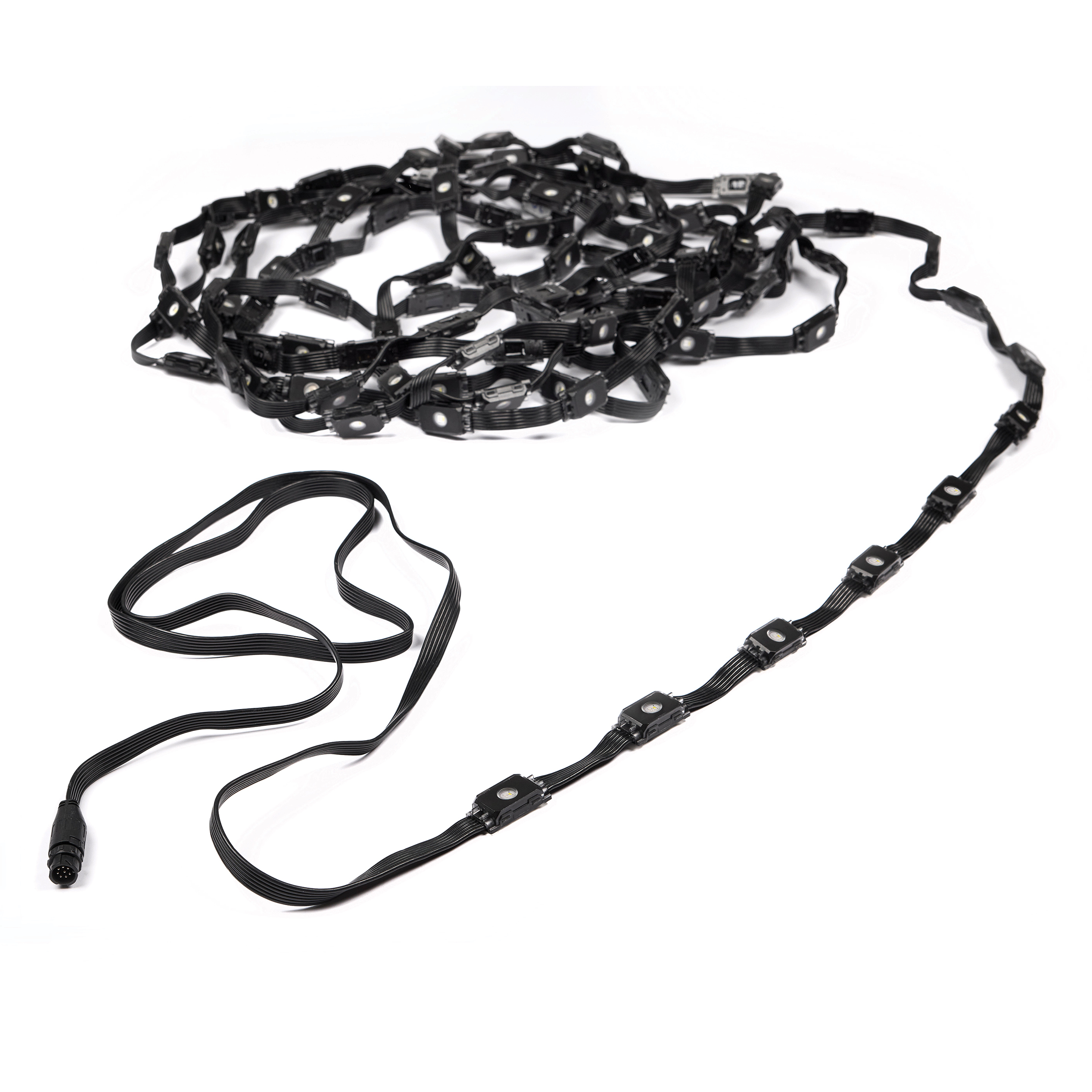

Weight: 2.48 kg (5.47 lbs.) for 100 Dots, 115 mm (4.52 in.) spacing, with 2 m (6.6 ft.) lead- in cable and connector
Maximum number of pixels per string: 100
Standard pixel spacing (pitch): 115 mm (4.52 in.)
Minimum pixel spacing (pitch): 115 mm (4.52 in.)
Maximum pixel spacing (pitch): 2000 mm (48.8 in.)
Maximum lead-in cable length: 5 m (196.9 in.)
**Up to 10 m using Active Lead-In Cable Extender
Control and Programming
Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
Control Protocols: Martin P3, Art-Net or sACN
Protocol detection: Automatic
DMX Modes: Standard, Extended, Raw, PixelMap (6 pixel modes)
DMX channels: 6, 12, 4, 3, 21, 39 ,75, 150, 300
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2016
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Optics
Light source: 1 RGBW LED
Minimum LED lifetime: 100,000 hours (to >70% luminous output) *
LED manufacturer: Lumileds
Binning: Tight color and flux binning
Calibration: Full Gamut Pixel Calibration
*Figure obtained under manufacturer's test conditions at Ta = 25° C
Photometric Data
Viewing angle: 140°
Viewing angle with dome: 180°
Cut-off angle: 100°
LUMINOUS INTENSITY
Full@6500K: 5 cd (clear front), 2 cd (diffused dome)
LUMINOUS OUTPUT*
Full@6500K: 15 lm (clear front), 9 lm (diffused dome)
Red: 6 lm (clear front), 4 lm (diffused dome)
Green: 17 lm (clear front), 10 lm (diffused dome)
Blue: 3 lm (clear front), 3 lm (diffused dome)
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Dot: Clear polycarbonate, black silicone filled
Diffuser dome: White translucent polycarbonate
Interconnecting cable: 6 x 20 AWG, black
Minimum cable bend radius: 15 mm (0.59 in.)
Protection rating: IP67
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Mounting points: Mounting bracket, mounting profile, four integrated mounting holes for cable ties
Orientation: Any
Connections
Power & data input to string from Feeder: Custom 8-pin connector, IP67-rated.
Electrical
Power and data converter: Exterior AC-Feeder or Exterior DC- Feeder
Operating voltage: 15 VDC
Power Consumption
Maximum: 1.0 W per Dot
Typical: 0.33 W per Dot
Idle: 0 W per Dot
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity Max at full intensity, full white, Typical at video content, Idle at zero intensity
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 55° C (131° F)
Minimum ambient temperature (Ta min.): -30° C (-22° F)
Peak heat dissipation (calculated, at full intensity, full white): 3.4 BTU/hr.
Typical heat dissipation (calculated, with typical video content): 1.4 BTU/hr*
*Figures for typical video content are indicative only and will vary.
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 15 lm/W
LWR = Lumen-to-Weight Ratio: 604 lm/kg (274 lm/lb))
Packaging: FSC certified cardboard inlay and outer packaging
Approvals
Global CB Certification/IECEE: EC 62368-1
EU safety: EN62638-1
EU EMC: EN 55032, EN55035, EN 61000-3-2, EN 61000-3-3
US safety: UL 62638-1
US EMC: 47 CFR Part 15 Class A
Canadian safety: CSA C22.2 No. 60238-1
Australia/NZ: RCM
United Kingdom: UKCA
India: BIS IS 10322 (Part5/section7)
Accessories
Glare kit Dot-1 Pro, grey, set of 10: P/N MAR-90580005
Glare kit Dot-1 Pro, black, set of 10: P/N MAR-90580029
Dome kit Dot-1 Pro, grey, set of 10: P/N MAR-90580011
Dome kit Dot-1 Pro, black, set of 10: P/N MAR-90580014
Mnt bracket Dot-1 Pro, grey, set of 10: P/N MAR-90580008
Mnt bracket Dot-1 Pro, black, set of 10: P/N MAR-90580032

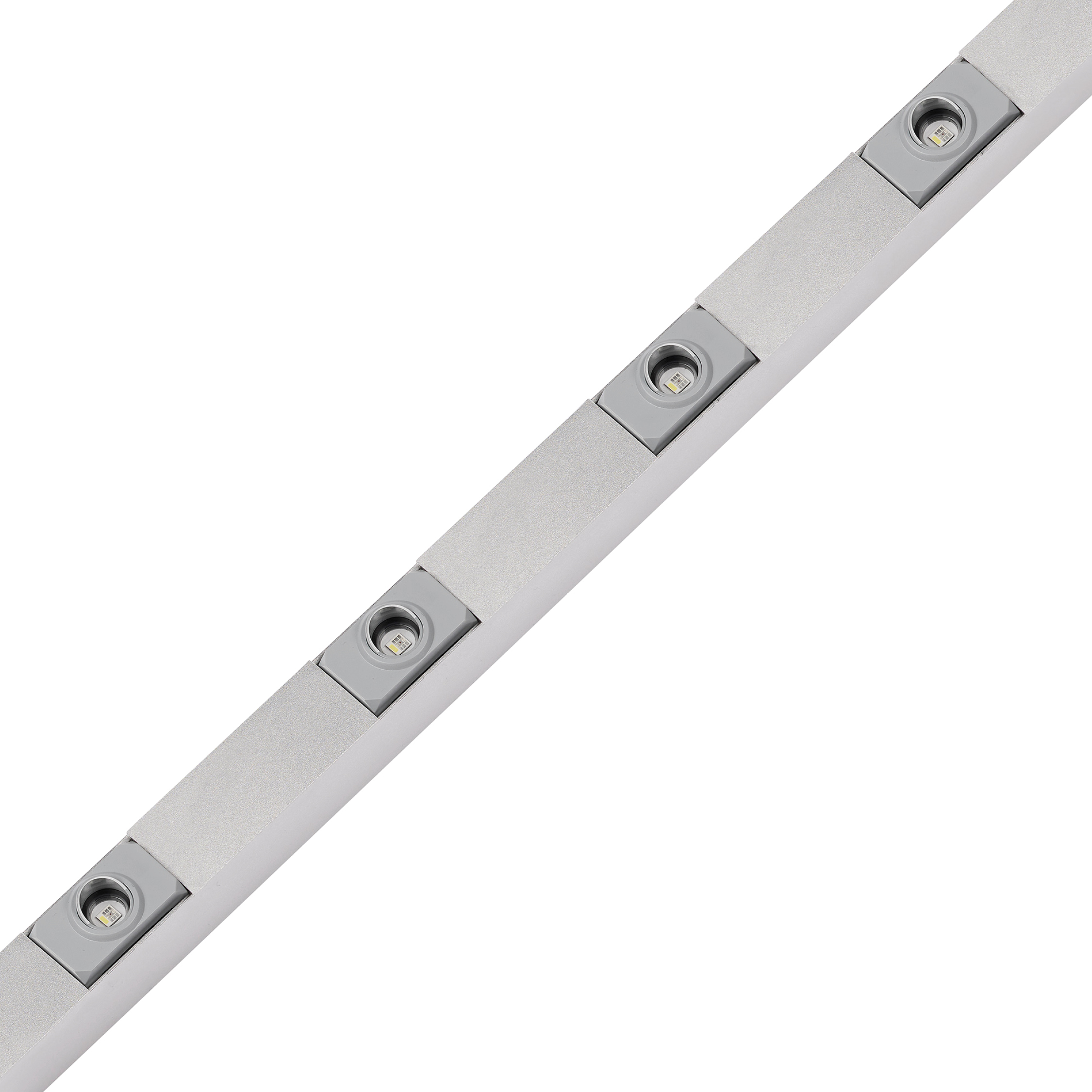

Mounting profile Dot-1 Pro, 2 meter: P/N MAR-90580017
End cap mounting profile Dot-1 Pro, set of 2: P/N MAR-90580026
Splice connector – set of 10: P/N MAR-90580020
String termination cap – set of 10: P/N MAR-90580021
Loose ribbon cable (10 meter): P/N MAR-90580022
Active Lead-In Cable Extender (5 meter): P/N MAR-90580023
Double string cable adapter: P/N MAR-90580024
