Features

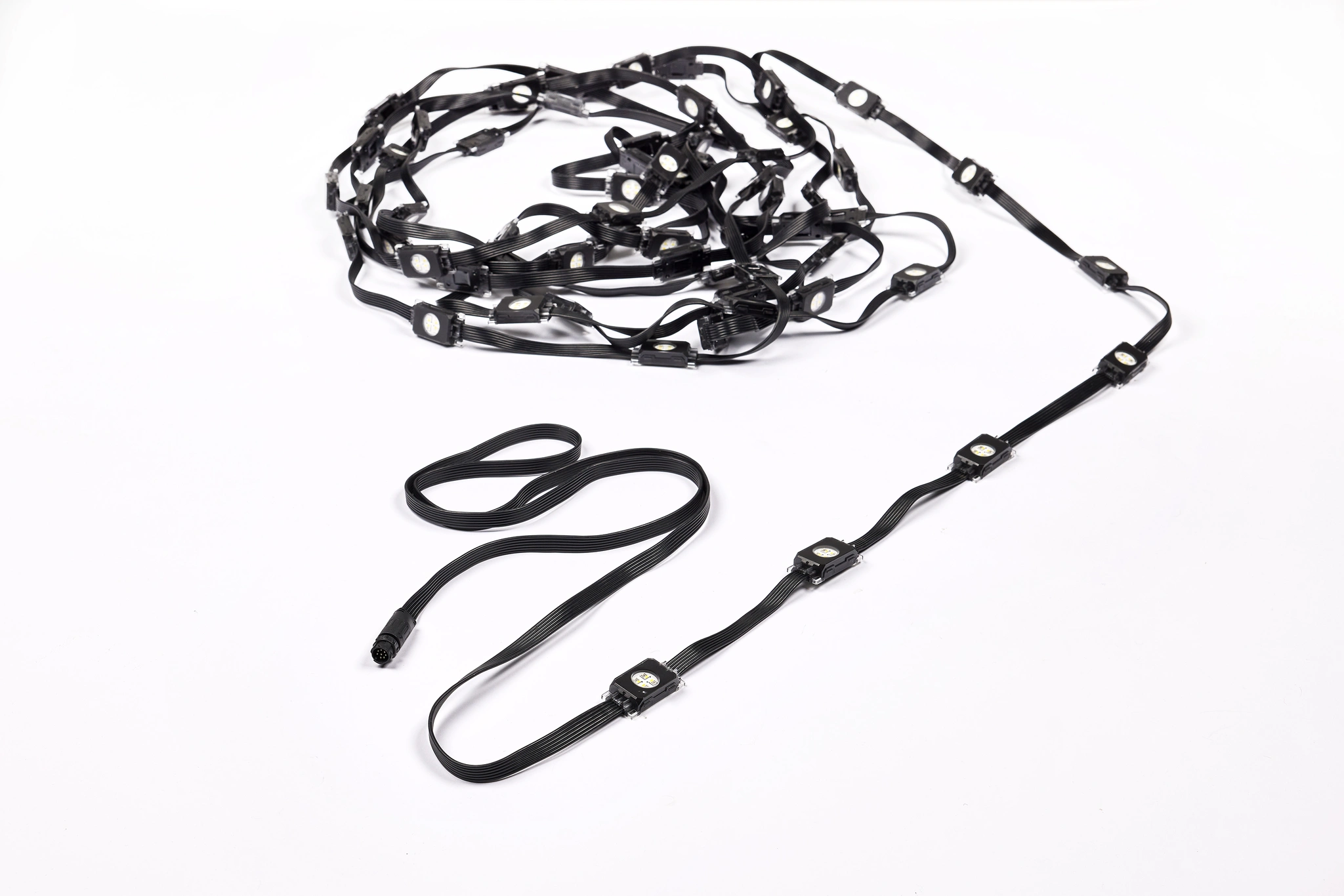

Flexible, string-based, direct-view LED lighting
Powered via Exterior AC-Feeder or Exterior DC-Feeder
Fully-weatherized housing (IP67, IK08 and C-5 High corrosion rating)
Martin P3/Art-Net/sACN compatible (automatic protocol detection)
Setup and Addressing via RDM over Art-Net or Martin P3
Real-time status feedback via RDM over Art-Net and Martin P3

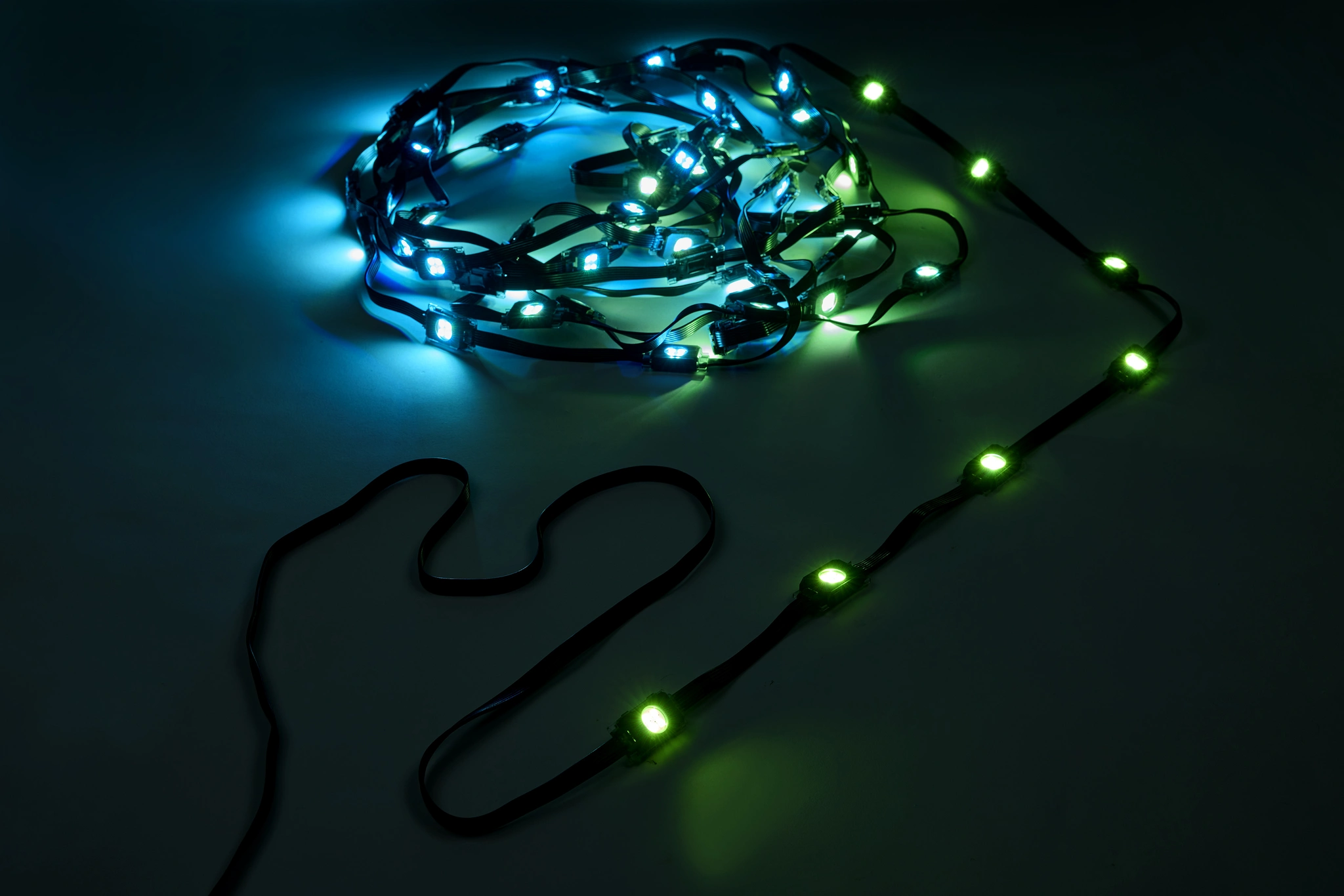

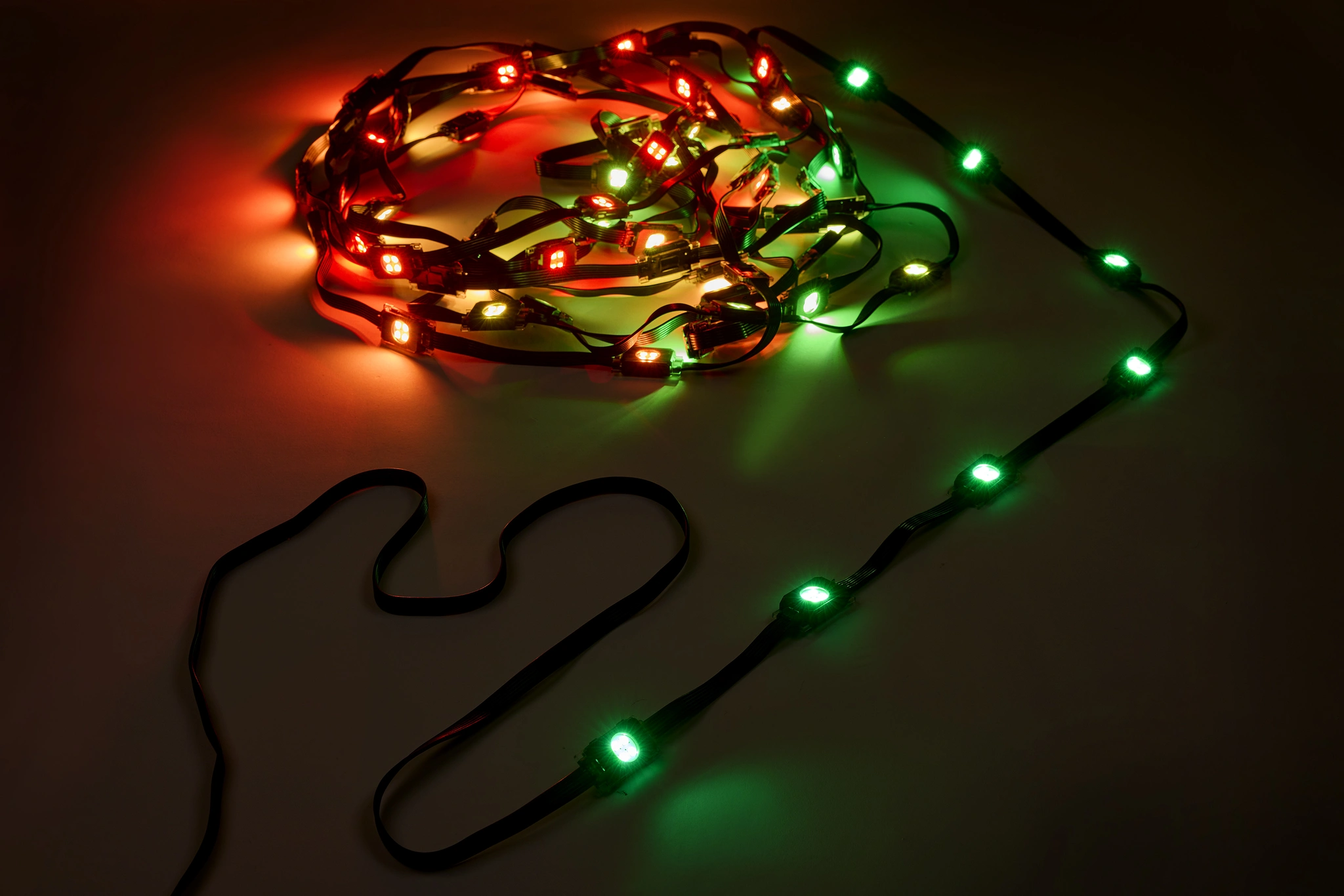

Individually-controllable RGBW Dots
Color boost for bright, saturated, and mixed colors
Dedicated color temperature control channel
In-built Effect Macros (FX) for easy creation of stunning looks
Up to 64 Dots per string
Reduced power mode for cost-effective systems
Configurable number of dots, pixel pitch, and lead-in cable length
Superior color and brightness consistency based on factory calibration
Stand-alone programming with up to 20 scenes
Intuitive mapping and addressing via P3 System Controller familyv Smart accessories such as diffused dome and glare shield
Easy and safe mounting options using brackets or profiles
Hot-pluggable string connector
Shipped in FSC-certified carboard packaging
5-year warranty

Specifications

Physical

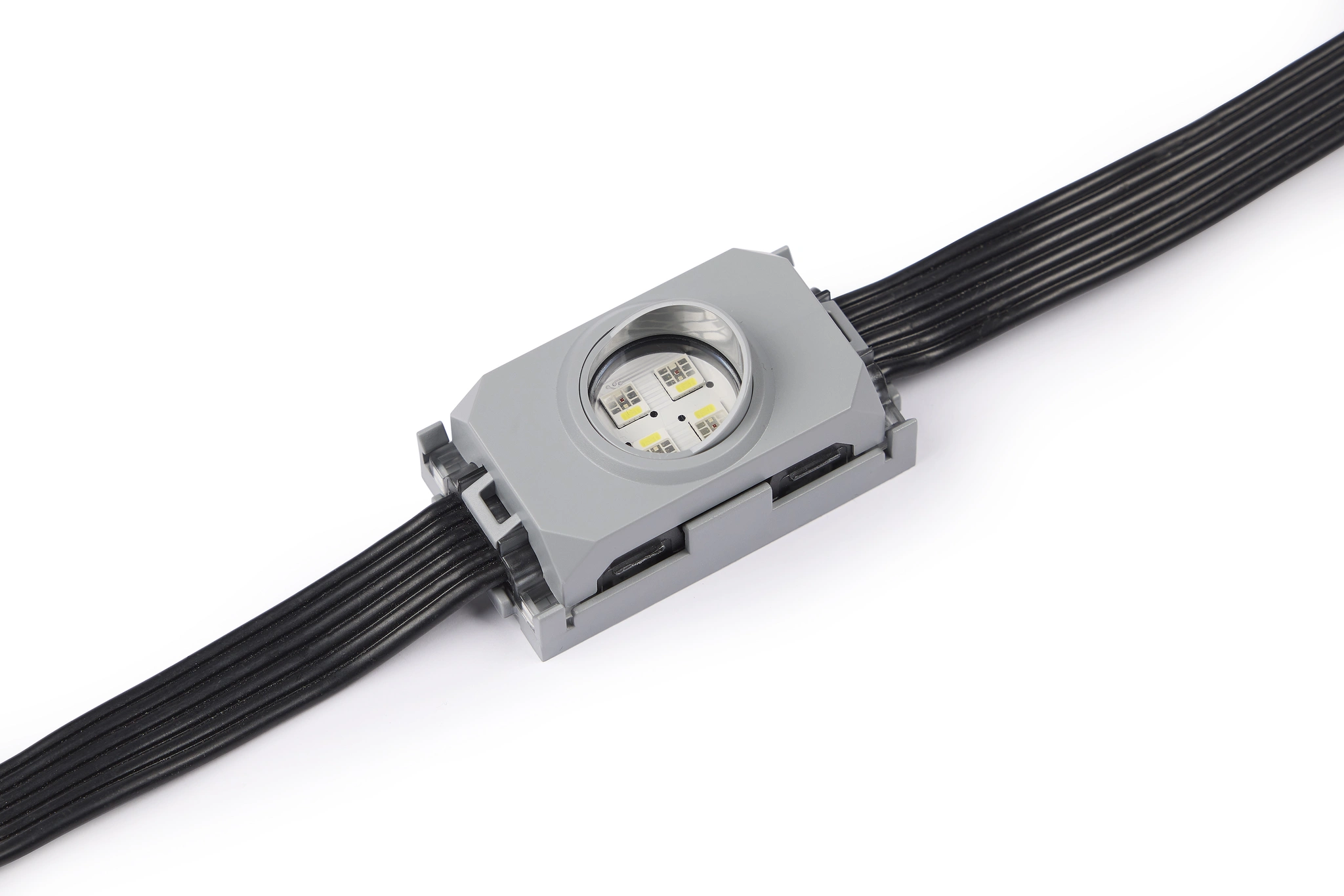

Pixel dimensions: 59 x 32.4 x 13.2 mm (2.3 x 1.27 x 0.52 in.)

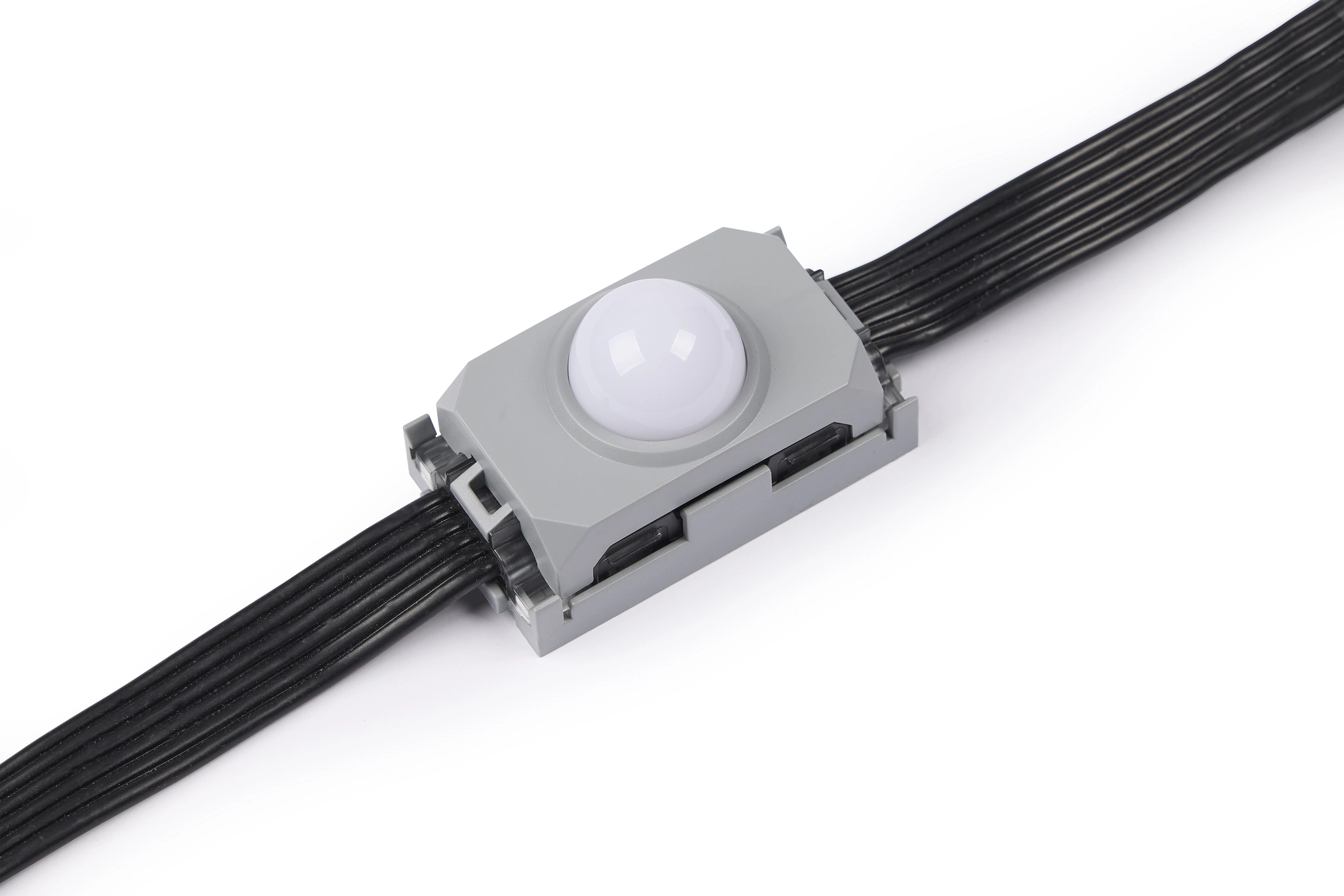

Pixel dimensions with dome: 59 mm x 28.7 mm x 28.8 mm (2.3 x 1.27 x 1.13 in.)
Weight: 2.96 kg (6.5 lbs.) for 64 Dots, 200 mm (7.87 in.) spacing, with 2 m (6.6 ft.) lead-in cable and connector
Maximum number of pixels per string: 64
Standard pixel spacing (pitch): 200 mm (8.0 in.)
Minimum pixel spacing (pitch): 155 mm (6.1 in.)
Maximum pixel spacing (pitch): 2000 mm (48.8 in.)
Maximum lead-in cable length: 5 m (196.9 in.)**
**Up to 10 m using Active Lead-In Cable Extender

Control and Programming
Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
Control Protocols: Martin P3, Art-Net or sACN
Protocol detection: Automatic
DMX Modes: Standard, Extended, Raw, PixelMap (6 pixel modes)
DMX channels: 6, 12, 4, 3, 12, 24 ,48, 96, 192
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2016
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Optics
Light source: 4 RGBW LEDs
Minimum LED lifetime: 100,000 hours (to >70% luminous output) *
LED manufacturer: Lumileds
Binning: Tight color and flux binning
Calibration: Full Gamut Pixel Calibration
*Figure obtained under manufacturer's test conditions at Ta = 25° C

Photometric Data
Viewing angle: 150°
Viewing angle with dome: 180°
Cut-off angle: 120°
LUMINOUS INTENSITY
Full@6500K: 26 cd (clear front), 5 cd (diffused dome)
LUMINOUS OUTPUT*
Full@6500K: 71 lm (clear front), 29 lm (diffused dome)
Red: 22 lm (clear front), 10 lm (diffused dome)
Green: 65 lm (clear front), 28 lm (diffused dome)
Blue: 13 lm (clear front), 5 lm (diffused dome)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Dot: Clear polycarbonate, black silicone filled
Diffuser dome: White translucent polycarbonate
Interconnecting cable: 6 x 20 AWG, black
Minimum cable bend radius: 15 mm (0.59 in.)
Protection rating: IP67
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Mounting points: Mounting bracket, mounting profile, four integrated mounting holes for cable ties
Orientation: Any
Connections
Power & data input to string from Feeder: Custom 8-pin connector, IP67-rated
Electrical
Power and data converter: Exterior AC-Feeder or Exterior DC- Feeder
Operating voltage: 15 VDC
Power Consumption
Maximum: 1.5 W per Dot
Typical: 0.5 W per Dot
Idle: 0 W per Dot
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity. Maximum at full intensity, full white. Typical at video content, Idle at zero intensity

Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 55° C (131° F)
Minimum ambient temperature (Ta min.): -30° C (-22° F)
Peak heat dissipation (calculated, at full intensity, full white): 5.1 BTU/hr.
Typical heat dissipation (calculated, with typical video content): 1.7 BTU/hr*
*Figures for typical video content are indicative only and will vary.

Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Packaging: FSC certified cardboard inlay and outer packaging
Efficacy (max output): 40 lm/W
LWR = Lumen-to-Weight Ratio: 1300 lm/kg (590 lm/lb)
