Features

Powerful, connector-based, direct-view LED lighting
Powered directly from Martin P3 PowerPort or third-party 48 VDC PSU

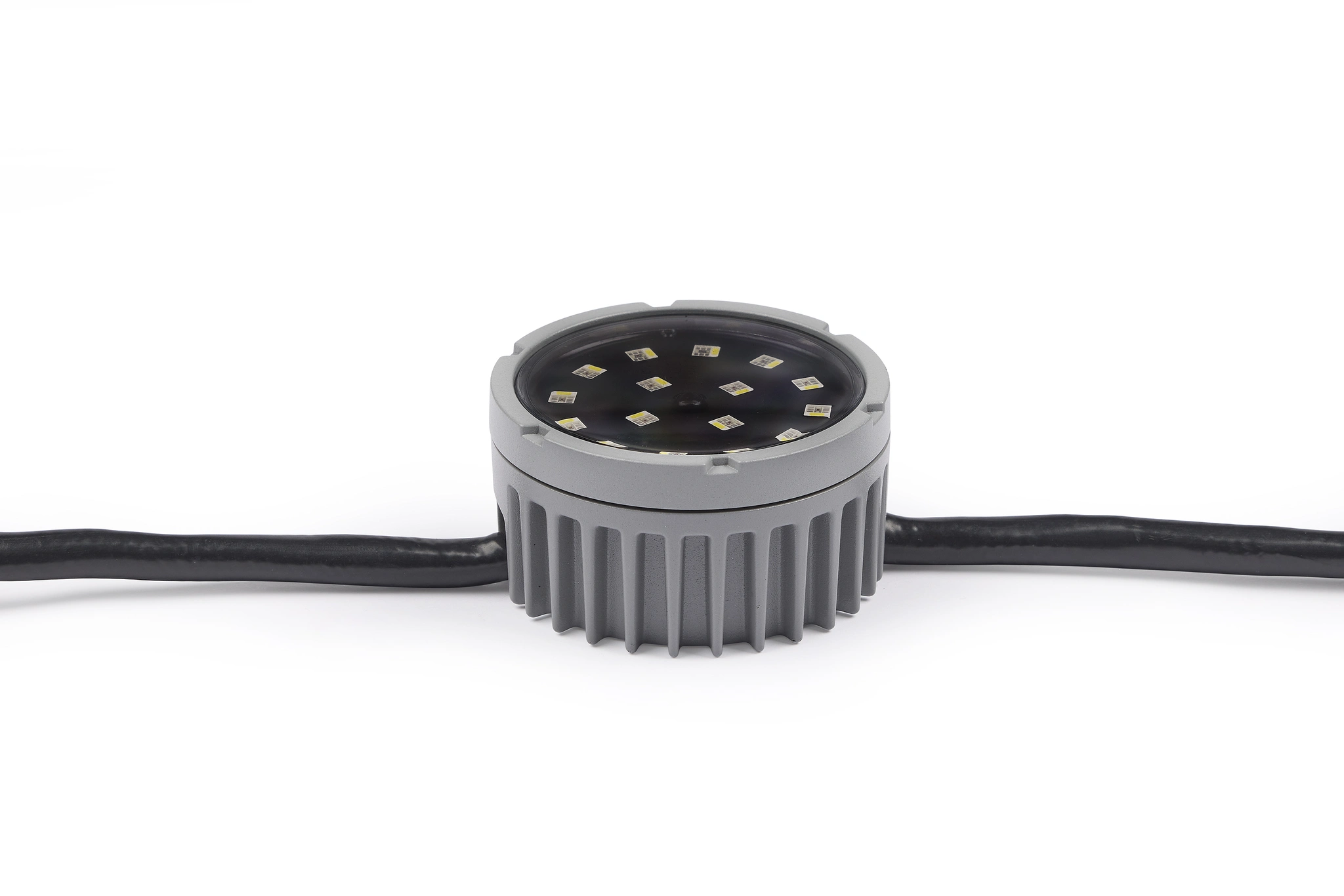

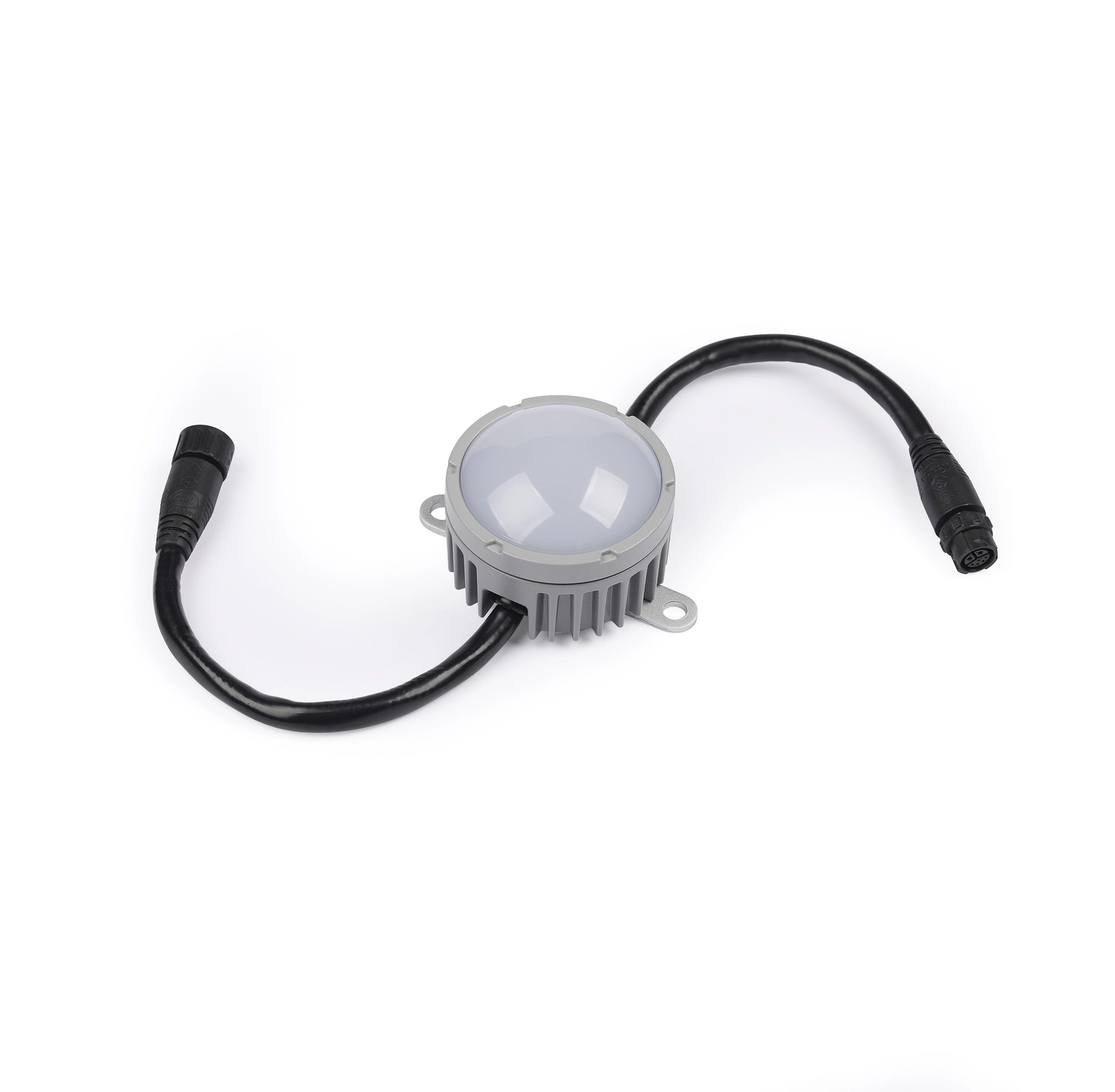

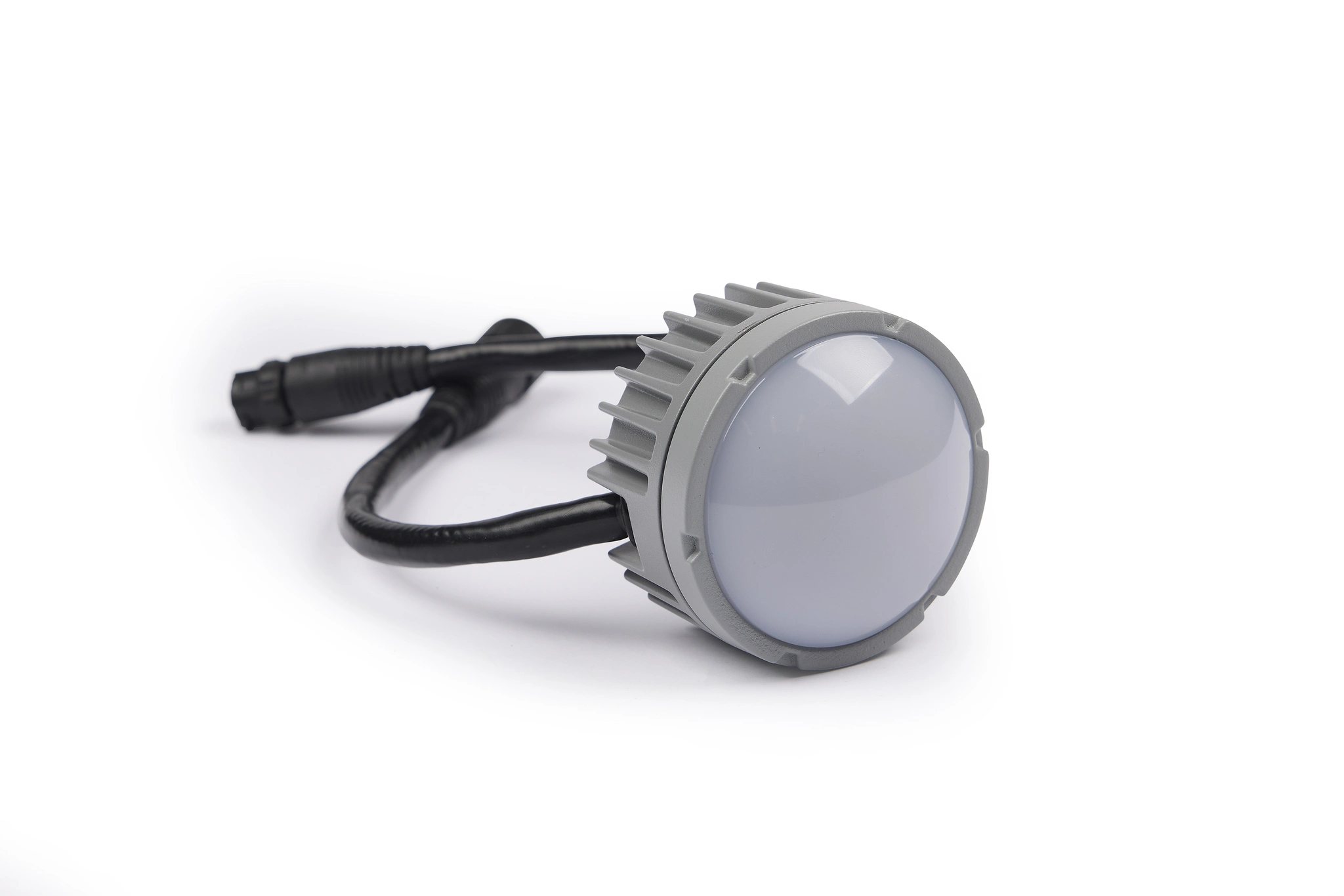

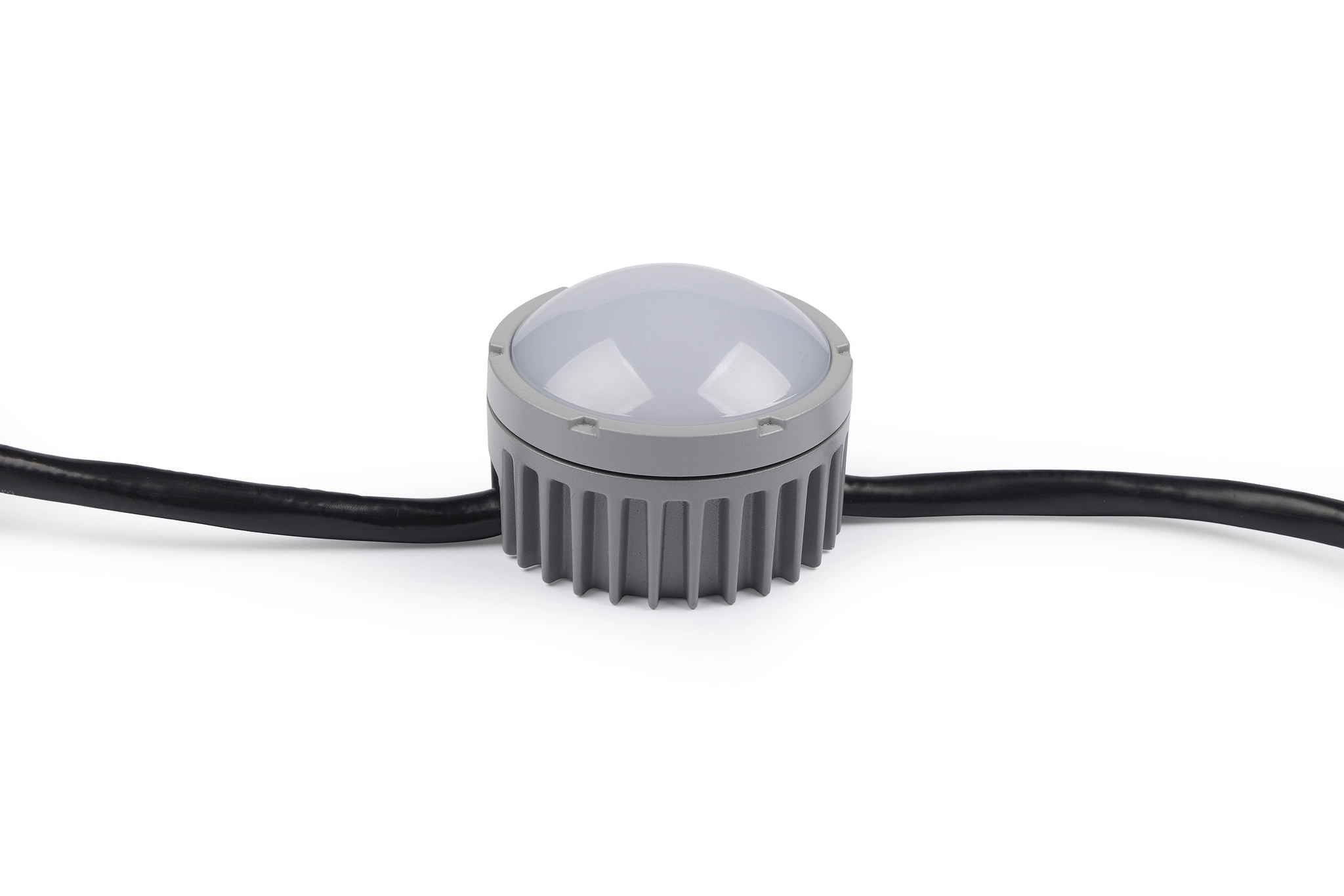

Large footprint of 78 mm diameter with clear front or diffused dome.
Perfect for façade or stage integration
Fully-weatherized housing (IP67, IK08 and C-5 High corrosion rating)
Martin P3/Art-Net/sACN compatible (automatic protocol detection)
Setup and Addressing via RDM over Art-Net or Martin P3
Real-time status feedback via RDM over Art-Net and Martin P3
Individually-controllable RGBW Dots
Color boost for bright, saturated, and mixed colors
Dedicated color temperature control channel
In-built Effect Macros (FX) for easy creation of stunning looks
Up to 68 Exterior Dot-HP Pro units can be daisy-chained
Reduced power mode for longer cable runs and fixture counts
Combined power/data input over single cable (hot-pluggable)
Superior color and brightness consistency based on factory calibration
Stand-alone programming with up to 20 scenes
Intuitive mapping and addressing via P3 System Controller family
Shipped in FSC-certified carboard packaging
5-year warranty

Specifications

Physical
Diameter: 78 mm (3.1 in.)
Weight: 395 g (0.86 lbs.)
Height with clear front: 43 mm (1.7 in.)
Height with dome front: 58 mm (2.3 in.)
Control and Programming
Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
Control Protocols: Martin P3, Art-Net or sACN
Protocol detection: Automatic
Setting and addressing: Martin P3 System controller or RDM (over Art-Net)-compliant controller
RDM: ANSI/ESTA E1.20
DMX Modes: Standard, Extended, Raw, RGB or PixelMap
DMX channels: 6, 12, 4, 3, 48
Fixture Identification: User-settable ID number
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2016
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver: 10/100Mbit
Firmware update: Via Ethernet using Martin Companion / P3 System Controller
Optics
Light source: 16 x RGBW LEDs
Minimum LED lifetime: 100,000 hours (to >70% luminous output)*
LED manufacturer: LumiLeds
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions at Ta 25°C

Photometric Data
CRI (Color Rendering Index) : > 70
Color resolution: 16 bits per color (64 bit per pixel)
Dot pitch: 78 mm - 500 mm (fixture to fixture)
Color Temperature: 2,000 – 12,000 K
Viewing angle: (clear front) 150°, (diffused dome) 180°
* Dot pitch can be extended using hybrid DCE cables.

LUMINOUS INTENSITY
Full@6500K: 90 cd (clear front), 56 cd (diffused dome)
LUMINOUS OUTPUT*
Full@6500K: 260 lm (clear front), 175 lm (diffused dome)
Red: 80 lm (clear front), 55 lm (diffused dome)
Green: 230 lm (clear front), 155 lm (diffused dome)
Blue: 60 lm (clear front), 40 lm (diffused dome)
* Dot pitch can be extended using hybrid DCE cables

** All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

Construction
Color: Traffic Grey RAL 7042 (custom colors available on request)
Surface treatment: Anodized and electrostatic powder- coated
Base: Cast aluminum
Protection rating: IP67
Effective Projected Area (EPA): 0.007 m²
Impact resistance: IK08
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Mounting points: Direct surface mount or accessory mounting plate
Orientation: Any
Connections
Input: DCE connector cable tail for Power & data input, IP67
Output: DCE connector cable tail for Power & data thru, IP67
Connection: Hot-pluggable
Max. daisy-chain (Full Mode) : 68 fixtures including 50 m cable
Max. daisy-chain (Reduced power mode): 125 fixtures including 50 m cable
* Refer to system diagram for details on fixture run limitations.

Electrical
Nominal input voltage: 48 VDC +/- 4%
Power supply options: Martin P3 PowerPort 2000, P3 PowerPort 500 IP Install, P3 PowerPort 500 IP Rental, Martin DCE PSU 240 IP or generic 48 VDC PSU
Surge protection: 4 KV
Power Consumption
Maximum: 5.7 W in full power mode, 3.2 W in reduced power mode
Idle: 1.8 W
Hibernation: 1.5 W
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: zero intensity. Hibernation: zero intensity, wake-up procedure to re-use fixture.

Thermal
Cooling: Convection
Total heat dissipation (calculated): 17 BTU/hr.
Maximum ambient temperature (Ta max.): 55° C (131° F)*
Minimum ambient temperature (Ta min.): -30° C (-22° F)
*Above 45°C, the fixture starts regulating output to protect from overheating.

Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Packaging: FSC certified cardboard inlay and outer box
Efficacy (max output): 50 lm/W
LWR = Lumen-to-Weight Ratio: 630 lm/kg (290 lm/lb)
