Martin Exterior Linear 1210
Garantujemo najnižu cenu!
Boosted output with new improved LED

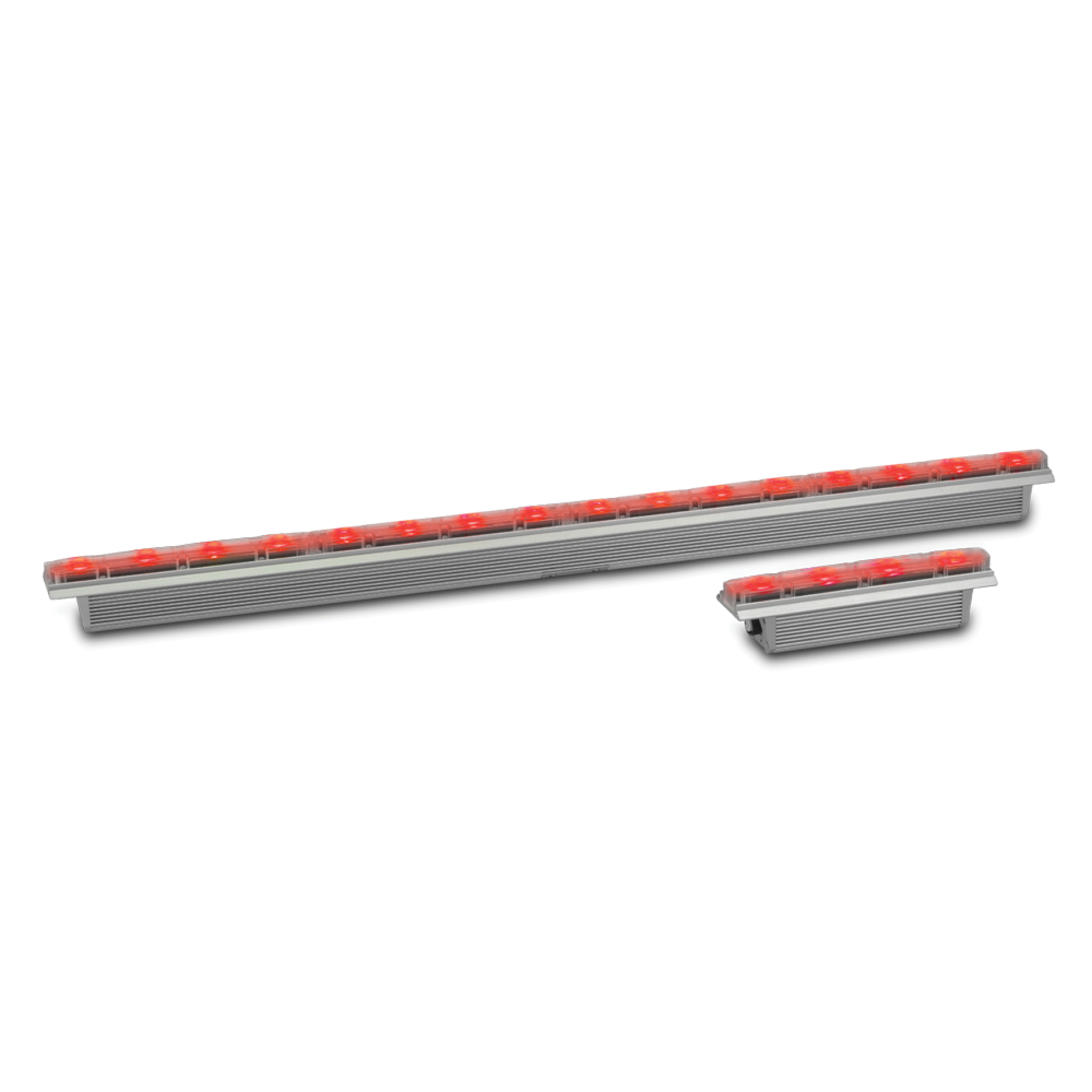

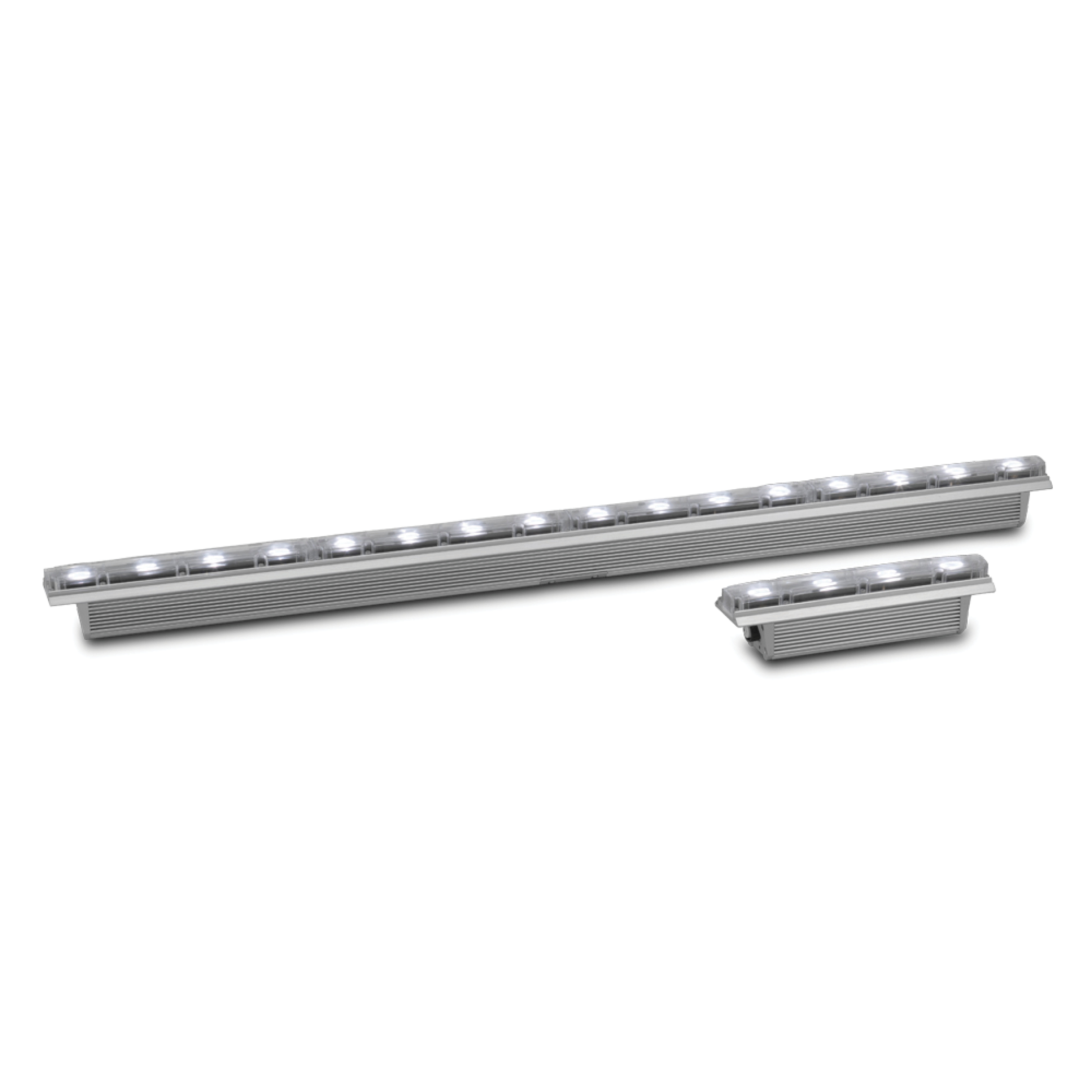

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.
The Exterior™ Linear 1210 Graze QUAD and the Exterior™ Linear 310 Graze QUAD use quad-color LEDs for superior color mixing directly at the lens and to avoid multi-colored shadows.
They are designed to illuminate walls or any type of linear structure and feature superb premixed color mixing and uniform light distribution at three different beam angles, ideal for highlighting textured surfaces. The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.
Physical
1210 series (4 ft.) fixtures:
Length: 1219 mm (48.0 in.)
Width: 72 mm (2.8 in.)
Height: 101 mm (4.0 in.) including bracket
Weight: 6.0 kg (13.3 lbs.)
Dynamic Effects
Intensity: 0 - 100%
Color mixing: RGBW
Control and Programming
Control systems: DMX, RDM
User interface: Magnetic button to call up fixture status and test fixture
Control resolution: 8-bit DMX control of each color
DMX channels: 2 - 16 depending on model and mode
DMX compliance: USITT DMX512/1990 RDM
RDM compliance: ANSI/ESTA E1.20
Optics
Light source: Quad-color Osram OSTAR
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
Beam angle variants: Narrow: 15° Wide: 62° Asymmetric: 17° x 67°
Binning: Tight color and flux binning
*Figure obtained under manufacturer's test conditions
Photometric Data
CCT: White Light LED 6500K
Exterior Linear 310 QUAD Graze:
Total luminous output: 705 lumens
Red output: 174 lumens
Green output: 435 lumens
Blue output: 102 lumens
White output: 615 lumens
Exterior Linear 1210 QUAD Graze:
Total luminous output: 2820 lumens
Red output: 696 lumens
Green output: 1740 lumens
Blue output: 407 lumens
White output: 2460 lumens
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: Aluminum
Front: Clear polycarbonate with diffuser
Protection rating: IP66
IK rating: IK08
Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64)
RoHS compliant
Installation
Orientation: Any
Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)

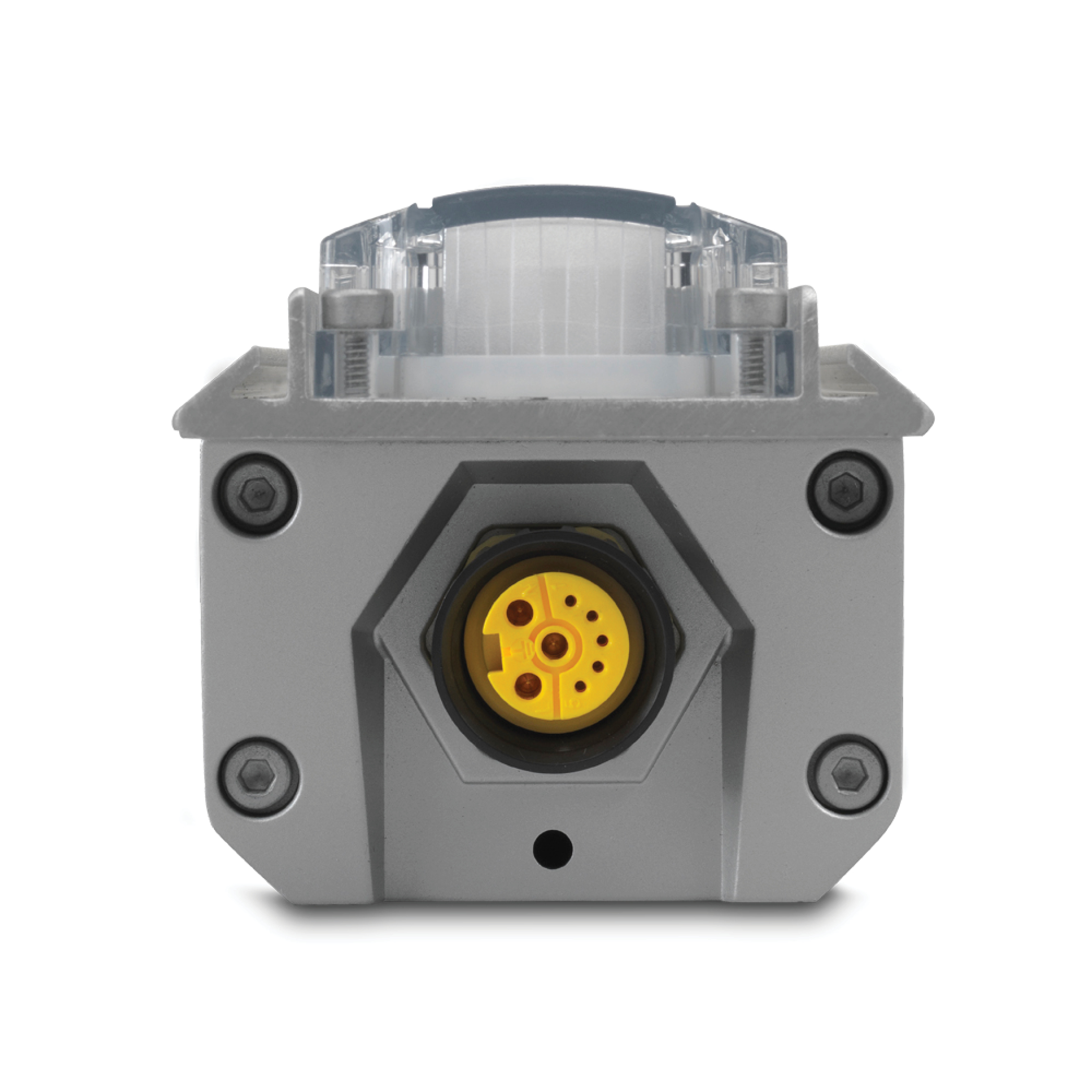

Connections
Power/data in/thru: 8-pin custom connectors
Electrical
AC power: 100-277 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.)*
Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.)*
Typical half-cycle RMS inrush current: 0.3 A, 1210 QUAD models 0.7 A
Maximum total length of fixtures at 120V: 15.2 m / 50 ft
Maximum total length of fixtures at 240V: 30.5 m / 100 ft
Maximum total length of fixtures at 277V: 100 m / 328 ft
Maximum total cable length at 120V: 70 m / 230 ft
Maximum total cable length at 240V: 100 m / 328 ft
Surge protection: 4 KV
*Consult local regulations to determine maximum fixture runs
Typical earth-leakage current: 4ft fixture: 0,50 mA, 1ft fixture: 0,15 mA
Typical Power and Current
100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05
277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05
Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 45° C (113° F)*
Minimum ambient temperature (Ta min.): -30° C (-22° F)
Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot
*Above this temperature, the fixture regulates output to protect from overheating.
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 35 lm/W
LWR*: 470 lm/kg (207 lm/lb)
*LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1)
EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3
US safety: ANSI/UL 1598
US EMC: 47 CFR Part 15 Class B
Canadian safety: CSA C22.2 No. 250.0
Australia/NZ: RCM
India: BIS
Accessories
Magnetic Test Tool, set of 10: P/N 91610139
Cables:

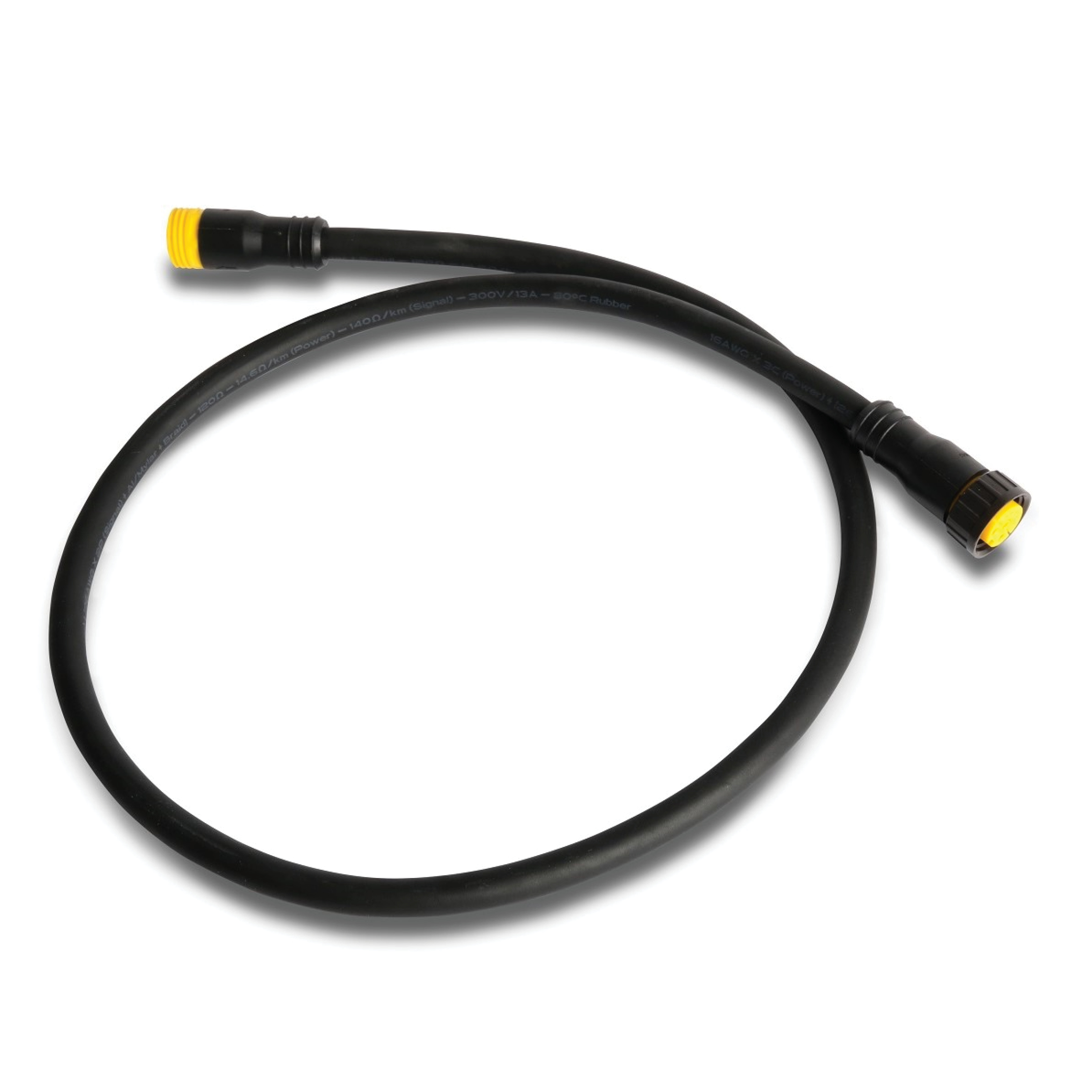

Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
End Termination Cap for power + data link: P/N 91611766
Optical:
Exterior Linear 300 Series Glare Shield, set of 4: P/N 91611752
Exterior Linear 1200 Series Glare Shield, set of 4: P/N 91611753

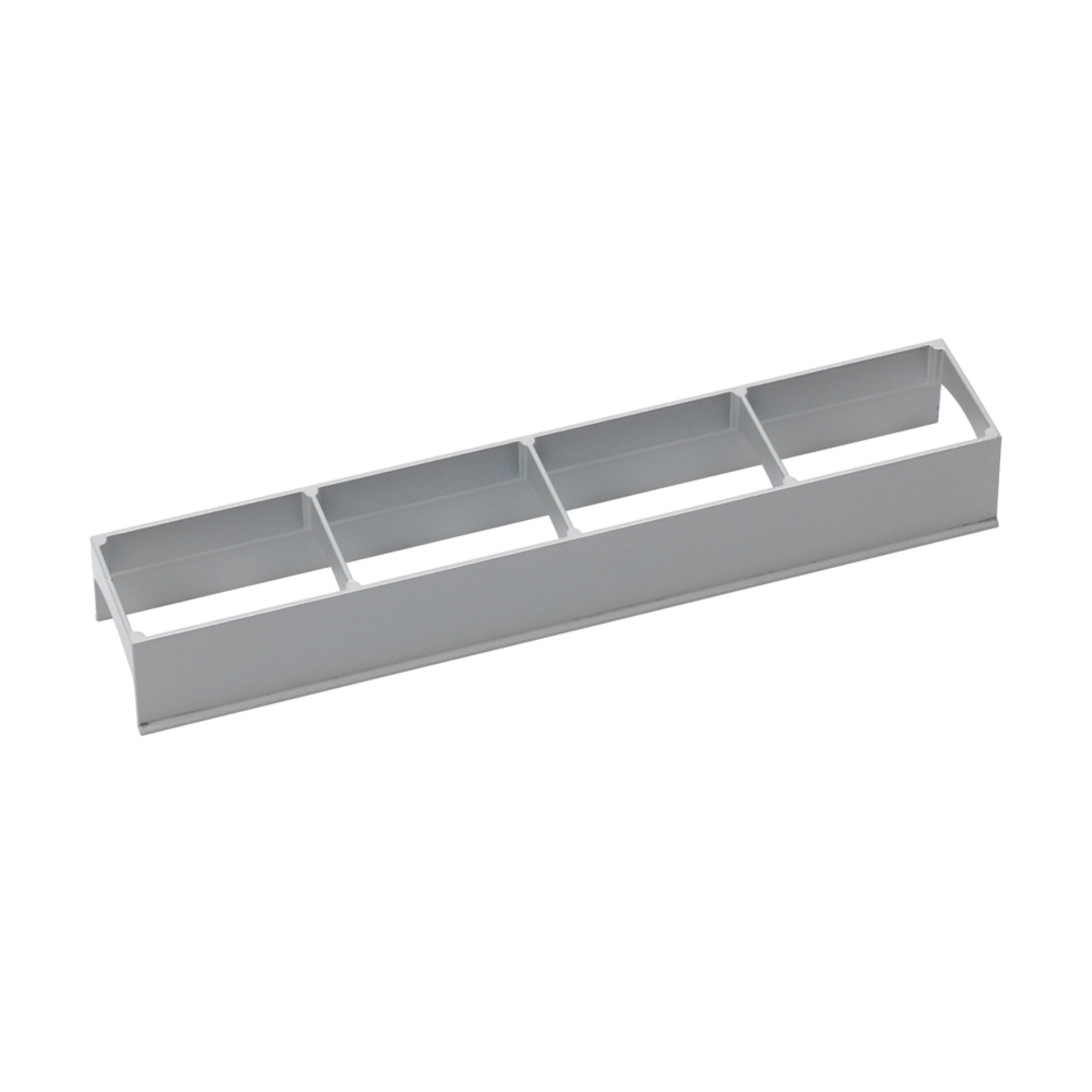

Exterior Linear 310/1210 QUAD Graze Louvre, set of 4: P/N 91611850
