MARTIN Exterior Linear Pro Graze CTC
Martin Exterior Linear Pro Graze CTC lights are flexible, compact, LED-based architectural fixtures. Delivering uniform light distribution at a 9 degree beam angle, they are ideal for highlighting textured surfaces, walls, facades, ceilings and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor locations.
Features
Warm, neutral and cold white LEDs (2700K, 4000K, 6500K) (12 LEDs/ft)
Narrow 9° beam angle

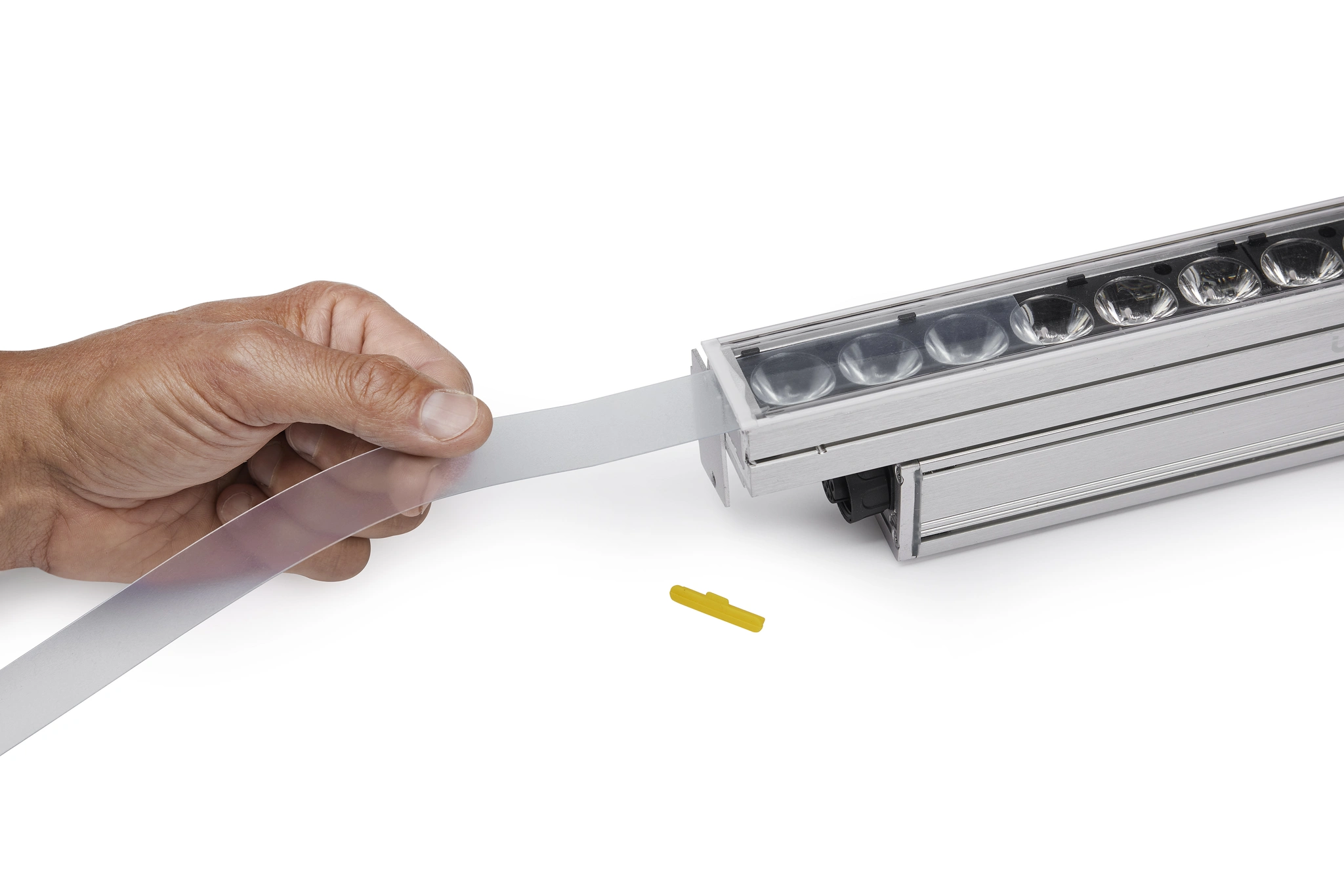

Interchangeable micro lens film for alternative beam angles
Selectable segment modes (1, 4 or 8 segments)
Selectable power consumption (12W/10W/5W) per foot
5W/ft power mode meets ASHRAE standards for linear facade lighting
Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
Hybrid power and data connector for easy daisy-chained configurations
DMX and RDM control
Integrated magnetic switch for local diagnostics
Rugged IP66 housing designed for permanent outdoor installations
Low weight 0.8 kg/ft (1.9 lbs/ft)
Compact design - 40mm (1.57 inch) width
Specifications
Physical
Width: 40 mm (1.57 inch.)
Height: 68 mm (2.67 inch)

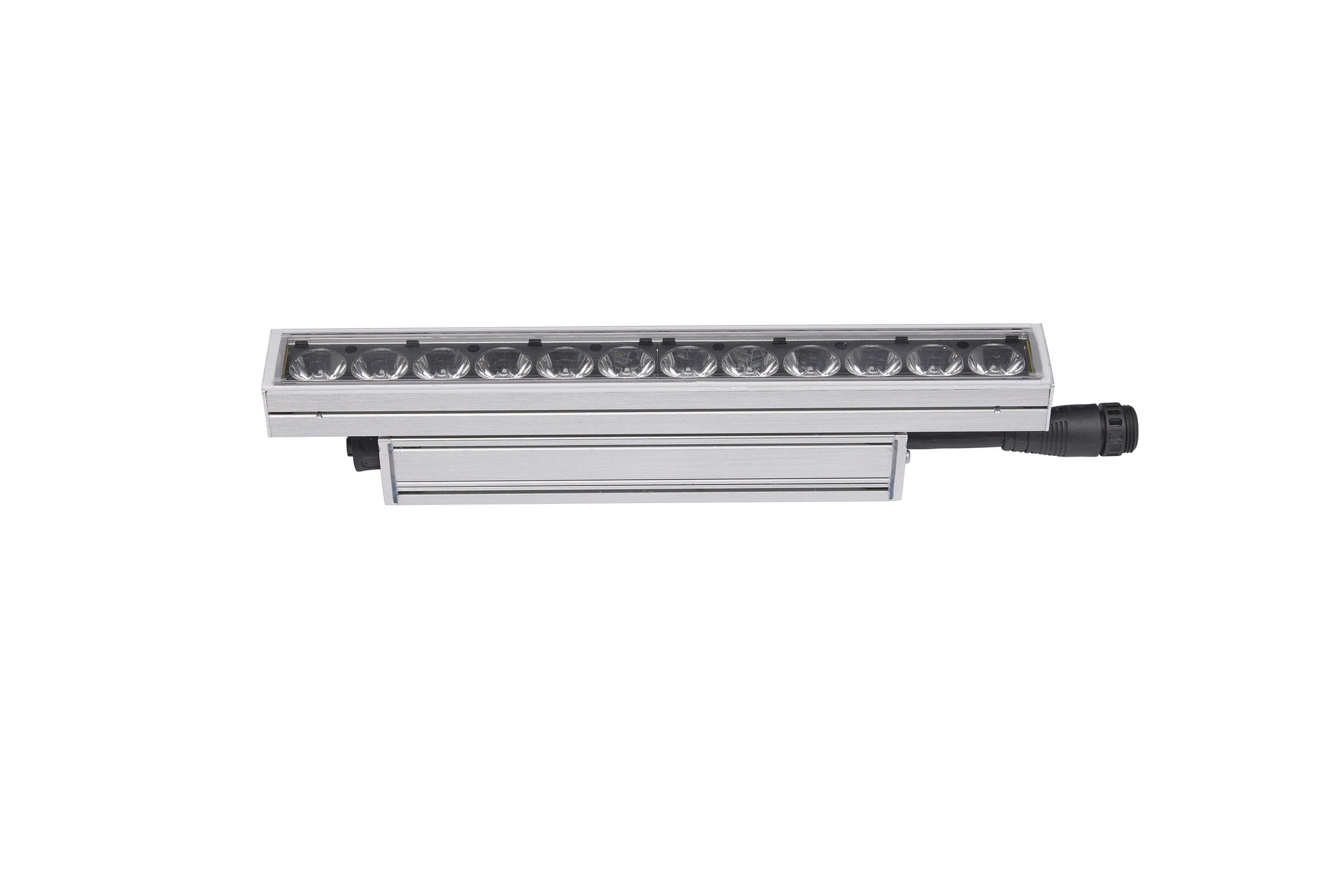

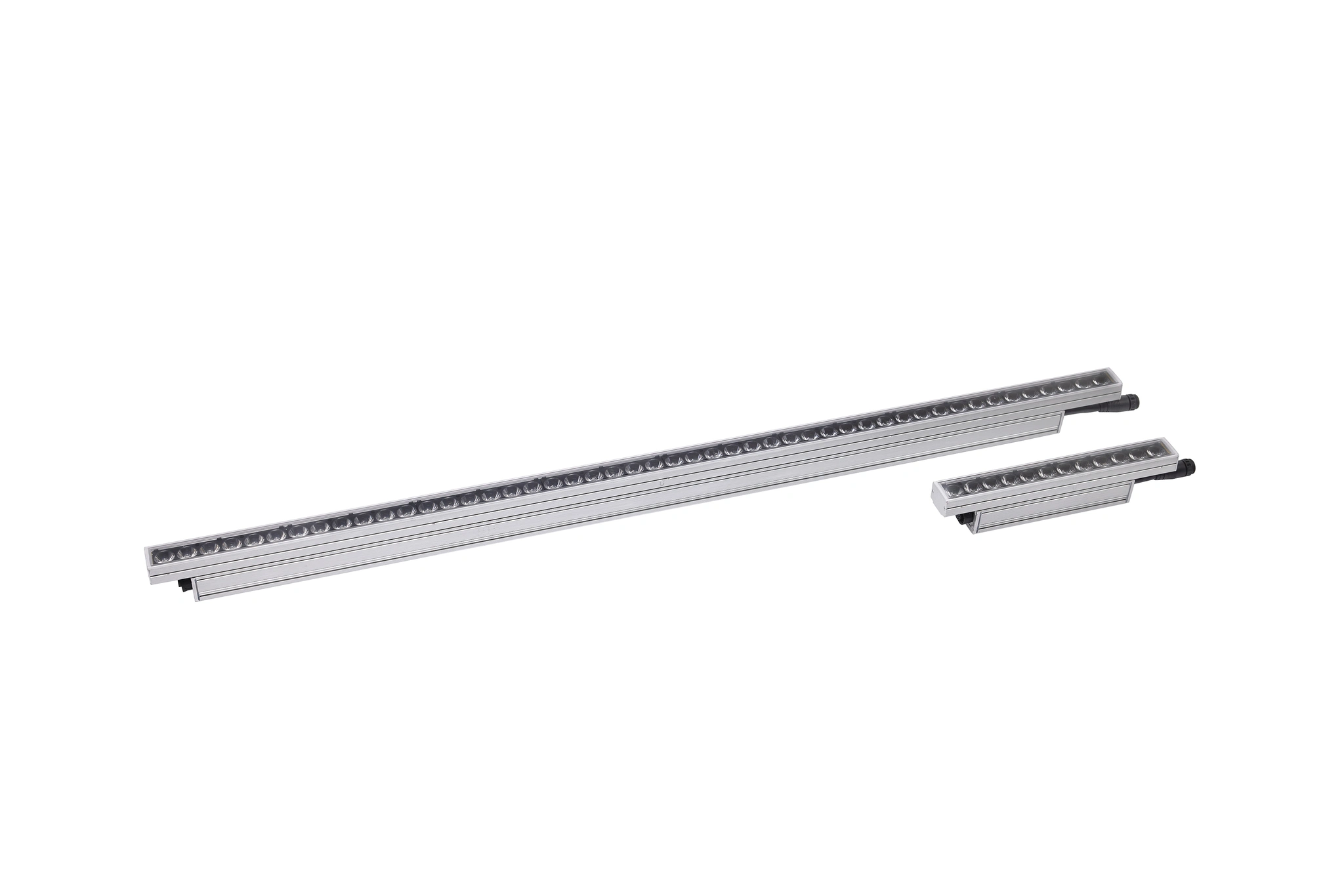

Length - 1 ft Version: 312mm (1.02 ft)
Length - 4 ft Version: 1227mm (4.02 ft)
Weight - 1 ft Version: 0.85 kg (1.9 lbs)
Weight - 4 ft Version: 2.8 kg (6.2 lbs)
Dynamic Effects
Intensity: 0 - 100%
Color temperature control: 2700 K – 6500 K
Segment Control: 0.5ft, 1 ft or full 4 ft fixture control
Control and Programming
Control systems: DMX, RDM
User interface: Magnetic button to call up fixture status and test fixture
Stand-alone control: Up to 20 scenes with individual fade/hold times
Control resolution: 8-bit DMX individual color control
Dimmer Resolution: 16-bit DMX control of intensity
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
DMX channels 4ft: 3/3/12/24 (standard/1 seg/4 seg/8 seg)
DMX channels 1ft: 3/6/3 (standard/1 seg/2 seg)
Optics
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
Beam angle**: 9°, 9°x 30° , 9°x 60°
*Figure obtained under manufacturer's test conditions
** Asymmetric beam angles available as accessory micro-lens films
Photometric Data
CRI (Color Rendering Index) : >70 (higher CRI available on request)
CCT: 2700K - 6500K
Luminous output:
1 ft at 12W 4 ft at 48W
2700K: 790 lumens 3390 lumens
4000K: 900 lumens 3730 lumens
6500K: 850 lumens 3600 lumens
Construction
Housing: Aluminum
Finish: Clear anodized (standard) or white (optional)
Front: Clear polycarbonate
Protection rating: IP66
IK rating: IK08
Effective Projected Area (EPA): 0.04 m2 per ft
Corrosion resistance: C5 - very high corrosivity / Durability Range: High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Orientation: Any
Minimum distance to illuminated surfaces: 0.1 m / 0.3 ft.
Connections

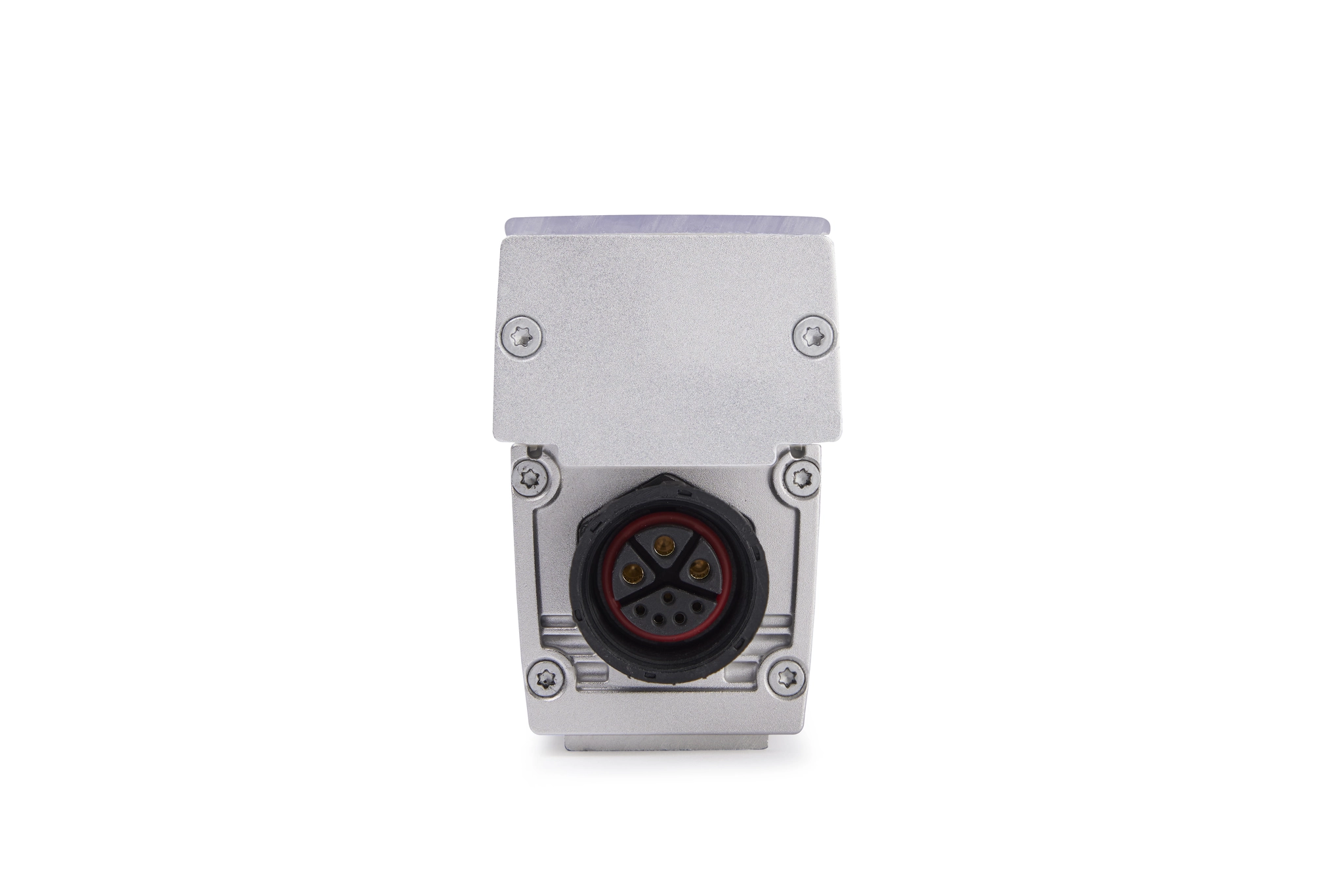

Power/data in/thru: 8-pin custom connectors
Surge Protection: 4 KV
Maximum connected 4 ft fixtures *: 42 pcs (52 m /169 ft) @ 230-277 V
Maximum total string length (cable + fixtures)*: 150 m / 328 ft
* Refer to system diagram for details on fixture run limitations.
Electrical
AC power: 100-277 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 0.35 A
Typical earth-leakage current 1 ft: 0.15 mA
Typical earth-leakage current 4 ft: 0.21 mA
Power Factor 12 W / 10 W mode: 0.95 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.90 @ 277 V
Power Factor 5 W mode: 0.90 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.70 @ 277 V
Power Consumption 1 ft
Maximum: 12 W / 10 W / 5 W *
Idle: 1.54 W *
Power Consumption 4 ft
Maximum: 48 W / 40 W / 20 W *
Idle: 2.30 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Idle: steady state, all LEDs at zero intensity.
Power Consumption: Depending on power setting mode.
Thermal
Cooling: Convection
Maximum ambient temperature: 45° C (113° F)*
Minimum ambient temperature: -30° C (-22° F)
*Above this temperature, the fixture regulates output to protect from overheating
Maximum total heat dissipation, calculated, +/- 10%: 41 BTU/hr. per foot
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inlay and outer packaging
Efficacy (max output): 75 lm/W
LWR*: 1059 lm/kg (474 lm/lb)
*LWR = Lumen-to-Weight Ratio
