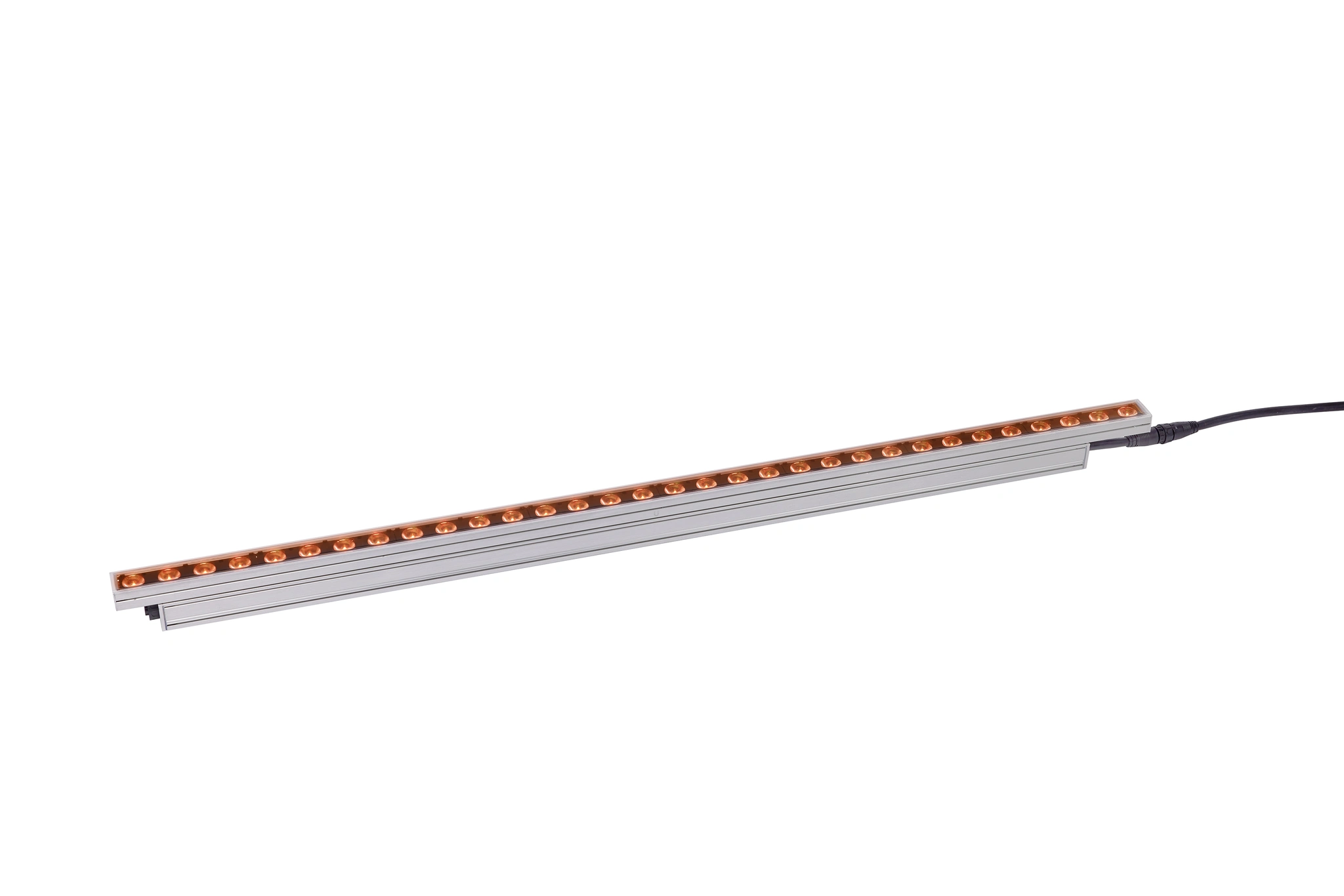

MARTIN Exterior Linear Pro Graze QUAD
Martin Exterior Linear Pro Graze QUAD lights are flexible, compact, LED-based architectural fixtures featuring high output with color boost technology and discreet yet robust housings. Delivering uniform light distribution of 15 degrees, they are perfect for highlighting textured surfaces, walls, facades, ceilings and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor installations.
Features
Color-calibrated QUAD color LEDs (8 LEDs/ft)
Homogenous color mixing
Narrow 15° beam angle
Dedicated color temperature control channel (1800K - 12000K)
Selectable segment modes (1, 4 or 8 segments)
Selectable power consumption (12W/10W/5W) per foot
5W/ft power mode meets ASHRAE standards for linear facade lighting
Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
Hybrid power and data connector for easy daisy-chained configurations
DMX and RDM control
Integrated magnetic switch for local diagnostics
Rugged IP66 housing designed for permanent outdoor installations
Low weight 0.8 kg/ft (1.9 lbs/ft)
Compact design - 40mm (1.57 inch) width
Specifications
Physical
Width: 40 mm (1.57 inch.)
Height: 68 mm (2.67 inch)

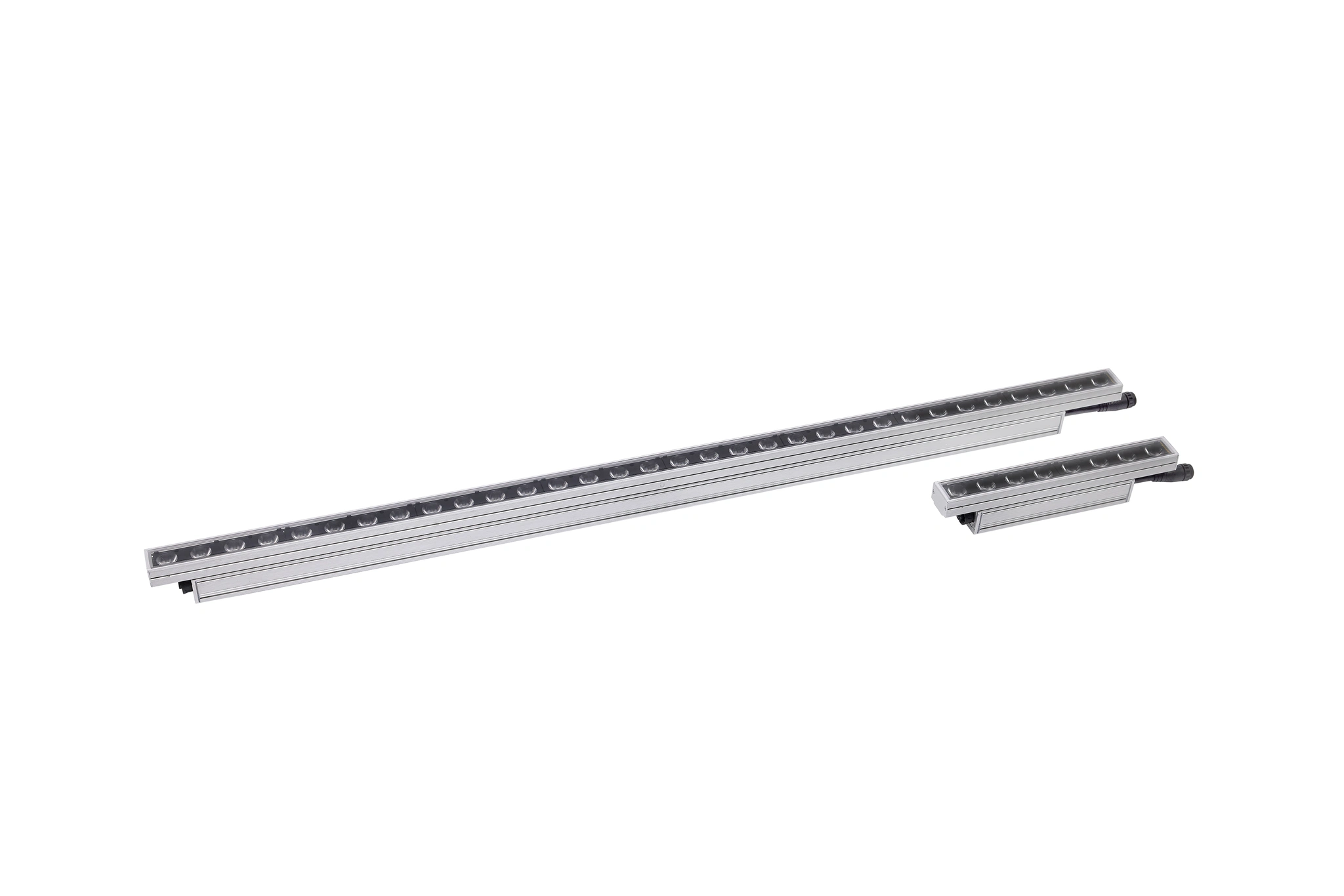

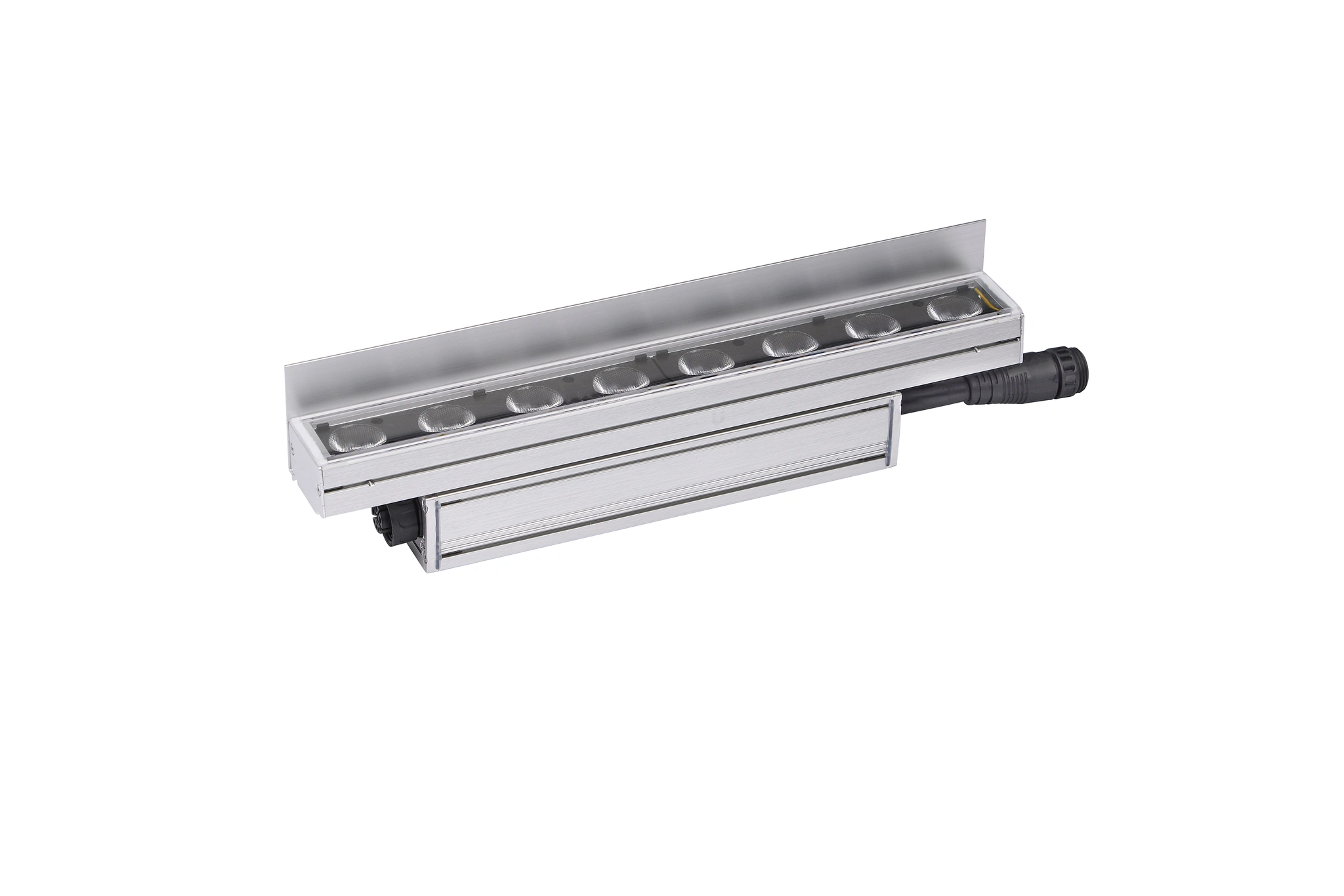

Length - 1 ft Version: 312mm (1.02 ft)
Length - 4 ft Version: 1227mm (4.02 ft)
Weight - 1 ft Version: 0.85 kg (1.9 lbs)
Weight - 4 ft Version: 2.8 kg (6.2 lbs)
Dynamic Effects
Intensity: 0 - 100%
Color mixing: RGBW
Color temperature control: CCT: 1800K – 12000K (default 4000K)
Segment Control: 0.5 ft, 1 ft or full 4 ft fixture control
Control and Programming
Control systems: DMX, RDM
User interface: Magnetic button to call up fixture status and test fixture
Stand-alone control: Up to 20 scenes with individual fade/hold times
Control resolution: 8-bit DMX individual color control
Dimmer Resolution: 16-bit DMX control of intensity
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
DMX channels 4ft: 6/4/3/12/24 (standard/RAW/1 seg/4 seg/8 seg)
DMX channels 1ft: 6/4/3/6 (standard/RAW/1 seg/2 seg)
Optics
Light source: QUAD color LED (8 LEDs per foot)
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
Beam angle**: 15° , 15° x 30°, 15° X 60°
*Figure obtained under manufacturer's test conditions

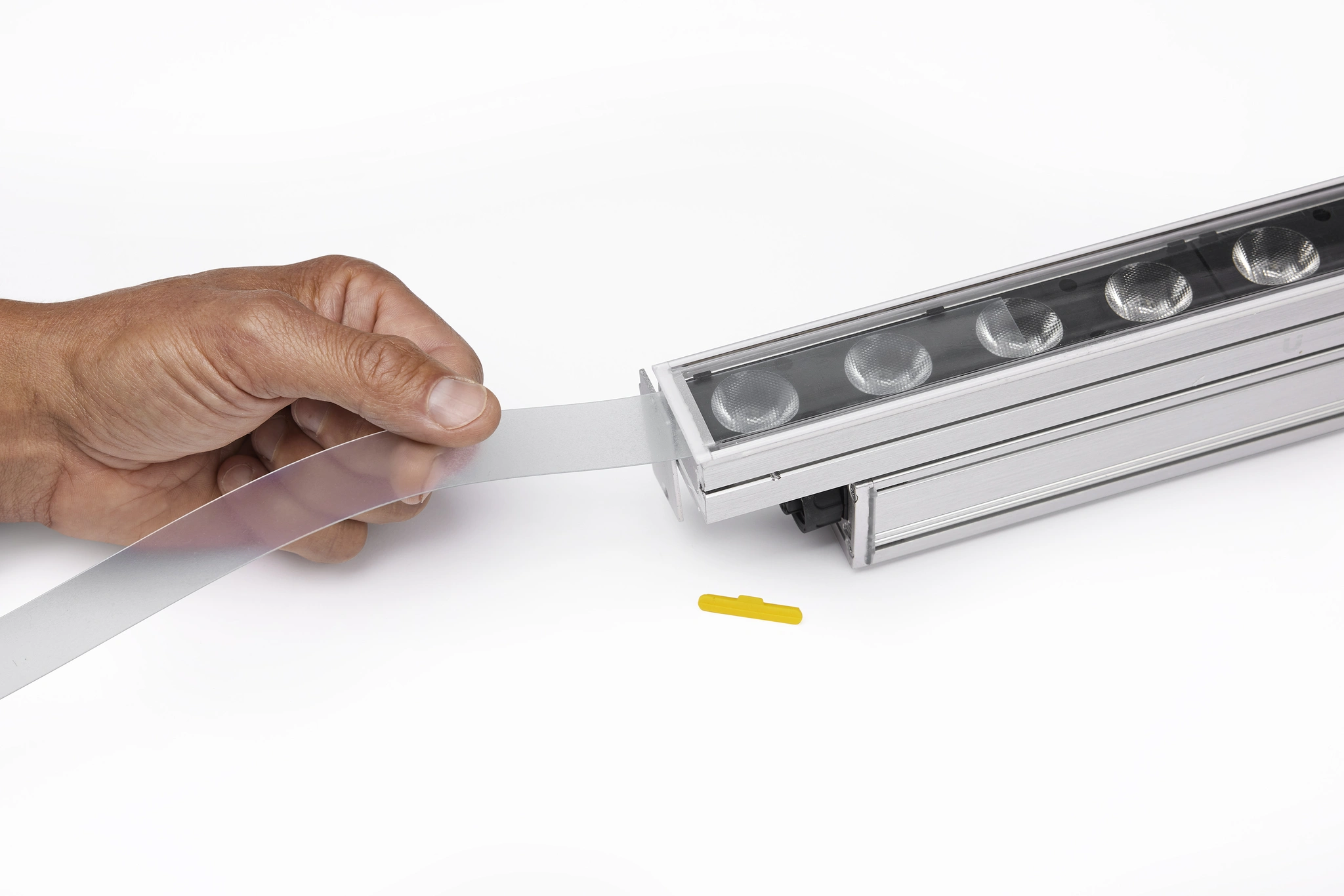

** Asymmetric beam angles for available as accessory micro-lens films
Photometric Data
CRI (Color Rendering Index) : >70
CCT: 1800K – 11000K (default 4000K)
Luminous output:
1 ft at 12W 4 ft at 48W
FULL: 700 lumens 2980 lumens
RED: 260 lumens 1210 lumens
GREEN: 570 lumens 2370 lumens
BLUE: 120 lumens 530 lumens
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: Aluminum
Finish: Clear anodized (standard) or optional colors on request
Front: Clear polycarbonate
Protection rating: IP66
IK rating: IK08
Effective Projected Area (EPA): 0.04 m2 per ft
Corrosion resistance: C5 - very high corrosivity / Durability Range: High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

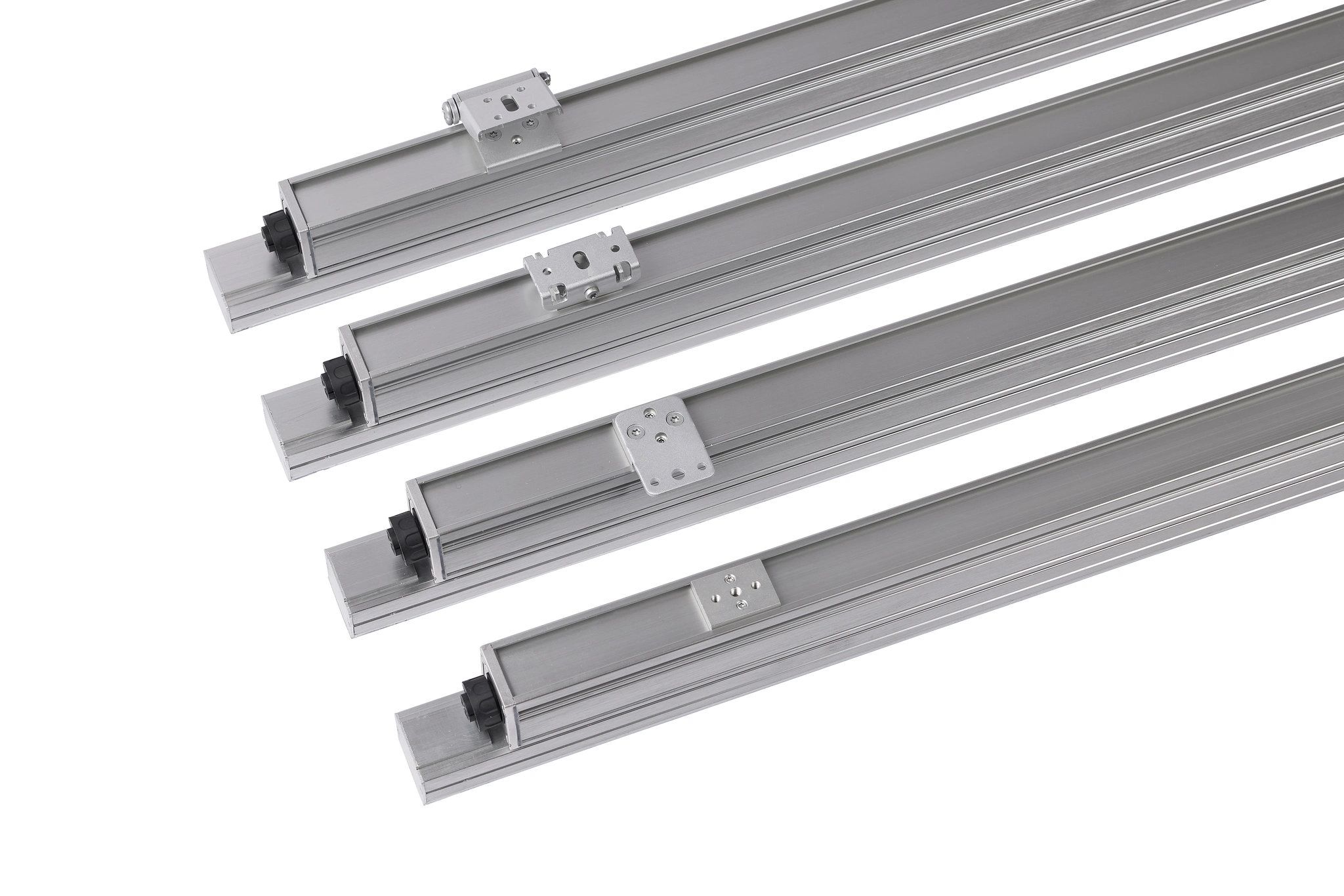

Installation
Orientation: Any
Minimum distance to illuminated surfaces: 0.1 m / 0.3 ft.
Connections

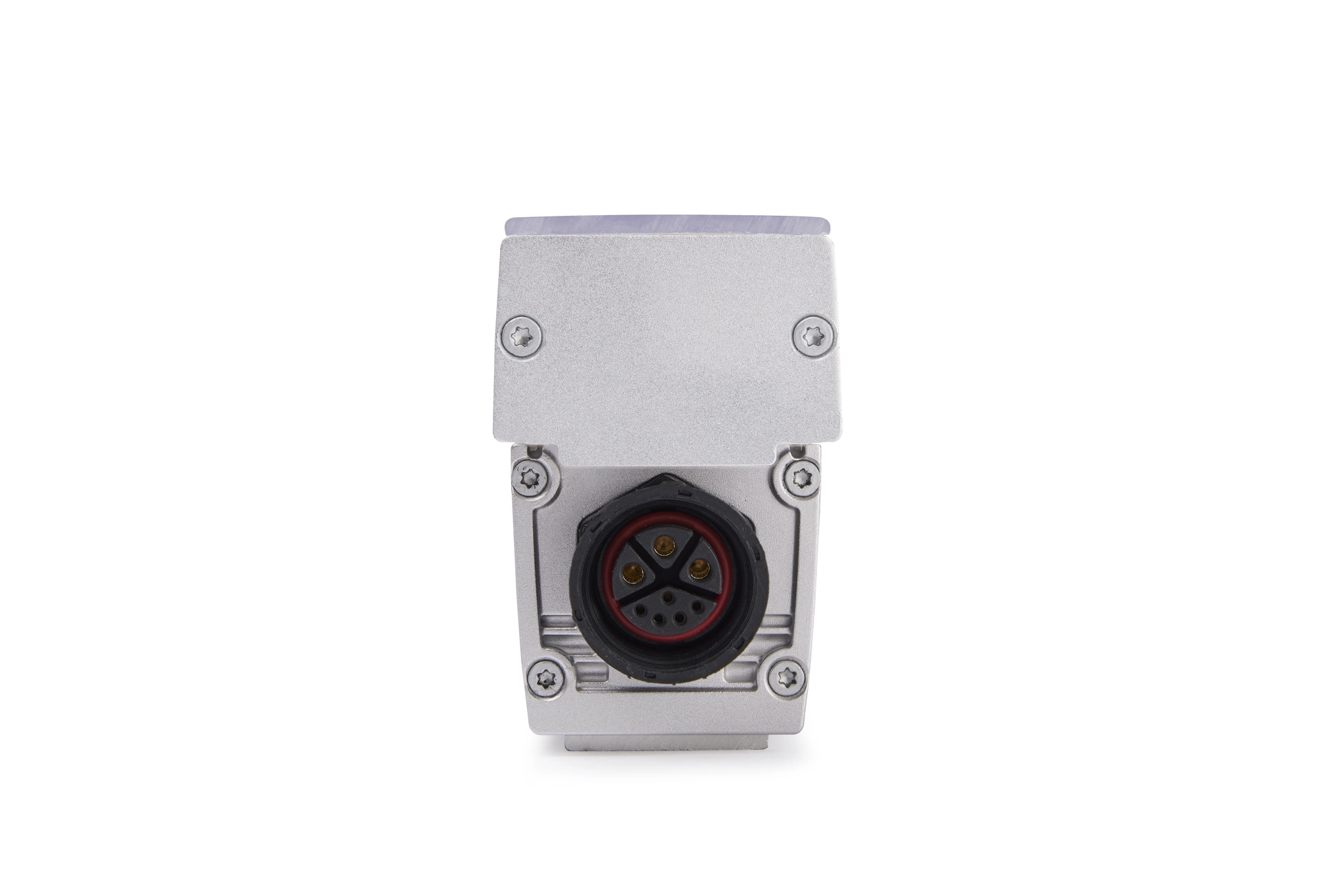

Power/data in/thru: 8-pin custom connectors
Surge Protection: 4 KV
Maximum connected 4 ft fixtures *: 42 pcs (52 m /169 ft) @ 230-277 V
Maximum total string length (cable + fixtures)*: 150 m / 328 ft
* Refer to system diagram for details on fixture run limitations.
Electrical
AC power: 100-277 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 0.35 A
Typical earth-leakage current 1 ft: 0.15 mA
Typical earth-leakage current 4 ft: 0.21 mA
Power Factor 12 W / 10 W mode: 0.95 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.90 @ 277 V
Power Factor 5 W mode: 0.90 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.70 @ 277 V
Power Consumption 1 ft
Maximum: 12 W / 10 W / 5 W *
Idle: 1.54 W *
Power Consumption 4 ft
Maximum: 48 W / 40 W / 20 W *
Idle: 2.30 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Idle: steady state, all LEDs at zero intensity.
Power Consumption: Depending on power setting mode.
Thermal
Cooling: Convection
Maximum ambient temperature: 45° C (113° F)*
Minimum ambient temperature: -30° C (-22° F)
*Above this temperature, the fixture regulates output to protect from overheating
Total heat dissipation (calculated, +/- 10%): 41 BTU/hr. per foot
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inlay and outer packaging
Efficacy (max output): 54 lm/W
LWR*: 765 lm/kg (342 lm/lb)
*LWR = Lumen-to-Weight Ratio
