RGB Amplifier
LED Controller
LED RGB amplifier applies to all the voltage-controlled LED controller in our company,it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.
Technical parameters:● working temperature: -20-60℃● supply voltage: DC12V）● output: 3 channels● connection mode: common anode● external dimension: L106.6ΧW65ΧH25mm● packing size: L160ΧW95ΧH51mm● net weight: 110g● gross weight: 145g● static power consumption: <1W● output current: <4A(each channel)● output power: 12V:<144W
Direction for Useaccording to the silk-screen prompts on the panel of LED RGB amplifier, to connect input and output signal wires in order to ensure short circuit can not occur between wires,and then connect power for RGB amplifier,and RGB amplifier goes hand in hand with LED controller
We offer an extensive line of products for both the first-time Do-It-Yourselfer and the green-minded pro who strives to offer clients something special, unique and long-lasting.
LED lighting displays require more than pretty lights. Involved projects demand specialized accessories and equipment to support them. You can count on our wide selection to find what you need. For instance, if you run a restaurant, club, bar, art gallery or any number of other venues, and would like to achieve elegant décor through lighting, you may need our RGB LED amplifier.

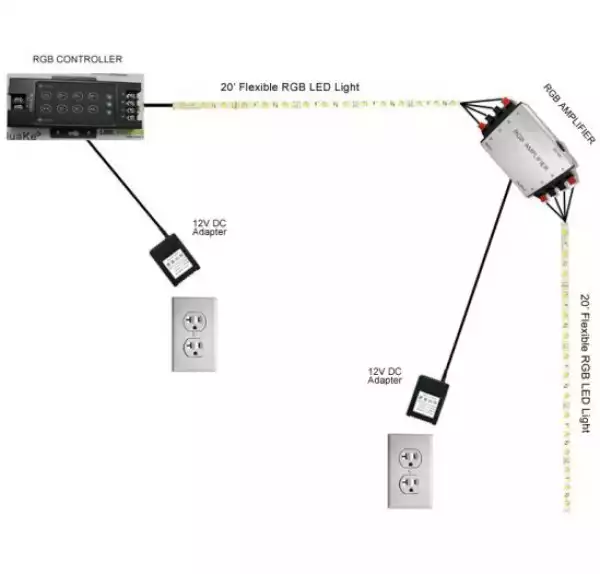

An RGB controller can command up to 16 feet of RGB strip lights. But if you want to run more than 16 feet of strip lights on one RGB signal, you will need an RGB LED amplifier.
How does it work? The RGB LED amplifier copies and extends the commands of your LED master controller. It is essential when lighting large areas or long projects/spaces, such as a lengthy, expansive bar. In a darkened room, your eyes are naturally drawn to the well-lit counter and shelves of liquor. In the right settings, LED lighting can impress so much more than a vase of flowers or attractive furnishings.
Although the RGB LED amplifier is often used for commercial reasons, its compact design makes it just as easy to apply in small homes. At only 4 ounces, it’s also small and light enough to store nearly anywhere.
RGB Amplifier
LED ControllerLED RGB amplifier applies to all the voltage-controlled LED controller in our company,it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.
Technical parameters:
● working temperature: -20-60℃
● supply voltage: DC12V）
● output: 3 channels
● connection mode: common anode
● external dimension: L106.6ΧW65ΧH25mm
● packing size: L160ΧW95ΧH51mm
● net weight: 110g
● gross weight: 145g
● static power consumption: <1W
● output current: <4A(each channel)
● output power: 12V:<144W

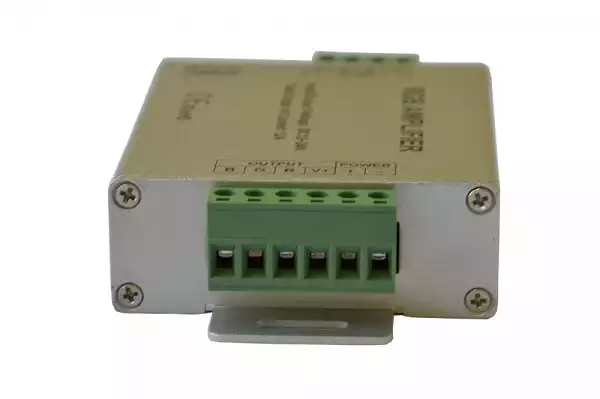

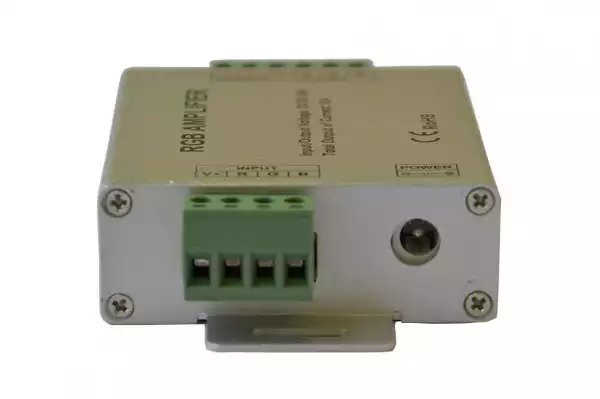

Direction for Use
according to the silk-screen prompts on the panel of LED RGB amplifier, to connect input and output signal wires in order to ensure short circuit can not occur between wires,and then connect power for RGB amplifier,and RGB amplifier goes hand in hand with LED controller
We offer an extensive line of products for both the first-time Do-It-Yourselfer and the green-minded pro who strives to offer clients something special, unique and long-lasting.
LED lighting displays require more than pretty lights. Involved projects demand specialized accessories and equipment to support them. You can count on our wide selection to find what you need. For instance, if you run a restaurant, club, bar, art gallery or any number of other venues, and would like to achieve elegant décor through lighting, you may need our RGB LED amplifier.
An RGB controller can command up to 16 feet of RGB strip lights. But if you want to run more than 16 feet of strip lights on one RGB signal, you will need an RGB LED amplifier.
How does it work? The RGB LED amplifier copies and extends the commands of your LED master controller. It is essential when lighting large areas or long projects/spaces, such as a lengthy, expansive bar. In a darkened room, your eyes are naturally drawn to the well-lit counter and shelves of liquor. In the right settings, LED lighting can impress so much more than a vase of flowers or attractive furnishings.
Although the RGB LED amplifier is often used for commercial reasons, its compact design makes it just as easy to apply in small homes. At only 4 ounces, it’s also small and light enough to store nearly anywhere.
