MARTIN Exterior AC-Feeder

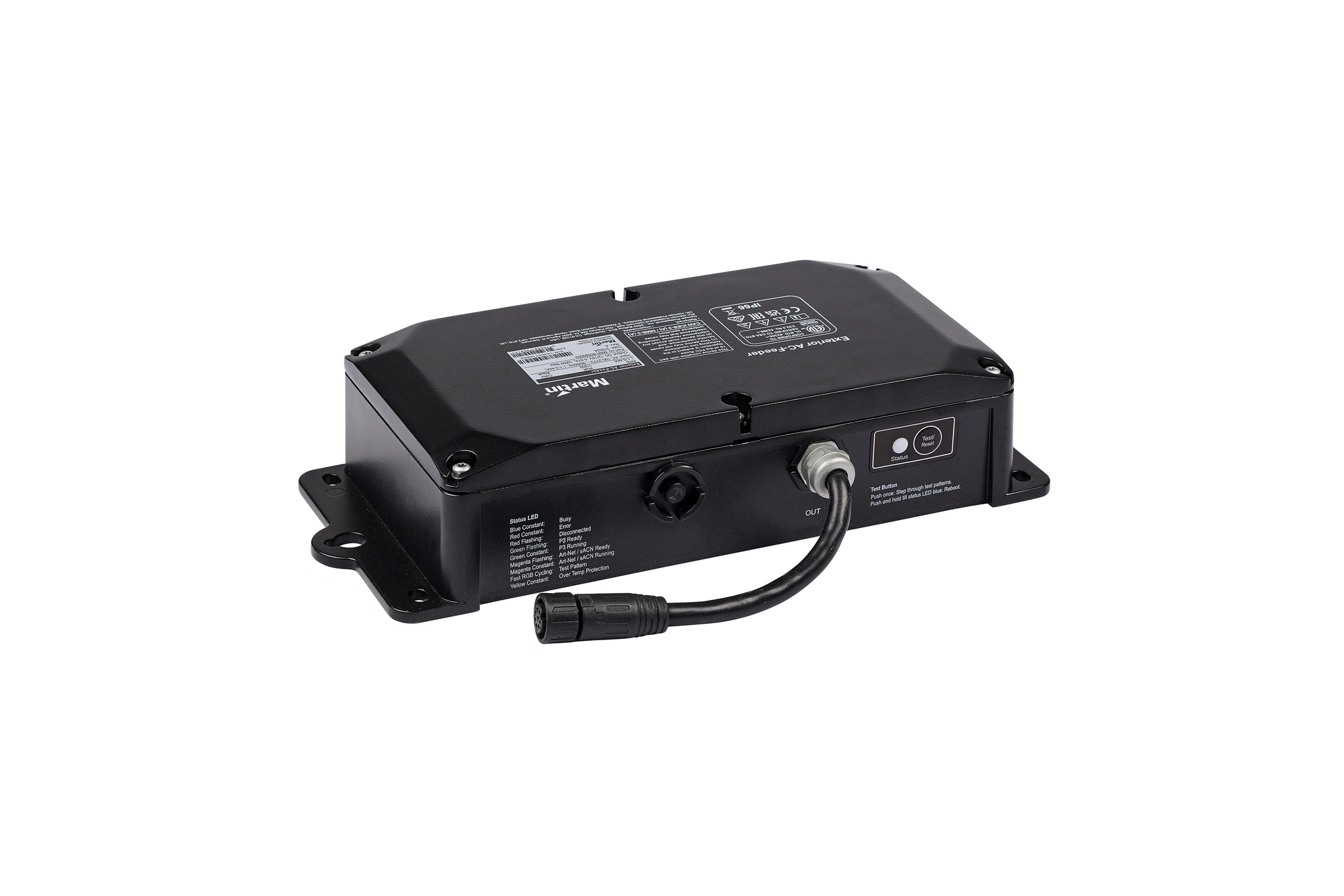

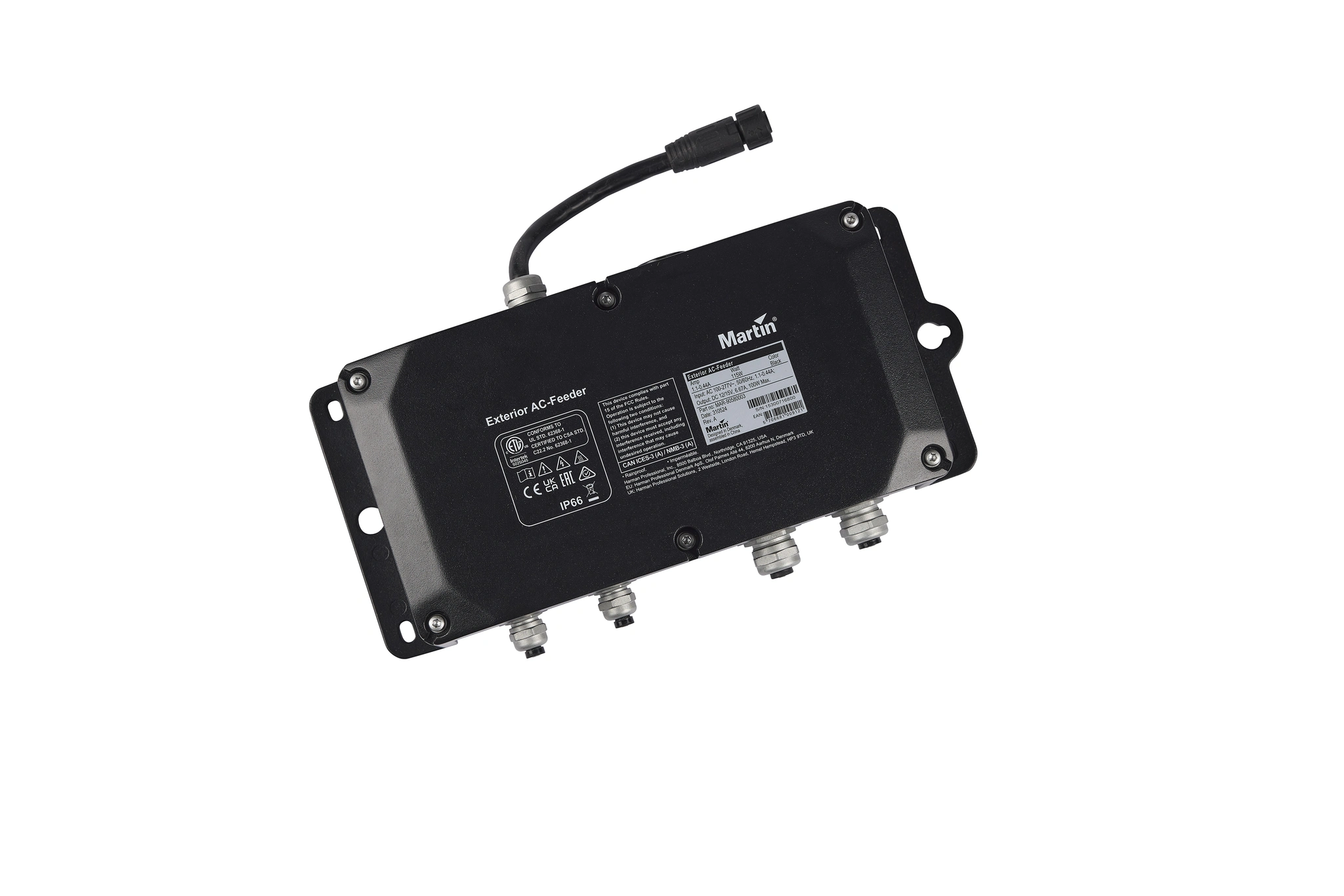

The Martin Exterior AC-Feeder is a smart, multi-protocol driver box for the Exterior Dot-1/4/9 Pro series. A compact design and IP66 rating make it perfectly suited for direct line voltage installations of Exterior Dot-1/4/9 Pro strings. The Exterior AC-Feeder provides the string with clean, regulated power and allows for a simple system layout with minimal-required system components.
Features
Fully-weatherized housing (IP66, IK08 and C-5 High corrosion rating)
Martin P3/Art-Net/sACN compatible (automatic protocol detection)
Fail-safe bypass of Ethernet signal
Setup and Addressing via RDM over Art-Net or Martin P3
Real-time status feedback via RDM over Art-Net and Martin P3
Local status LED and pushbutton to call up test patterns
Thermal protection with automatic power reduction
100 - 240/277 VAC operation
Internal terminal blocks for Power and Ethernet
Hot-pluggable output connector (to Exterior Dot Pro strings)
Surface- and truss-mountable
Shipped in FSC-certified carboard packaging
5-year warranty
Specifications
Physical
Length: 325mm (12.8in.) including flange bracket
Width: 144 mm (5.6in.)
Height: 69 mm (2.7 in.)
Weight: 2.7 kg (5.95 lbs.)
Control and Programming
Control Protocols: Martin P3, Art-Net or sACN
Protocol detection: Automatic
Setting and addressing: Martin P3 System controller or RDM (over Art-Net)-compliant controller
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware update: Via Ethernet using Martin Companion / P3 System Controller
Control/User Interface
Device status: Multicolor status LED
Device test and reset: Push button to call up local test patterns and reset device
Construction
Housing: Aluminum
Color: Black
Surface treatment: Anodized and electrostatic powder- coated
Protection rating: IP66
Effective Projected Area (EPA): 0.062 m²
Impact resistance: IK08
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Orientation: Any
Surface mounting: Four M6 mounting slots
Truss mounting: M12 mounting hole for standard rigging clamp
Connections
Output: Output cable tail with connector for Exterior Dot Pro string (Hot-pluggable)
Power input or power & data input: M20 cable gland
Power thru or power & data thru: M20 cable gland
Ethernet cable input: M12 cable gland
Ethernet cable thru: M12 cable gland
Connection: Internal terminal blocks for Power and Ethernet
Electrical
Output voltage : 15 VDC
AC power: 100 - 240 / 277 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current: 2.5 A
Surge protection: 4KV
Maximum current draw: 1.1 A @100 V, 0.9 A @120 V, 0.5 A @230 V, 0.44 A @ 277 V
Max earth leakage: 0.5 mA
Power factor: 0.99 @110 V / 120 V, 0.92 @208 V / 230V, 0.90 @277 V
Power Consumption
Maximum: 115 W at full load
Idle: 6 W
Hibernation: 2.5 W
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity. Maximum at full intensity, full white. Idle at zero intensity. Hibernation: zero intensity, wake-up procedure to re-use fixture.
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 55° C (131° F)*
Minimum ambient temperature (Ta min.): -30° C (-22° F)
Total heat dissipation (calculated, +/- 10%): 51 BTU/hr at full load
*Above this temperature, the AC-Feeder regulates output to protect from overheating.
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inlay and outer box
