MARTIN Exterior DC-Feeder

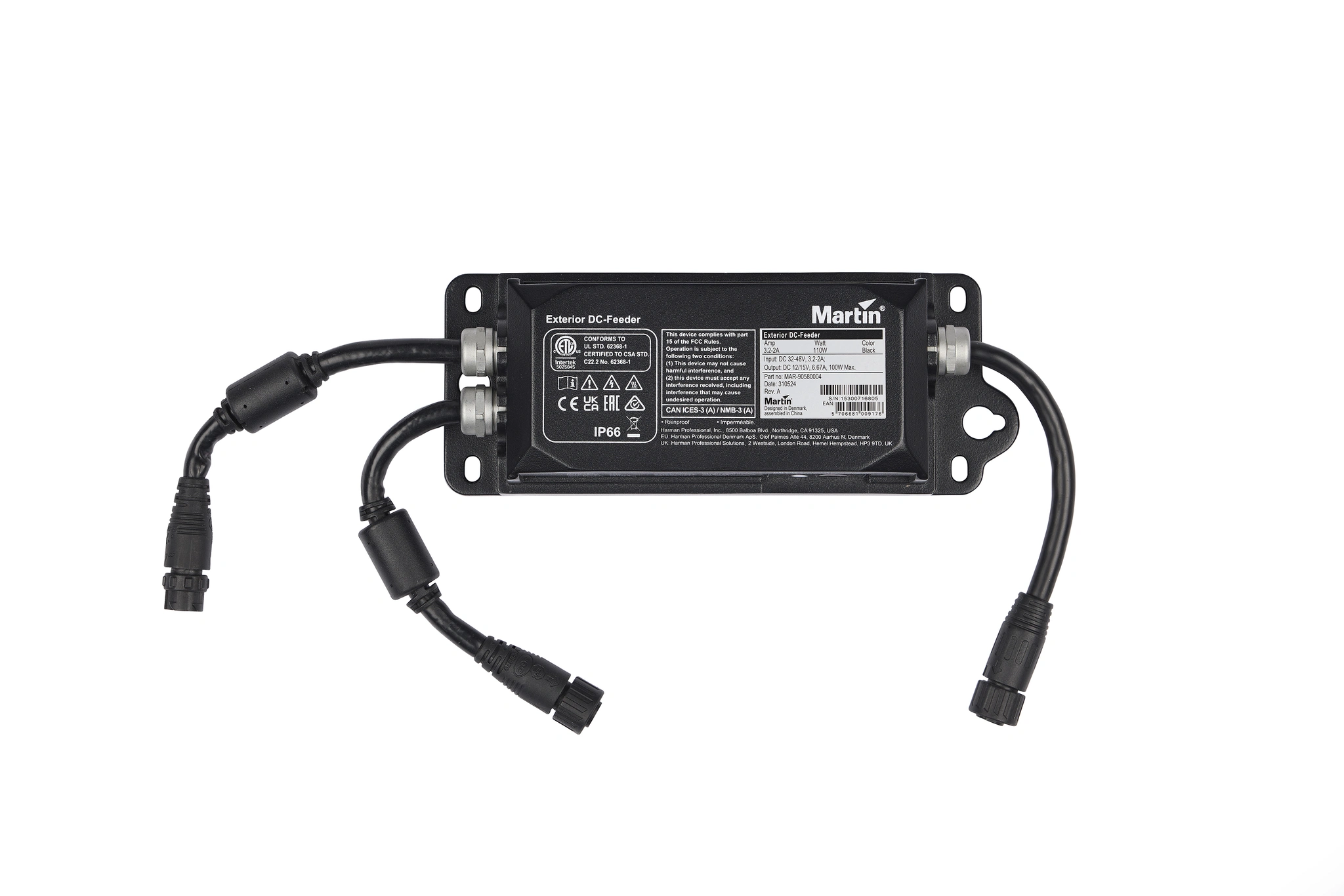

The Martin Exterior DC-Feeder is a smart, multi-protocol driver box for the Exterior Dot-1/4/9 Pro series. Its compact design and IP66 rating make it perfectly suited for discrete installations of Exterior Dot-1/4/9 Pro strings. The Exterior DC-Feeder provides the string with clean, regulated power, even if the power supply is located at significant distances from the fixture. The Exterior DC-Feeder is compatible with P3 PowerPort 2000, P3 PowerPort 500 IP, DCE PSU 240 IP, and third-party 48 VDC power supplies.
Features
Fully-weatherized housing (IP66, IK08 and C-5 High corrosion rating)
Martin P3/Art-Net/sACN compatible (automatic protocol detection)
48 VDC input
Fail-safe bypass of Ethernet signal
Local status LED and pushbutton to call up test patterns
Setup and Addressing via RDM over Art-Net or Martin P3
Real-time status feedback via RDM over Art-Net and Martin P3
Thermal protection with automatic power reduction
Hybrid power + data input (single cable for power and data input)
Hybrid power + data thru (to daisy-chain multiple DC-Feeders)
Hybrid power + data output (to Exterior Dot Pro strings)
Hot-pluggable connectors
Surface- and truss-mountable
Shipped in FSC-certified carboard packaging
5-year warranty
Specifications
Physical
Length: 237 mm (9.3 in.) including flange bracket
Width: 92 mm (3.6in.)
Height: 46 mm (1.8 in.)
Weight: 1.4 kg (3.1 lbs.)
Control and Programming
Control Protocols: Martin P3, Art-Net or sACN
Protocol detection: Automatic
Setting and addressing: Martin P3 System controller or RDM (over Art-Net)--compliant controller
Fixture Identification: User-settable ID number
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware update: Via Ethernet using Martin Companion / P3 System Controller
Control/User Interface
Device status: Multicolor status LED
Device test and reset: Push button to call up local test patterns and reset device
Construction
Housing: Aluminum
Color: Black
Surface treatment: Anodized and electrostatic powder-coated
Protection rating: IP66
Effective Projected Area (EPA): 0.029 m²
Impact resistance: IK08
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Orientation: Any
Surface mounting: Four M6 mounting slots
Truss mounting: M12 mounting hole for standard rigging clamp
Connections
Input: DCE connector cable tail for Power & data input, IP67
Thru: DCE connector cable tail for Power & data thru, IP67
Output: Cable tail with connector for Exterior Dot Pro string, IP67
Protection: Hot-pluggable
Electrical
Nominal input voltage: 48 VDC +/- 4%
Output voltage : 15 VDC
Power supply options: Martin P3 PowerPort 2000, P3 PowerPort 500 IP Install, P3 PowerPort 500 IP Rental, Martin DCE PSU 240 IP or generic 48 VDC PSU
Surge protection: 4KV
Power Consumption
Maximum: 110 W at full load
Idle: 5.0 W
Hibernation: 2.2 W
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity. Maximum at full intensity, full white. Idle at zero intensity. Hibernation: zero intensity, wake-up procedure to re-use fixture
Thermal
Cooling: Convectionmaximum
Maximum ambient temperature (Ta max.): 55° C (131° F)*
Minimum ambient temperature (Ta min.): -30° C (-22° F)
Total heat dissipation (calculated, +/- 10%): 34 BTU/hr at full load
*Above this temperature, the AC-Feeder regulates output to protect from overheating
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inlay and outer box
