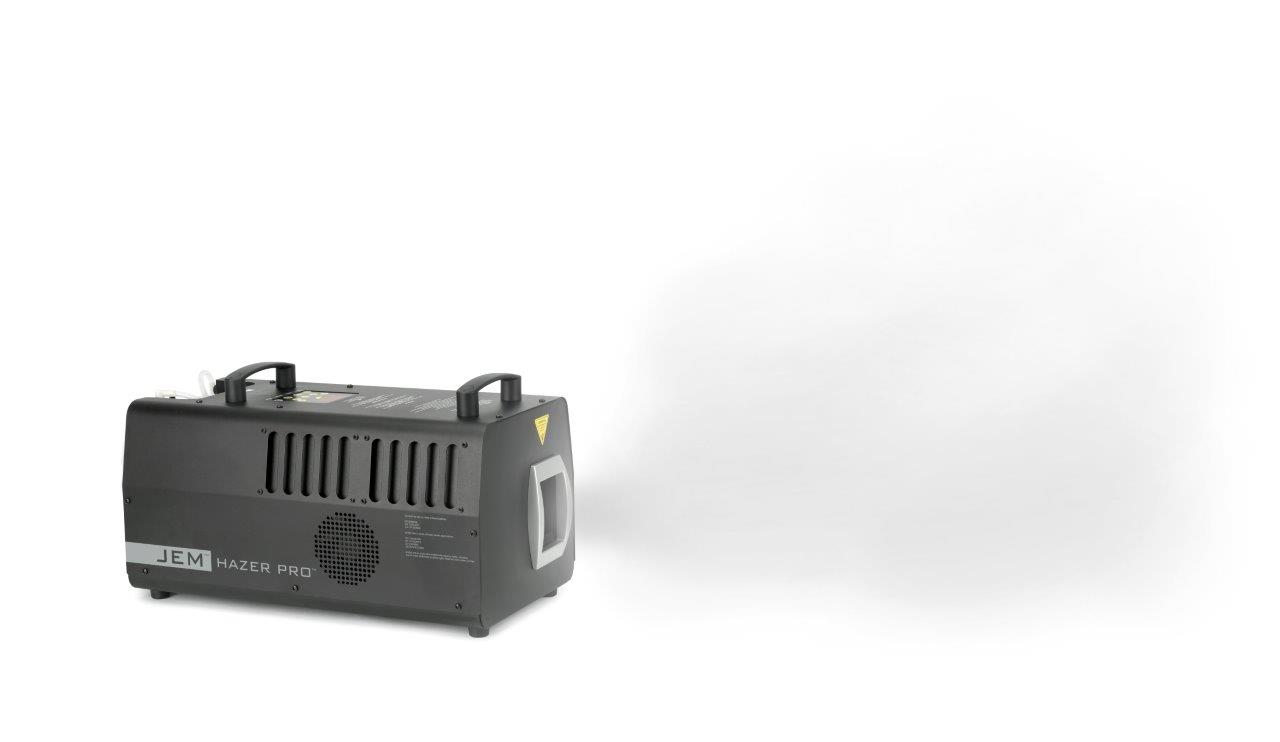

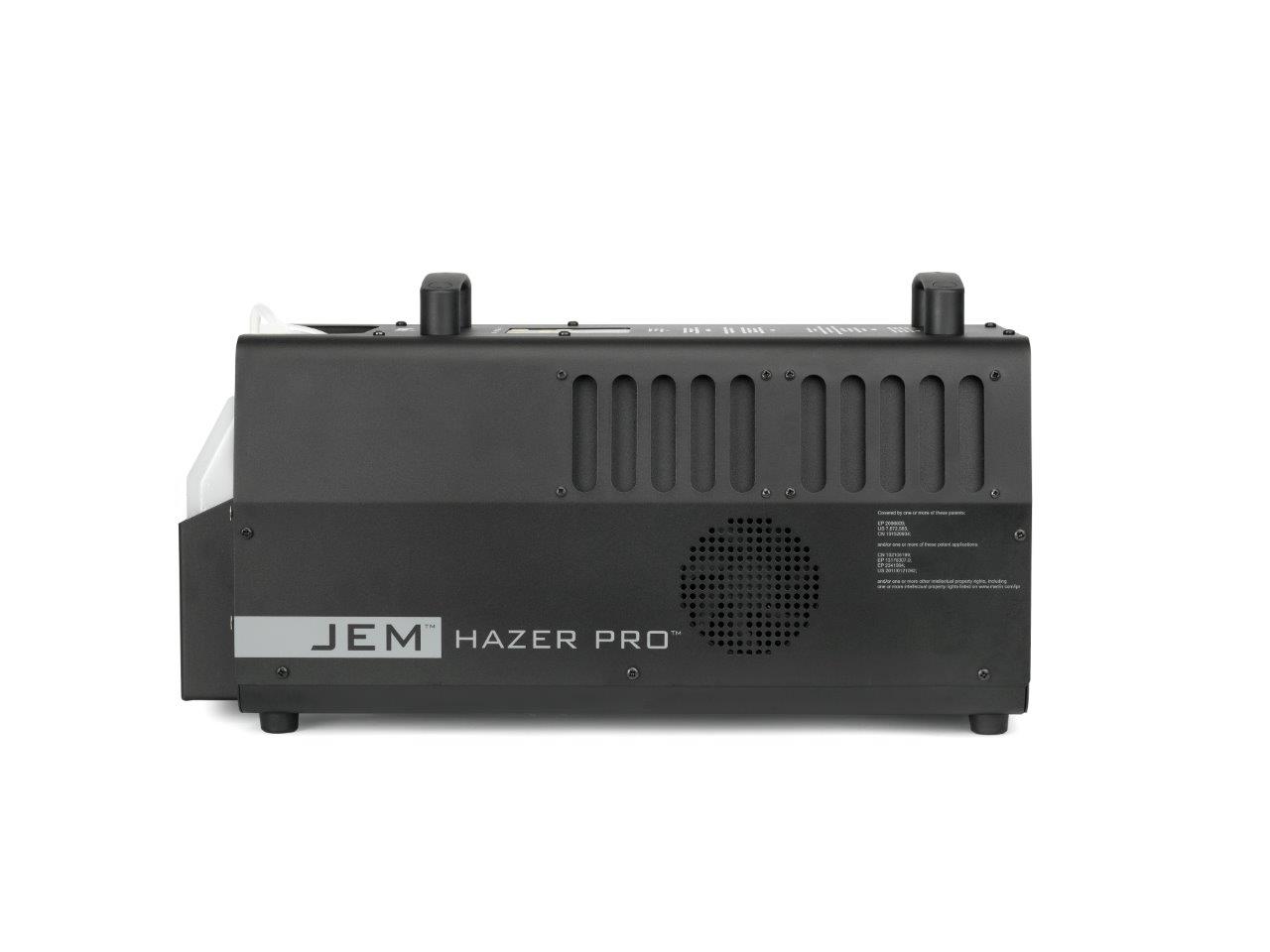

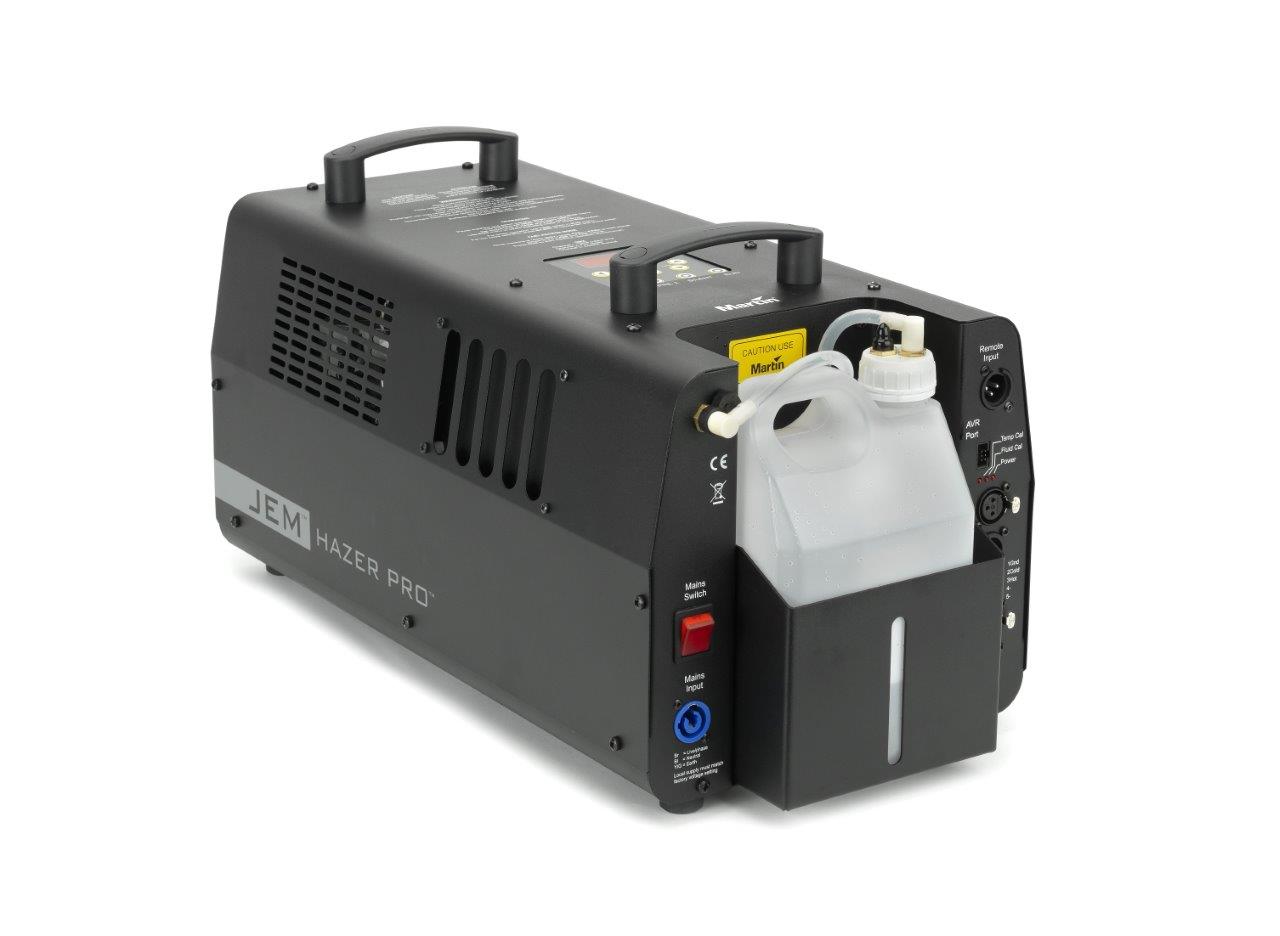

JEM Hazer Pro
Šifra:
279.000,00 rsd
232.500,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Full-sized professional water-based haze machine
Specifications
Physical
Length: 565 mm (22.3 in.)
Width: 271 mm (10.7 in.)
Height: 298 mm (11.8 in.)
Height with rigging kit: 294 mm (11.6 in.)
Weight, dry: 15 kg (33.1 lbs.)
Weight, filled: 17.5 kg (38.6 lbs.)
Performance
Coverage volume:
5500 m3 (194,231 ft3) per hour
Operating time with 2.5 l fluid (minimum/maximum): 10.5/65 hours
Operating time: Continuous
Ready time: 6-minutes
Ambient noise: Silent mode
Control and Programming

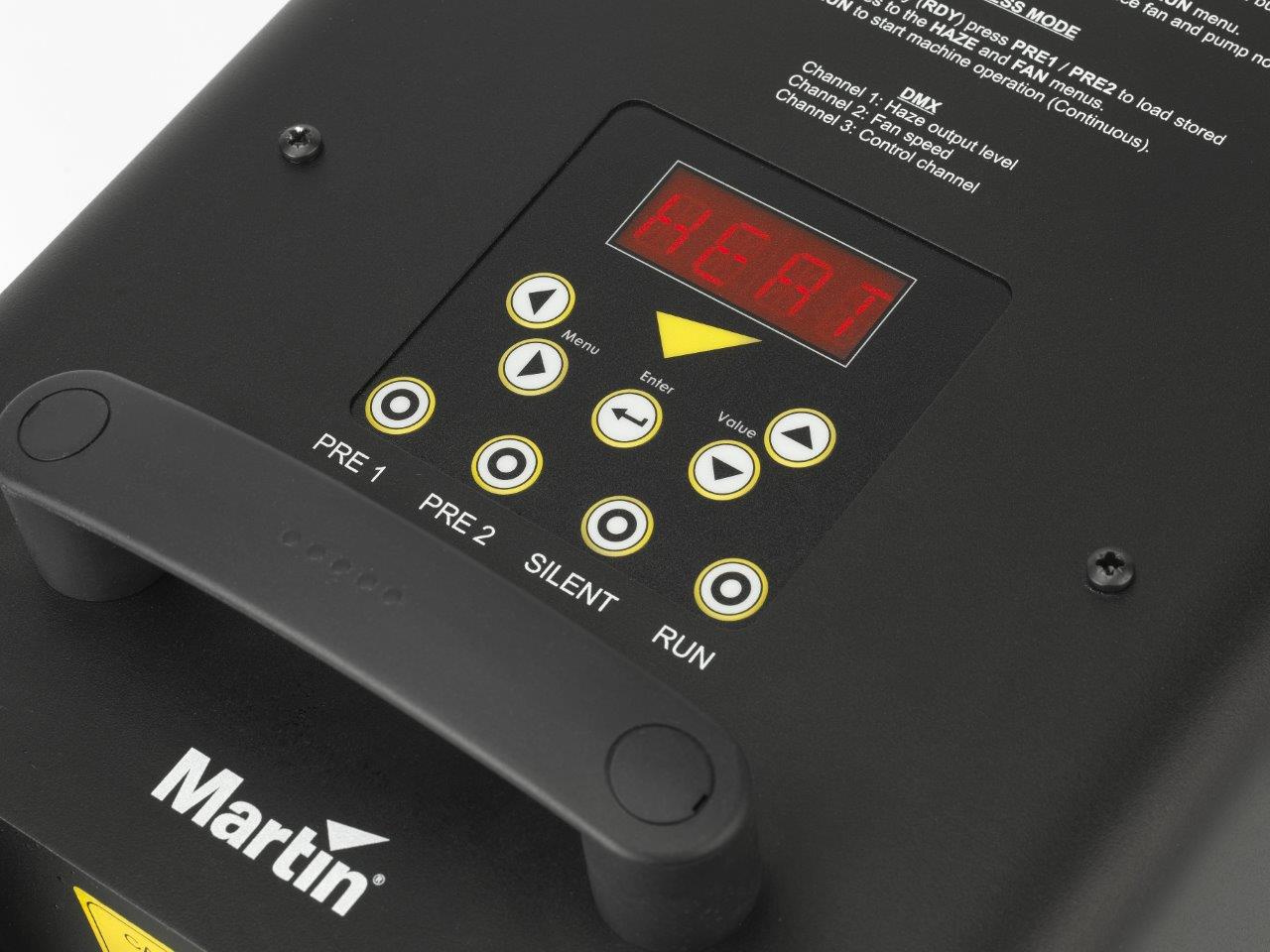

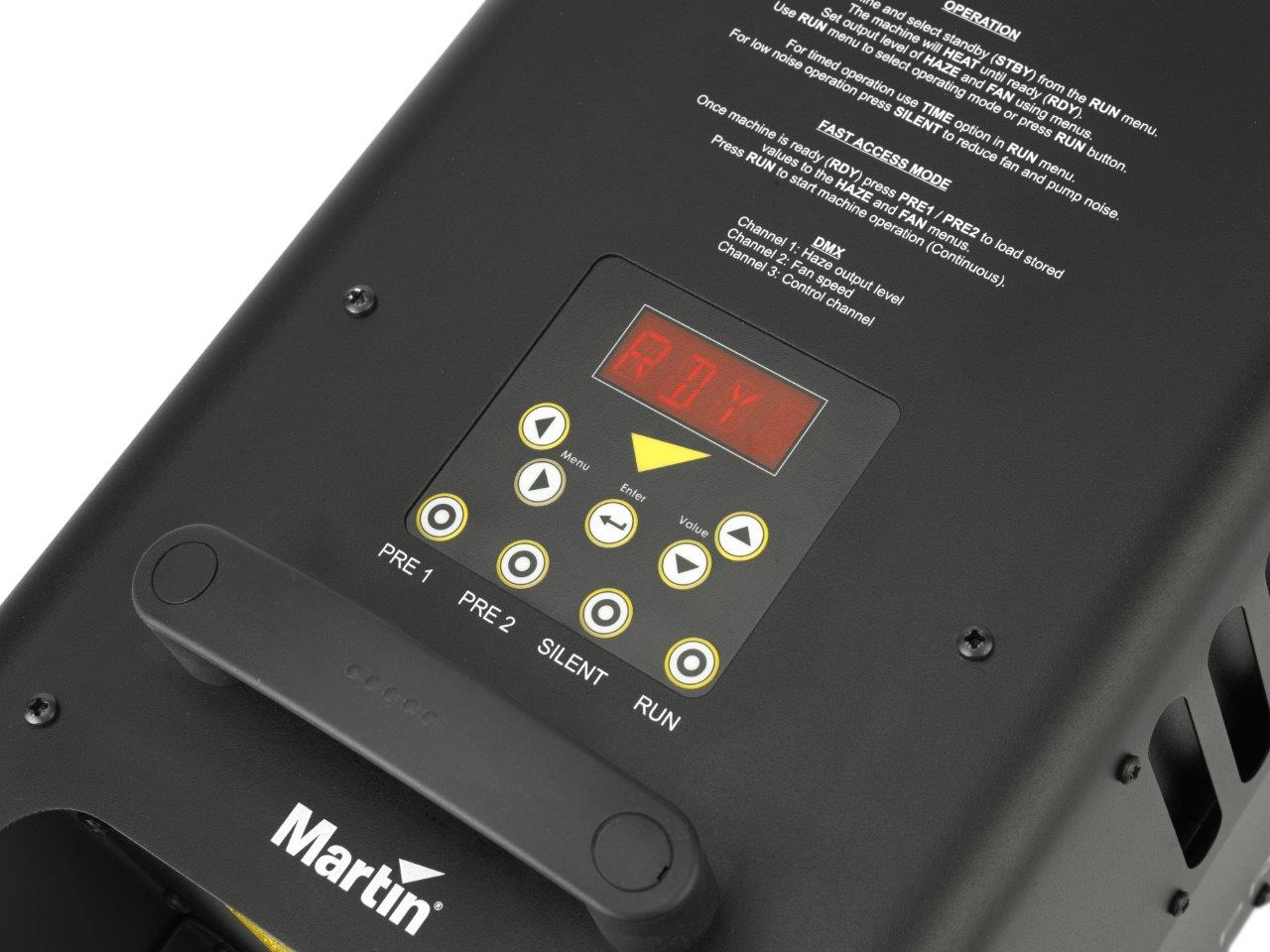

Control options: Digital control panel, programmable fast access keys, DMX, optional digital remote control, master/client link mode
Control parameters: Continuous or timer-controlled output
Haze and fan: Independent variable output, 0-100%
DMX channels: 3 (Haze, Fan, Control)
Self-cleaning cycle: Battery powered automatic shutdown, manually engaged, or DMX trigger
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction
Housing: Steel and aluminum
Color: Black
Heat exchanger: 600 W trackless heat exchanger, thermally protected
Blower fan: Integrated, 200-2500 RPM
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
Installation
Mounting: Standing or optional flying kit
Orientation: Up to +/- 30° from horizontal
Clearance around machine: 100 mm (4.0 in.)

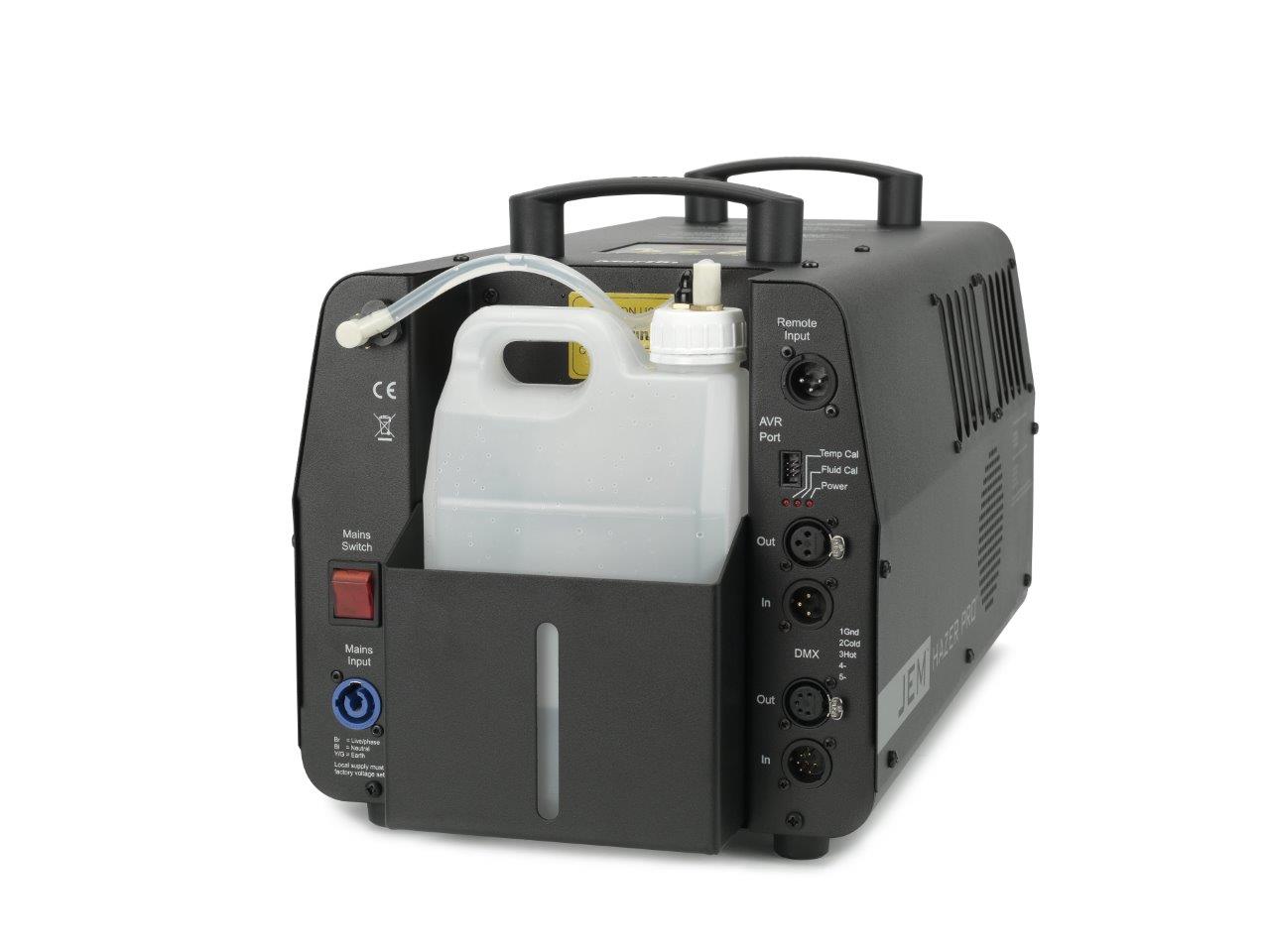

Connections
AC Power: Neutrik powerCon
DMX, link mode in/out: 3- and 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
Electrical
EU Model:
AC power: 220-240 V AC nominal, 50/60 Hz
Typical current draw: 3.1 A @ 230 V *
Power Consumption
Typical: 675 W *
US Model:
AC power: 100-130 V AC nominal, 50/60 Hz
Typical current draw: 6.0 A @ 110 V *
Power Consumption
Typical: 675 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Thermal
Maximum nozzle temperature: 290° C (554° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
Included Items
Fluid reservoir, 2.5 l: P/N 34300521
Power input cable, EU, powerCON, stripped ends, 2.5 m (8.2 ft): P/N 11501041
Power input cable, US, powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft): P/N 11501042
