Physical
Length: 276 mm (10.9 in.)
Width: 176 mm (7.0 in.)
Height: 356 mm (14.1 in.)
Weight: 7.3 kg (16.1 lbs.)

Dynamic Effects
Color mixing: RGBW
Color presets: 48 color presets, virtual color wheel effects
Zoom: Motorized: 4.2 - 58°
Color temperature control: Variable 1,800 - 12,850 K
Electronic dimming: 0 - 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Pan: 540°
Tilt: 260°

Control and Programming
Control options: DMX, RDM
16-bit fine control: Dimming, RGB, zoom, pan and tilt
LED color management modes: Raw, extended and calibrated

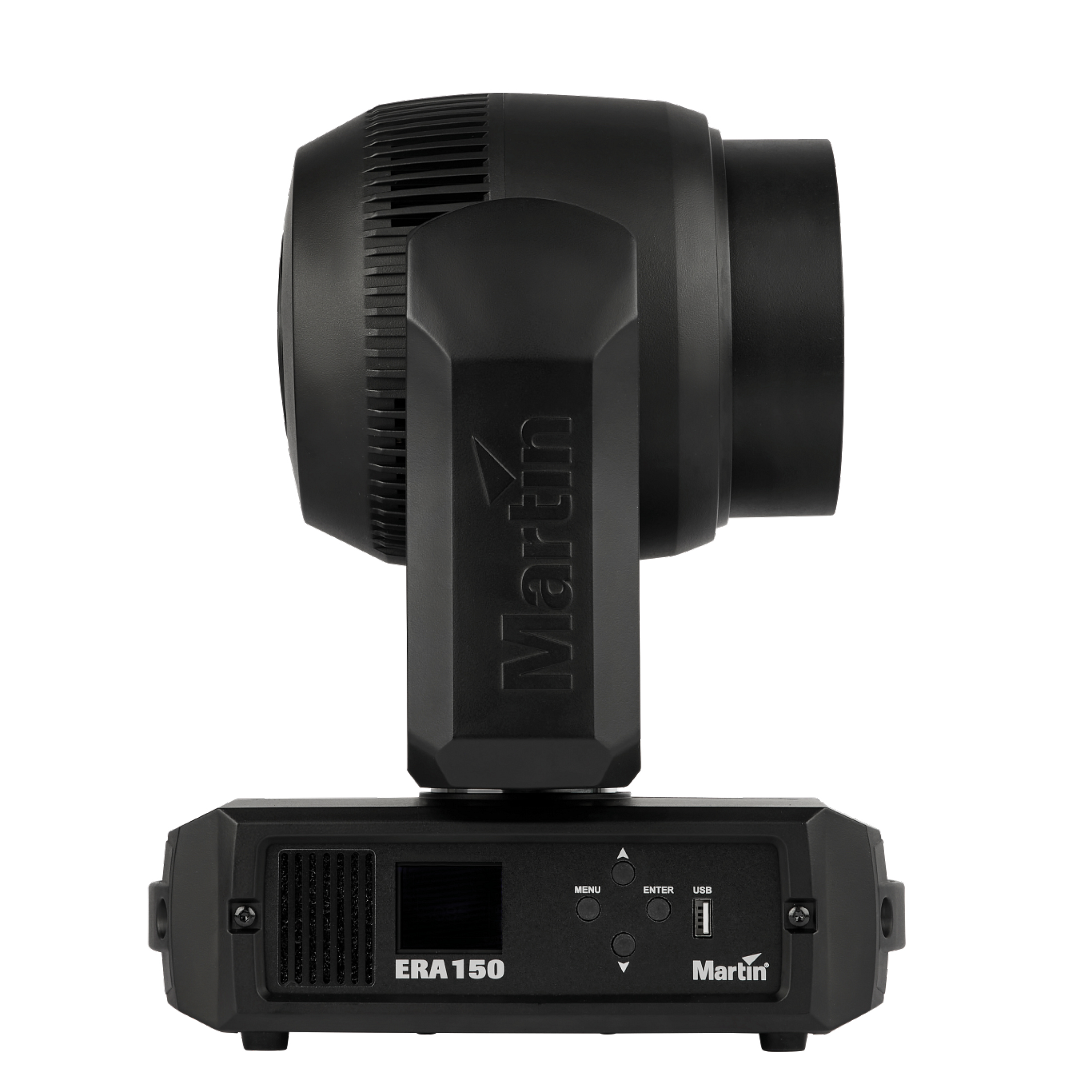

DMX address setting: Control panel with LCD display
DMX channels: 18
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Fixture software update: USB memory device or over DMX link

Optics
Light source: 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
Beam angle (half-peak): 4.2° - 38.7°
Field angle (one-tenth peak): 5.1° - 58.6°
Cutoff angle (3%): 5.7° - 69.6°
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions

Photometric Data
Wide beam: 3900 lumens
Narrow beam: 1774 lumens
Fixture Center Intensity Narrow Beam: 397783 cd
Fixture Center Intensity Wide beam: 10042 cd
CRI (Color Rendering Index) : >70
CQS (Color Quality Scale): 83
TM-30 Rf (IES TM-30-15 Fidelity Index): 77
TM-30 Rg (IES TM-30-15 Gamut Index): 117
TLCI (Television Lighting Consistency Index): 56
CCT: 6500 Kelvin
LED refresh rate - Standard Mode: 3600 Hz
LED refresh rate - Theatre Mode: 19200 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP 20

Installation
Mounting points: 2 x quarter‐turn fastener receptacles, 106.5 mm
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

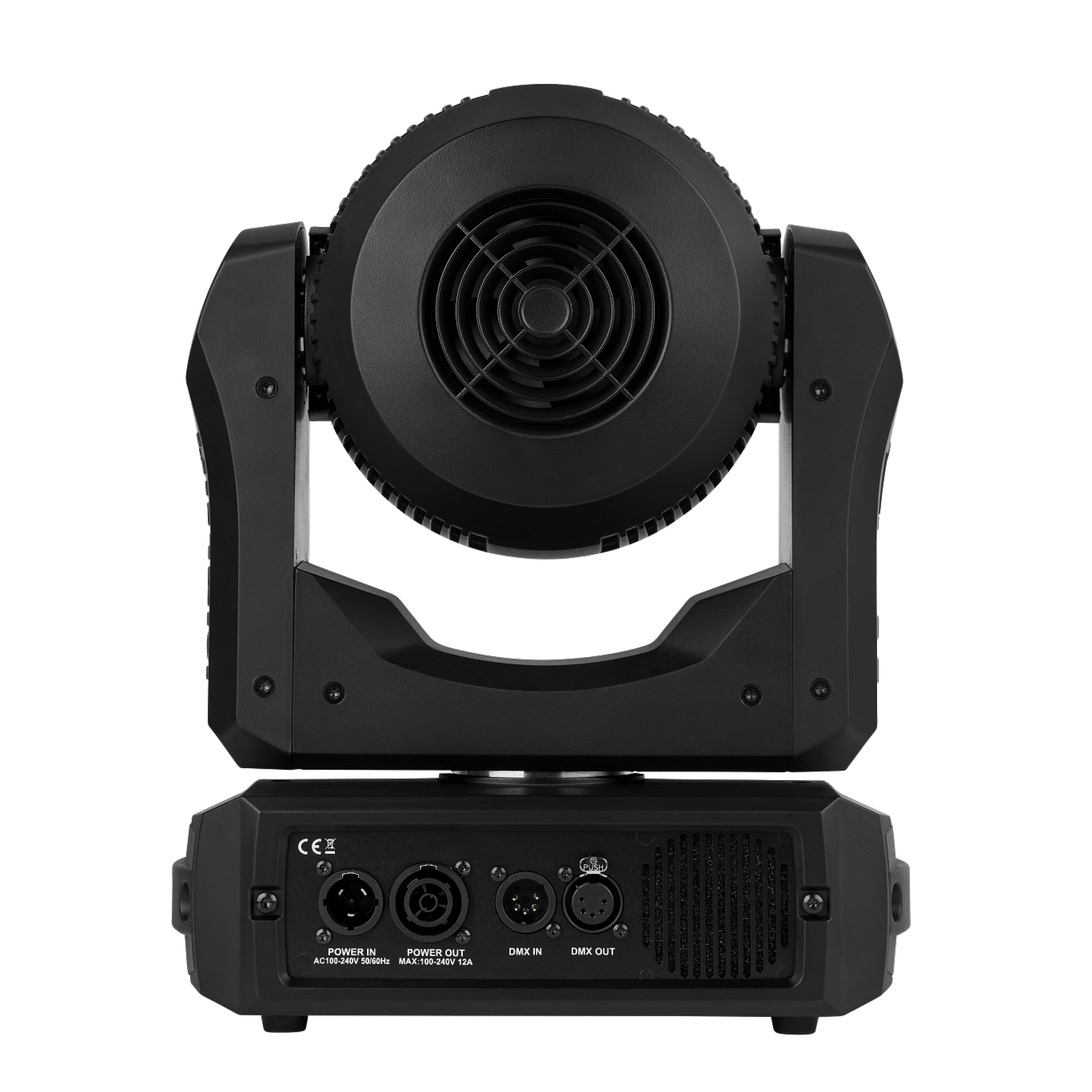

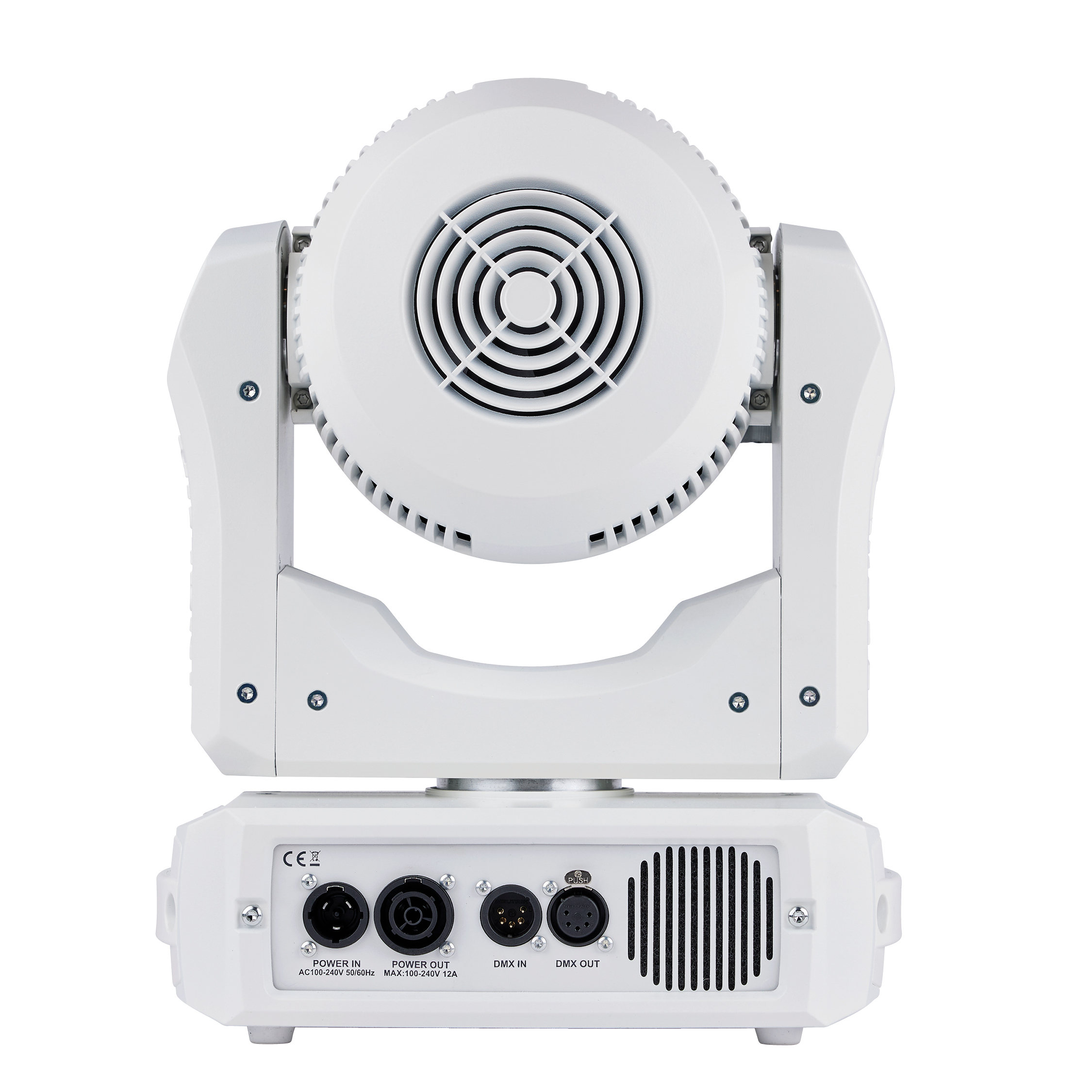

Connections
AC power input/output: Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/out: Neutrik 5-pin locking XLR

Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 A
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 220 V / 230 V / 240 V
Typical current draw: 3.8 A @ 100 V / 120 V , 1.5 A @ 220 V / 230 V / 240 V *

Power Consumption
Typical: 315 W *
Hibernation: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal
Cooling: Forced air (temperature regulated, low noise)
Total heat dissipation (calculated): 1195 BTU/hr.
*Calculated, +/- 10%, at full intensity, full white
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)

Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.0 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.3 dB(A)

Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 15.5 lm/W
LWR*: 507 lm/kg (230 lm/lb)
LWR = Lumen-to-Weight Ratio

Approvals
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA

Included Items
Safety and Installation Manual
Martin Omega bracket for rigging clamp attachment : P/N 91602001

Accessories
Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Power Connectors
Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU

Installation Hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
