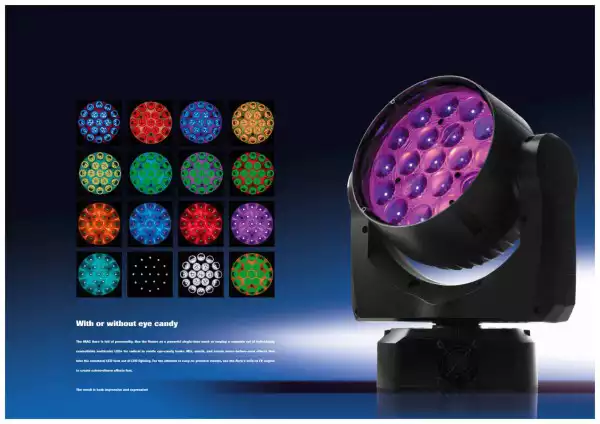

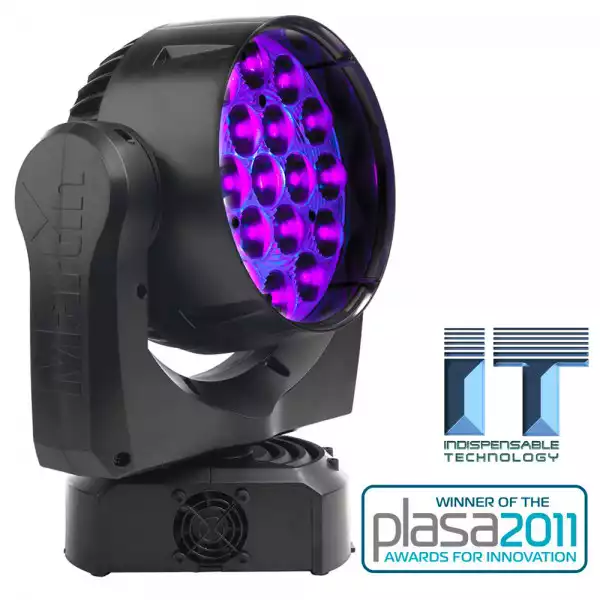

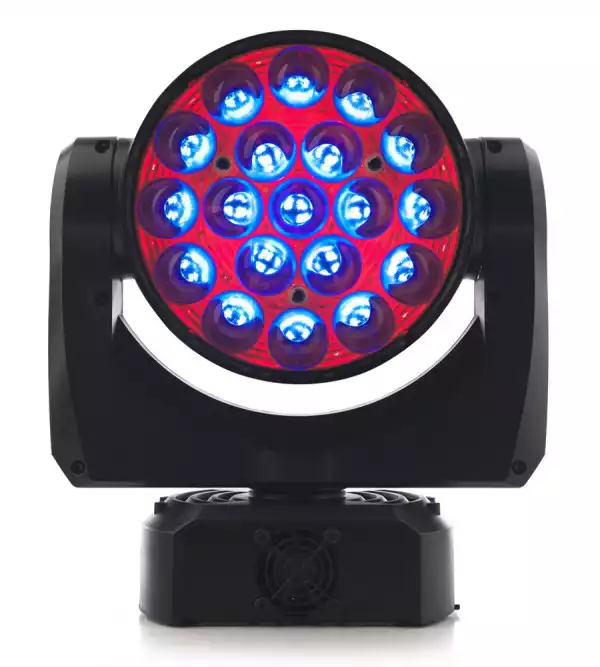

The MAC Aura is an award-winning wash light that lighting designers have turned to the world over due to its versatility as a powerful beam and wash luminaire of the highest caliber. The result of out-of-the-box creative thinking, it is the first LED moving head wash light to combine multicolor beam LEDs with a backlight LED array that takes the synthetic look out of LED wash lights.
|
| Features |
- Single-lens wash with fully premixed color
- Broad color palette, RGBW color mixing
- Uniform shades
- 11 to 58° zoom
- 3850 lm output
- Aura eye-candy effects
- Built-in FX engine
- Rapid movement
- High efficiency, low power consumption, long lifetime
- Compact, low weight design (5.6 kg)
|
|
| Length: 302 mm (11.9 in.) across yoke |
| Width: 302 mm (11.9 in.) across yoke |
| Height: 360 mm (14.2 in.), head straight up |
| Weight: 5.6 kg (12.3 lbs.) without accessories |
|
| Beam color mixing: RGBW |

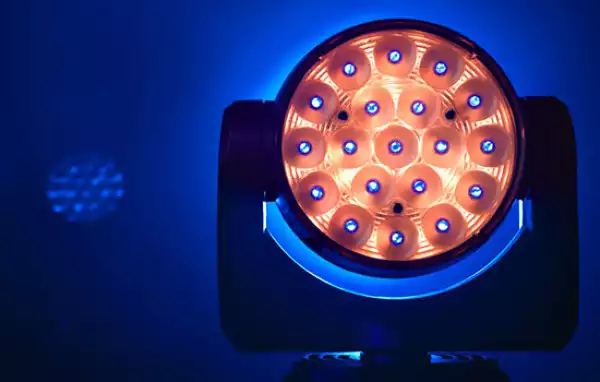

| Aura (secondary lens array illumination) color mixing: RGB |
| Beam color temperature control: CTO, variable 10 000 - 2500 K |
| Beam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color |
| Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects |
| Pre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combined |
| Electronic dimming: Independent beam and aura, four dimming curve options |

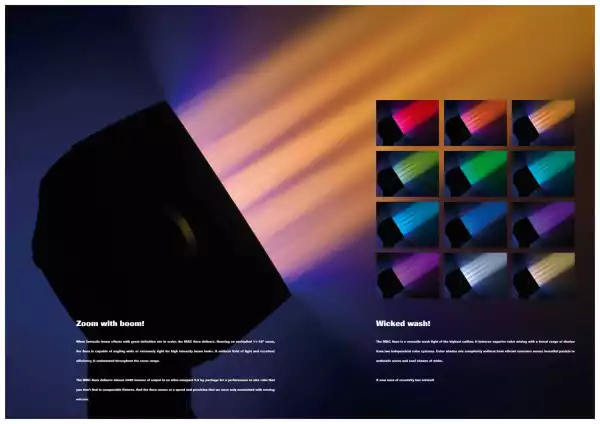

| Zoom: 11° - 58° (one-tenth peak angle) |
| Pan: 540° |
| Tilt: 232° |
| Pan and tilt speed: Adjustable via onboard control panel and DMX |
|
| Control options: Independent control of beam (primary output) and aura (secondary lens array illumination) |
| Macro programs selectable via DMX: Synchronized beam and aura effects |
| Control: DMX |
| RDM: Implemented |
| Control resolution: 8-bit, with 16-bit control of pan & tilt |
| DMX channels: 14/25 |
| Setting and addressing: Control panel with backlit graphic display |
| DMX compliance: USITT DMX512-A |
| RDM compliance: ANSI/ESTA E1.20 |
| Transceiver: RS-485 |
| Fixture software update: Via DMX with Martin™ USB Duo DMX Interface Box |
|
| Light source: Osram Ostar high-power emitters |
| LED refresh rate: Beam 1220 Hz, aura 4395 Hz |
| Minimum LED lifetime: 50 000 hours (to >70% luminous output)* |
| *Figure obtained under manufacturer´s test conditions |
|
| Total output: 3850 lumens (zoom at maximum) |
|
| Color: Black |
| Housing: High-impact flame-retardant thermoplastic |
| Protection rating: IP20 |
|
| Mounting points: One M12 threaded hole for rigging clamp |
| Location: Indoor use only, must be fastened to surface or structure |
| Orientation: Any |
| Minimum distance to combustible materials: 100 mm (3.9 in.) |
| Minimum distance to illuminated surfaces: 200 mm (7.9 in.) |
|
| AC power input: Neutrik PowerCon |
| AC power throughput: Neutrik PowerCon |
| DMX and RDM data in/out: 5-pin locking XLR |
|
| AC power: 100-240 V nominal, 50/60 Hz |
| Maximum total power consumption: 260 W |
| Power supply unit: Auto-ranging electronic switch mode |
| Main fuse: 5 AT (slow blow) |
| Typical power consumption, all effects static, zero light output: |
|
| 100 V, 60 Hz: 236 W, 2.4 A, PF 0.994 |
| 120 V, 60 Hz: 234 W, 2.0 A, PF 0.992 |
| 208 V, 60 Hz: 229 W, 1.2 A, PF 0.970 |
| 230 V, 50 Hz: 228 W, 1.1 A, PF 0.959 |
| 240 V, 50 Hz: 228 W, 1.0 A, PF 0.953 |
| Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. |
|
| Cooling: Forced air (temperature-regulated, low noise, user-definable levels) |
| Maximum ambient temperature (Ta max.): 40° C (104° F) |
| Minimum ambient temperature (Ta min.): 5° C (41° F) |
| Total heat dissipation (calculated, +/- 10%): 880 BTU/hr. |
|
 |
| EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 |
| EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547 |
| US safety: UL 1573 |
| US EMC: FCC Part 15 Class A |
| Canadian safety: CSA E598-2-17 (CSA E60598-1) |
| Canadian EMC: ICES-003 Class A |
| Australia/NZ: C-TICK N4241 |
|
| |
| |
| *Available by special order - please contact your Martin™ supplier for details |
|
|
|
| Photometric Data |
Standard (RGBW LEDs on) |
| Efficacy: 15 lumens per watt |
| One-tenth peak angle: 11.4° |
| Total output: 2900 lm |
Narrow (Only white LED´s on) |
| Efficacy: 21.6 lumens per watt |
| One-tenth peak angle: 11.4° |
| Total output: 1300 lm |
Narrow (Only red LED´s on) |
| Efficacy: 7.5 lumens per watt |
| One-tenth peak angle: 11.4° |
| Total output: 490 lm |
Narrow (Only green LED´s on) |
| Efficacy: 21.9 lumens per watt |
| One-tenth peak angle: 11.4° |
| Total output: 1100 lm |
Narrow (Only blue LED´s on) |
| Efficacy: 3 lumens per watt |
| One-tenth peak angle: 11.4° |
| Total output: 190 lm |
Medium (RGBW LED´s on) |
| Efficacy: 19.1 lumens per watt |
| One-tenth peak angle: 35° |
| Total output: 3600 lm |
Wide (RGBW LED´s on) |
| Efficacy: 20.1 lumens per watt |
| One-tenth peak angle: 59° |
| Total output: 3800 lm |
© 2011-2013 Martin Professional Aps. Specifications subject to change without notice |
