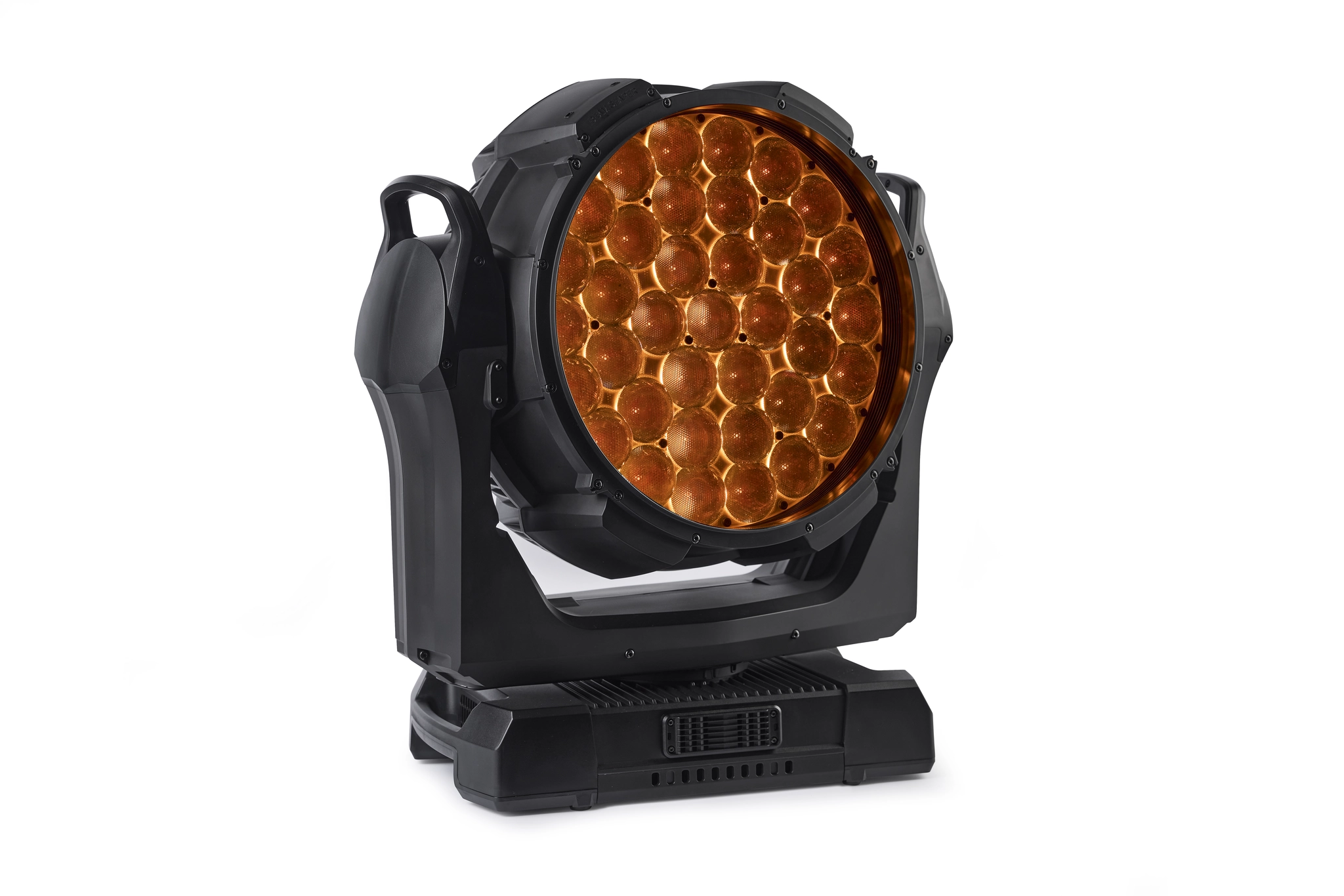

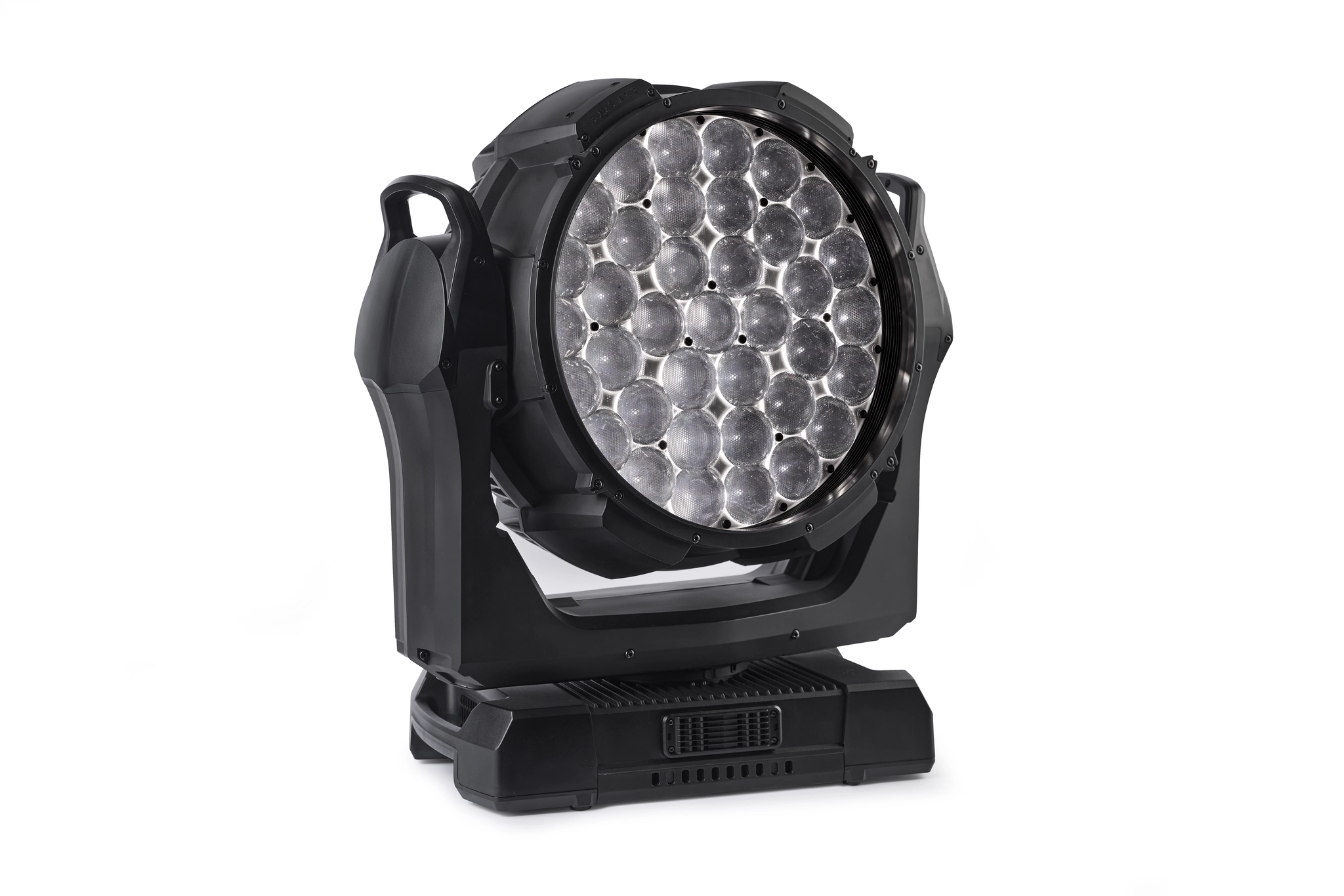

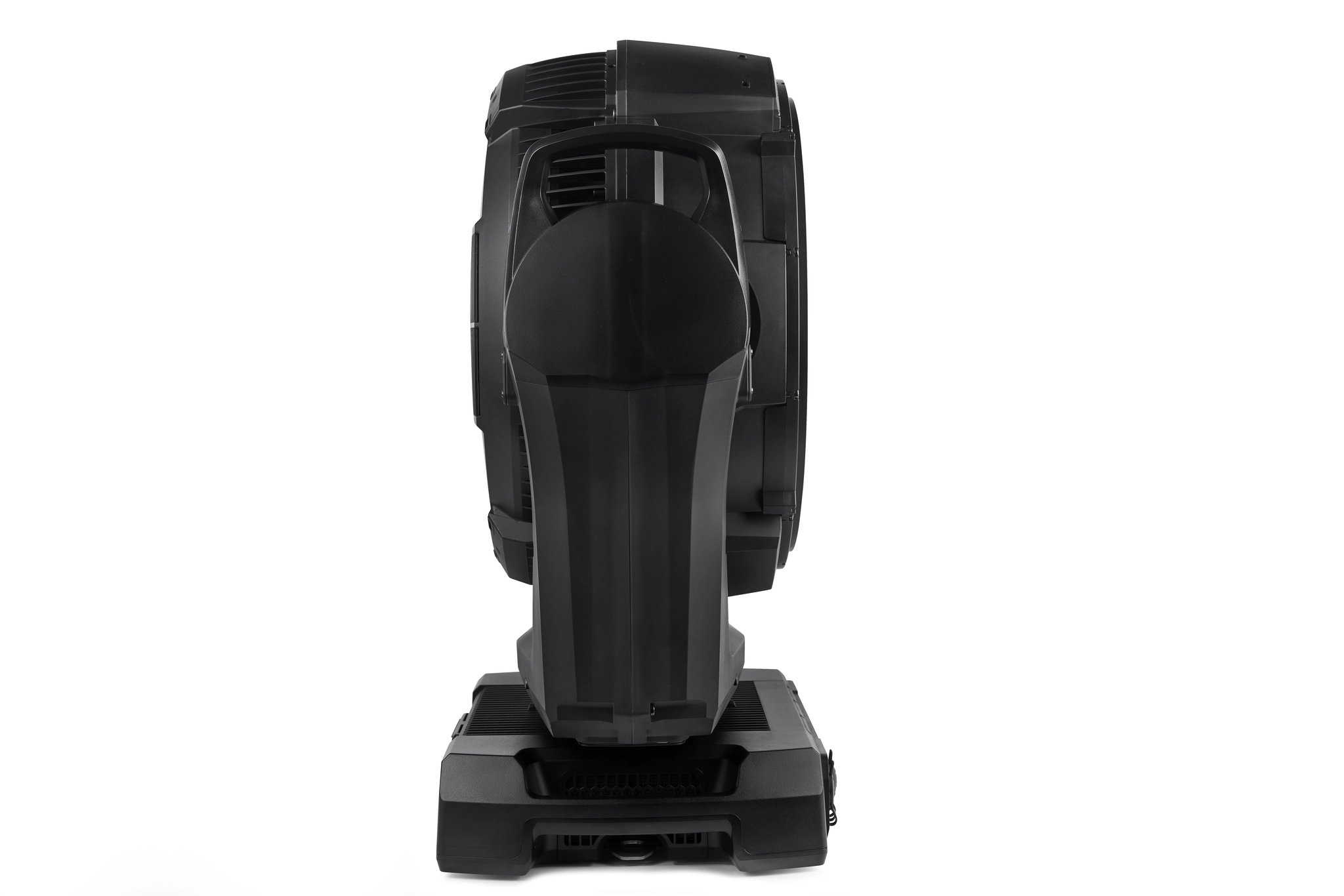

MARTIN MAC Aura Raven XIP
The Martin MAC Aura Raven XIP is a premium moving head fixture that combines wash, beam, eye-candy, and smart weatherproof functionality to lead as the biggest, brightest and boldest fixture of the MAC Aura family. Delivering class-leading lumen output and unparalleled performance indoors or outdoors, MAC Aura Raven XIP is perfect for lighting designers, rental companies, and installation customers needing a truly versatile workhorse for illuminating festival stages, theatrical performances, corporate events, and broadcast applications.
Features
27,000 lumens of output
Silent and extremely fast zoom system with a range from 6 to 52 degrees
RGBL (Red/Green/Blue/Lime) LED engine, providing higher light quality (CRI / TM-30 / TLCI)
Large 343 mm (13.5 in) diameter front lens
Dark lens, offering a much more discreet look and higher contrast for the pixelated Aura backlight effect

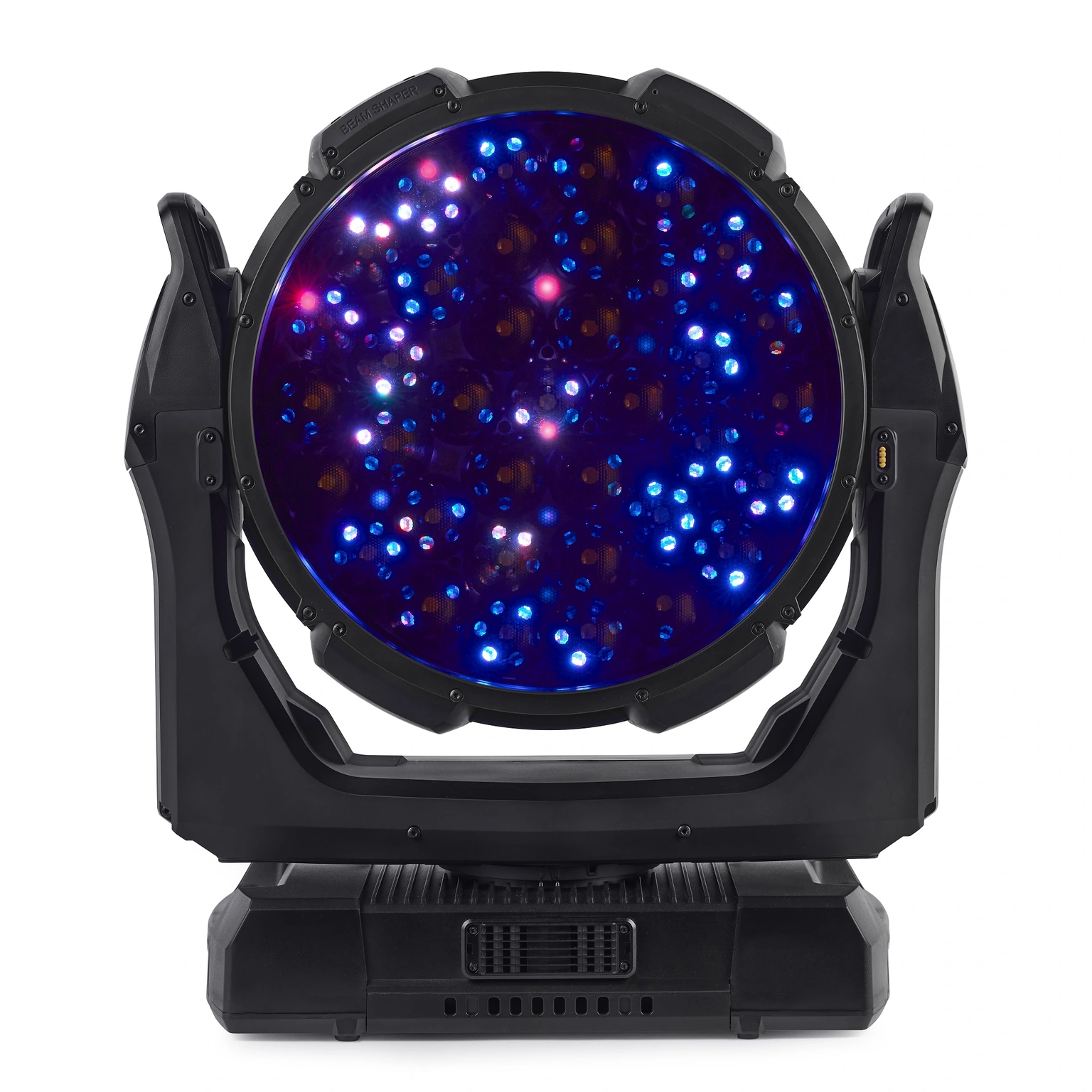

Pixelated Aura Backlight Effect with 234 RGB LEDs
Full pixel-control over 37 main LEDs and 234 Aura backlight LEDs
DMX, Art-Net, sACN & Martin P3 control
XIP smart weatherproof technology for temporary outdoor use
Most compact and lightweight fixture in its class
Yoke handles for easy handling of the fixture, and easy, upside-down flipping
Battery-powered display for setup and configuration
NFC interface, supporting configuration and diagnostics via Companion Mobile App
Universal Connect Module slot, supporting third-party wireless modules
Optional BeamShaper module, that can be added and shapes the field of light being projected
Specifications
Physical
Width (across yoke): 528 mm (20.8 in.)
Width (base): 429 mm (16.9 in.)
Height (head forward): 588 mm (23.1 in.)
Height (maximum): 603 mm (23.7 in.)
Depth (head): 241 mm (9.5 in.)
Depth (base): 285 mm (11.2 in.)
Minimum center-to-center distance in side-by-side installation: 540 mm (21 in.)
Weight: 28.8 kg (63.5 lbs.)
Dynamic Effects
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGBL, independently variable 0 - 100%
Beam Color Temperature Control: Variable 2,000 – 12,850 K
Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:5.3 zoom ratio
Pan: Motorized 540°
Tilt: Motorized 250°
Beam PixelMapping: Individual RGB control of each of the 37 Beam pixels
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Aura Dimming options: Choice of four dimming curves
Aura Color Mixing: RGB, independently variable 0 - 100%
Aura Color Temperature Control: Variable 2,000 – 12,850 K
Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: Individual RGB control of each of the 234 Aura pixels
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground color, background color, speed and direction control
LED Frequency control: Variable LED PWM control
Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Extended, Ludicrous, Plaid & Compact Direct
DMX Channels: 22, 38, 149, 266, 851 & 22
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, BeamShaper Indexing, Pan and Tilt
Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2018
Martin P3 Compliance: P3 System Controller Software 6.2.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Optics
Front Lens Diameter: 343 mm (13.5 in.)
Zoom Range: 1:5.3
Full Zoom Range at Half Peak (Beam Angle): 6.6° - 35.5°
Full Zoom Range at Tenth Peak (Field Angle): 9.8° - 52.0°
Beam Light Source: 37 x 40 W RGBL LED
Aura Light Source: 234 x 0.25 W RGB LED
Max. Total Beam LED Engine Power: 830 W
Max. Total Aura LED Engine Power: 70 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions
Photometric Data
Light Engine Luminous Output: 37,000 lumens
Fixture Luminous Output Wide: 27,000 lumens
Fixture Luminous Output Narrow: 19,000 lumens
Peak Luminous Intensity Narrow: 1,800,000 cd
CCT: Variable 2,000 K – 12,850 K (+/- 200 K)
CRI (Color Rendering Index) (default): ≥ 79
CRI (Color Rendering Index) (optimized): ≥ 86
CQS (Color Quality Scale) (default): ≥ 89
CQS (Color Quality Scale) (optimized): ≥ 89
TM-30 Rf (IES TM-30-15 Fidelity Index) (default): ≥ 81
TM-30 Rf (IES TM-30-15 Fidelity Index) (optimized): ≥ 84
TM-30 Rg (IES TM-30-15 Gamut Index) (default): ≥ 112
TM-30 Rg (IES TM-30-15 Gamut Index) (optimized): ≥ 105
TLCI (Television Lighting Consistency Index) (default): ≥ 75
TLCI (Television Lighting Consistency Index) (optimized): ≥ 87
Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX and 19,200 Hz mode
Aura LED Refresh Rate: 62,500 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Aura
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP54
Installation
Mounting points: 4 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Indoor or Temporary Outdoor use
Orientation: Any, except with display facing upwards in outdoor application
Minimum distance to combustible materials: 0.2 m (7.9 in.)
Minimum distance to illuminated surfaces: 2.5 m (98.4 in.)

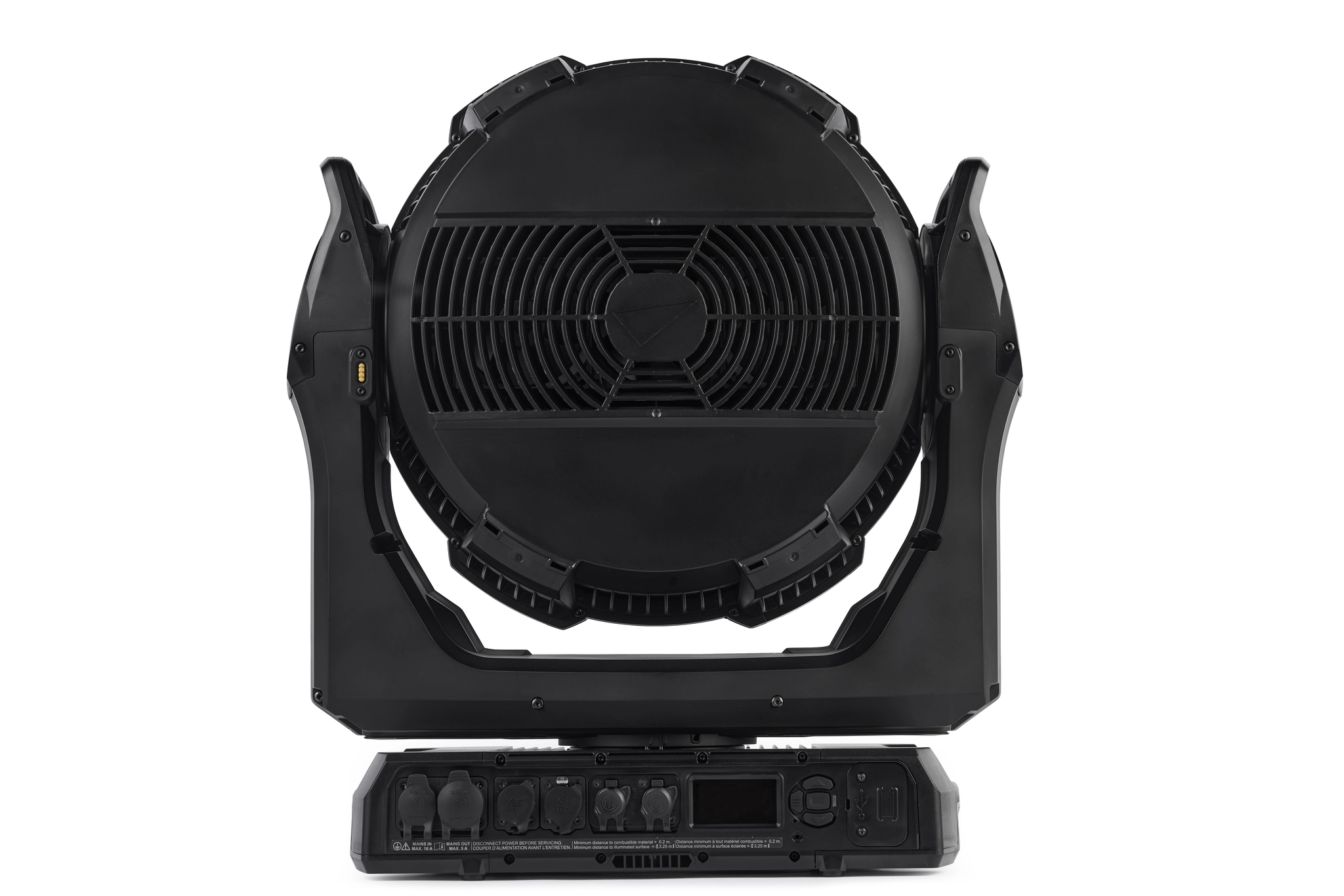

Connections
AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
Firmware from flash memory: USB 2.0 type C port
Accessory Plug-In: Universal Connect Module Slot
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
Typical earth-leakage current: 0.7 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
Max current draw: 11.3 A @ 100 V / 120 V , 5.6 A @ 208 V , 4.8 A @ 230 V / 240 V
Typical current draw: 9.8 A @ 100 V , 8.1 A @ 120 V , 4.6 A @ 208 V , 4.2 A @ 230 V , 4.0 A @ 240 V *
Power Consumption
Maximum: 1120 W
Typical: 1020 W *
Idle: 135 W *
Hibernation: 6 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling: Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F) – Warm up condition may apply
Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
Total heat dissipation (calculated, +/- 10%): 3478 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 36.4 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.6 dB(A)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Packaging: FSC Certified cardboard outer packaging & Recycled EPS inner packaging
Efficacy (max output): 26.4 lm/W
LWR*: 937 lm/kg (425 lm/lbs.)
* LWR = Lumen-to-Weight Ratio
