Features

Pure white LED engine with 3000 K CCT.
No color temperature variation during zoom and dimming.
Flicker-free operation—LED driver frequency suitable for all camera applications.
Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve.
Color wheel—6 interchangeable dichroic filters + open.

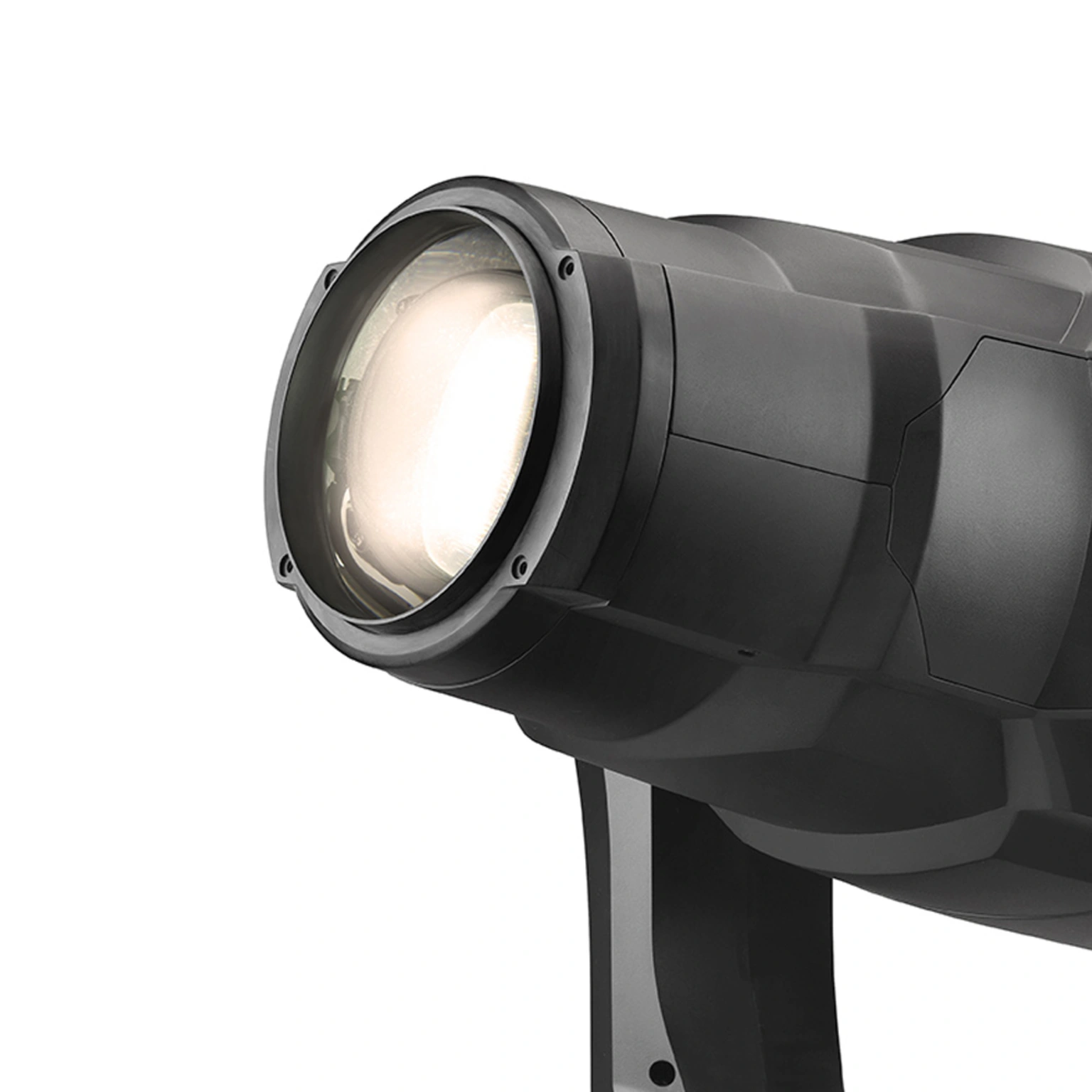

Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
Precise and tight iris with adjustable dynamic effects.
Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
Low weight—28.5 kg/62.9 lbs
Foam rubber (SIP) flight case insert for secure shipment.

Specifications

Physical
Length: 452 mm (17.8 in.)
Width: 480 mm (18.9 in.) across yoke
Height:
755 mm (29.8 in.) maximum
745 mm (29.4 in.) head straight up

Weight: 28.5 kg (62.9 lb.)
Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
Dynamic Effects
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Iris: Variable 0 - 100%
Zoom: Motorized
Color temperature control: Variable 3000 - 7000 K
Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Control and Programming
Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
16-bit control: Dimming, pan and tilt
Movement control options: Tracking and vector
DMX channels: 24
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Fixture software update: USB memory device or over DMX link
Optics
Light source: 468 W custom Martin LED engine
Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)
Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output: ≥ 31,500 lumens
Fixture luminous output with Fresnel lens (standard): 8,500 lumens
Fixture luminous output with PC lens (optional): 9,500 lumens
CRI (Color Rendering Index) : >90
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >90
TM-30 Rg (IES TM-30-15 Gamut Index): >98
TLCI (Television Lighting Consistency Index): >90
CCT: 3000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation
Mounting points: 4 pairs of 1/4-turn locks
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
Connections
AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 120-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Power Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 V
Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *
Power Consumption
Typical: 596 W *
Idle: 64 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.

Thermal
Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 16 lm/w
LWR*: 333 lm/kg (151 lm/lb)
LWR = Lumen-to-Weight Ratio
