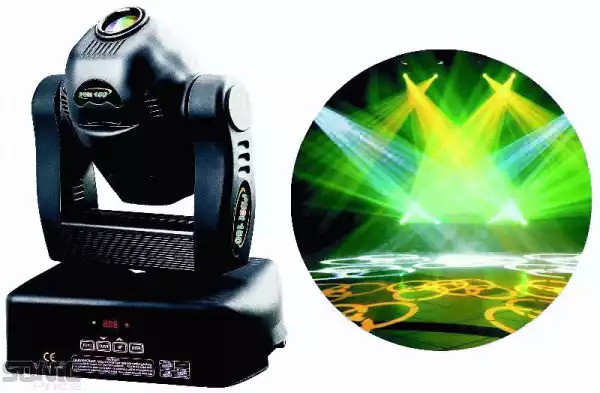

Pilot 150 - ROBO (ROTO) GLAVA

The first unit in our family of moving head luminaires, the Pilot 150 is very popular. With its elegant looks and excellent performance it is suitable for so many different applications, from discotheques to department stores, in fact it fits in well just about anywhere you want it to. The units are available in two colours with black as standard but if silver fits your needs better simply specify when ordering.

Technical Data
VOLTAGES:
     100/120/220/230/240V AC, 50Hz/60Hz
POWER CONSUMPTION:
     280W, 220V
LAMP:
     OSRAM HTI 150W discharge lamp
     Colour Temperature: 6500K
     Socket: GY9.5, single end
     Manufacturers Rated Lamp Life: 750 Hours
COLOURS:
     9 Dichroic colours plus white

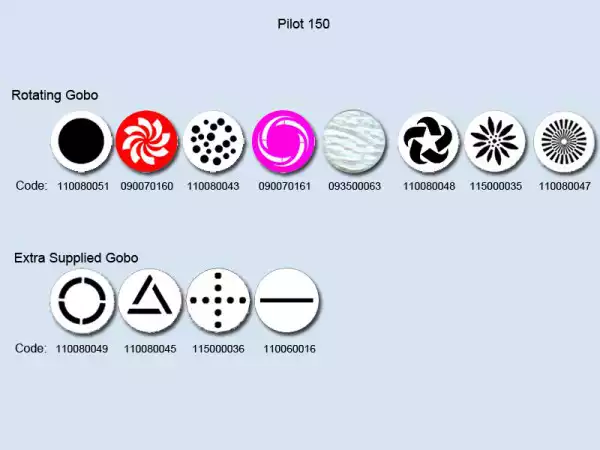

GOBOS:
     7 interchangeable gobos + white, "indexable", bi-directionally rotating
     at variable speeds.
     4 extra gobos supplied as standard
     Gobo outer diameter: 26.9mm
     Gobo image diameter: 22mm
FOCUS:
     Manual focus
SHUTTER/STROBE:
     Shutter for blackout and strobe, 1 - 7 F.P.S.
HEAD MOVEMENT:
     Pan 370º, Tilt 265º
BEAM ANGLE:
     13º

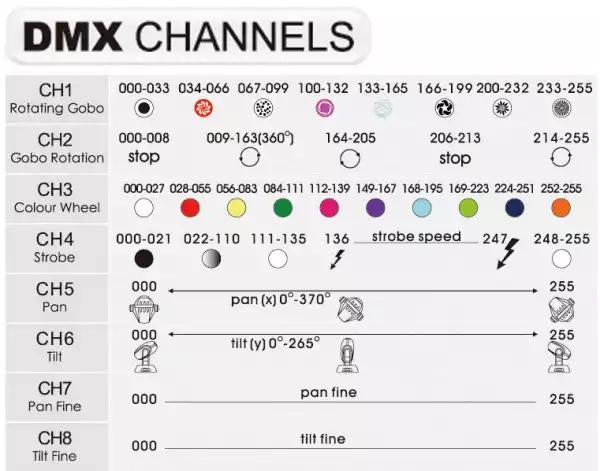

CONTROL:
     DMX512, 8 channels
     Stand-Alone Automatic mode, sound activation and
     Master/Slave operation
HOUSING:
     Metal and composite plastic (IP20)
IN CONFORMITY WITH THE CE STANARD AND ROHS DIRCTIVE
NET WEIGHT:  12Kg
PACKED DIMENSIONS:  38cm x 34cm x 48cm
GROSS WEIGHT: 13.5Kg
