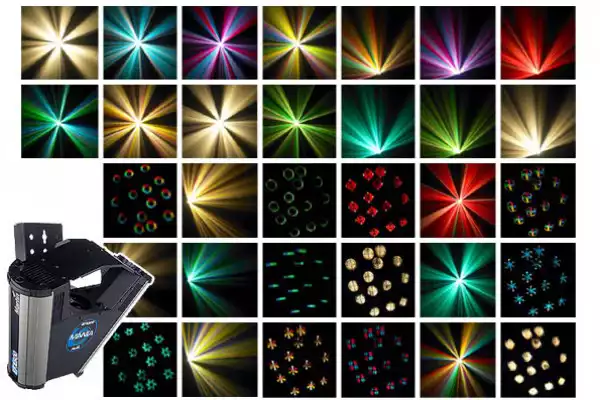

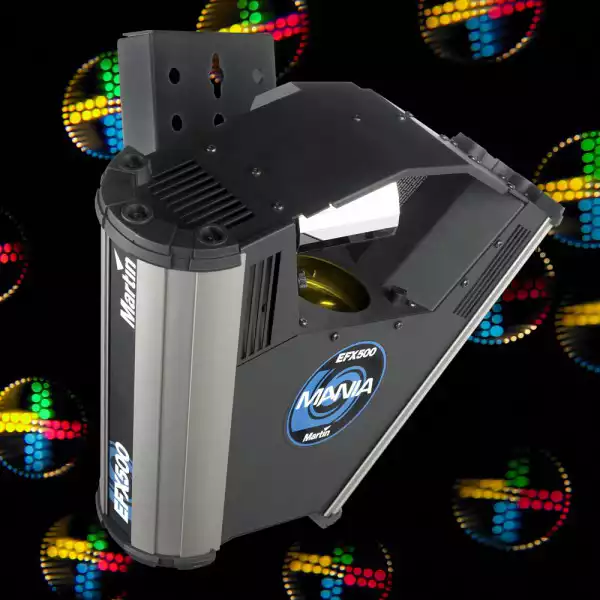

The Mania EFX500 is a powerful, "full house" 250 W halogen effect that kicks out a dizzying array of razor sharp effects and patterns.It features dazzling new graphical looks from a combined color and gobo wheel cast from a rotating and swivelling mirror drum. Other effects can be achieved through electronic dimming, strobe effects and manual focus. The result is a unique, high powered yet low priced effect light.
Designed for both installation and portable use, this versatile effect light includes a number of mounting options yet is durable enough for life on the road. Ideal for any show, club, or party, the compact EFX500 is DMX controllable for ultimate manageability or default to the music or auto trig. Built in macros are included for easy impression and fast and simple programming.
Combine the superior quality of the Mania brand with the unmatched value of a long life halogen lamp (1000 hours, included) and users will experience incredible savings over other lights in its class. And for easy serviceability, the lamp in the EFX500 is a breeze to replace.
And as with all Mania products the EFX500 is officially ETL, cETL and CE approved meaning users are assured of the fixtures' safety and performance. * 250 W halogen lamp * 1000 hour lamp included * 11 gobos plus blackout * Manual focus * Strobe effect with gobo wheel * Rotating and swiveling mirror drum * All major safety approvals CE, ETL and CETL * Rigorously tested for total reliability * DMX, stand alone (music or auto-trig) and master/slave function * Continuous operation - no cool down time needed * 12 pre-programmed macros for fast start-upPhysicalLength: 410 mm (16.1 in.)Width: 500 mm (19.7 in.)Height: 230 mm (9.1 in.)Weight: 12.5 kg (27.6 lbs.)All dimensions and weights include the supplied mounting plate.
LampType: 250 W, 24 V ELC halogenApproved lamps: Philips ELC 10H 250 W (1000 hrs.)Socket: G5.3
Dynamic EffectsMotorized rotating parabolic mirror dishGobo wheel: 11 colored gobos plus blackoutMotorized mirror drum: 180° pan (swivel) and 360° tilt (continuous rotation)Electronic dimming: 0 - 100%Shutter: Strobe effect variable up to 8 Hz
OpticsManual focus: 2 m (6.6 ft.) - 20 m (65.6 ft.)
Control and ProgrammingControl options: DMX, stand-alone, synchronized (master/slave)DMX channels: 7/9DMX address setting: Onboard control panel with 3-digit displayMacro programs selectable via DMX: 12Stand-alone trigger options: Music trig, auto trig (both selectable via control panel or via DMX)Music trig sensitivity: Electronically adjustableProtocol: USITT DMX512/1990Receiver: RS-485Firmware update: Serial upload via DMX link
ConstructionHousing: Steel and aluminum
InstallationMounting points: Adjustable mounting bracketOrientation: Any
ConnectionsAC power input: 3-pin IEC male socketDMX data in/out: 3-pin locking XLR
ElectricalAC power: Switch-selectable 110-120 V, 60 Hz / 220-240 V, 50 HzMain fuse: 3.15 AT (slow blow)
ThermalCooling: Forced airMaximum ambient temperature (Ta max.): 40° C (104° F)Maximum surface temperature, steady state, Ta=40° C: 100° C (212° F)Total heat dissipation (calculated, +/- 10%): 900 BTU/hr.
