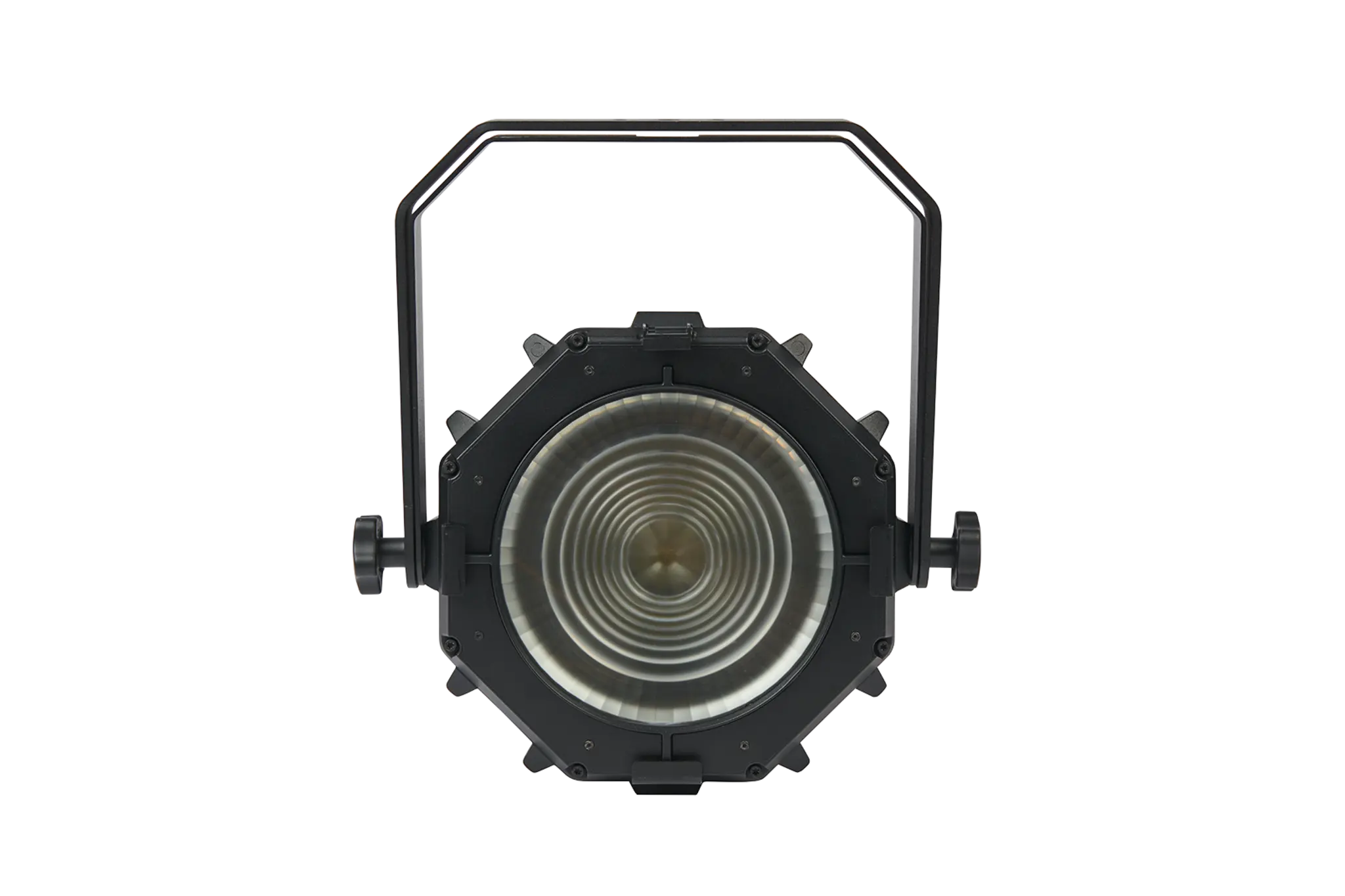

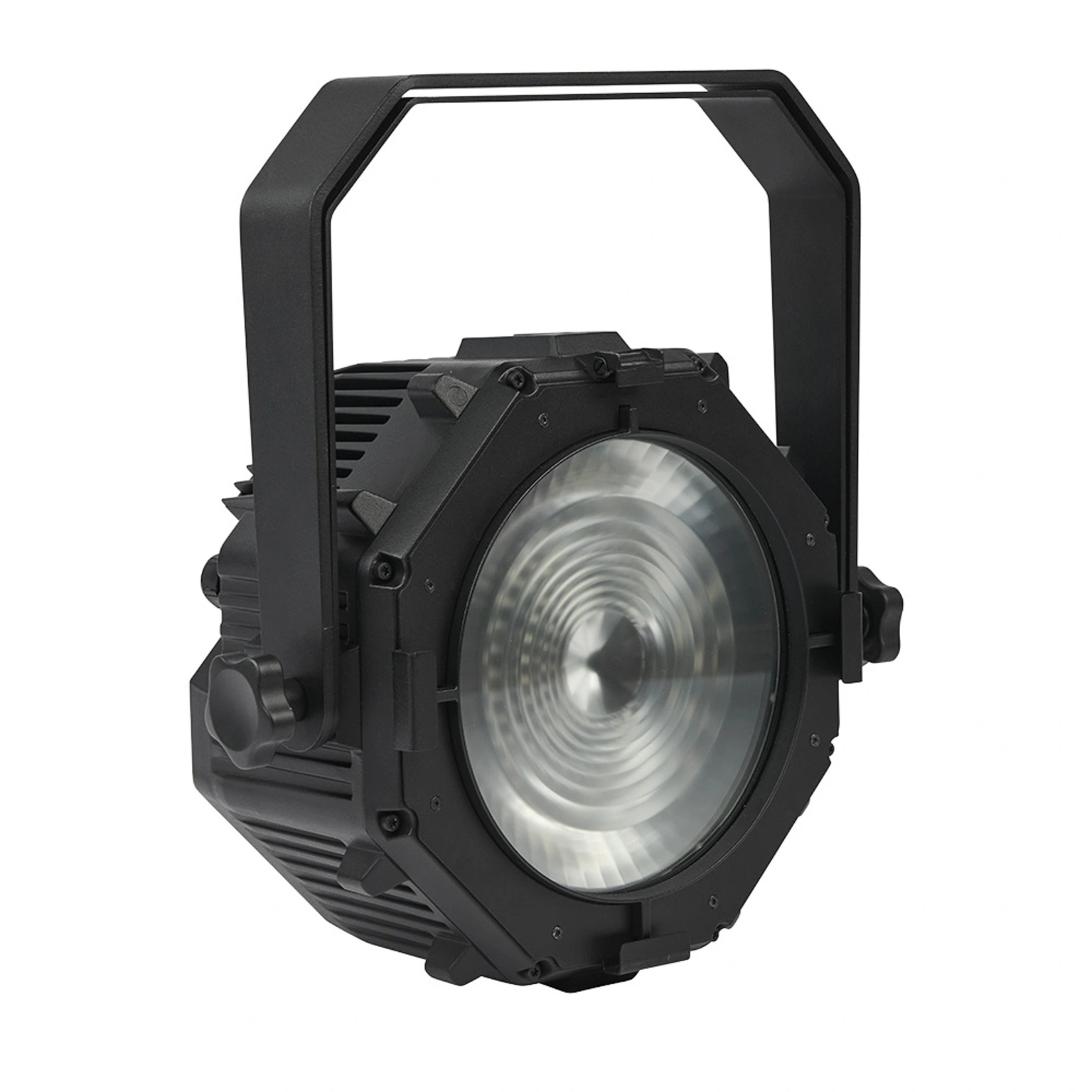

Features
High power, full color strobe/blind/wash/eye-candy fixture
13,000 lumen boost/strobe
8,000 lumen continuous
Beam angle of 12 degrees
Field angle of 26 degrees
Pixel-controllable RGB Aura backlight with 72 LEDs
Compact form-factor
Built-in power supply (100-240V)
Power and Data IN & THRU via hybrid cable (PDE system)
P3, DMX, Art-Net & sACN compatible
Built-in pixel-FX on backlight and beam

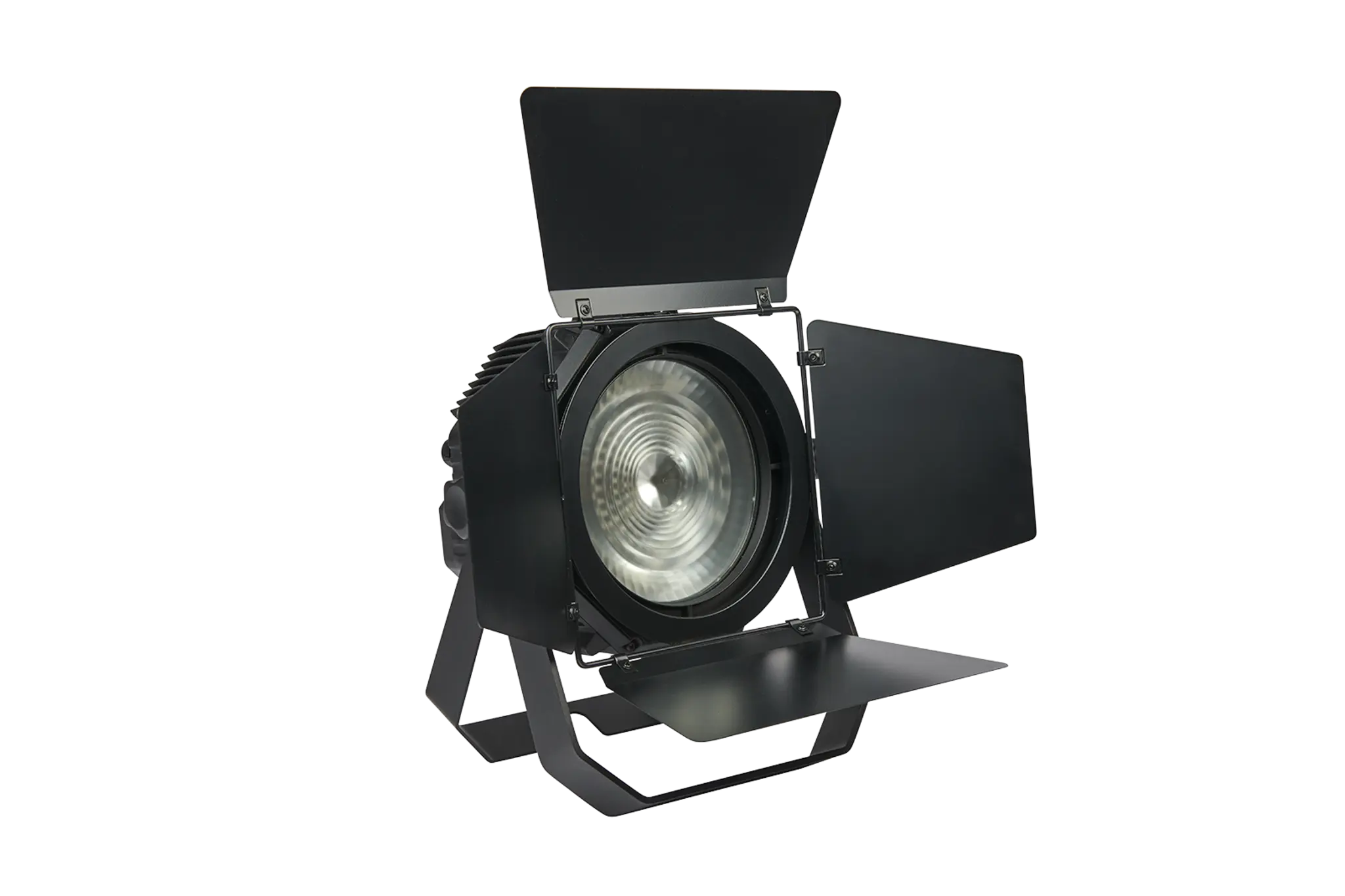

Front-accessory holder for barndoors and/or diffuser/lens
Detachable yoke-assembly which can also be used as floor-stand
VDO Grid Mount System to build battens, arrays and creative shapes
Compatible with Martin VDO Atomic Dot and MAC One interlocking mechanics for mixed arrays
IP65 rated

Specifications

Physical
Width excluding hanging bracket: 288 mm (11.3 in.) (identical to 2x VDO Atomic Dot locked together)
Width including hanging bracket: 371 mm (14.6 in.)
Height excluding hanging bracket: 288 mm (11.3 in.) (identical to 2x VDO Atomic Dot locked together)
Height including hanging bracket: 394 mm (15.5 in.)
Horizontal fixture spacing: 300 mm (11.8 in.) (center-to-center using interlock couplers)
Vertical fixture spacing: 300 mm (11.8 in.) (center-to-center using interlock couplers)
Depth: 161 mm (6.3 in.)
Weight including hanging bracket: 9.32 kg (20.5 lbs.)
Weight excluding hanging bracket: 7.65 kg (16.9 lbs.)

Dynamic Effects
Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
Beam Dimming options: Choice of four dimming curves
Beam Color mixing: RGB, independently variable 0 - 100%
Beam Color temperature control: Variable 2,000 – 11,000 K
Beam Virtual Color wheel: 48 color presets, continuous rotation and random color
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
Aura Dimming options: Choice of four dimming curves
Aura Color mixing: RGB, independently variable 0 - 100%
Aura Color temperature control: Variable 2,000 – 11,000 K
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each Aura pixel
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both

Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Setting and addressing: RDM, RDM over Art-Net or P3
DMX Modes: 1-channel, 3-channel, 4-channel, Compact, Basic, Extended
DMX channels: 1, 3, 4, 10, 27, 243
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: RS-485
Ethernet Transceiver: 10/100 Mbit (with fail-safe bypass)
Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
P3 Video Processing
Color Resolution: 16 bit per color (48 bit per pixel) (Beam & Aura)
Color Temperature Control: 2,000 - 11,000 K (Beam & Aura)
Synchronization: system-wide
Frame Rate: up to 75 frames/sec
Brightness Control: 0-100% (maintaining full color depth)
Color Gamut Control: full spectrum control (Beam & Aura)
Gamma Correction and Control: fully controllable (Beam & Aura)
Control/User Interface
Device status: Multi-color status LED
Device test and reset: Pushbutton to call up local test patterns and reset device
Optics and Photometric Data
Lens Diameter: 200 mm
Front Accessory Holder: PAR64 size

Beam/Strobe LED
LED Type: RGBW
Max. total lumen output: 13,000 lumens (boost/strobe mode)
Max. total lumen output: 8,000 lumens (continuous mode)
Center intensity: 170,000 cd (boost/strobe mode)
Center intensity: 103,000 cd (continuous mode)
Beam Angle: 12 Degrees (half peak)
Field Angle: 26 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Extended Mode and Calibrated Mode
CRI (Color Rendering Index): ≥ 83
CQS (Color Quality Scale): ≥ 87
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 83
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 106
TLCI (Television Lighting Consistency Index): ≥ 85
Color Temperature: variable (2,000 - 11,000 K)
Resolution: 16-bit per color
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

Aura Backlight LEDs
LED Type: RGB
LED Quantity: 72
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Extended Mode and Calibrated Mode
Color Temperature: Variable (2,000 - 11,000 K)
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white

Construction
Housing: Aluminum
Color: Black
Protection rating: IP65
Installation
Mounting options: hanging from bracket, hanging from clamp attached directly to fixture, hanging from other fixture using interlock mechanism or floor standing using integrated double bracket
Location: indoor or temporary outdoor use
Clamp attachment to hanging bracket: M12
Clamp attachment directly to fixture: M8
Maximum vertical column height: 4 fixtures
Orientation: Any
Minimum distance to combustible materials: 0.1 m
Minimum distance to illuminated surfaces: 0.5 m

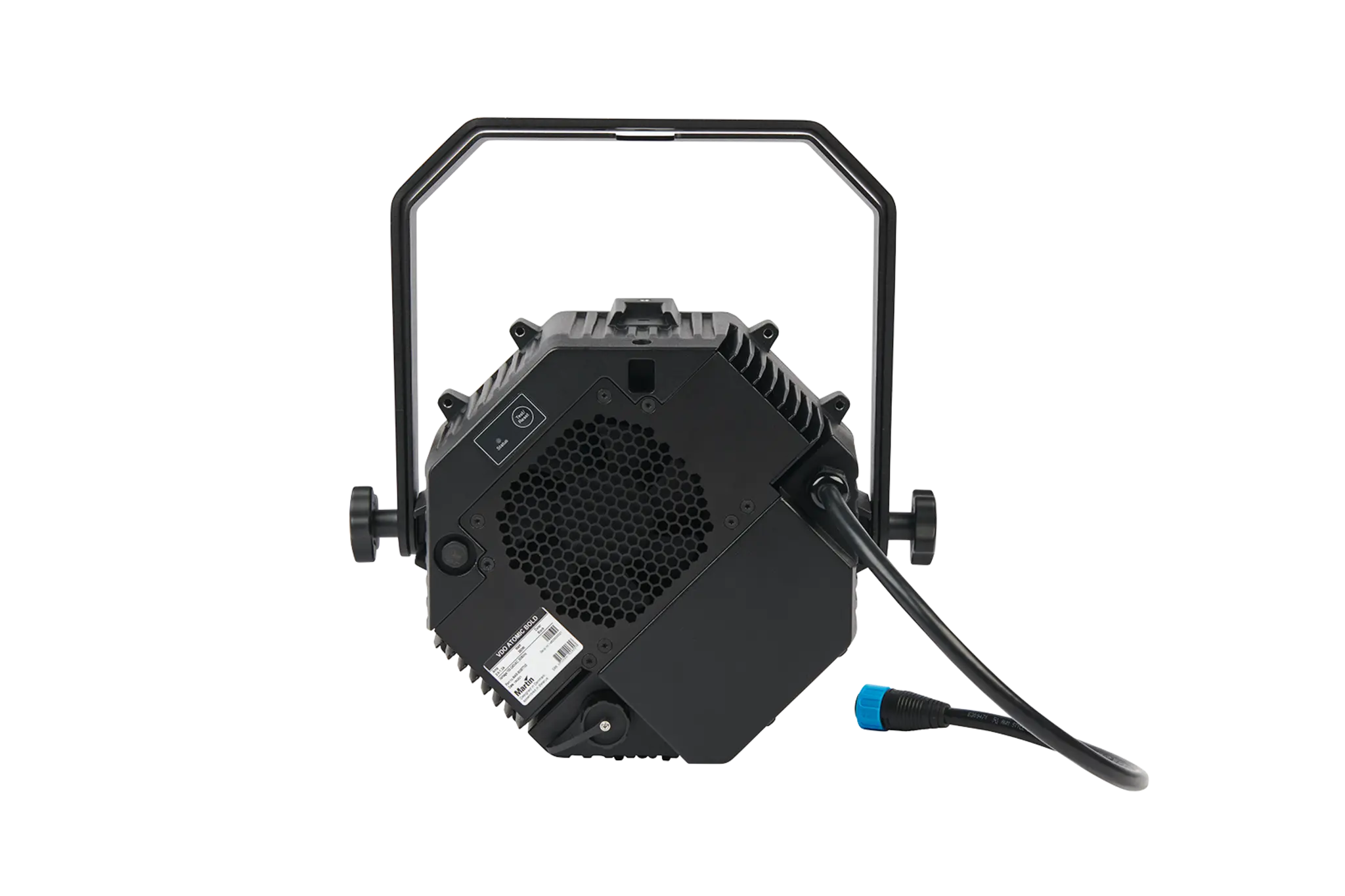

Connections

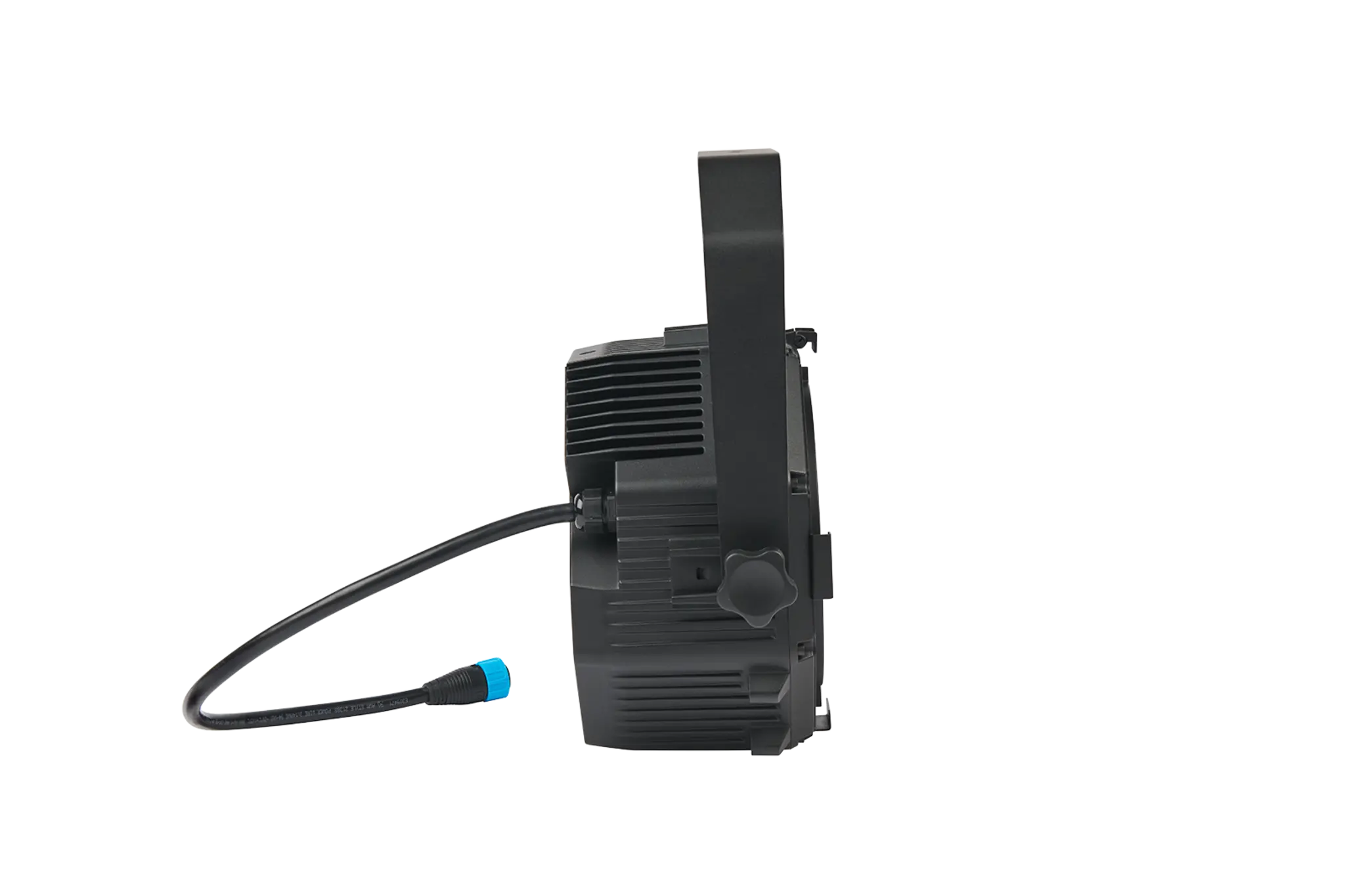

AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible

Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.0 A
Typical earth-leakage current: 0.80 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V , 0.96 @ 230 V , 0.95 @ 240 V
Max current draw: 4.0 A @ 100 V / 120 V , 1.9 A @ 208 V / 230 V / 240 V
Typical current draw: 3.6 A @ 100 V , 3.0 A @ 120 V , 1.7 A @ 208 V , 1.6 A @ 230 V , 1.6 A @ 240 V *
Power Consumption
Maximum: 400 W
Typical: 358 W *
Idle: 14 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, regulated fan speed.
Idle: no output, regulated fan speed.

Thermal
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40 C
Minimum ambient temperature (Ta min.): 0 C
Typical heat dissipation (calculated, +/- 10%): 1365 BTU/hr
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 25.9 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 19.2 dB(A)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 43.3 lm/W
LWR*: 1,395 lm/kg (634 lm/lb)
LWR = Lumen-to-Weight Ratio
