MARTIN VDO Atomic Dot CLD
The Martin VDO Atomic Dot CLD hybrid lighting and video fixture, also available in a WRM color temperature variant, combines a compact strobe, small blinder, video-pixel and small spotlight.
Features
Cold white (5700K) beam/strobe/blind/eye-candy fixture
3350 lumen boost/strobe
1600 lumen continuous
Beam angle of 11 degrees
Field angle of 22 degrees
Pixel-controllable RGB Aura backlight
Compact form-factor
Built-in power supply (100-240V)
Power and Data IN & THRU via hybrid cable (PDE System)
P3, DMX, Art-Net & sACN compatible
Built-in pixel-FX on backlight and beam

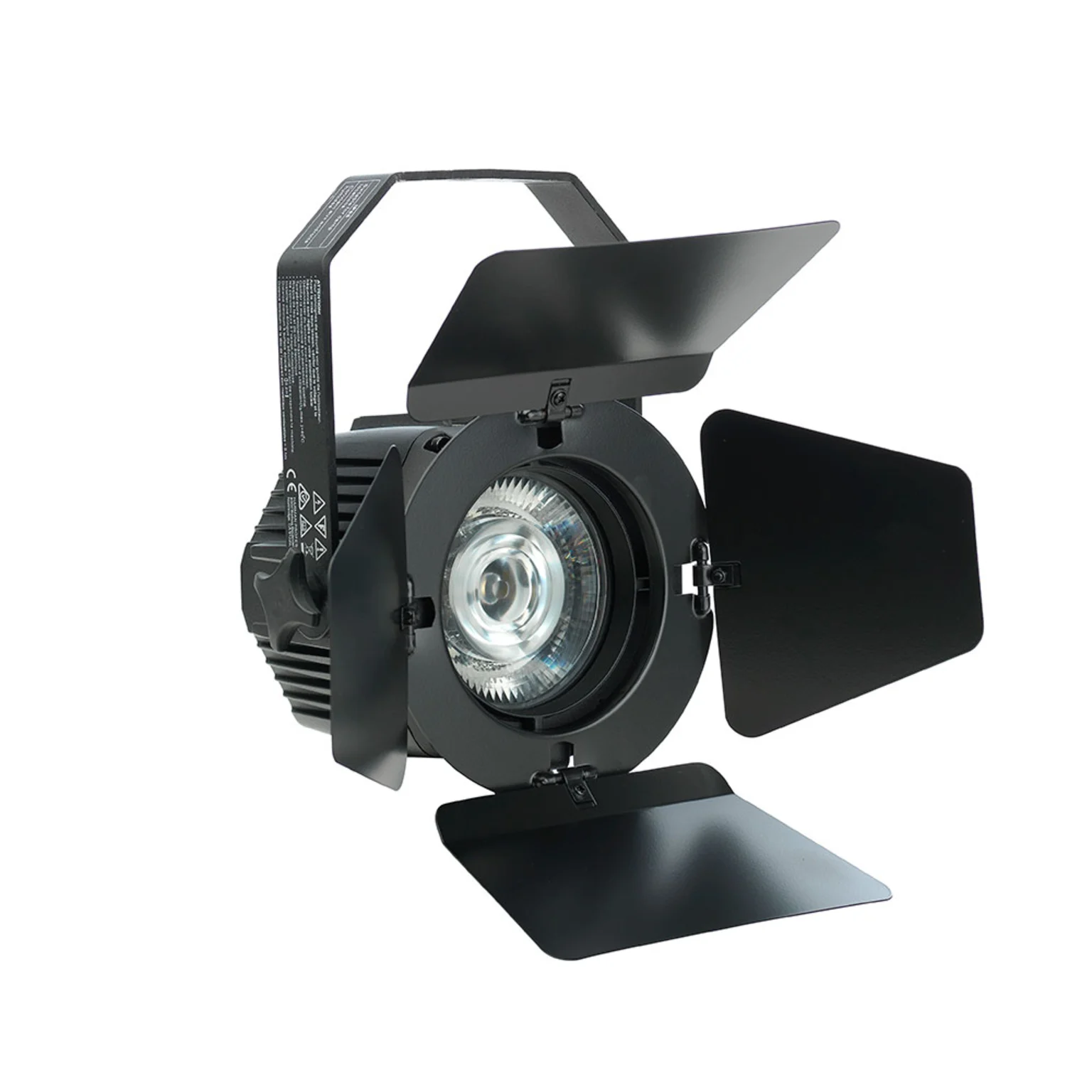

Front-accessory holder for barndoors and/or diffuser/lens
Detachable yoke-assembly
VDO Grid Mount System to build battens, arrays and creative shapes

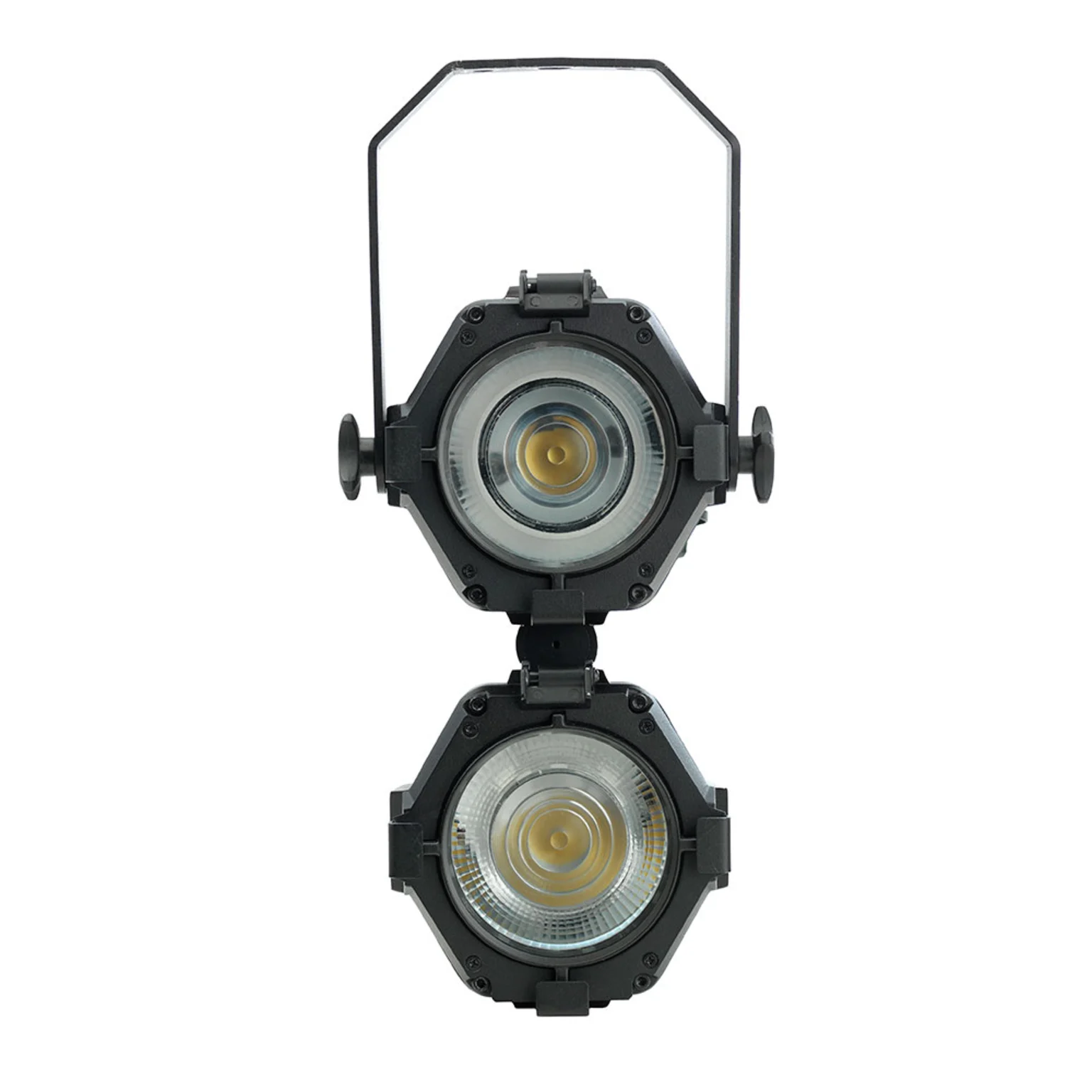

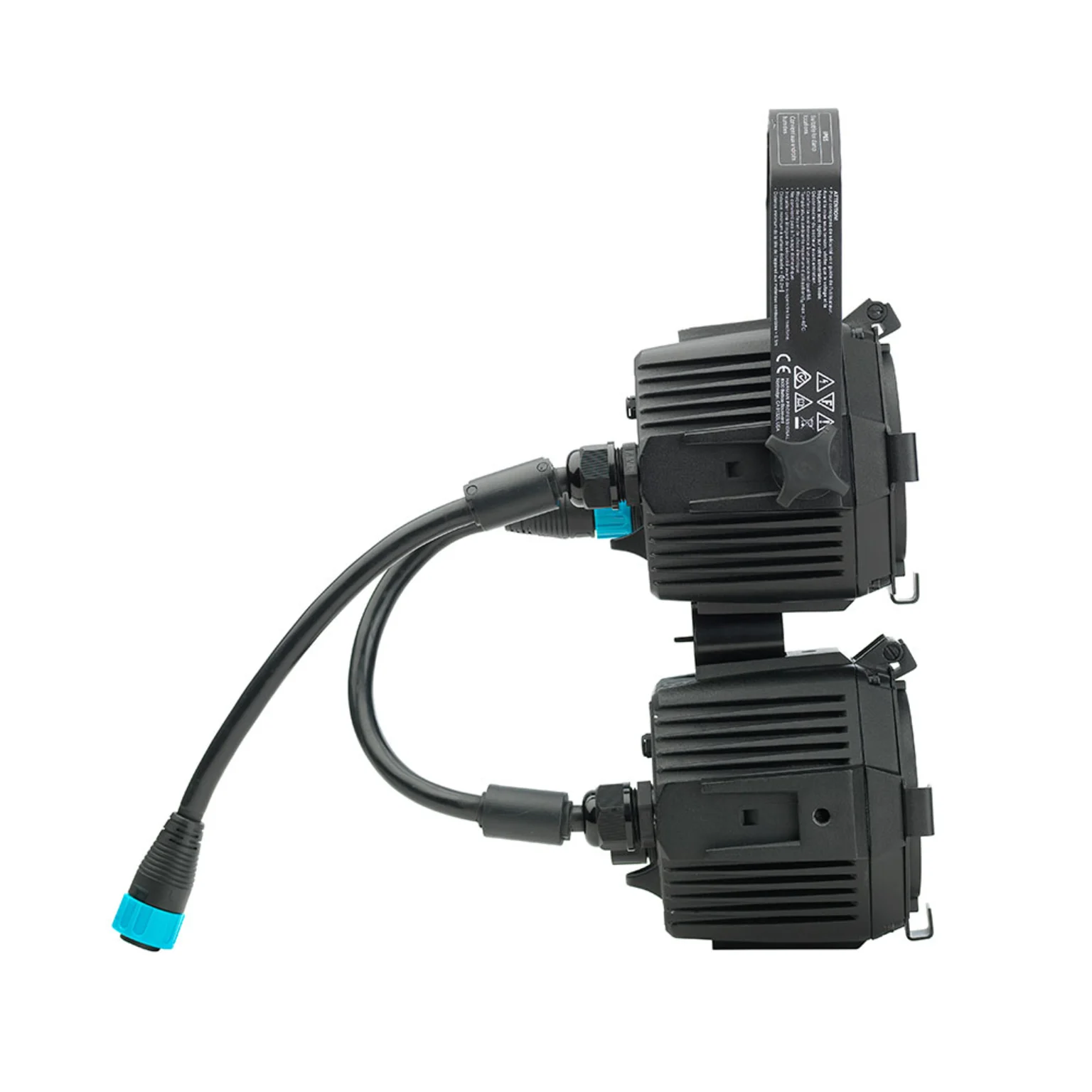

Compatible with Martin VDO Atomic Bold and MAC One interlocking mechanics for mixed arrays
Passive cooling
IP65 rated
Specifications
Physical
Width excluding hanging bracket: 130 mm (5.1 in.)
Width including hanging bracket: 175 mm (6.9 in.)
Height excluding hanging bracket: 134 mm (5.3 in.)
Height including hanging bracket: 242 mm (9.5 in.)
Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Depth: 146 mm (5.7 in.)
Weight including hanging bracket: 2.2 kg (4.85 lbs.)
Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)
Dynamic Effects
Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
Beam Dimming options: Choice of four dimming curves
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
Aura Dimming options: Choice of four dimming curves
Aura Color mixing: RGB, independently variable 0 - 100%
Aura Color temperature control: Variable 2000 - 11,000 K
Aura Virtual Color wheel: 36 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each Aura pixel
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both
Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Setting and addressing: RDM, RDM over Art-Net or P3
DMX Modes: 1-channel, 3-channel, 4-channel, Basic, Extended
DMX channels: 1, 3, 4, 19, 64
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: RS-485
Ethernet Transceiver: 10/100Mbit
Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
P3 Video Processing
Color Resolution: 16 bit per color (48 bit per pixel) (Aura)
Color Temperature Control: 2000-11,000 K (Aura)
Synchronization: System-wide
Frame Rate: Up to 75 frames/sec
Brightness Control: 0-100% (maintaining full color depth)
Color Gamut Control: full spectrum control (Aura)
Gamma Correction and Control: fully controllable (Aura)
Control/User Interface
Device status: Multi-color status LED
Device test and reset: Pushbutton to call up local test patterns and reset device
Optics and Photometric Data

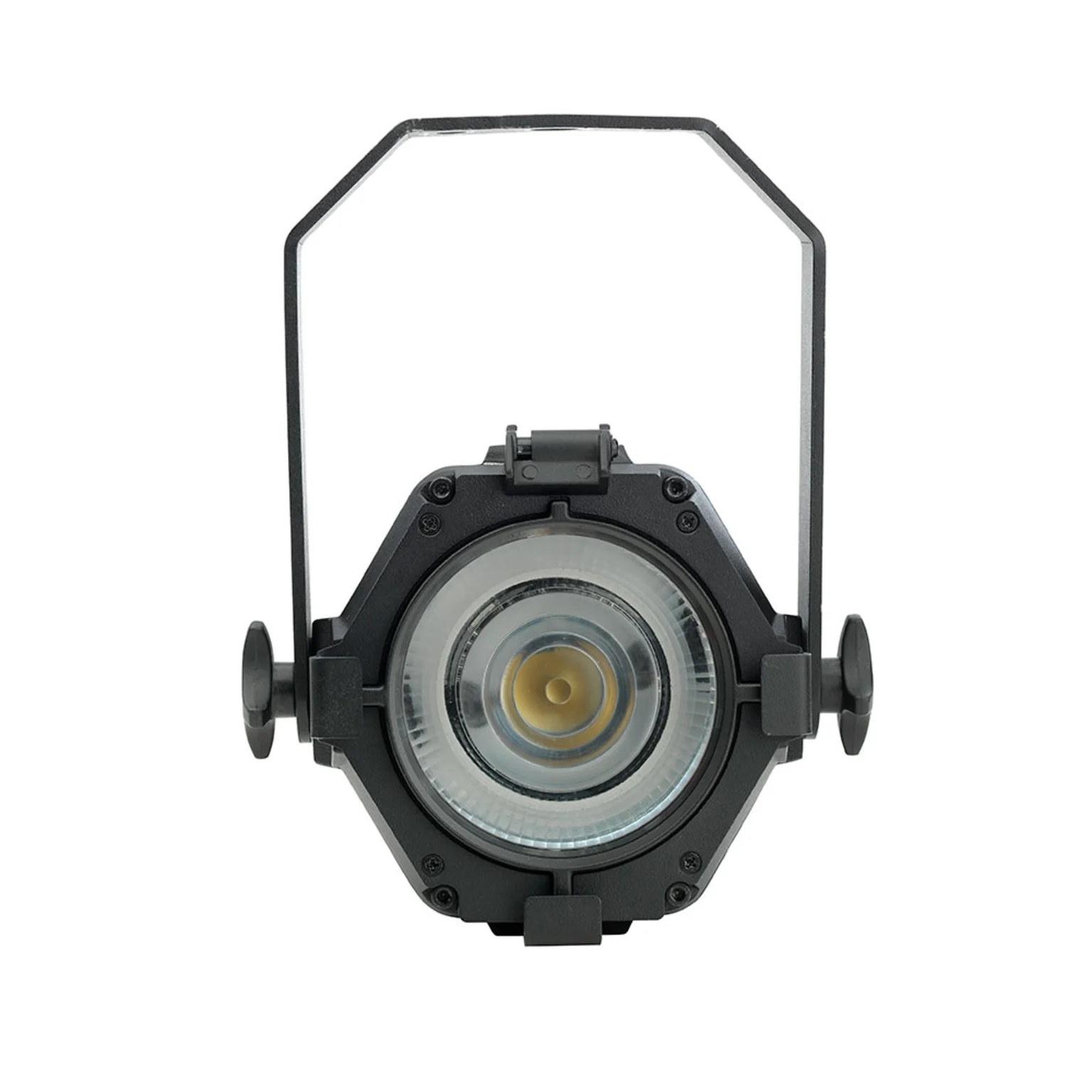

Lens Diameter: 95 mm
Front Accessory Holder: PAR30 size
Beam/Strobe LED
LED Type: Cold White
Max. total lumen output: 3350 lumens (boost/strobe mode)
Max. total lumen output: 1600 lumens (continuous mode)
Beam Angle: 11 Degrees (half peak)
Field Angle: 22 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Color Temperature: 5700 K
CRI (Color Rendering Index): ≥ 80
Resolution: 16-bit
Minimum LED lifetime: 50,000 hours (to >70% luminous output)
Aura Backlight LEDs
LED Type: RGB
LED Quantity: 16
Binning: Tight color and flux binning
Color Temperature: Variable (2000-11,000 K)
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: Aluminum
Color: Black
Protection rating: IP65
Installation
Mounting options: hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism
Location: indoor or temporary outdoor use
Clamp attachment to hanging bracket: M12
Clamp attachment directly to fixture: M8
Maximum vertical column height: 16 fixtures
Orientation: Any
Minimum distance to combustible materials: 0.1 m
Minimum distance to illuminated surfaces: 0.2 m
Connections

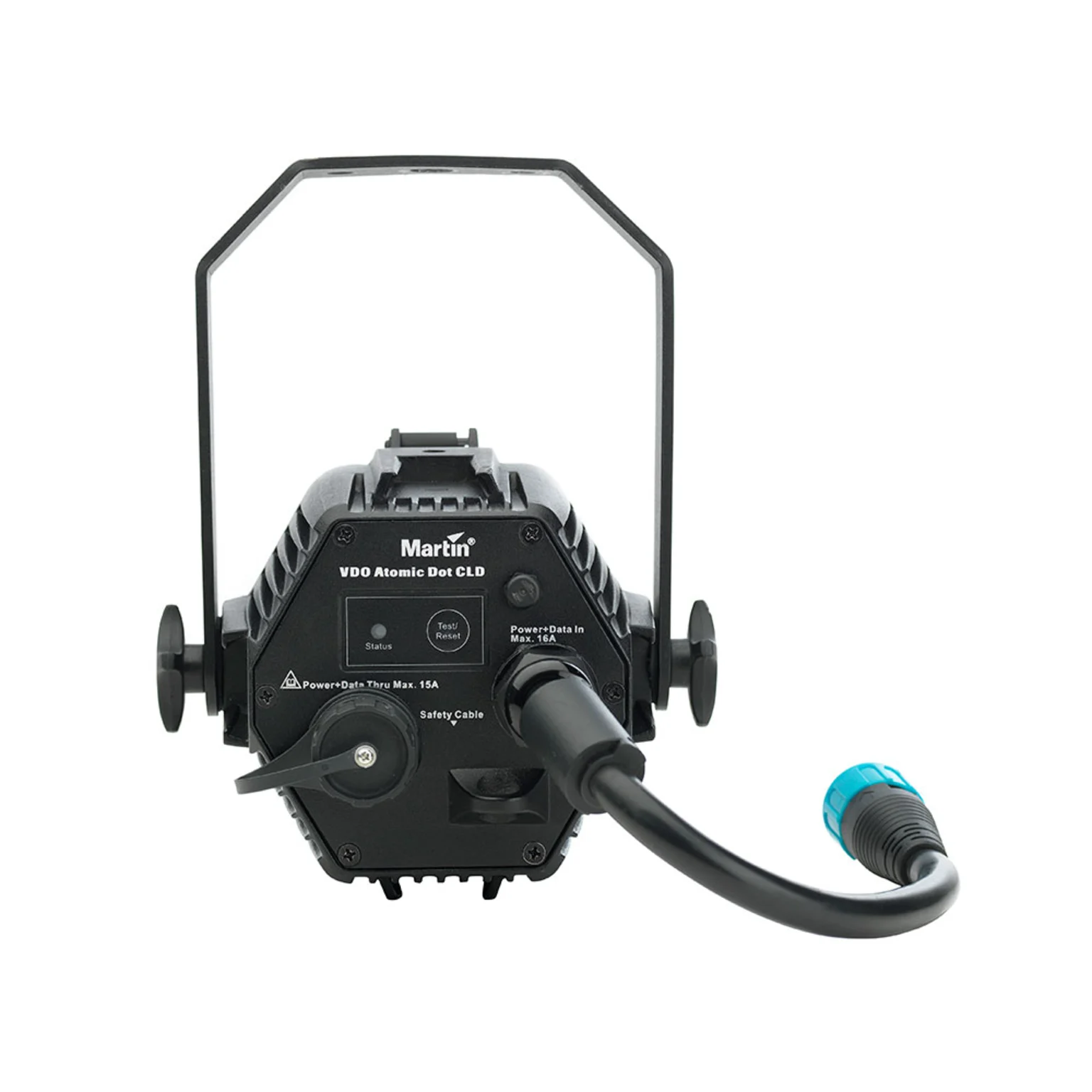

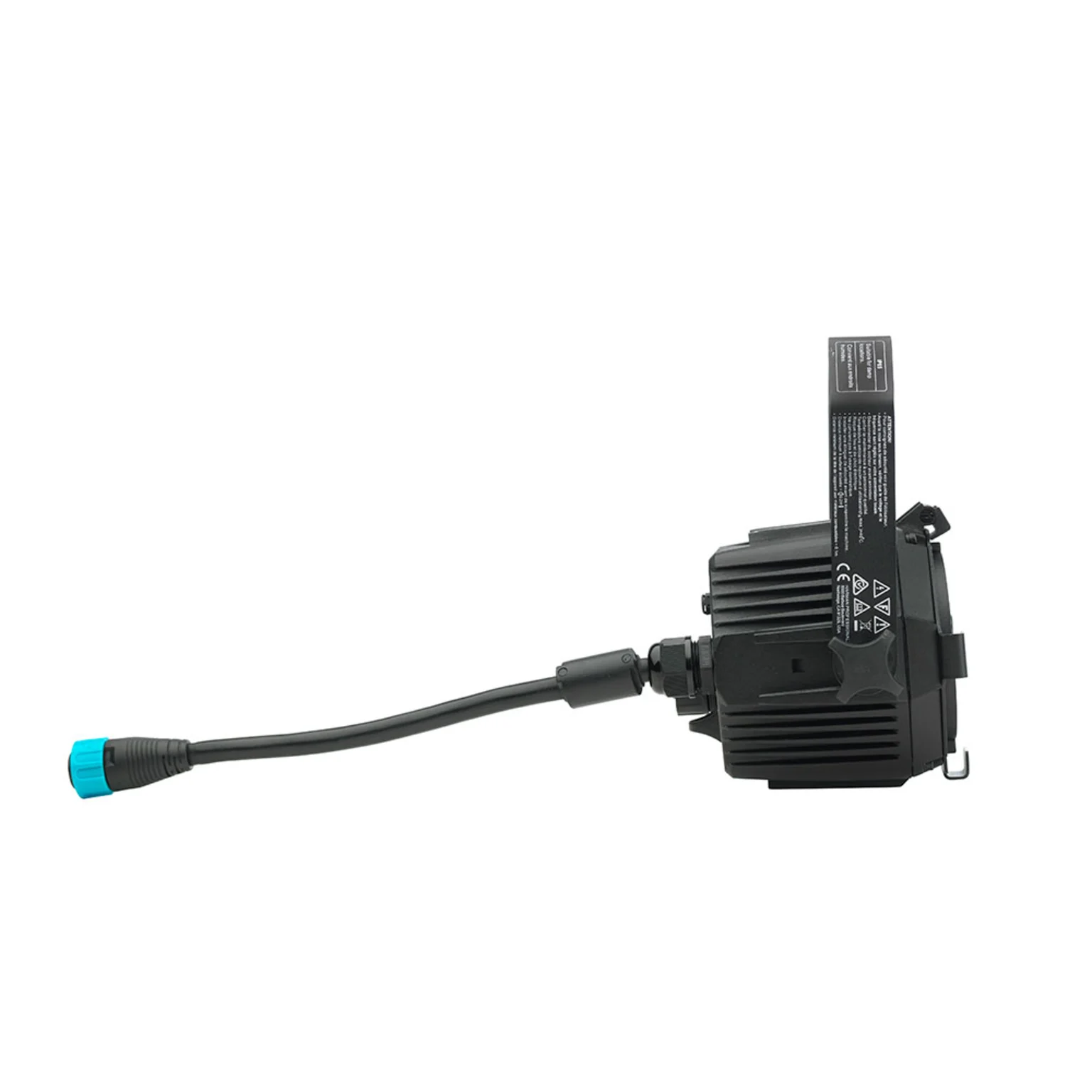

AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.1 A
Typical earth-leakage current: 0.25 mA
Power Factor: 0.99 @ 100 V , 0.98 @ 120 V , 0.95 @ 208 V , 0.96 @ 230 V , 0.94 @ 240 V
Max current draw: 0.6 A @ 100 V / 120 V , 0.3 A @ 208 V / 230 V / 240 V
Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.2 A @ 208 V , 0.2 A @ 230 V , 0.2 A @ 240 V *
Power Consumption
Maximum: 55 W
Typical: 50 W *
Idle: 4 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white.
Idle: no output.
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 74.4 lm/W
LWR*: 1,523 lm/kg (691 lm/lb)
LWR = Lumen-to-Weight Ratio
