Features

Flat field, high contrast image projection based on high power LED engine
0-100% electronic dimming
Full CMY color mixing + additional color wheel with 7 interchangeable colors
7 gobo slots for projecting graphic images (gobos included)
Animation system for creating animated lighting effects (horizontal and vertical)
Zoom range from 10° - 44° for exact projection on desired surface
Variable frost for creating morphing effects and hybrid function as wash light
2 rotating prisms for creating abstract multi patterns

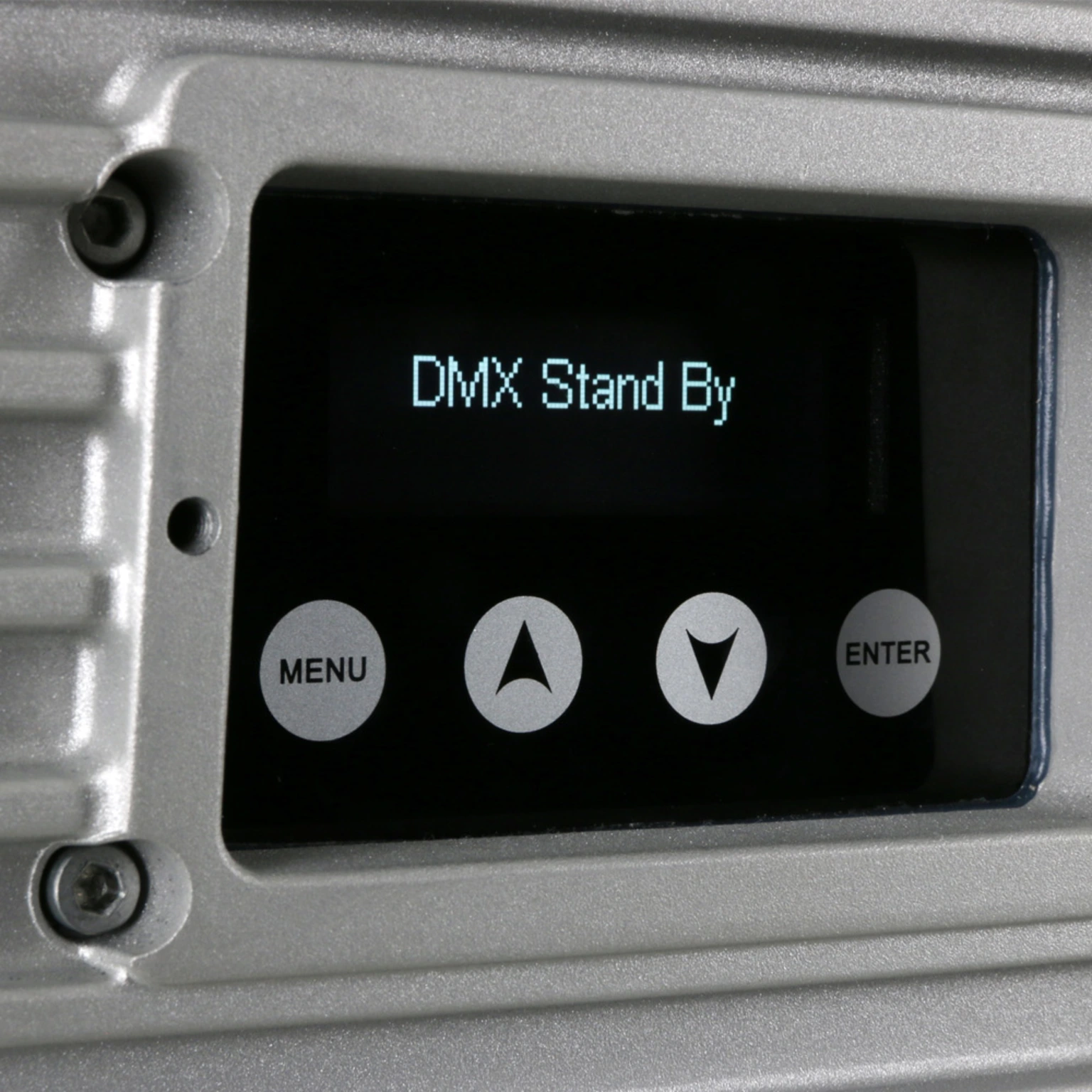

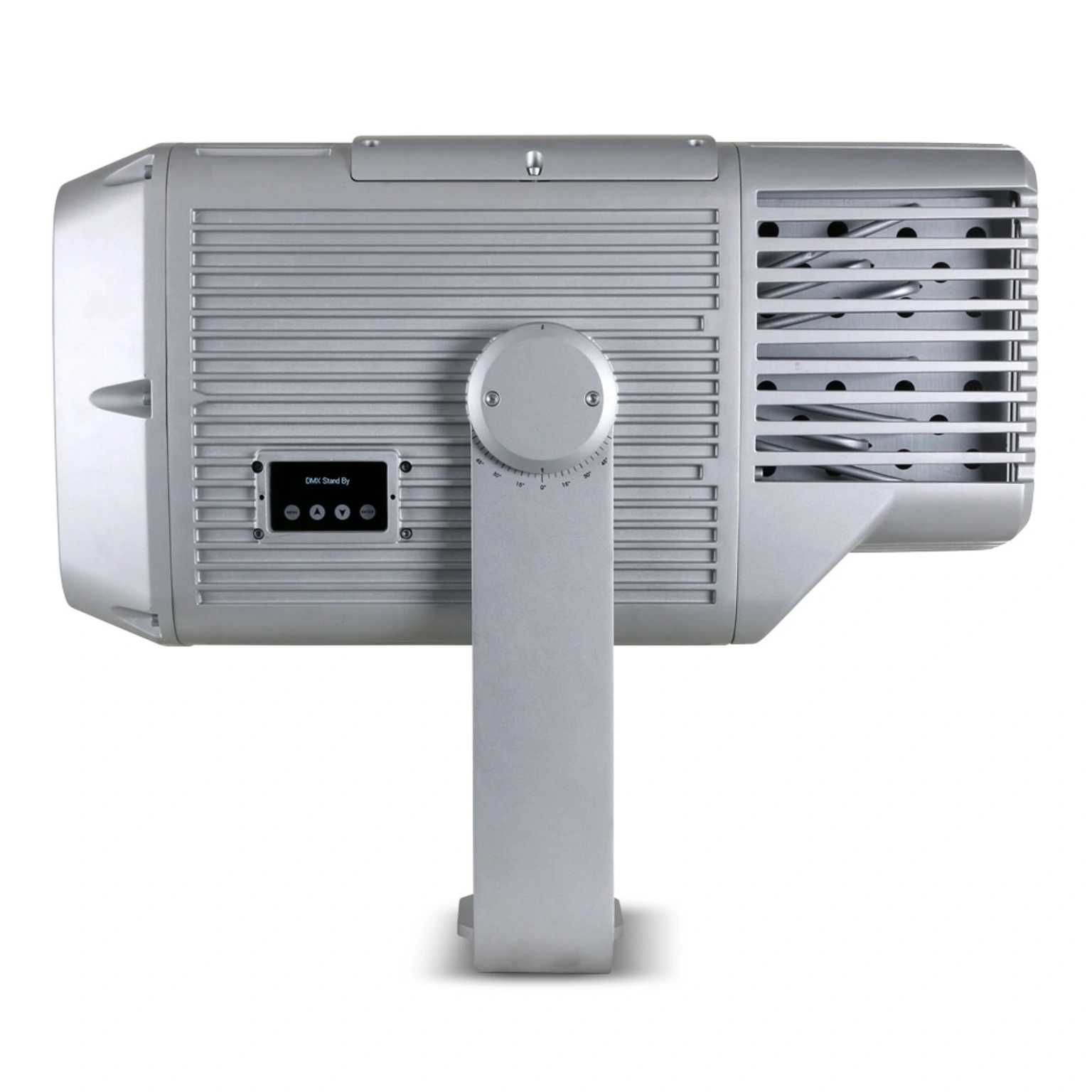

Intuitive setup, configuration and stand-alone programming via graphical OLED display
RDM and DMX control
Fully weatherized IP66 fixture for permanent outdoor installation

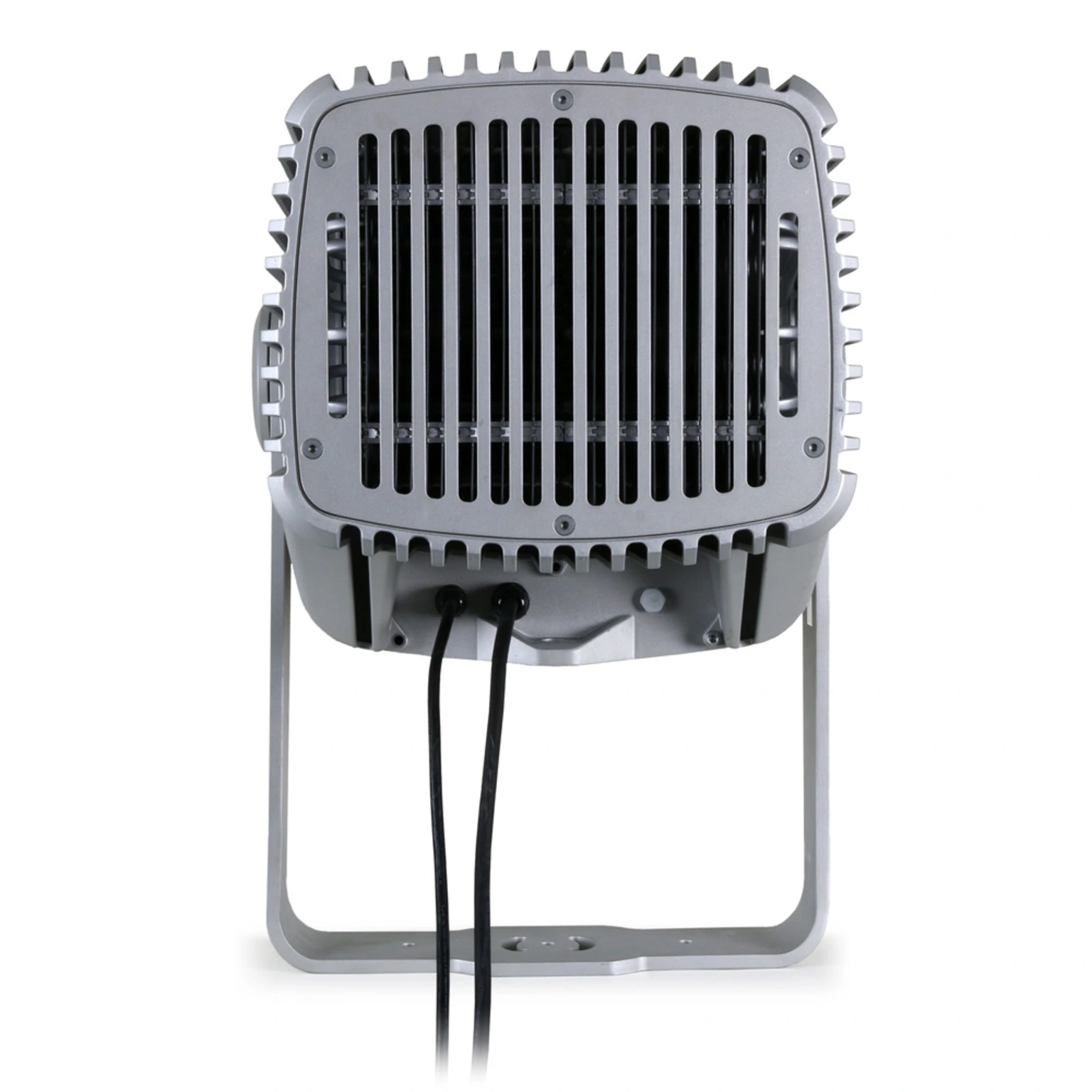

Fully convection cooling using heat pipes technology

Specifications

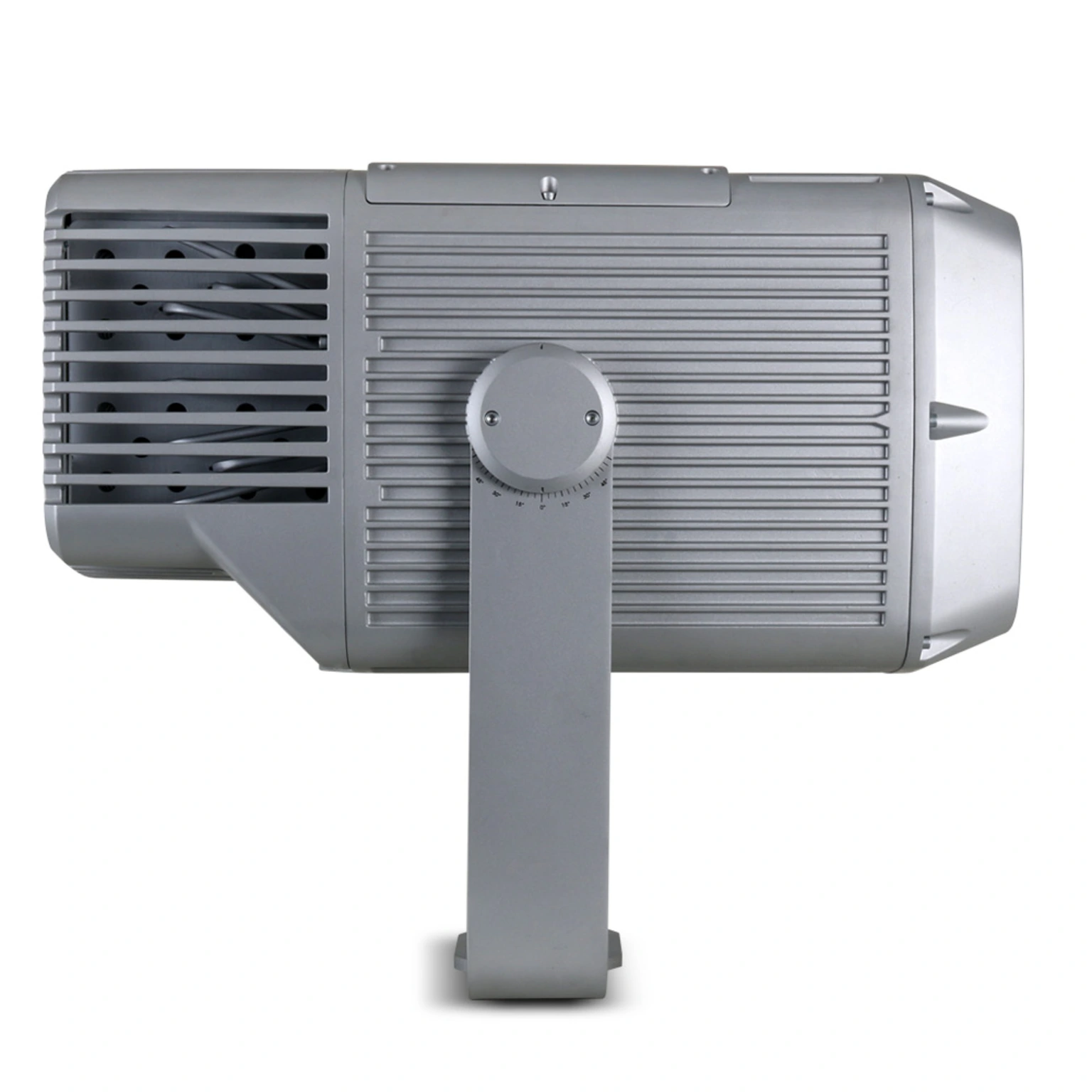

Physical
Length: 702 mm (27.7 in.)
Width: 417 mm (16.5 in.)
Height: 618 mm (24.4 in.)
Weight: 50 kg (110 lbs.)
All figures include mounting yoke
Dynamic Effects
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 7 interchangeable colors + open
Gobo wheel: 7 rotating gobos plus open, indexing, variable rotation
Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction
Zoom: 10° - 44° (cut-off angles)
Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
Frost filter: Motorized, variable
Dimming: Electronic, constantly variable 0-100%, 16-bit control
Shutter: Electronic, strobe and pulse effects, instant open and blackout
Focus: Motorized, variable 3 m (9.8 ft.) to infinity
Control and Programming
Stand-alone control: Up to 20 scenes with global fade/hold times
Control options: DMX, RDM, standalone
Configuration, addressing and status: Onboard control panel with OLED display or via RDM
8-bit control: CMY, color selection, gobo selection, prism, frost, animation
16-bit control: Gobo indexing and rotation, zoom, focus and intensity
DMX channels: 20
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Optics
Light source: 440 W white light LED engine
CRI (Color Rendering Index): 72
Color temperature: 6500 K (±250 K)
LED lifetime: 20,000 hours (to >70% luminous output)*
LED manufacturer: Appotronics
Binning: Tight color and flux binning
*Figure obtained under manufacturer's test conditions
Photometric Data
Cut-off angle: 10° - 44°
Luminous intensity:
At 10° zoom: 11,500 lumens
At 16° zoom: 15,000 lumens
At 40° zoom: 16,800 lumens

Center Peak:
At 10° zoom: 731,000 cd
At 16° zoom: 311,000 cd
At 40° zoom: 42,000 cd

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction
Housing: Cast aluminum
Finish: Hard anodized, white or metallic grey lacquered
Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
Ingress protection: IP66
Impact resistance: IK08 (with control panel display cover plate installed)
Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64)
EPA (Effective Projected Area): 0.28m²

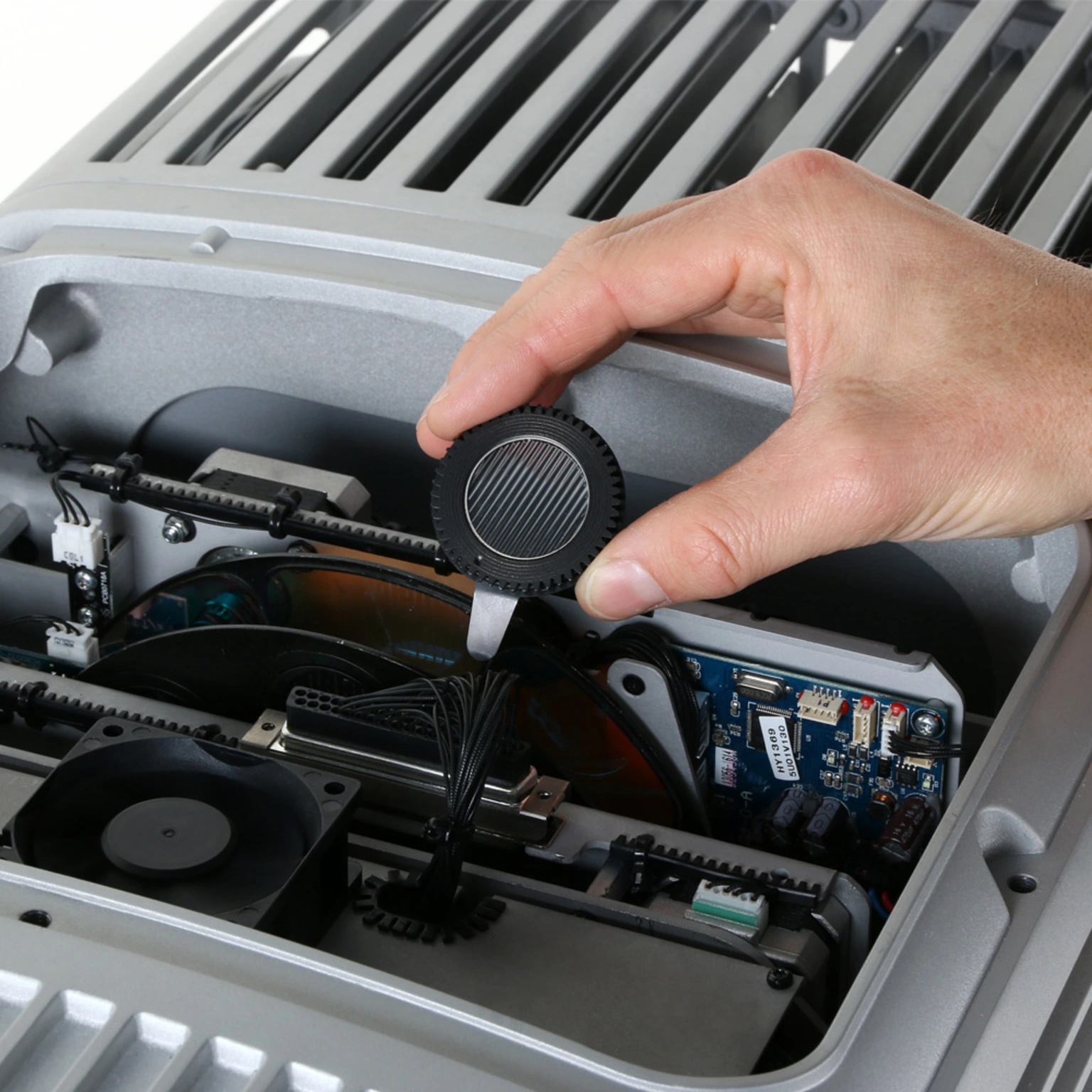

Gobos
Suitable material: Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F)
Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)
Maximum image diameter: 26 mm (1.02 in.)
Gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
Gobo thickness, maximum: 3.0 mm ±0.3 mm (0.118 in. ± 0.012 in.)*
*Gobos thicker than 2.5 mm require a shorter spring in the goboholder
Installation
Mounting: Adjustable yoke
Location: Suitable for wet locations. Do not immerse in water.
Orientation: Any (sides must be kept vertical)
Minimum distance to illuminated surfaces: 0.5 m (20 in.)
Connections
Power cable entry: IP66 cable gland
Power connection: 1.8 m (5.9 ft.) cable tail with bare ends
Power cable type: EU models: H07RN-F 450/700V, Ø10 mm
US models: SJTW 14AWG, 300V, Ø9.3 mm
Data cable entry: IP66 cable gland
Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
Electrical
AC power: 100-120/200-277 V nominal, 50/60 Hz
Power Supply: Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current: 15.5 A
Idle power (zero intensity, no effects applied): 75 W
Surge protection: 4 KV
Typical Power and Current
120 V, 60 Hz: 645 W, 5.5 A, PF 0.98
230 V, 50 Hz: 635 W, 2.9 A, PF 0.95
277 V, 60 Hz: 635 W, 2.6 A, PF 0.90
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling: Convection, internal forced air
Total heat dissipation (calculated): 2350 BTU/hr.
Maximum surface temperature: 85° C (185 ° F)
Maximum ambient temperature (Ta max.): 45° C (113° F)*
Minimum ambient temperature (Ta min.): -30° C (-22° F)**
*Above this temperature, the fixture regulates output to protect from overheating.
** An integrated heat-element will heat-up internal components at ambient temperatures below 0° C (32° F) - For instant wake-up with no warm-up time, leave power applied constantly.

Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 26 lm/W
LWR*: 349 lm/kg (158 lm/lb)
LWR = Lumen-to-Weight Ratio
