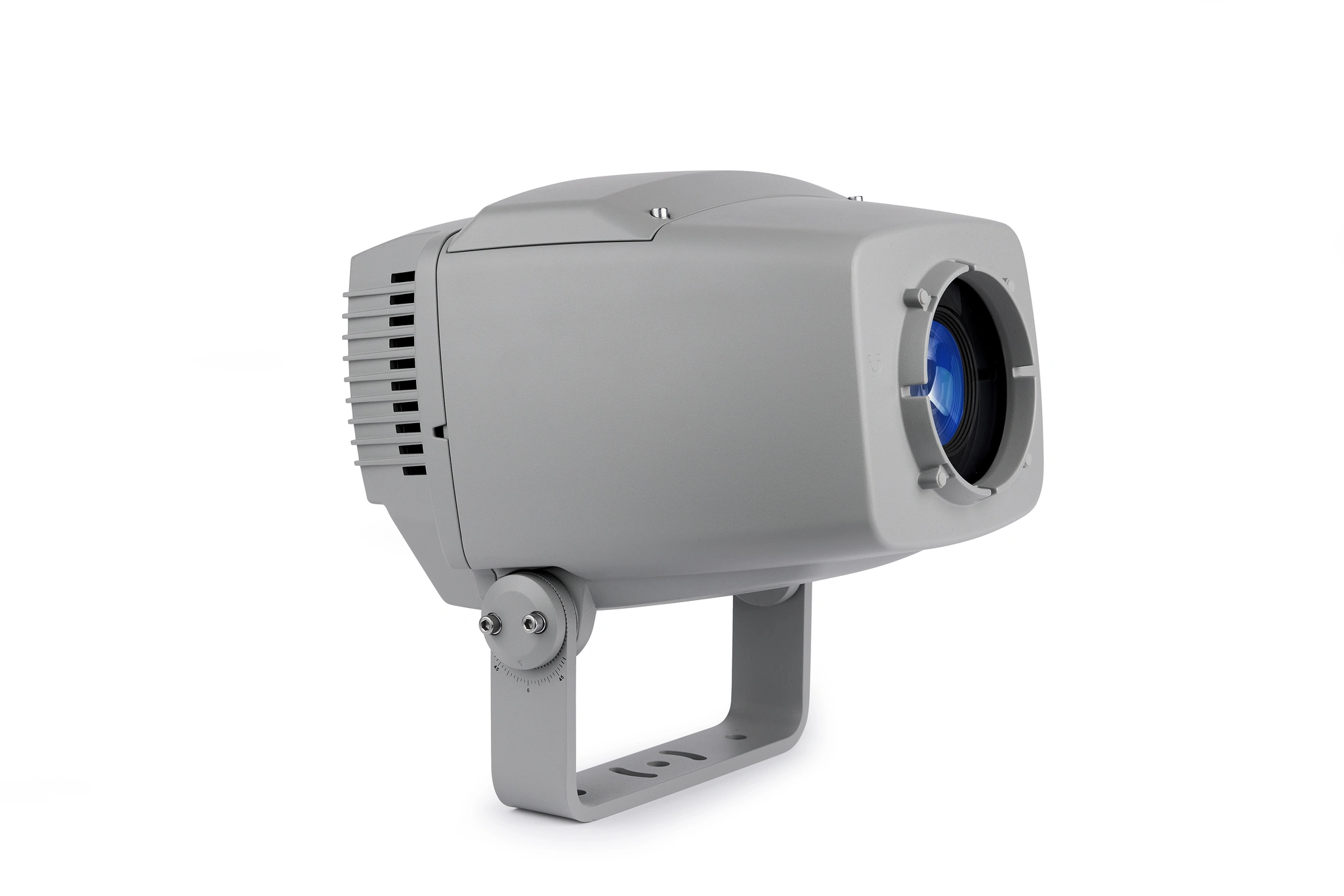

Features

Flat-field, high-contrast image projection
4,700 lumens output across the entire zoom range
Efficient optical system with integrated 15° - 45° zoom system
Configurable design for reduction of resources, cost, and weight
One gobo or four gobo modules
Animation module
Manual framing module for precise framing of projected image
0-100% electronic dimming
Hibernation mode for very low power consumption
Compact and slim design
RDM and DMX control
Local diagnostics and focusing via magnetic sensor

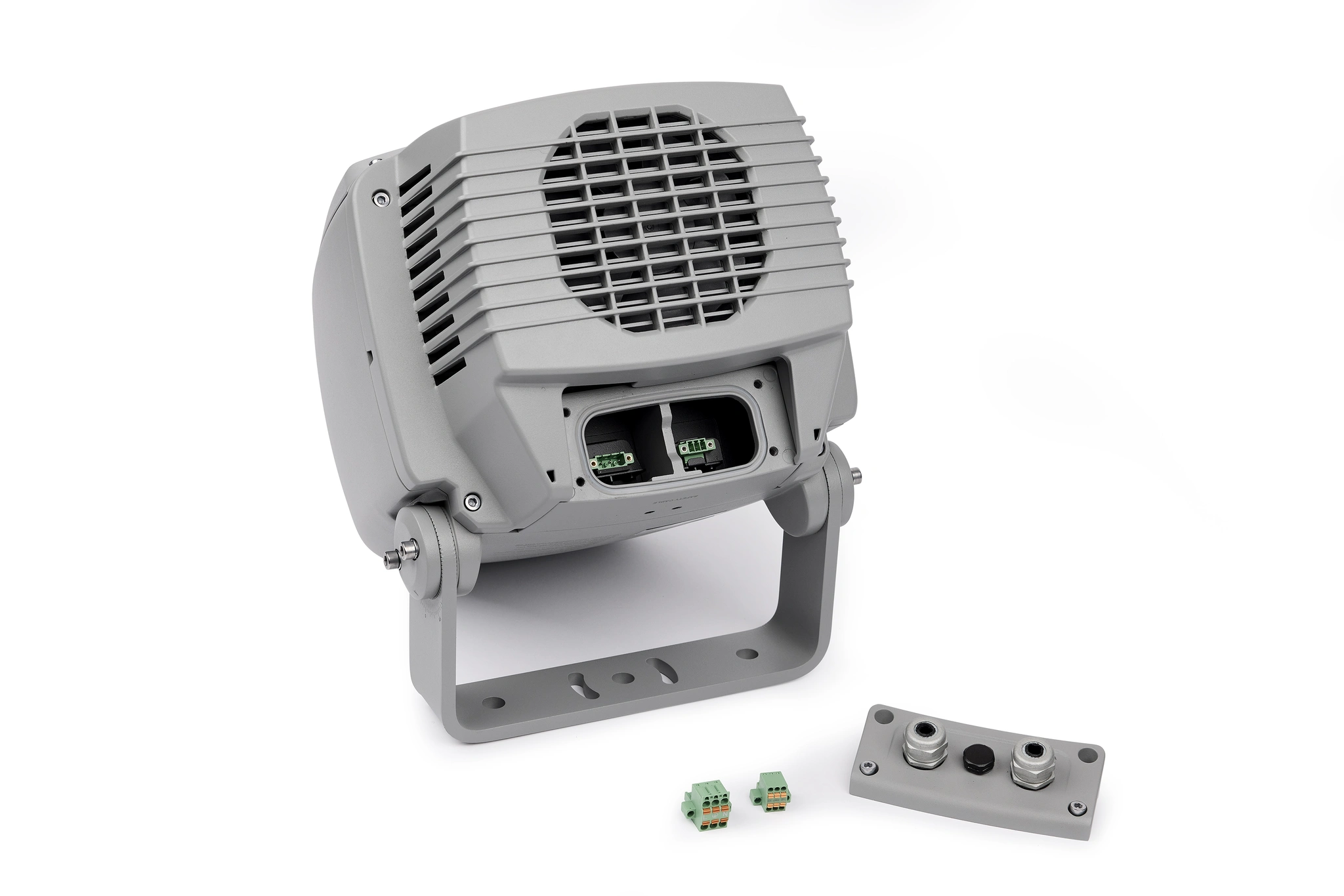

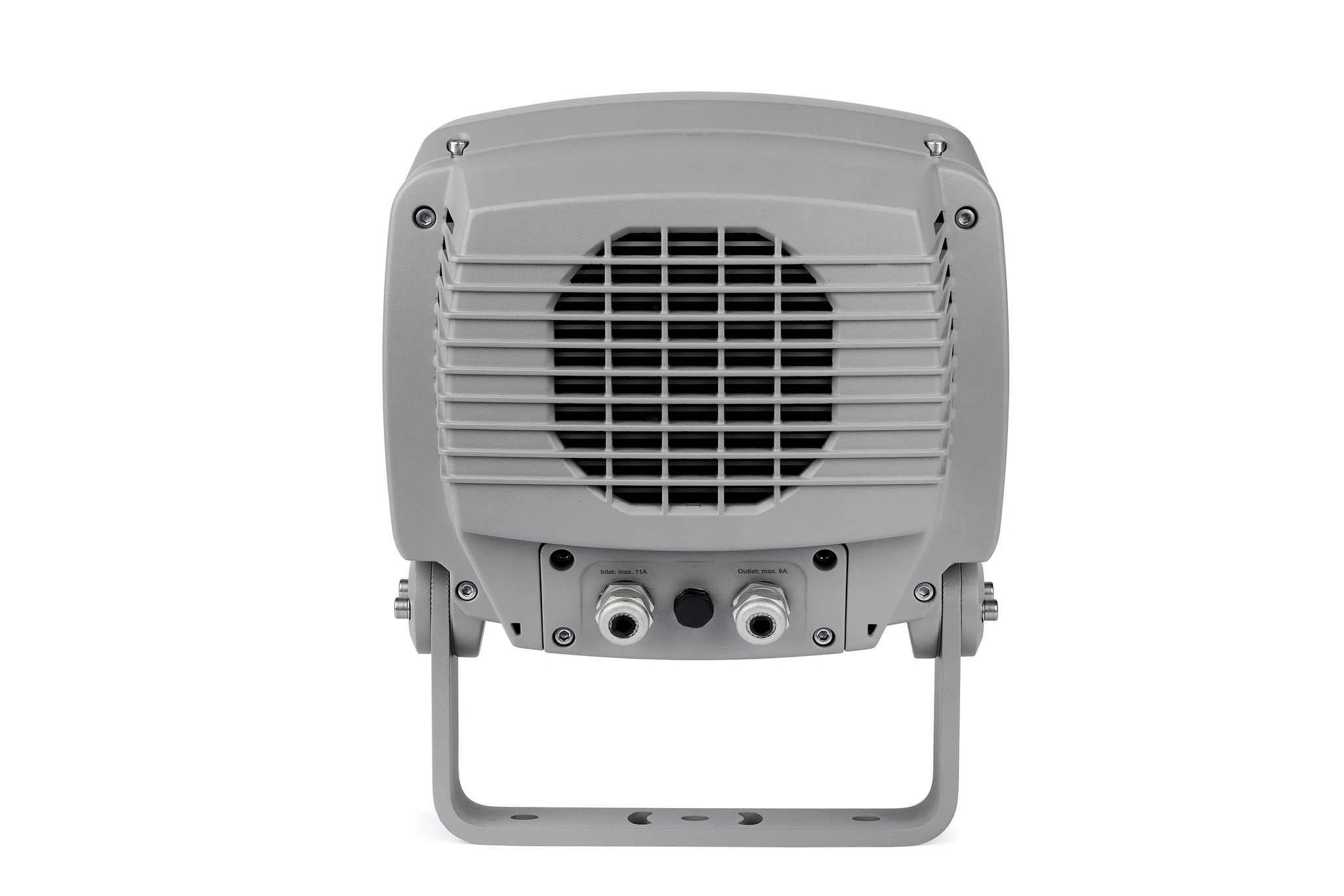

Dedicated compartment for install of Power and DMX In/Out cables
Optional PD Hybrid In/Out cable solution
Automatic thermal management for safe operation in high and low ambient temperatures
Fully-weatherized housing (IP66, IK08 and C-5 High corrosion rating)
Shipped in FSC-certified cardboard packaging
5-year warranty

Specifications

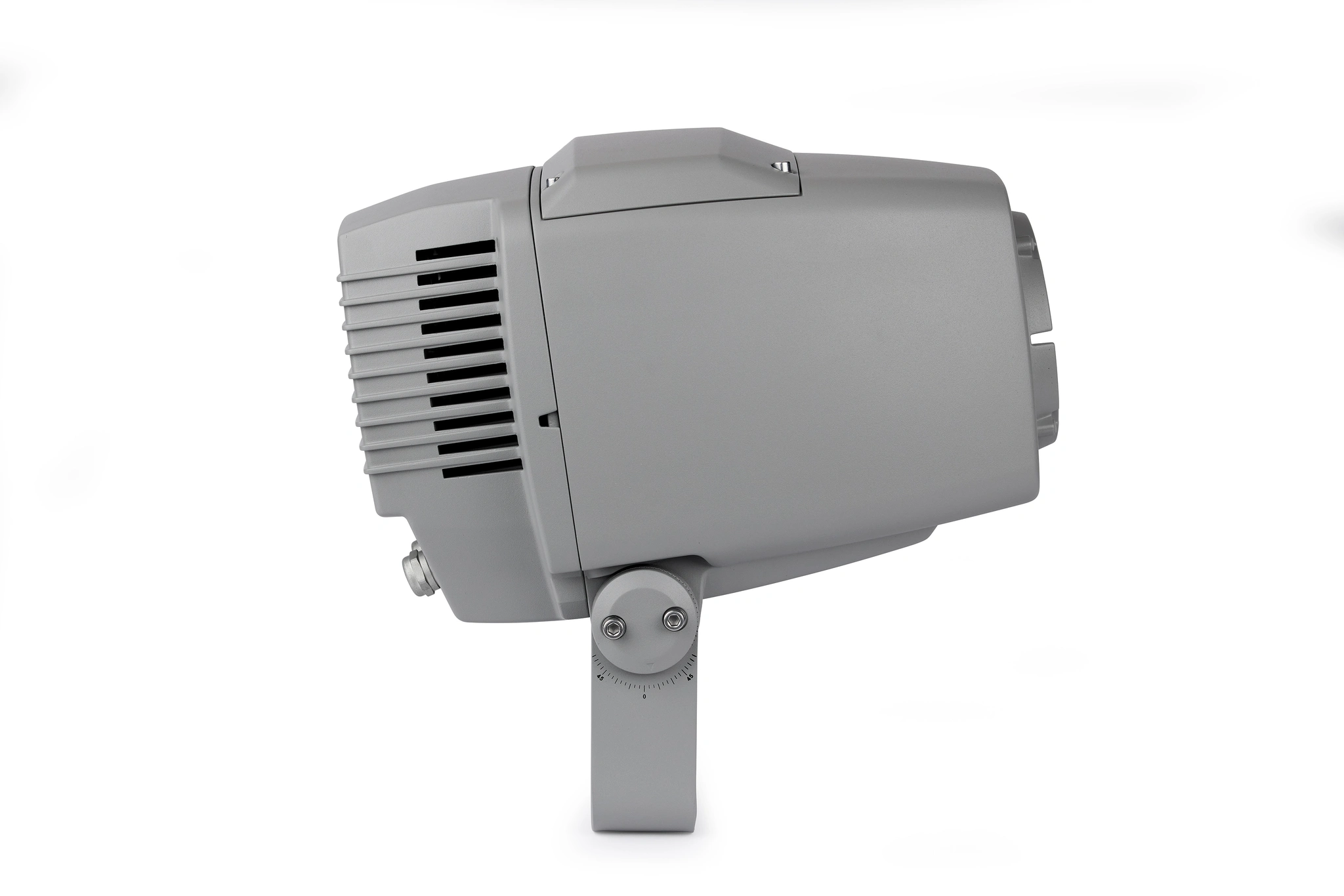

Physical
Length: 342 mm (13.5 inch.)
Width: 272 mm (10.7 inch.)
Height: 335 mm (13.2 inch.)
Weight: 12.5-13.9 kg (27.5–30.6 lbs)
Weight depends on actual configuration
Dynamic Effects
Color wheel: 5 dichroic colors (red, green, blue, yellow, CTO) + open
Zoom: Motorized, 15° - 45° beam angle
Dimming: Electronic, 0-100% continuous dimming
Shutter: Strobe and pulse effects, instant open and blackout
Focus: Motorized, variable 3 m (9.8 ft.) to infinity
Accessory 1-gobo module: indexing, variable rotation
Accessory 4-gobo module: selection, indexing, variable rotation
Accessory animation module: Continuous rotation with variable speed and direction (always in aperture)
Accessory Framing module: 4 blades for manual adjustment of insert and angle (8 finger knobs with locking mechanism)
Control and Programming
User interface: Magnetic sensor to call up fixture status and focus fixture
Stand-alone control: Up to 20 scenes with individual fade/ hold times
Control options: DMX, RDM, stand-alone
Configuration, addressing and status: Via RDM
8-bit control: Color and gobo selection
16-bit control: Gobo indexing and rotation, Animation, Focus, Zoom and Intensity
DMX channels: 13/14 (Basic / Extended)
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20

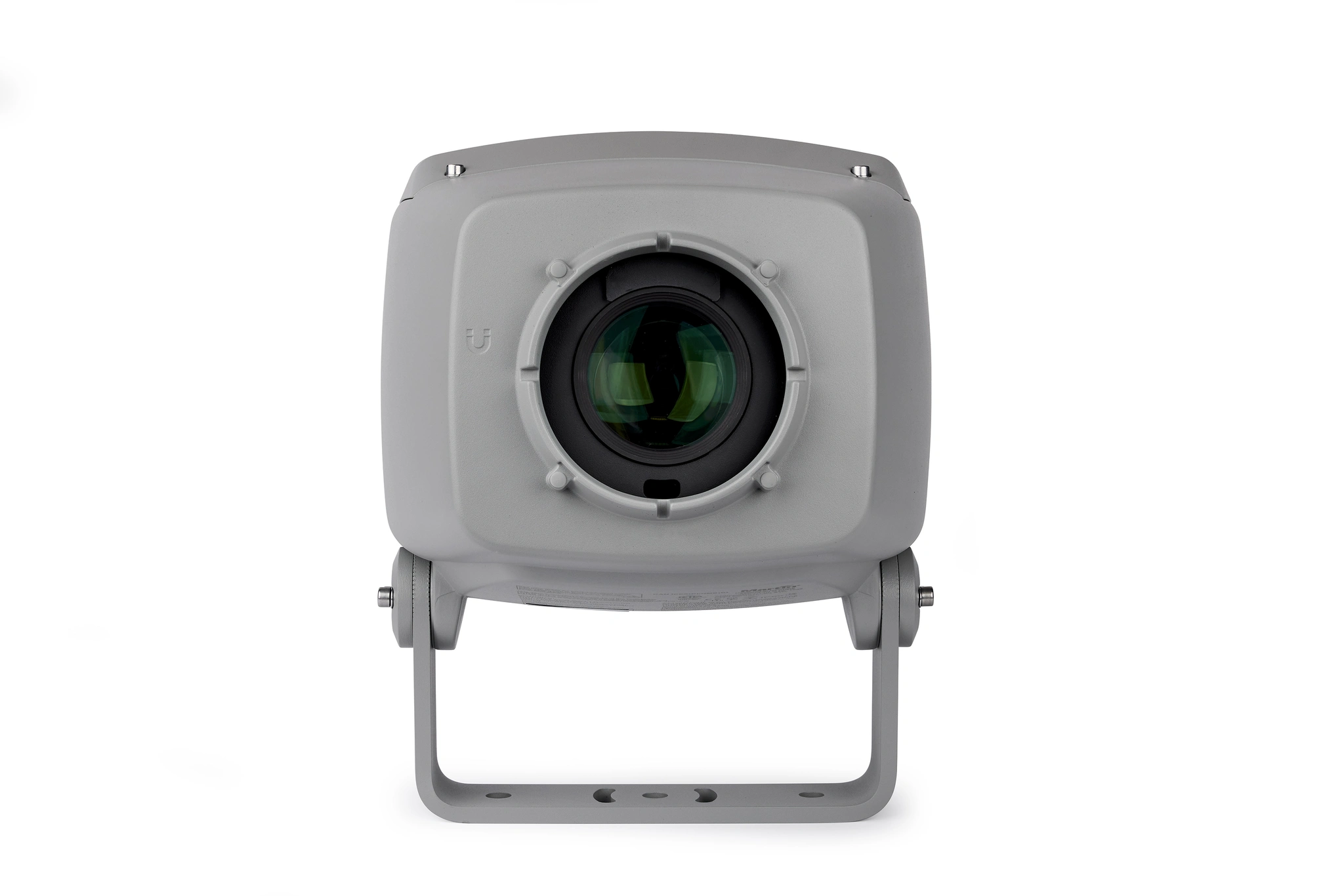

Optics
Light source: 130W White light LED engine
LED lifetime: minimum 30,000 hours (to >70% luminous output)*
Full Zoom Range: 15° - 45° (Field Angle)
*Figure obtained under manufacturer's test conditions
Photometric Data
CRI (Color Rendering Index) : >70
Color Temperature: 7,500 K
Total output: 4,700 lumens
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Construction
Housing: Cast aluminum
Finish: Hard anodized
Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
Ingress protection: IP66
Impact resistance: IK08
Corrosion resistance: C5 (very high corrosivity / marine, ISO 12944)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
EPA (Effective Projected Area): 0.1 m2
Color options: Traffic Grey RAL 7042, Traffic White RAL 9016, Traffic Black RAL 9017
Service Lid for gobo change or insert of accessory effect modules
Gobos
Suitable material: Borosilicate glass, coatings heatresistant to 450°C (842° F)
Gobo diameter: 19.0 mm +0/-0.3 mm (0.74 in. +0/-0.02 in.)
Maximum image diameter: 15 mm (0.59 in.)
Glass gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
Glass gobo thickness, maximum: 3.0 mm ±0.3 mm (0.12in. ± 0.012 in.)
Aluminum gobo thickness: 0.5 mm ± 0.02 mm (0.020 in. ± 001 in) HT paint
Installation
Mounting: Adjustable yoke
Location: Adjustable yoke
Orientation: Any, except horizontal angles above 70°
Minimum distance to illuminated surfaces: 0.5 m (20 in.)

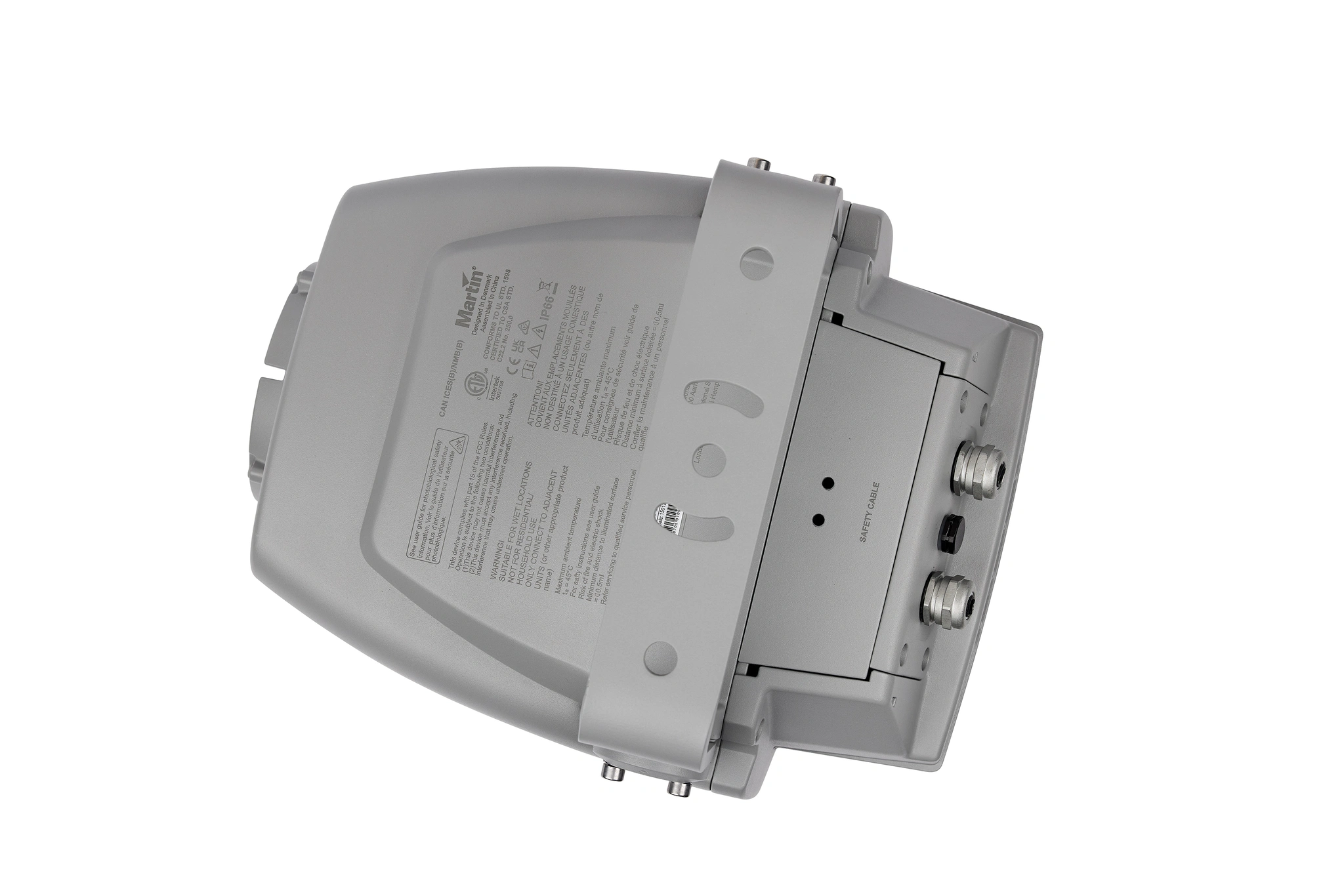

Connections
Power cable entry: IP68 cable gland (accepts 8 mm-12 mm)
Power connection: Terminal for power in separate compartment
Data cable entry: Terminal for power in separate compartment
Data connection: Terminal for data in separate compartment
Electrical
AC power: 100-240/277 V nominal, 50/60 Hz
Power supply: Auto-ranging electronic switch-mode
Surge protection: 4 KV
Power factor: 0.98 @ 110 V / 0.96 @ 230 V, 0.91 @ 277 V
Max current draw: 0.98 @ 110 V / 0.96 @ 230 V, 0.91 @ 277 V
Typical current draw: 1.48 A @110 V, 0.71 A @230 V, 0.63 A @ 277 V *
Power Consumption
Maximum: 180 W
Typical: 160 W *
Idle: 10 W *
Hibernation: 3 W *
*Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Typical: full output, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal
Cooling: Convection, internal forced air
Maximum surface temperature: 60° C (140° F)
Maximum ambient temperature (Ta max.): 45° C (113° F) *
Minimum ambient temperature (Ta min.): -30° C (-22° F)**
*Above this temperature, the fixture regulates output to protect from overheating.
**For instant wake-up with no warm-up mode, leave power applied constantly in ambient temperatures below 0° C (32° F)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard outer packaging
Efficacy (max output): 29.3 lm/W
LWR*: 376 lm/kg (171 lm/lbs.)
*LWR = Lumen-to-Weight Ratio
