Features
Light engine: 7 x 40W RGBW
Full-gamut color-calibration system
CTC control: 1,800–12,850 K
Quick Focus mode allows installation and focusing without the need for a console operator
Clear of projection indicators allow quick installation
Angled power and data connections support a clean cable run that does not impede the fixture or installation
Included truss and floor-mounting yoke with omega bracket connectivity
Lumen output: 3,350
Zoom: 5.5–50˚
Intensity: 329,058 cd
IP65 rating
Dimensions: 315 x 285 x 498 mm (12.4 x 11.3 x 15.7 in) (inc. bracket)
Weight: 9.1 kg (20 lbs)

Specifications
Physical
Length: 315 mm (12.4 in.)
Width: 285 mm (11.3 in.)
Height: 398 mm (15.7 in.) with bracket
Weight: 9.1 kg (20.1 lbs.)
Dynamic Effects
Color mixing: RGBW
Color presets: 48 color presets, virtual color wheel effects
Zoom: Motorized
Electronic dimming: 0 - 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Color temperature: Variable 1,800 – 12,850 K
Control and Programming
Control options: DMX, RDM
16-bit fine control: Dimming, RGB, Zoom
LED color management modes: Raw, extended and calibrated
DMX address setting: Control panel with OLED display
DMX channels: 14
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Optics
Light source: 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
Beam angle (half-peak): 4.4 – 33.3°
Field angle (one-tenth peak): 5.5 – 50.0°
Binning: Tight color and flux binning
Calibration: Full Gamut and Color Calibration
Maximum output: 3,350 lumens
*Figure obtained under manufacturer´s test conditions
Photometric Data
Wide beam: 3,350 lumens
Narrow beam: 1,626 lumens
Fixture Center Intensity Narrow Beam: 329,058 cd
Fixture Center Intensity Wide beam: 10,141 cd
CRI (Color Rendering Index) : >70
CQS (Color Quality Scale): 84
TM-30 Rf (IES TM-30-15 Fidelity Index): 79
TM-30 Rg (IES TM-30-15 Gamut Index): 116
TLCI (Television Lighting Consistency Index): 61
CCT: 6,500 K
LED refresh rate - Standard Mode: 3,600 Hz
LED refresh rate - Theatre Mode: 19,200 Hz
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Construction
Housing: Aluminum and composite
Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
Color: Black
Ingress protection rating: IP65
Installation
Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
Location: Wet locations, temporary outdoor use, not for household use
Orientation: Any
Minimum distance to combustible materials: 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

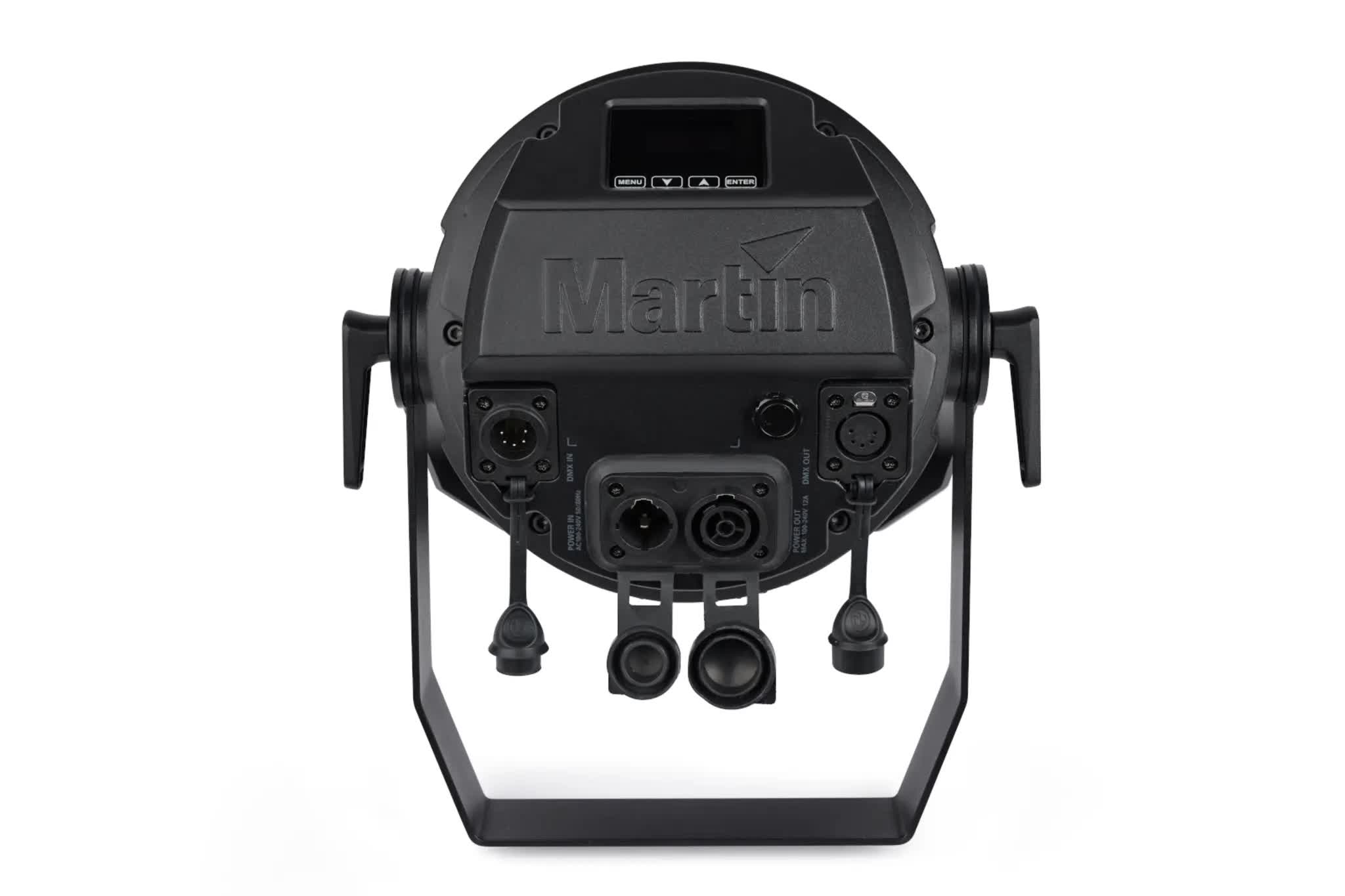

Connections
AC power in, thru: Neutrik PowerCON TRUE1 TOP
DMX data in, thru: Neutrik IP-rated 5-pin locking XLR
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 11.2 A
Power Factor: 0.99 @ 100 V / 120 V , 0.94 @ 220 V / 230 V / 240 V
Typical current draw: 3.7 A @ 100 V / 120 V , 1.7 A @ 220 V / 230 V / 240 V *
Power Consumption
Typical: 300 W *
Hibernation: 2 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal
Cooling: Forced air (temperature regulated, low noise)
Total heat dissipation*: 1126 BTU/hr.
*Calculated, +/- 10%, at full intensity, full white
Maximum surface temperature: 71° C (160° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10°C (14° F)
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 40.9 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.9 dB(A)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 14.3 lm/W
LWR*: 385 lm/kg (174 lm/lb)
LWR = Lumen-to-Weight Ratio
