Features

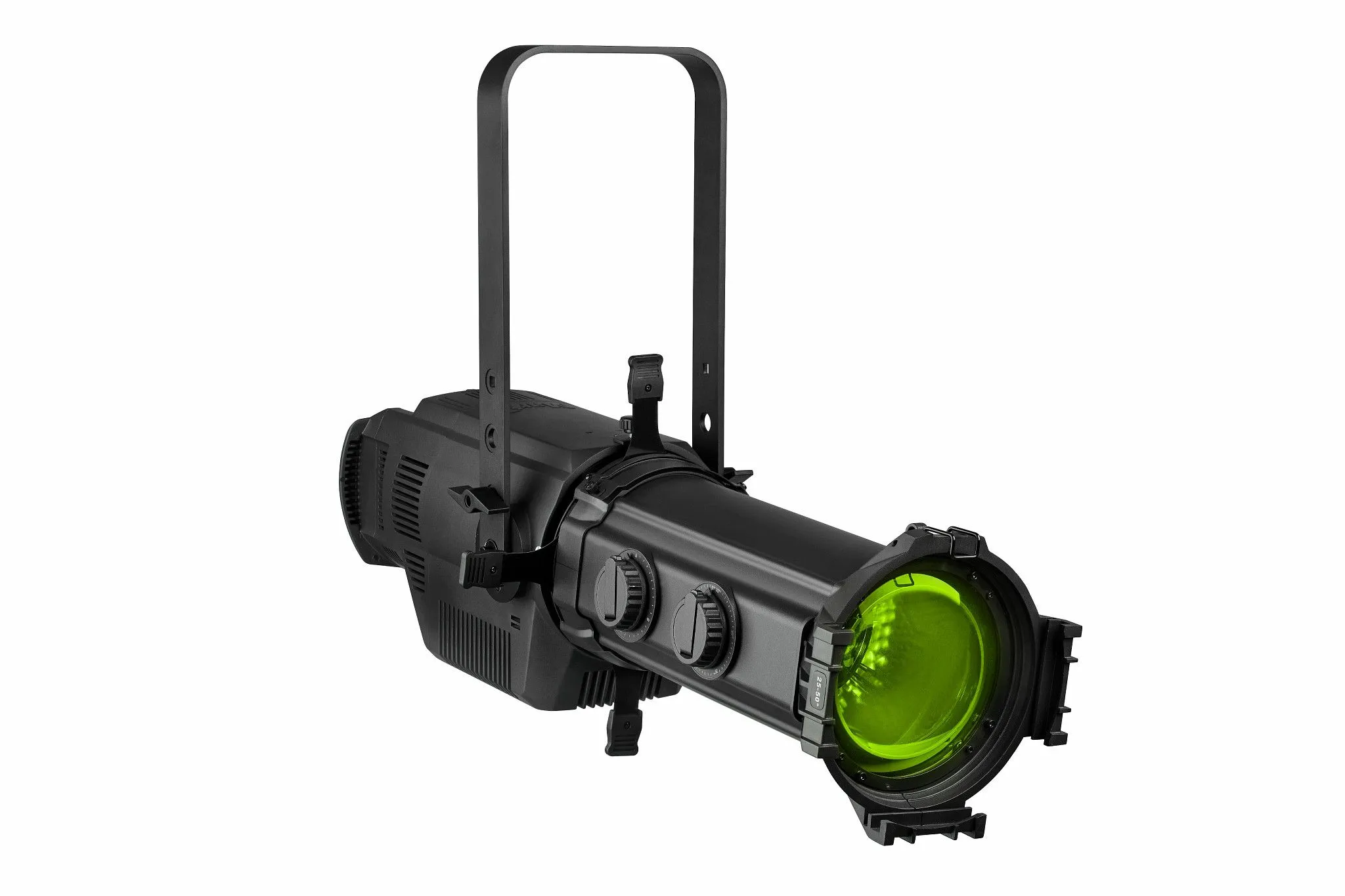

Legendary Martin quality in LED ellipsoidal light fixtures
Advanced optics engineered in Denmark
RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
Class-leading output of 6,900 lumens (in High Output mode)
Superior CRI rating of 90 (in high quality mode)
Fast focus feature for data free focusing

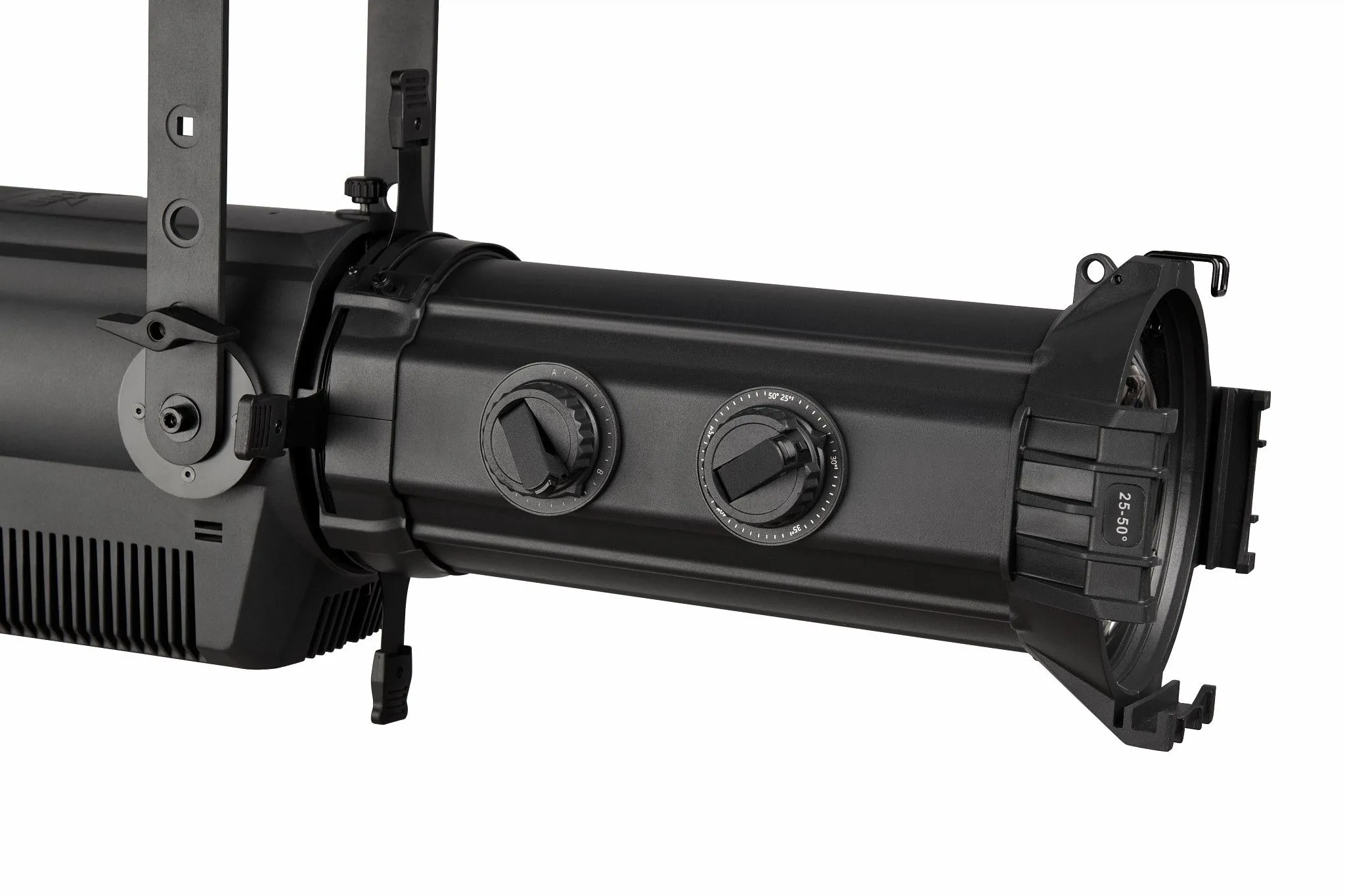

Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time.

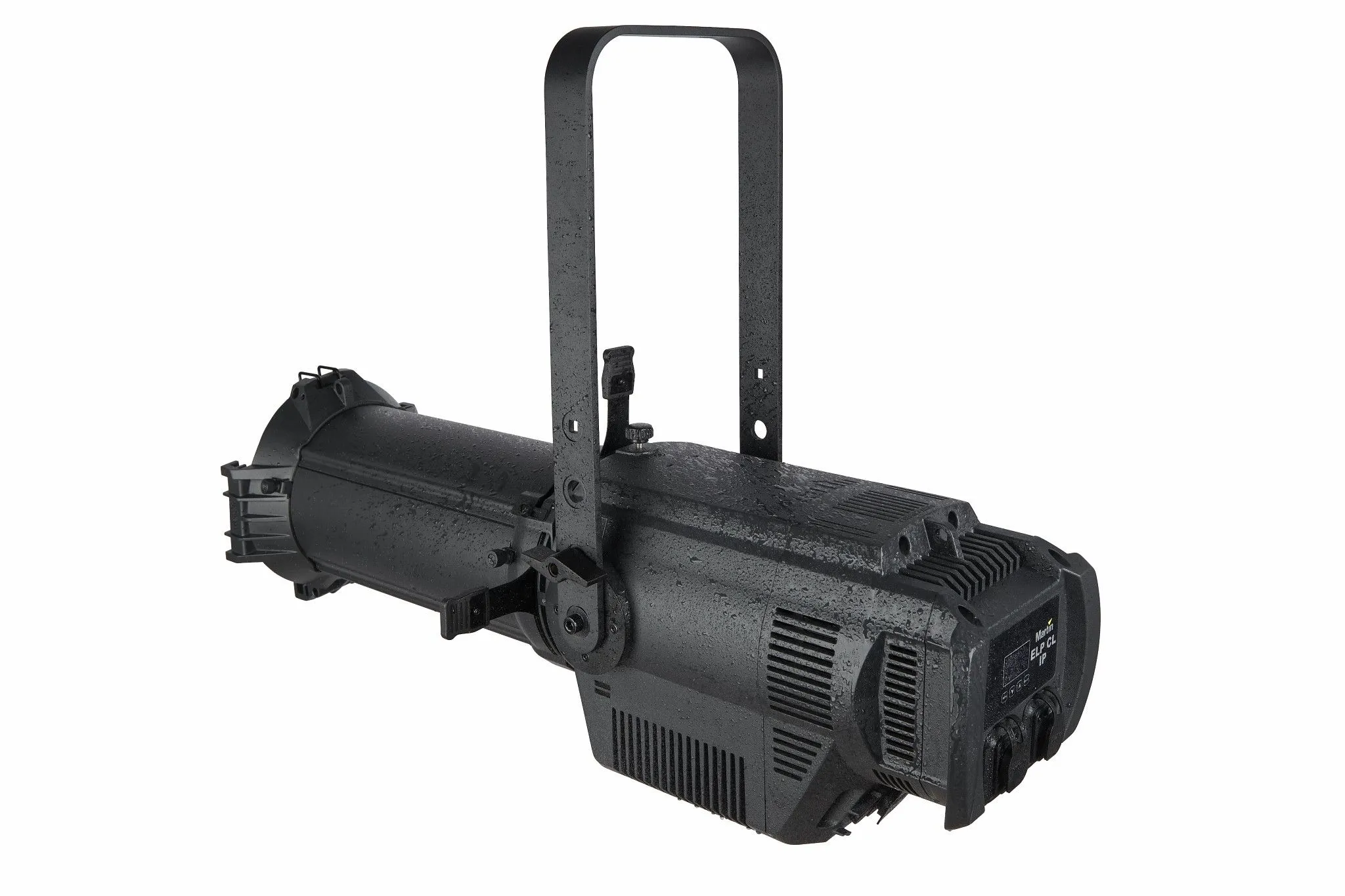

IP65 rated for water resistance and complete protection against dust and other particulates
26 color presets match industry-standard filters
16-bit dimming with 4 selectable dimming curves
Compatible with universal accessories such as gel frames and gobo holders and rotators
Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
Halation color correction removes atypical blue and brown halos when using Martin lens tubes.
Flicker-free operation

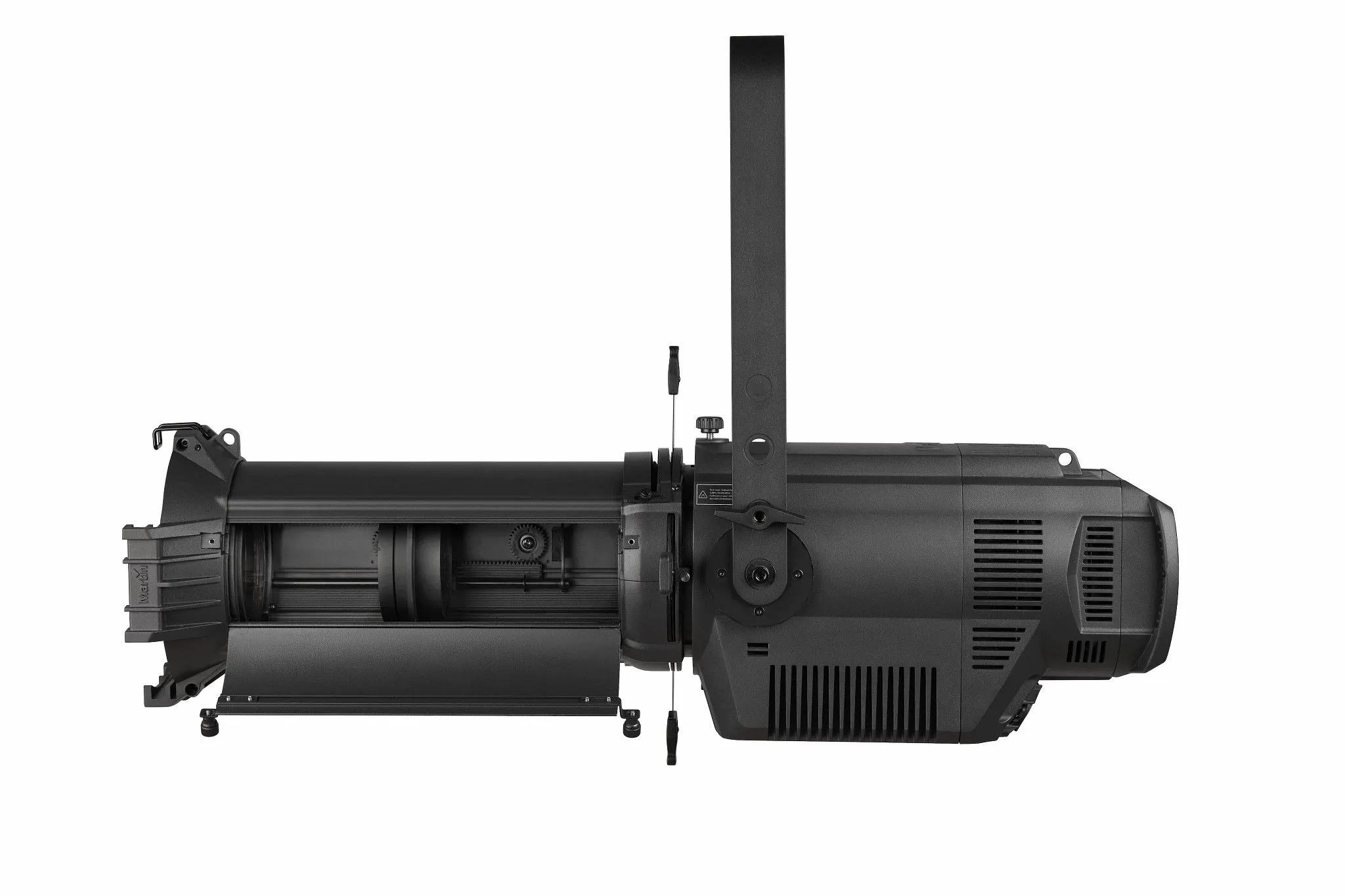

4-blade manual framing shutters
Center of gravity at yoke for ergonomic use
Regulated cooling for ultra-quiet operation
5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Specifications

Physical
Length: 644 mm (25.4 in.)
Width: 255 mm (10.1 in.)
Height: 255 mm (10.1 in.), 527 mm (20.1 in.) with bracket
Weight: 11 kg (24.3 lb.) body only
Dynamic Effects
Color mixing: RGBLA
Color Temperature Range: 2000–10000K
Color selection: 26 color presets
Electronic dimming: 0–100%, Four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Control and Programming
Control options: DMX, stand-alone
Setting and addressing: Control panel with OLED display or via RDM
16-bit control: Intensity, CTC, RGBLA
DMX channels: 1/10/17
PWM: 600–2400 Hz
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Stand-alone programming: Control panel with OLED display
Optics
Light source: 91 x RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
Minimum LED lifetime: 30 000 hours (to >70% luminous output)*
Color temperature: 2000–10000K
Fixed Lens Tube Options: 19°, 26°, 36° and 50°
Zoom Lens Tube Options: 15–30° and 25–50°
Binning: Tight color and flux binning
Calibration: White Point Color Calibration
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output: 20,000 lumens
High Output Mode
Fixture luminous output: 6,900 lumens
CRI (Color Rendering Index): >85
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >111
TLCI (Television Lighting Consistency Index): >85
CCT: 5500 K (+/- 250 K)
High Quality Mode
Fixture luminous output: 5,900 lumens
CRI (Color Rendering Index): >90
CQS (Color Quality Scale): >87
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >106
TLCI (Television Lighting Consistency Index): >87
CCT: 6000 K (+/- 250 K)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction
Housing: Die-cast aluminum
Color: Black or white variant
Protection rating: IP65
Gobos and Color Frame
Gobo size :
A size, 100 mm OD, 75 mm image*
Gobo size: B size, 86 mm OD, 64.5 mm image*

Color frame size: 159 x 159 mm (6.25 in. x 6.25 in.)
*Gobo holder not included.
Installation
Mounting: Adjustable bracket
Location: Indoor, outdoor use, suitable for wet locations
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
Connections
AC power in, thru: IP65-rated Neutrik PowerCON TRUE1 TOP
DMX & RDM data in/thru: IP65-rated 5-pin XLR
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 18.0 A
Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V ,  1.3 A @ 230 V , 1.1 A @ 240 V *
Power Consumption
Typical: 259 W *
Idle: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.

Thermal
Cooling: Forced air (temperature-regulated, low noise)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1000 BTU/hr.
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 28 lm/W
LWR*: 627 lm/kg (284 lm/lb)
LWR = Lumen-to-Weight Ratio
