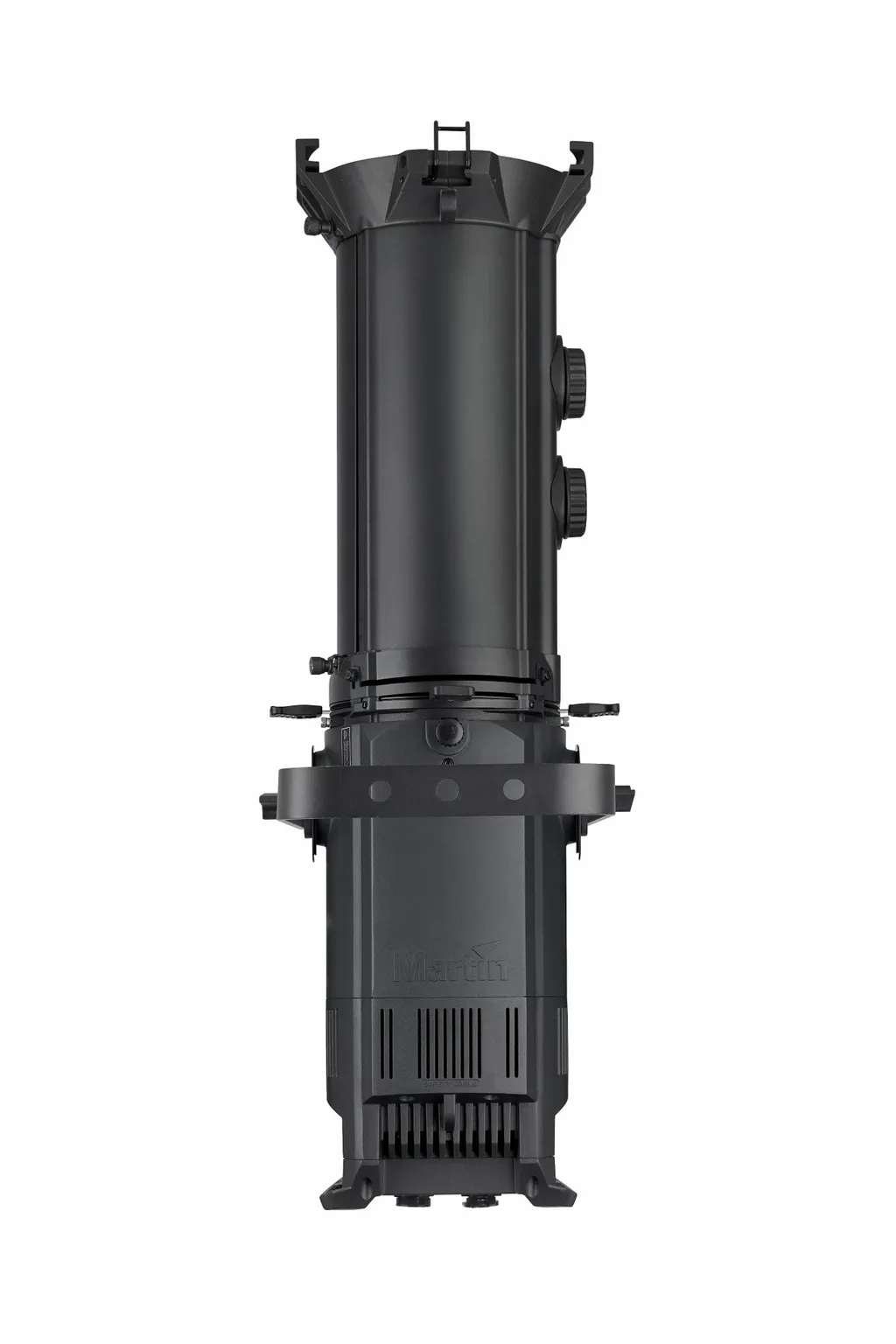

MARTIN ELP WW IP
Martin ELP LED ellipsoidal fixtures deliver the luminance, brightness and vivid color rendering that have been synonymous with the Martin name for more than 30 years. Martin ELP WW IP offers the industry-leading color rendering and brightness as the original Martin ELP WW but expands its versatility into temporary outdoor applications through IP65 compliance for moisture resistance and complete dust protection, along with C3 corrosion resistance. ELP’s ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it.
Features
Legendary Martin quality in LED ellipsoidal light fixtures
Advanced optics engineered in Denmark
Warm White light engine employs leading-edge LED chipset technology for high output and smooth LED blending
Impressive light output of 7,000 lumens (at 3000K)
Industry-leading CRI rating of 97
Fast focus feature for data free focusing

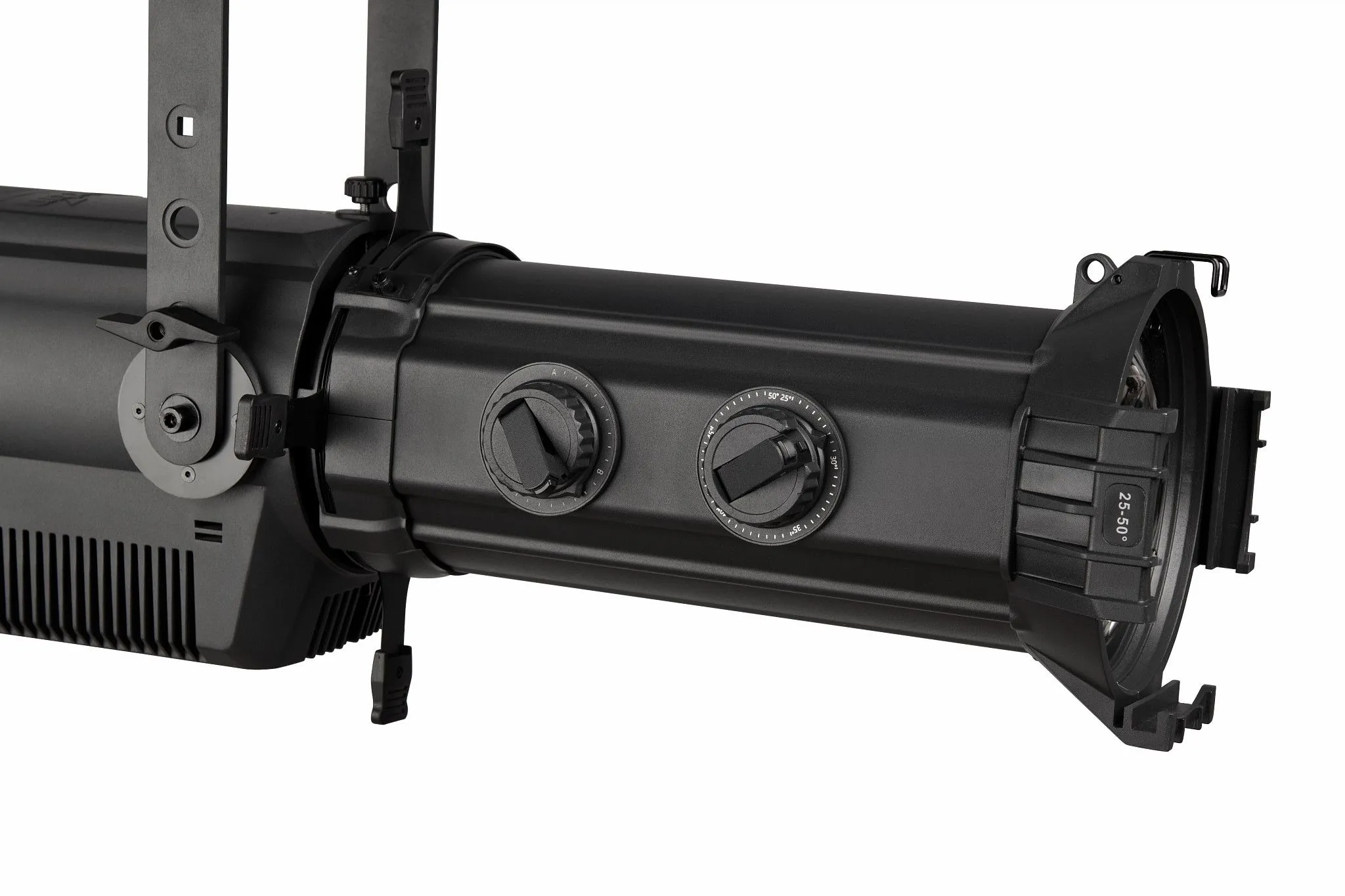

Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time

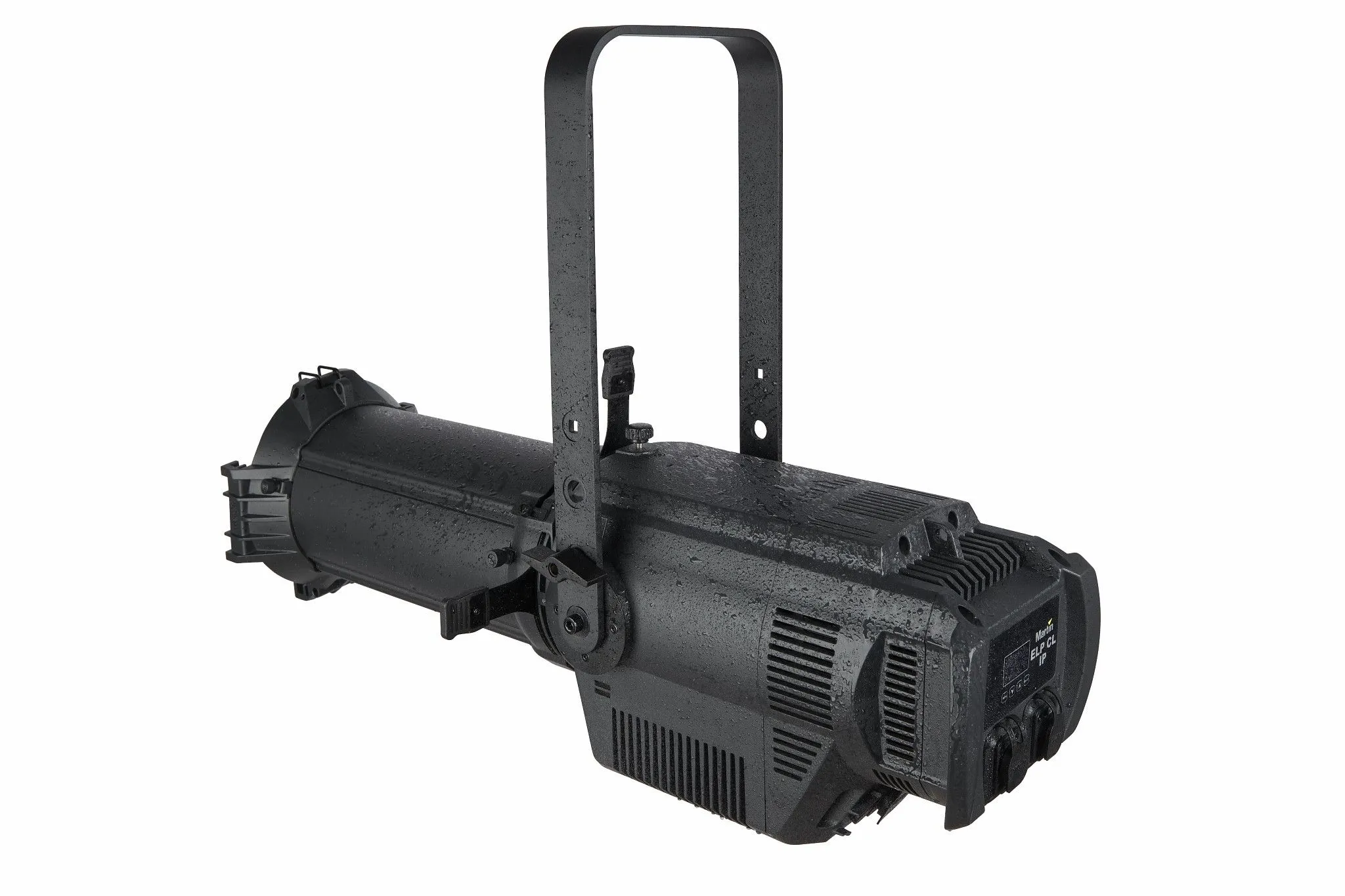

IP65-rated for water resistance and complete protection against dust and other particulates
16-bit dimming with 4 selectable dimming curves
Compatible with universal accessories such as gel frames and gobo holders and rotators
Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
Halation color correction removes atypical blue and brown halos when using Martin lens tubes
Flicker-free operation

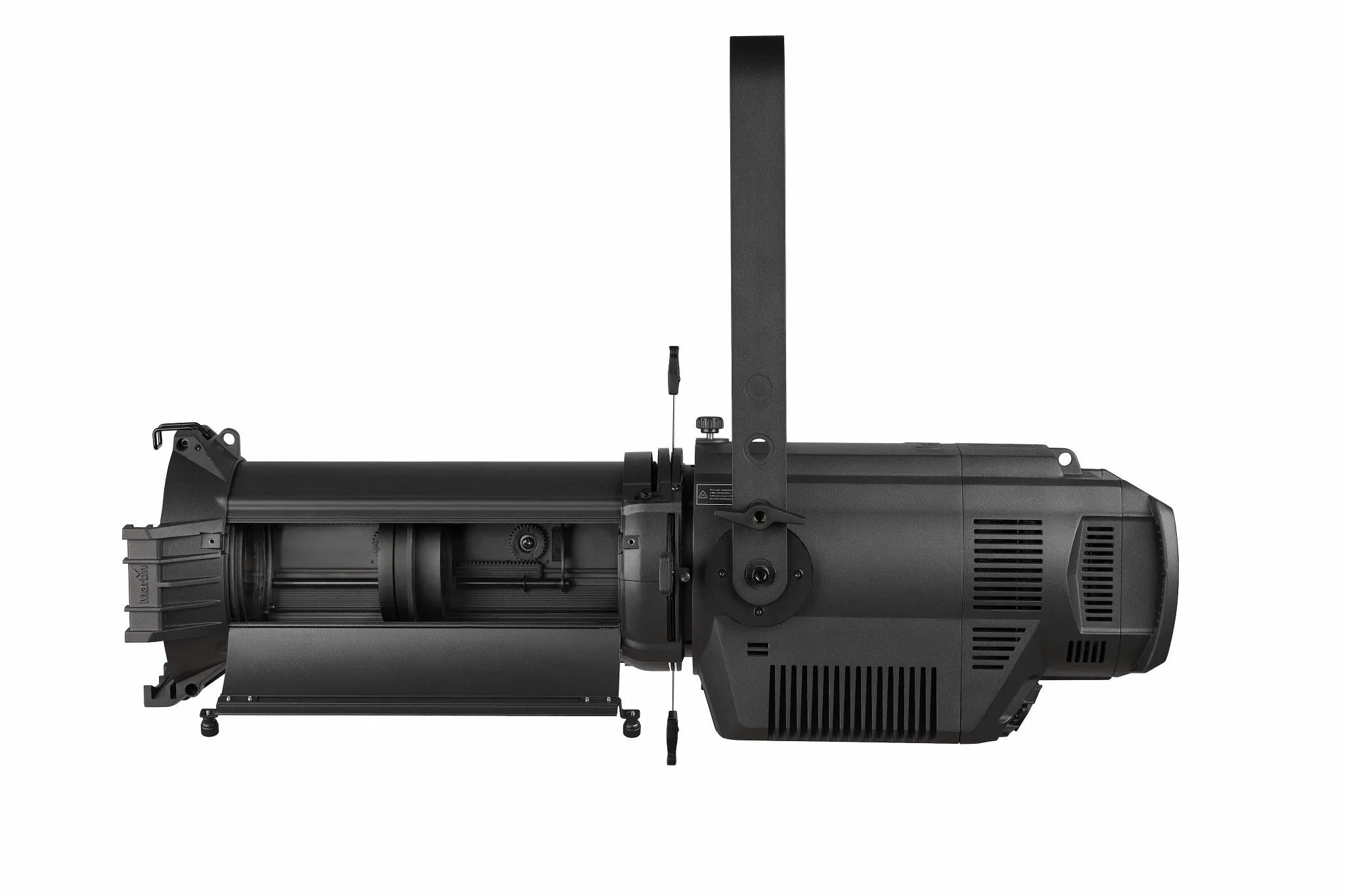

4-blade manual framing shutters
Center of gravity at yoke for ergonomic use
Tilt knobs positioned to clear framing shutters
Regulated cooling for ultra-quiet operation
5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
Specifications
Physical
Length: 644 mm (25.4 in.)
Width: 255 mm (10.1 in.)
Height: 255 mm (10.1 in.), 527 mm (20.1 in.) with bracket
Weight: 11 kg (24.3 lb.) body only
Dynamic Effects
Electronic dimming: 0–100%, Four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Control and Programming
Control options: DMX, stand-alone
16-bit control: Intensity
DMX address setting: Control panel with OLED display or via RDM
DMX channels: 1/2/4
PWM: 600–2400 Hz
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Stand-alone programming: Control panel with OLED display
Optics
Light source: 91 x 3 W warm white LEDs
Minimum LED lifetime: 30 000 hours (to >70% luminous output)*
Color temperature: 3000K

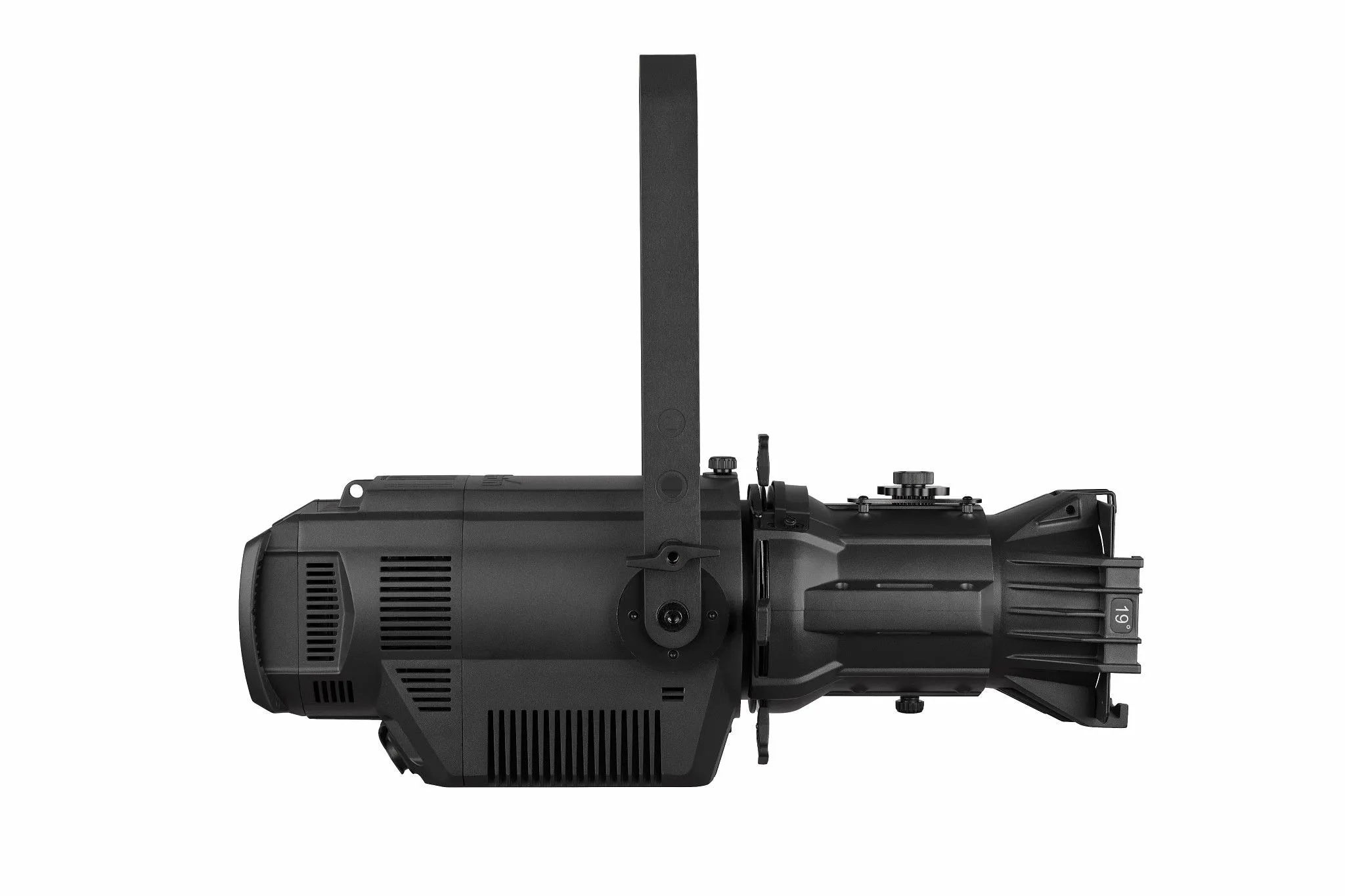

Fixed Lens Tube Options: 19°, 26°, 36° and 50°
Zoom Lens Tube Options: 15–30° and 25–50°
Binning: Tight color and flux binning
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output: 16000 lumens
Fixture luminous output: 7000 lumens
CRI (Color Rendering Index) : >97
CQS (Color Quality Scale): >93
TM-30 Rf (IES TM-30-15 Fidelity Index): >93
TM-30 Rg (IES TM-30-15 Gamut Index): >101
TLCI (Television Lighting Consistency Index): >96
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: Die-cast aluminum
Color: Black or white variant
Protection rating: IP65
Gobos and Color Frame
Gobo size : A size, 100 mm OD, 75 mm image*
Gobo size: B size, 86 mm OD, 64.5 mm image*
Color frame size: 159 x 159 mm (6.25 in. x 6.25 in.)
*Gobo holder not included
Installation
Mounting: Adjustable bracket
Location: Indoor, outdoor use, suitable for wet locations
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
Connections
AC power in, thru: P65-rated Neutrik PowerCON TRUE1 TOP
DMX & RDM data in/thru: IP65-rated 5-pin XLR
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 18.0 A
Power Factor: 0.99 @ 110 V , 0.97 @ 208 V , 0.96 @ 230 V / 240 V
Typical current draw: 2.6 A @ 110 V , 1.4 A @ 208 V , 1.2 A @ 230 V / 240 V / *
Power Consumption
Typical: 280 W *
Idle: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling: Forced air (temperature-regulated, low noise)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1000 BTU/hr.
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 28 lm/W
LWR*: 636 lm/kg (288 lm/lb)
LWR = Lumen-to-Weight Ratio
