Antelope 10MX
Part of the Isochrone family of products, the Antelope 10MX Rubidium Atomic Master Clock combines the atomic, audio-clocking precision of the original 10M with the sophisticated jitter-management algorithm of the Isochrone Trinity, in an elegant 1 RU chassis. It employs the company's industry-leading Rubidium Atomic Clock and 4th generation Acoustically Focused Clocking (AFC) technologies, to provide audio professionals with an exceptionally stable clocking reference that adds analog-like clarity, depth, and 3-dimensional imaging to their sound, for recording, mixing, mastering or live audio applications.
The 10MX is equipped with ten BNC atomic clock outputs, generating a 10 MHz signal that allows you to clock up to 10 devices simultaneously. It can also be used as a master clock with four BNC wordclock outputs, supporting sampling rates at up to 768 kHz. Additionally, the unit provides two clock outputs for both AES/EBU and S/PDIF formats.
All functions and controls are easily managed either from the front panel or, with the unit connected to a Mac/Windows computer via a USB port, by using the intuitive software control panel (available separately as a free download). Lightweight at 6.17 lb, the 10MX features a sturdy mechanical construction, which makes it safe and convenient to transport when working in multiple studios or on the road.
Rubidium core with accuracy of 0.05 ppb (parts per billion)
Combines the atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity
Adds analog-like clarity, depth, and 3D imaging to your sound
Well-suited for recording, mixing, mastering or live sound applications
4th generation Acoustically Focused Clocking (AFC), employing 64-bit DDS
10 x 10 MHz atomic clock outputs allow up to 10 devices to be simultaneously clocked
4 x wordclock outputs supporting sampling rates at up to 768 kHz
2 x S/PDIF and 2 x AES/EBU master clocking outputs, at up to 192 kHz
Atomic clocking compatible with any device that accepts 10 MHz reference
Easy to operate, just connect it and power it on
Managed via front-panel controls or via intuitive software control panel, for Mac/Windows
USB port allows remote control and firmware upgrades
Sturdy mechanical construction
Housed in an elegant 1 RU chassis
Antelope 10 MX Specs
Clock Type Master Clock & Distribution
Oscillator OCXO (Oven-Controlled Crystal Oscillator)
Atomic Decay
Clock Frequency and Supported Sample Rates Atomic Clock:
10.0 MHz
Internal:
32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 / 768 kHz
Word Clock Input:
44.1 to 384 kHz
Word Clock Output:
44.1 to 768 kHz

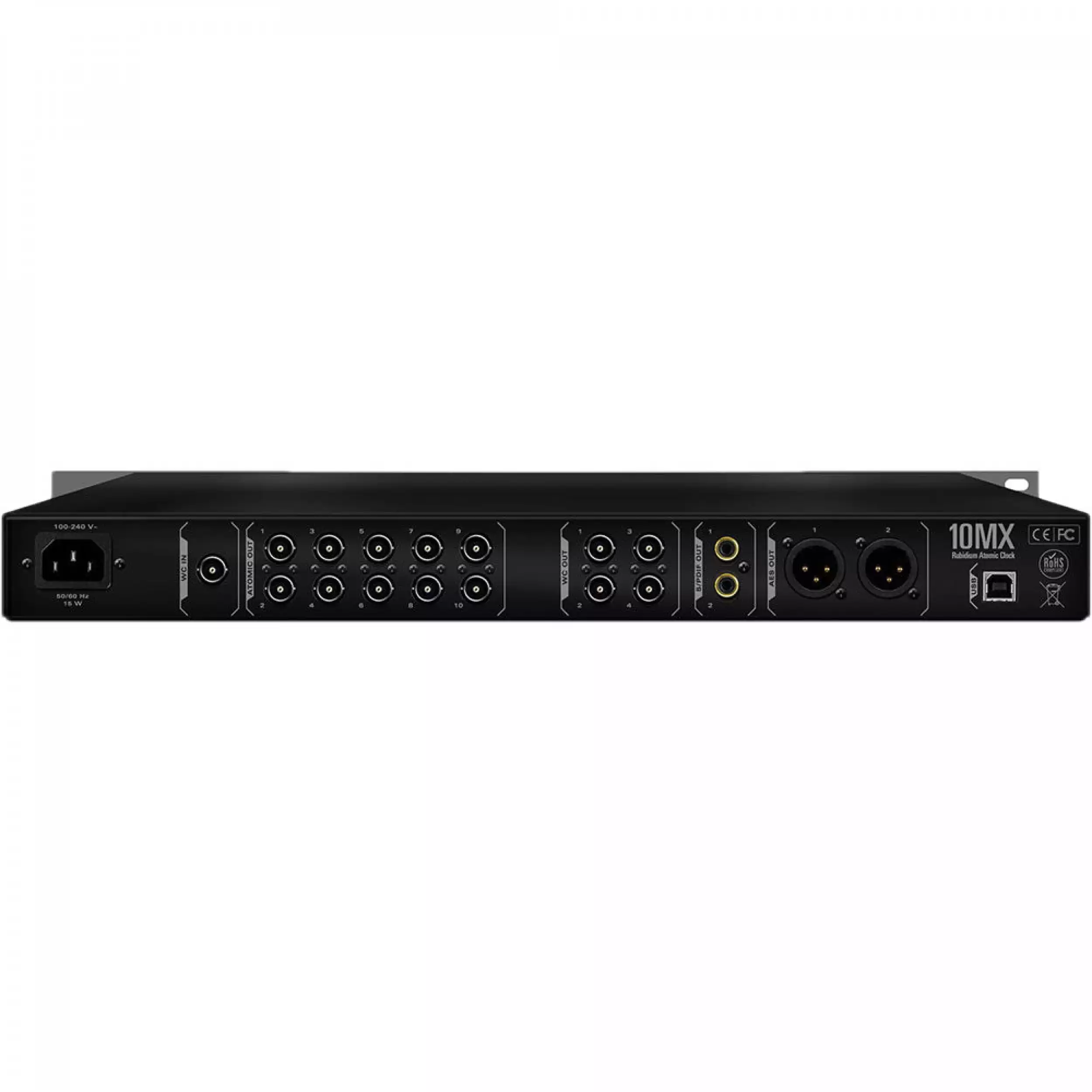

Connectivity
Inputs 1 x BNC Word Clock Input
Outputs 10 x BNC Atomic Clock Output
2 x XLR 3-Pin AES3 Output
2 x RCA Coaxial S/PDIF Output
4 x BNC Word Clock Output
USB 1 x USB Type-B (USB 2.0, Control)
Performance
Clock Accuracy ±0.05 ppb at 77°F / 25°C
Clock/Oscillator Stability ±0.02 ppm at 148.1°F / 64.5°C (Oven Controlled)
Input Level Word Clock:
3 V p-p
Output Level Atomic Clock:
1 V p-p
Word Clock:
3 V p-p
Impedance Atomic Clock Output:
75 Ohms
Word Clock Input:
75 Ohms
Word Clock Output:
75 Ohms
Compatibility
OS Compatibility Windows 7
Windows 8
Windows 8.1
Windows 10
macOS 10.9
macOS 10.10
macOS 10.11
macOS 10.12
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Processor Requirement Mac:
Intel Core 2 Duo
PC:
2 GHz Intel
2 GHz AMD
RAM Requirements 4 GB, 8 GB Recommended
Storage Requirements 512 MB
Required Hardware Available USB 2.0 Port
Internet Connection Required for Registration
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 15 W
Physical
Rackmount Size 1 RU
Operating Humidity 30 to 80%
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 19 x 9 x 1.73" / 482.6 x 228 x 44 mm
Weight 6.2 lb / 2.8 kg
Packaging Info
Package Weight 10 lb
Box Dimensions (LxWxH) 25.3 x 13.5 x 4.5"
