Antelope Isochrone Trinity
In the fickle world of Audio & Video formats, Trinity is the Master Clock that stands out from the crowd, with the kind of features that others can only aspire to. Installed in some of the prominent audio and post production facilities around the globe, Trinity is in the roots of great percentage of the contemporary music and movie productions.
Powered by an ultra-stable oven controlled crystal oscillator, Trinity's completely redesigned timing engine with 4th generation 64-bit Acoustically Focused Clocking provides supremely low jitter and high stability, with distinct sonic advantages that are immediately apparent.
Key Features
A master clock that stands out
Stable clocking and advanced jitter management
The features that make it unique
Suited for every environment
A master clock that stands out
In the fickle world of Audio & Video formats, Trinity is the Master Clock that stands out from the crowd, with the kind of features that others can only aspire to. Installed in some of the prominent audio and post production facilities around the globe, Trinity is in the roots of great percentage of the contemporary music and movie productions. Trinity is also an integral component of some large live concerts and events nowadays.
Stable clocking and advanced jitter management
Powered by an ultra-stable oven controlled crystal oscillator, Trinity's completely redesigned timing engine with 4th generation 64-bit Acoustically Focused Clocking provides supremely low jitter and high stability, with distinct sonic advantages that are immediately apparent.
The features that make it unique
Trinity takes care of requirements that usually would have needed several units. With 3 HD and 2 SD generators the unit locks to and generates all known professional video format, while simultaneously offering 3 independent audio channels.
Suited for every environment
The fully integrated monitor controller employs 0.05 dB accurate gold-plated relay attenuators and provides speaker switching, bass management and cue mix functions with integrated talkback.
Antelope ISOTR Specs
Clock Type Master Clock & Distribution

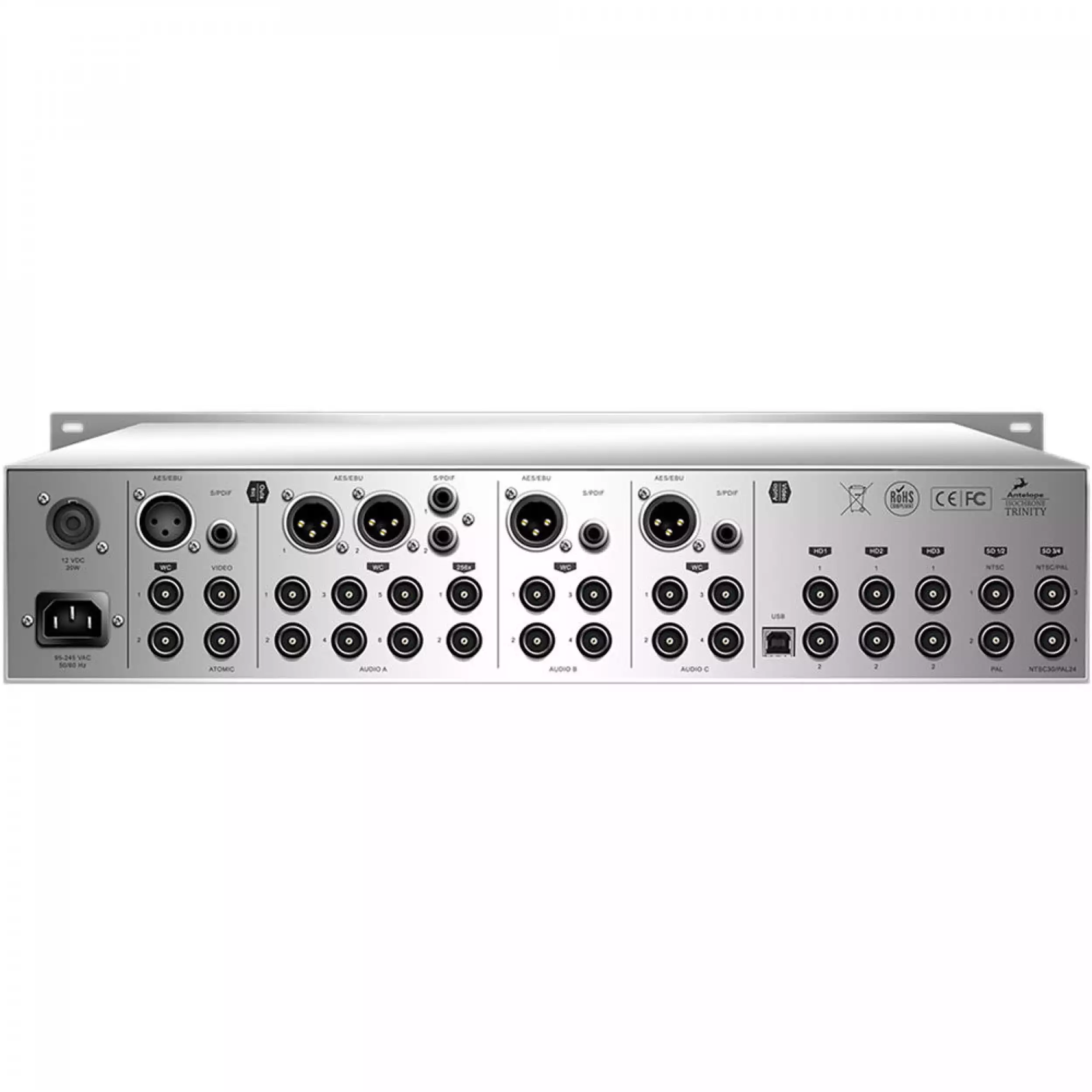

Connectivity
Inputs 1 x XLR 3-Pin AES3 Input
1 x RCA Coaxial S/PDIF Input
2 x BNC Word Clock Input
1 x BNC Atomic Clock Input
1 x BNC Video Input
Outputs 4 x XLR 3-Pin AES3 Output
4 x RCA Coaxial S/PDIF Output
16 x BNC Word Clock Output
10 x BNC Video Output
Power
AC Input Power 120 VAC, 60 Hz
230 VAC, 50 Hz
AC/DC Power Adapter 12 VDC
Power Consumption 20 W (Maximum)
Physical
Rackmount Size 2 RU
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 19 x 8 x 3.5" / 48.26 x 20.32 x 8.89 cm
Weight 8.8 lb / 4.0 kg
Packaging Info
Package Weight 14 lb
Box Dimensions (LxWxH) 25.1 x 13.6 x 6"
