The VERTO³² provides 4 ADAT I/Os – each with 8 channels – for 32 x 32 channel operation. The converter features an additional Word Clock I/O and is easily remote controlled via the network connection and MIDI.

Thanks to the array of 16 “Lightpipe” connections, the VERTO³² can integrate several studio devices or a loaded stage box into the Dante network. It can simply turn ADAT-equipped devices, like the RME Firefaces or DIGIface, into fully functional Audio-over-IP computer interfaces.

Connected to a Dante network, the VERTO³² is immediately detected with all 32 I/Os and automatically configured. This way every room with a LAN connection can be used for recording or mixing – simply plug the device into the network and start to work – with Dante Two-Port-Redundancy.

Thanks to the small footprint, any Verto converter fits easily into mobile setups and can be always carried as Dante connection kit for complete stage boxes.

An additional rack mount kit is available.

Ferrofish offers a feature-identical version with 64 ADAT I/Os: VERTO⁶⁴

Dante Plug & Play Eco System

The VERTO³² fits directly into scalable network infrastructures of the Dante Eco System – with Plug & Play. The fabulous Dante control software allows it to route all channels freely within the network.

Remote Control via Network

The VERTO³² can be remotely controlled via the Dante Network. The Dante audio streams can be used to send and receive embedded MIDI messages.

32

ADAT I/O Channels

<>

64

Dante I/O Channels

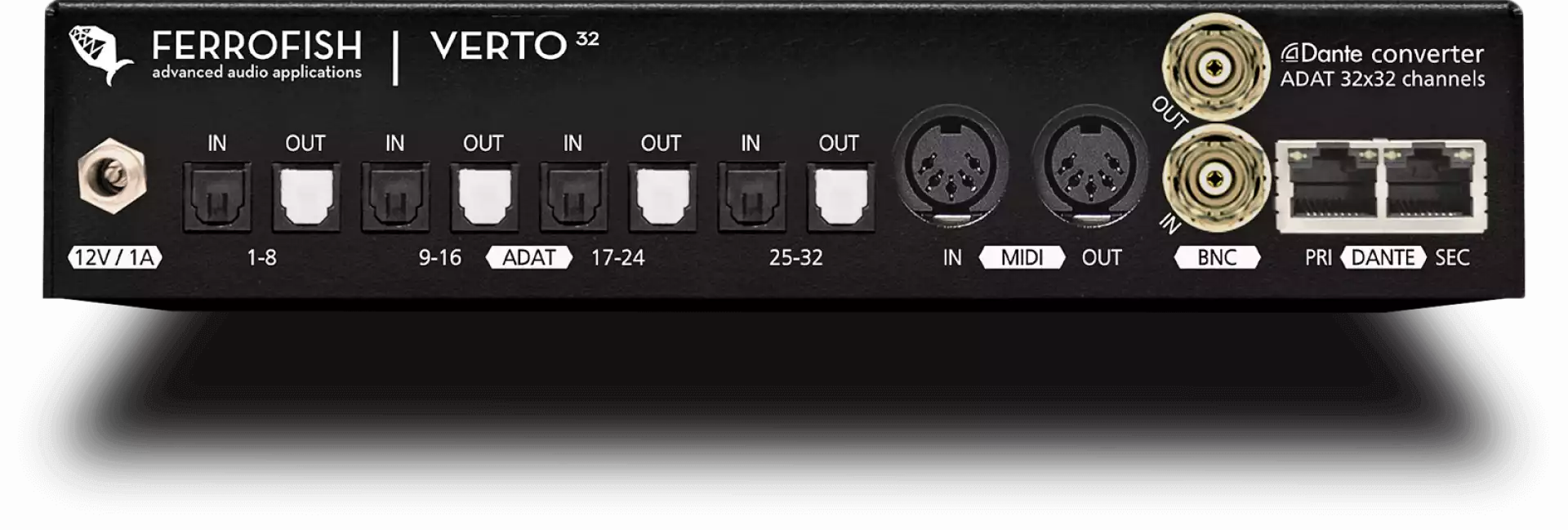

4 x ADAT I/O (TOSLINK)

Each ADAT port can transfer eight channels at a sample rate of 48 kHz (= 32 In + 32 Out channels). With 96 kHz  it is possible to convert 16 Dante I/O to ADAT (S/MUX2).

MIDI I/O

The Dante data streams can be used to send and receive embedded MIDI messages. A very useful feature, to remotely control MIDI equipment in the studio rack or on stage from the FOH.

WORD CLOCK I/O

BNC with 75 Ohm termination.
Set to on by default – can be changed with the remote software via the network connection.

Dante Network I/O (redundant)

Two RJ-45 ports connect to any Dante audio network. Simply connect a LAN Ethernet cable (CAT5/CAT6) to the primary port. The secondary port takes automatically over in case of a network error (Dante Port Redundancy).

Specifications

Dante I/O

• 2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network
• 64 x 64 channel I/O (Dante Brooklyn II board built-in)

ADAT I/O

VERTO 32: 4x ADAT Input + 4x ADAT Output, optical TOSLINK

Channel count:

• 32x32 channels at 48kHz,
• 16x16 channels at 96kHz

VERTO 64: 8x ADAT Input + 8x ADAT Output, optical TOSLINK

Channel count:

• 32x32 channels at 48kHz
• 16x16 channels at 96kHz

MIDI I/O

• 2 x DIN5 connector for MIDI embedding/de-embedding

Wordclock I/O

• BNC: 1 x input, 1 x output
• 75 Ohm Termination set by default (switchable via Dante)

Power Supply

14.4VA (1.2A at 12V)

• Polyfuse internal, self-resetting
• 1 x power supply included

Operation

• Temperature range: 41°F up to 113°F (+5°C up to +45°C)
• Humidity: <75%, non-condensing

Weight/Size

• Weight: 0,9 kg
• Dimensions: 22 x 9 x 4,5 mm (without rack ears)

Optional accessories

• 19“ Rack mountain kit, metal (for mounting 1 x Verto in a 19” rack-space)
• Multi-range Power Supply 12V (EU)
• ADAT Cable Locking Plate (Part. No. 7027)
