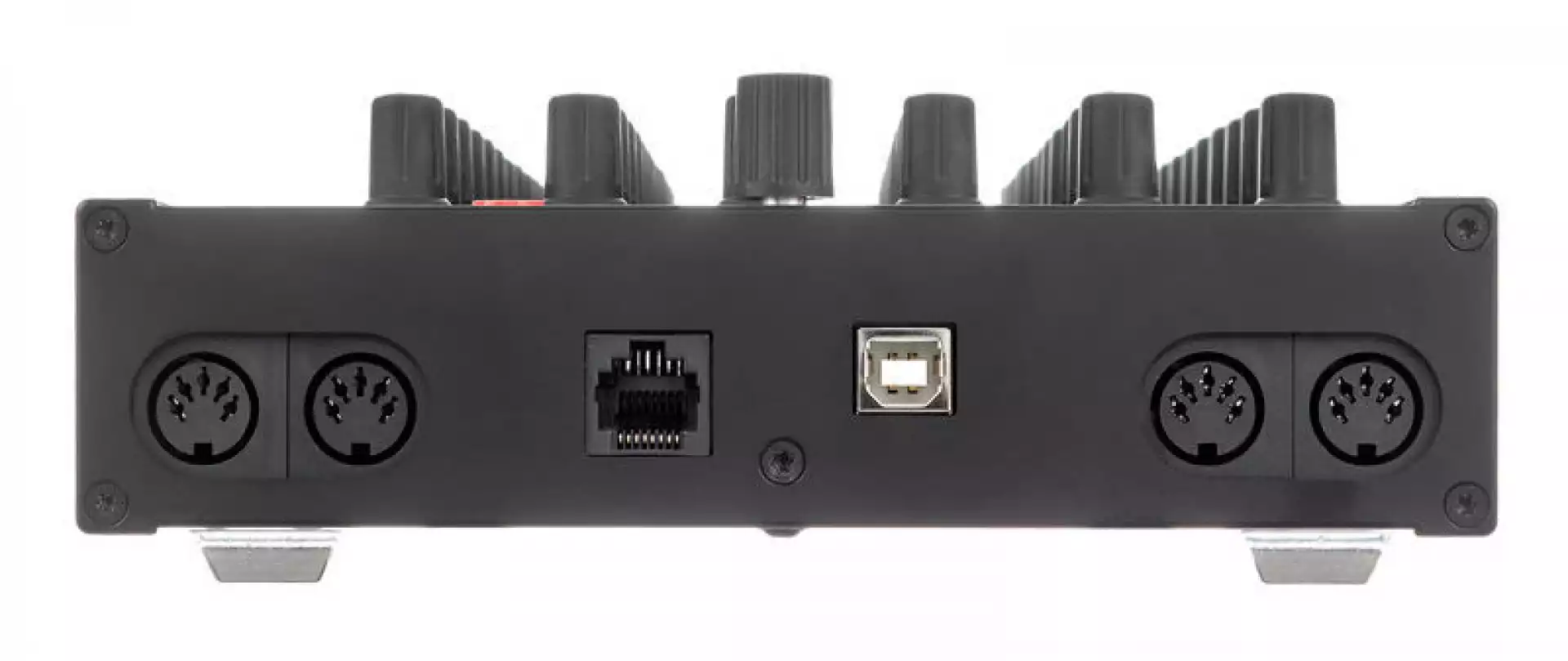

Furthermore there are 4 Midi-ports and one USB-port with various routing possibilities.

It is packed in a alu case with the same dimensions like the famous ELEKTRON devices so it’s a great extension for these devices. But you can use the pot controller also with your DAW like a classical 12-track-mixer.

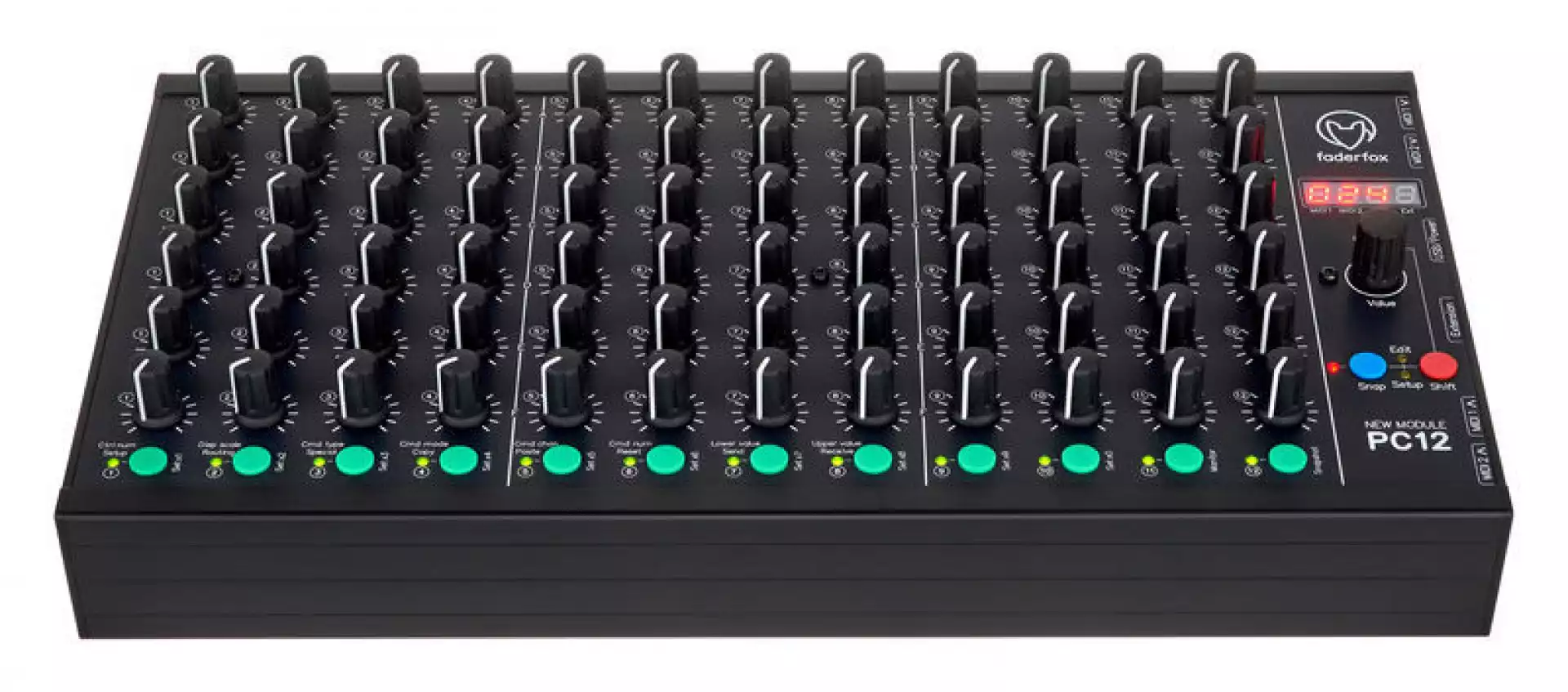

The device has 72 standard pots and 12 buttons in a 12-track-layout, Various kinds of midi commands like control change, note on/off, pitchbend, aftertouch and program change are possible. You can program every Midi command for every separate control on the device very fast and easily.

Of course you can assign the pots and keys to any of these commands by learning incoming Midi commands, which is the same procedure you know from your software / DAW. The pots work with standard resolution of 7 bit to have full compatibility to any software and hardware instrument, effect and DAW. Use the internal 30 setups to save your individual settings. Backup and restore of all settings by sysex dumps is possible too.

The factory settings are perfect to control music and video software products out of the box if they are freely assignable. So any additional device programming isn’t necessary for many applications.

Some special setups are preconfigured for use with ELEKTRON RYTM and ABLETON LIVE.

Check out this amazing power box and you will get a reliable mate...

Features

• Universal controller for all kinds of midi controllable hard- and software

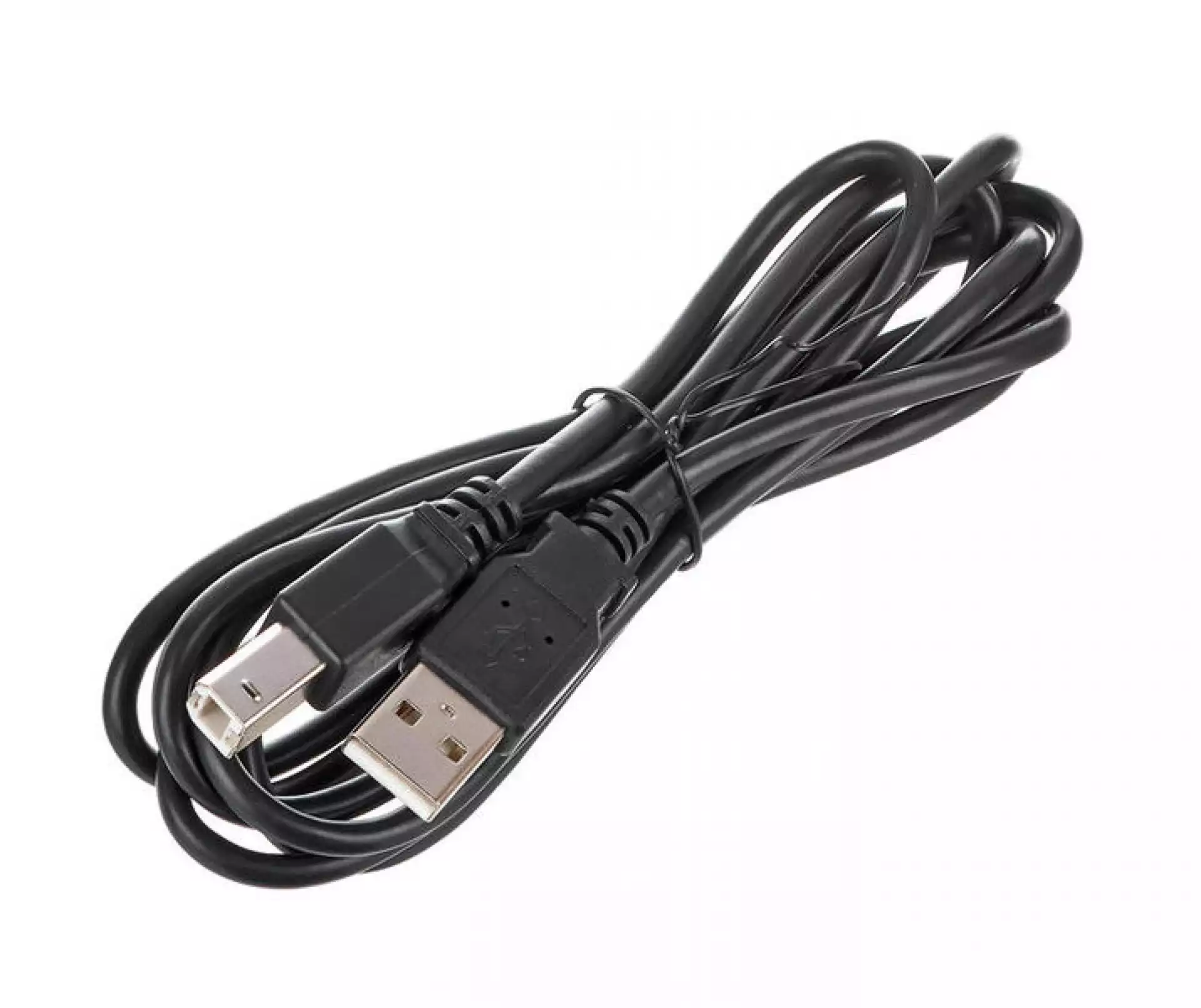

• USB interface with bus powering - class compliant / no driver necessary
• 2 MIDI in and out ports with routing and merge functionality
• Extension port to connect a second NEW MODULE device
• 72 pots with rubber knobs and standard midi resolution of 7bit
• 1 push encoders with detents (30 pulses) and 14 bit high resolution mode
• 12 buttons with LED for switchable parameters
• 4-digit-display to show values and programming data
• Data feedback for all controls avoid value jumps
• Programmable value ranges with min/max values
• Fast control assign by incoming midi commands (assign whole rows of controls by one command)
• All controls (incl. push buttons) fully programmable in the device
• Different command types like control change, pitch bend, aftertouch, program change and notes
• Advanced programming functions like copy, paste, duplicate, channel sets
• 30 setups with backup/restore function contain all controller settings and presets
• Switchable Snap function for all pots to avoid value jumps
• Sanpshot and Preset functions to send momentary values or stored presets for all pots/keys
• Upgradable firmware by simple Sysex-dump

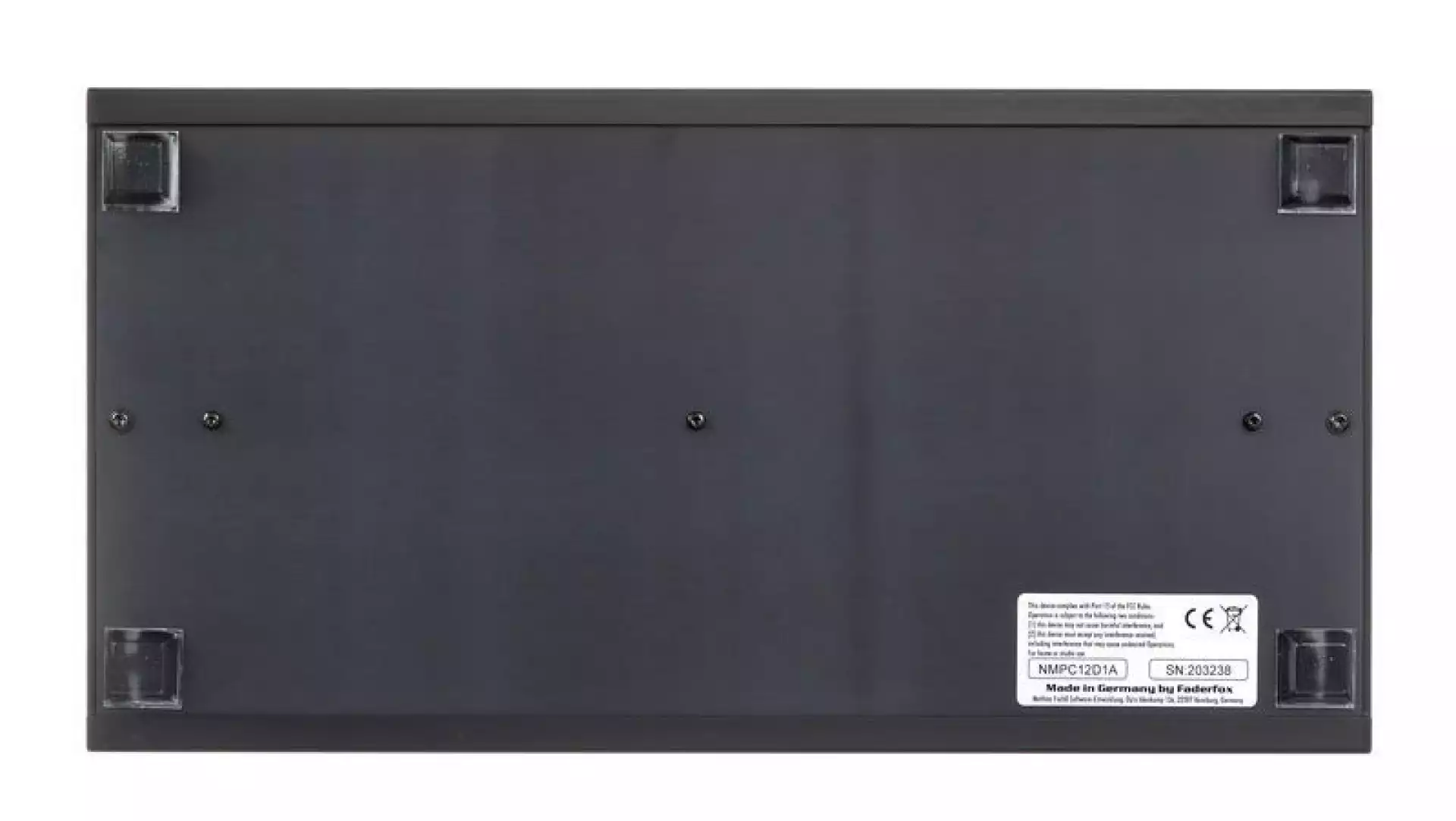

• Very compact and solid design in a black metal casing (size 340x176x65 mm, weight 1.3 kg)
• Same size like ELEKTRON MK1 devices (use ELEKTRON accessories like dust cover and bags)
• Cascading of NEW MODULE devices one behind the other due to the side connections

System requirements

• PC or Mac with a free USB port (1.0 or higher) or any USB hub
• MIDI device with standard midi in/out ports
• USB power adapter (5V min 200mA) if you want to control only midi gear

Downloads

• Manual (english PDF)
• Bedienungsanleitung (deutsch PDF)
• Quick start guide (english PDF)
• Schnellstartanleitung (deutsch PDF)
• Ableton Live Control surface script for Live 8/9/10 (packed in ZIP-file)
• Ableton Live Control surface script for Live 11... (packed in ZIP-file)
• Pictures (JPG) packed in ZIP-file

Updates

• Update instructions (english PDF)
• Update Anleitung (deutsch PDF)
• Latest Firmware PC12 Version 01.04 (PC12 V0104.SYX) ! read update instructions first !
• Update history (english PDF)
• Older Firmware PC12 Version 01.01 (PC12 V0101.SYX) ! read update instructions first !
