Of course you can assign the pots to any of these commands by learning incoming midi commands like software it does. The pots work with standard resolution of 7 bit to have full compatibility to any software and hardware instruments, effects and DAW’s. Use the internal 16 setups to save your individual settings. Backup and restore of all settings by sysex dumps is possible too.

The factory settings are perfect to control music and video software products out of the box if they are freely assignable. So any additional device programming isn’t necessary for many applications.

A special feature is the switchable snap function for all pots. This simple function is very rare on standard midi controllers with pots. It avoids possible annoying value jumps.

Three switchable midi routings makes the unit much more flexible for complex midi setups.

Simultaneous control of external gear and software instruments is no problem for  the PC4 due to the available USB and MIDI ports.

Check out this amazing power box and you will get a reliable mate...

Features

• Universal controller for all kinds of midi controllable hard- and software
• iPad compatible with camera connection kit
• USB interface with bus powering - class compliant / no driver necessary (consumption < 500mW)
• MIDI in and out ports with routing and merge functionality
• 24 pots with rubber knobs and standard midi resolution of 7bit
• Fast pot assign by incoming midi commands like control change (CC), pitch bend, program change
• Switchable snap function for all pots to avoid value jumps
• 16 setups with backup and restore functions

• Very compact design

  in a black casing (180x105x70 mm, 350 g)

System requirements

• PC or Mac with a free USB port (1.0 or higher) or a USB hub (connection by inclosed USB cable)
• iPad with iOS5 or higher (connection by apples camera connection kit)
• MIDI device with standard midi in port (5pin DIN socket connection by enclosed adapter cable)
• USB power adapter (5V min 200mA) if you want to control only midi gear

Accessories

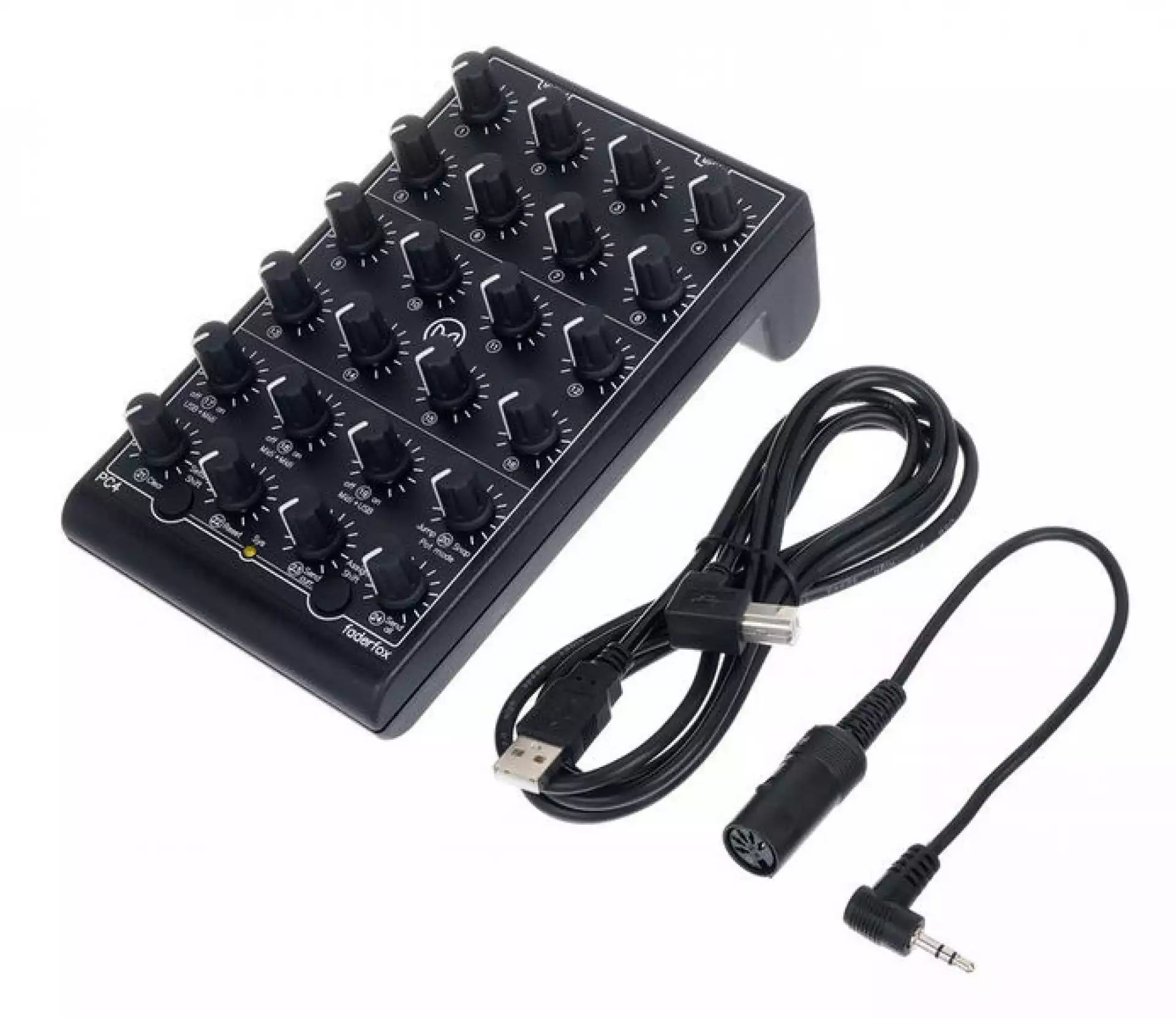

• Midi adaptor cable Type B for connection between device and other midi gear (one piece is enclosed)
• Special Midi cable for connection between 4th gen device
• USB Power adaptors for powering without USB host connection

Downloads

• Manual (english PDF)
• Bedienungsanleitung (deutsch PDF)
• Pictures (JPG) packed in ZIP-file

Updates

• Update instructions (english PDF)
• Update Anleitung (deutsch PDF)
• Latest Firmware PC4 Version 02.00 (PC4 V0200.SYX) ! read update instructions first !
• Addendum PC4 Manual Version 02.00 (english PDF)
• Addendum PC4 Bedienungsanleitung Version 02.00 (deutsch PDF)
• Older Firmware PC4 Version 01.01 (PC4 V0101.SYX) ! read update instructions first !
