Simply plug in your favorite XLR mic, gaming headset, or 3.5mm lavalier mic, sweeten the sound with the onboard ContourFX and StreamFX, and you're ready to stream in minutes. The ContourFX provides fast sound-shaping and enhancement through its presets, letting you focus on your stream rather than your sound. If you want more creative effects, StreamFX offers fun voice-changing effects that are just as simple to use.

M•Caster Studio includes a variety of features such as dedicated headset and media player inputs, a built-in 4-pad sampler with 3GB of internal storage, and user selectable RGB lighting that looks amazing in any streaming setup. The built-in MixViewer color display makes adjustments and configuration a snap. The built-in combo XLR-1/4" mic input includes phantom power for using your favorite condenser microphone.

At a Glance
Pristine sound quality and unmatched flexibility in a sleek compact design
Use your favorite mic plus a headset, media player, and more
Pick the perfect vocal sound with selectable ContourFX Presets
StreamFX makes it easy to add the finishing touch with tons of fun voice-changing effects from which to choose
USB connectivity, so you can use it as an audio interface on a Mac/PC
Bluetooth connectivity allows for both sending and receiving audio
Connect directly to your smartphone’s headphone jack to both send and receive audio
View levels, settings, and more via the built-in MixViewer color display
The built-in Sampler allows you to transfer and store audio files directly on M•Caster Studio and trigger them via 4 dedicated buttons
RGB LED strip with a whole rainbow of user-selectable colors. You can even have it cycle through all the colors automatically.
Includes USB cable, 3.5mm TRS / aux cable, 3.5mm TRRS cable (for smartphones), and a power supply

Stream a Little Stream
M•Caster Studio was designed to make it easy to get great audio on your computer or smartphone for livestreaming and content creation. M•Caster Studio packs in all the tone shaping and connectivity you need without making things complicated.

For Content Creators
M•Caster Studio was created with content creators at the top of the list. Every feature from easy tone shaping and effects to plug-and-play operation and compact size makes M•Caster Studio the audio solution for which you've been looking. And with its sleek looks and RGB lighting, you'll want it proudly displayed on camera during your next stream or video.

No Expertise Required
Sure, reading a thousand posts in forums on how to sound good on stream can be fun, but you don't have time for that. Let M•Caster Studio do the heavy lifting for you. Plug in, turn a few knobs to dial in your sound, and you're good to go.

Big Sound, Little Mixer
At the heart of a M•Caster Studio is some serious sound-shaping horsepower. Choose between an array of different ContourFX Presets that can add anything from thunderous depth to sparkly angelic tones to your voice, with the turn of a single knob. Dial it in just right with the ContourFX control on each channel. Try each profile preset and find your signature sound.

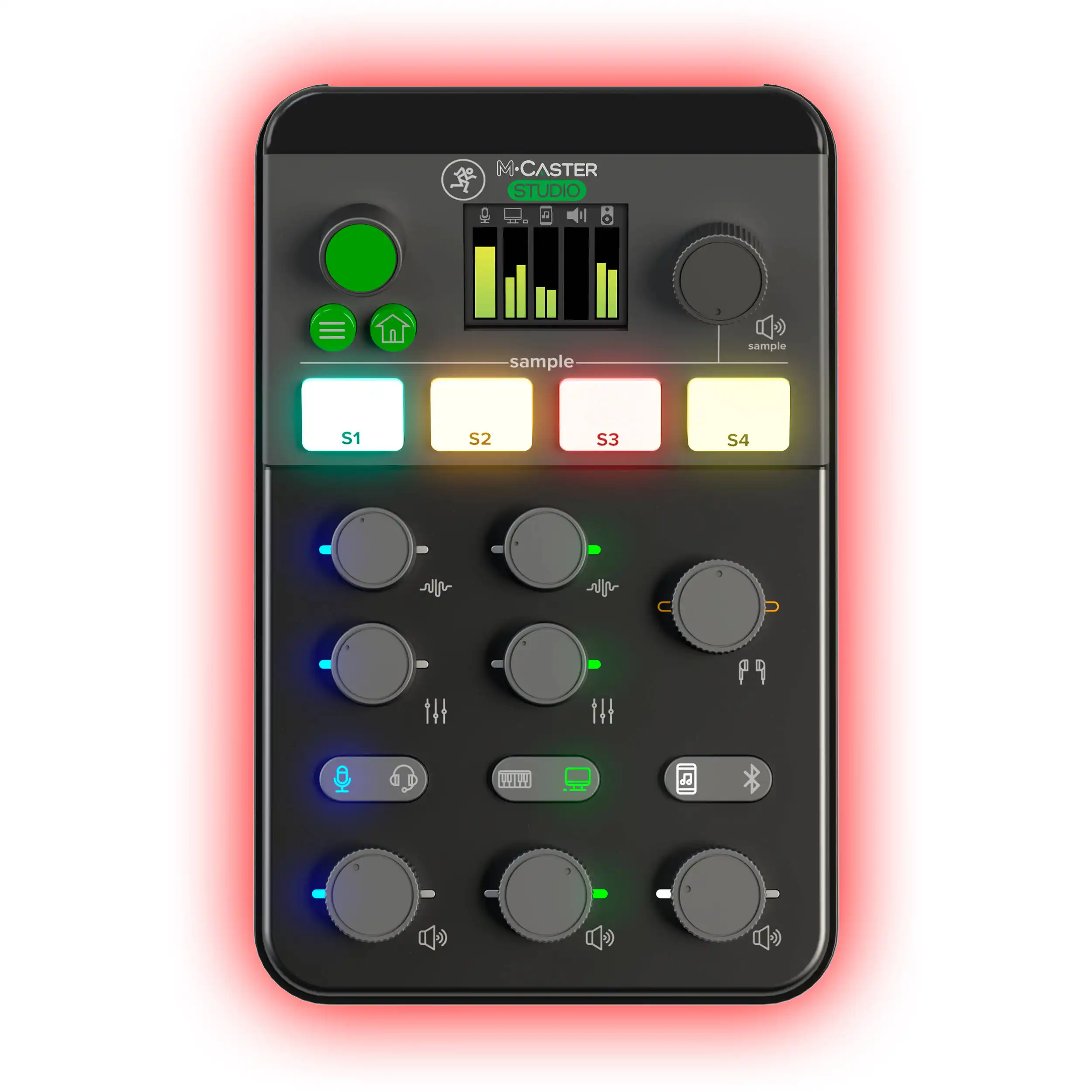

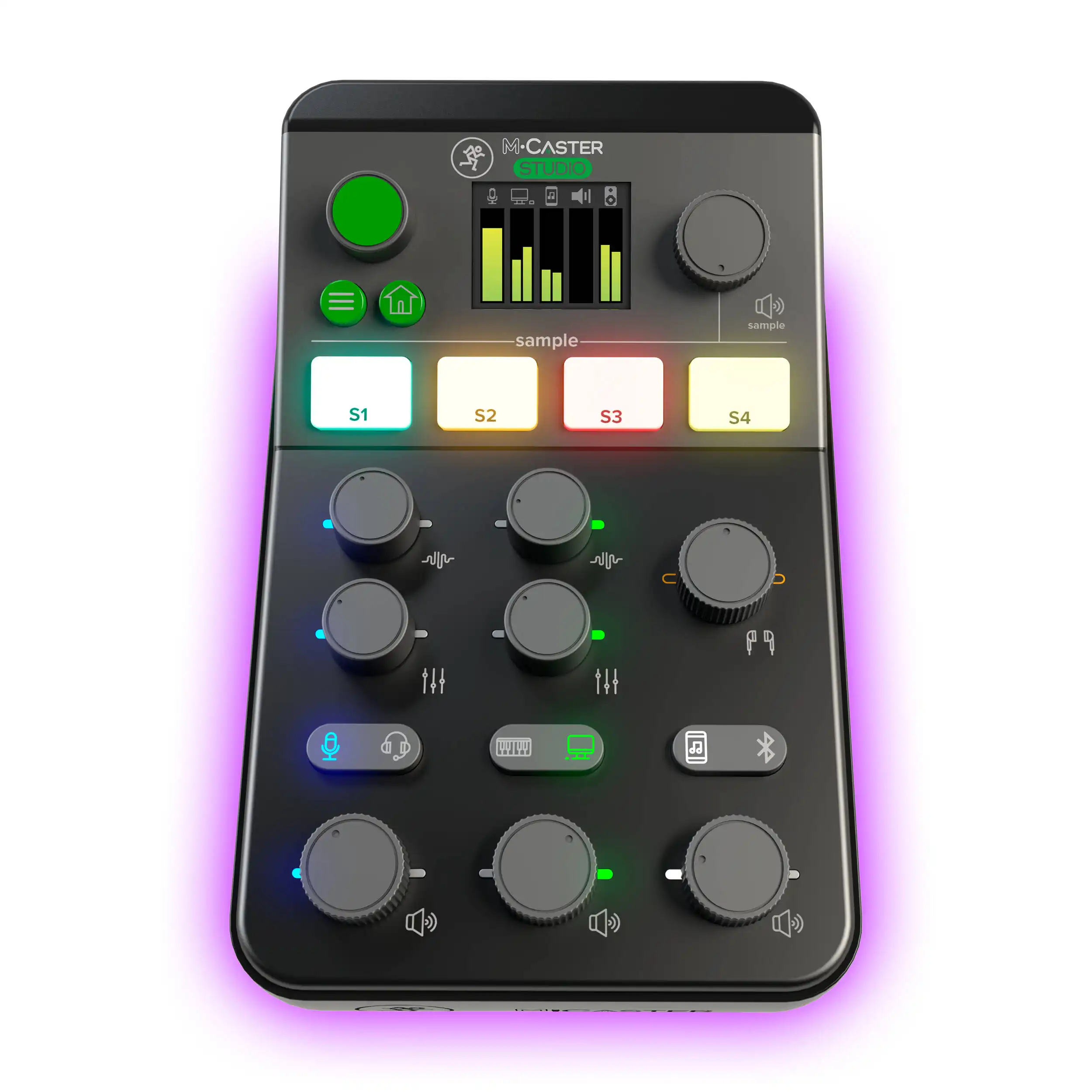

Choose Your Mood Lighting
Everyone knows that slick RGB lighting is what really makes your computer run faster (not really), so Mackie made sure that M•Caster Studio provides that extra LED-fueled oomph that you require. All along the bottom is an LED strip with tons of gorgeous colors from which you can choose.

The Finishing Touches
Want to add a little audio flair to your stream? How about punching up your vocals to get the hype train really moving? M•Caster makes it easy with fun StreamFX voice changing effects that you can activate at the turn of a knob. Get creative and turn your voice into a robot, or add some space with a massive reverb.

Size Matters
The smaller the better—M•Caster Studio's compact design makes it easy to find a perfect place on your desk for it to live.

USB Yourself
Just plug in with the included USB cable, tweak a couple software settings, and boom, you've got that M•Caster sweetness direct to your computer. Easily integrate a phone caller into your stream by utilizing the phone input, and automatic Mix Minus will make sure the caller hears only you without feedback from his or her own voice.

Delicious Sound Bites
Everyone loves a well-timed sound effect, sample, song, etc. and M•Caster Studio makes it easy to slide one into your stream. Store audio files directly on to M•Caster Studio and instantly play them back via four dedicated Sample Trigger buttons. Feeling inspired in the moment? Record an effect directly on to M•Caster Studio at any time.
Doesn't Look Like a Wireless Headset, But Loves to Act Like One
You are probably no stranger to Bluetooth. M•Caster Studio uses that tech to connect to any Bluetooth-compatible device to both receive and send audio, just like a wireless headset would. This is perfect for on-the-go streaming and recording or just eliminating a cable from your setup.

Seeing is Believing
Convenience is the name of the game with M•Caster Studio. And with its built-in color MixViewer display, getting your settings just right is easy.

Mackie Studio Specs
Form Factor Desktop
Display None
Channels of I/O 4 Inputs / 2 Outputs
Built-In DSP Yes
Maximum Sampling Rate 48 kHz / 24-Bit
Number of Microphone Preamps 1 Preamp
Built-In Microphone None
Input Level Adjustment 3 x Knob
Expansion Slots None
Signal Processing
High-Pass Filter None

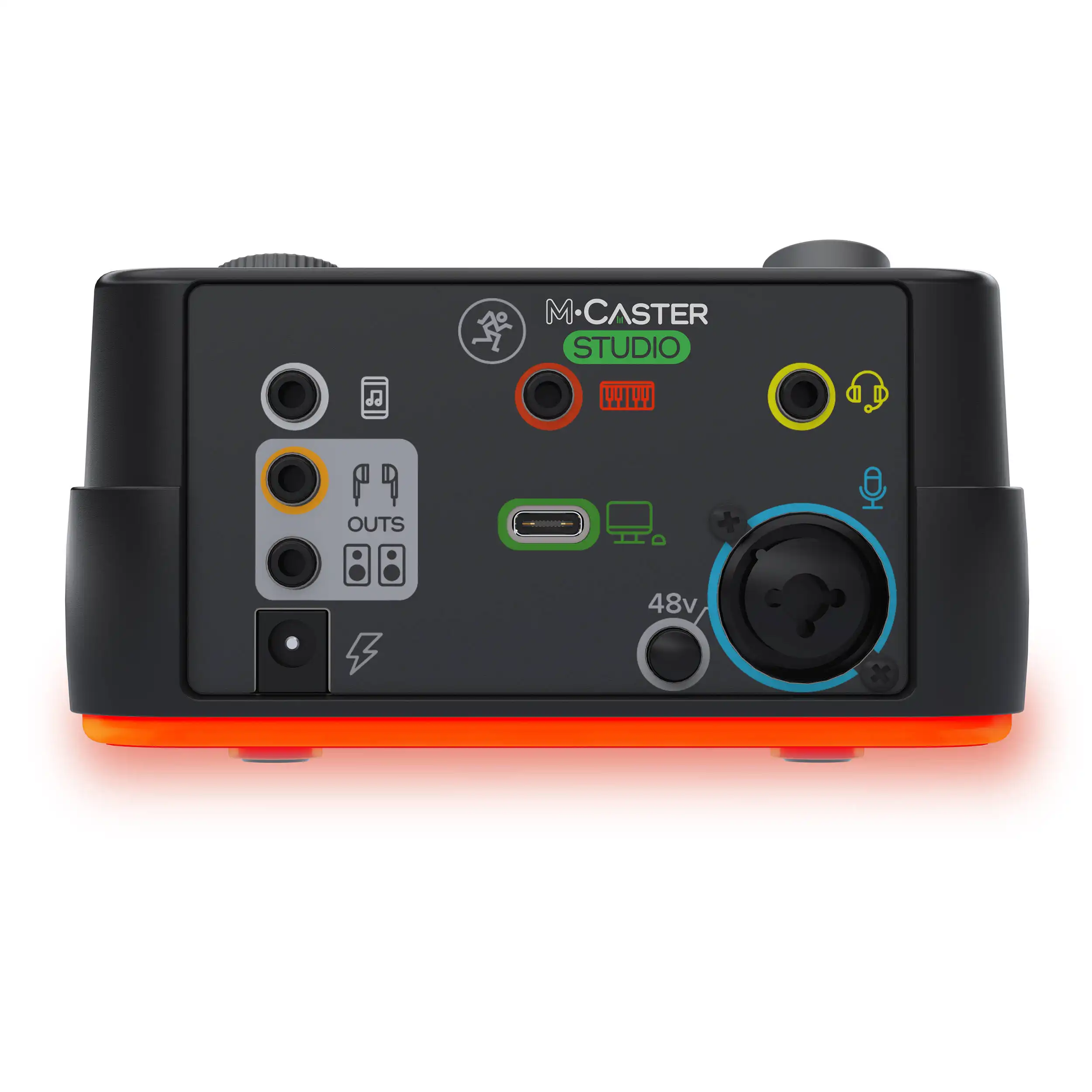

Connectivity
Analog Audio I/O 1 x Combo XLR-1/4" TRS Balanced Mic Input
1 x 1/8" / 3.5 mm TRS Unbalanced Headset Input
1 x 1/8" / 3.5 mm TRS Unbalanced Line/Aux Input
1 x 1/8" / 3.5 mm TRS Unbalanced Line Input
1 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
1 x 1/8" / 3.5 mm TRS Unbalanced Main Output
Phantom Power 48 V
Digital Audio I/O None
Host Connection / USB 1 x USB-C (Class-Compliant)
Host Connection Protocol Not Specified by Manufacturer
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
Maximum Input Level +10 dBu
Maximum Output Level +10 dBu
Dynamic Range A/D Converters:
116 dB
D/A Converters:
120 dB
THD+N XLR Mic Inputs:
0.02% (1 kHz, -1 dBFS, 20 kHz BW)
1/4" Line Inputs:
0.05% (1 kHz, -1 dBFS, 20 kHz BW)
Mic/Headphone Inputs:
0.02% (1 kHz, -1 dBFS, 20 kHz BW)
1/8" / 3.5 mm Line Inputs:
0.01% (1 kHz, -1 dBFS, 20 kHz BW)
1/8" / 3.5 mm Aux Inputs:
0.01% (1 kHz, -1 dBFS, 20 kHz BW)
Digital Audio
Sample Rates 48 kHz
Bit Depths 24-Bit
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility Windows 10 or Later (32/64-Bit)
Android 9 or Later
macOS 10.13 or Later (32/64-Bit)
iOS 13 or Later
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Included Software None
Included Plug-Ins None
Power
Power Requirements AC/DC Power Adapter (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter 12 V at 2 A
Physical
Dimensions 8 x 5.1 x 2.8" / 20.3 x 13 x 7.1 cm
Weight 1.5 lb / 0.7 kg
