D&R AIRMATE-8 USB

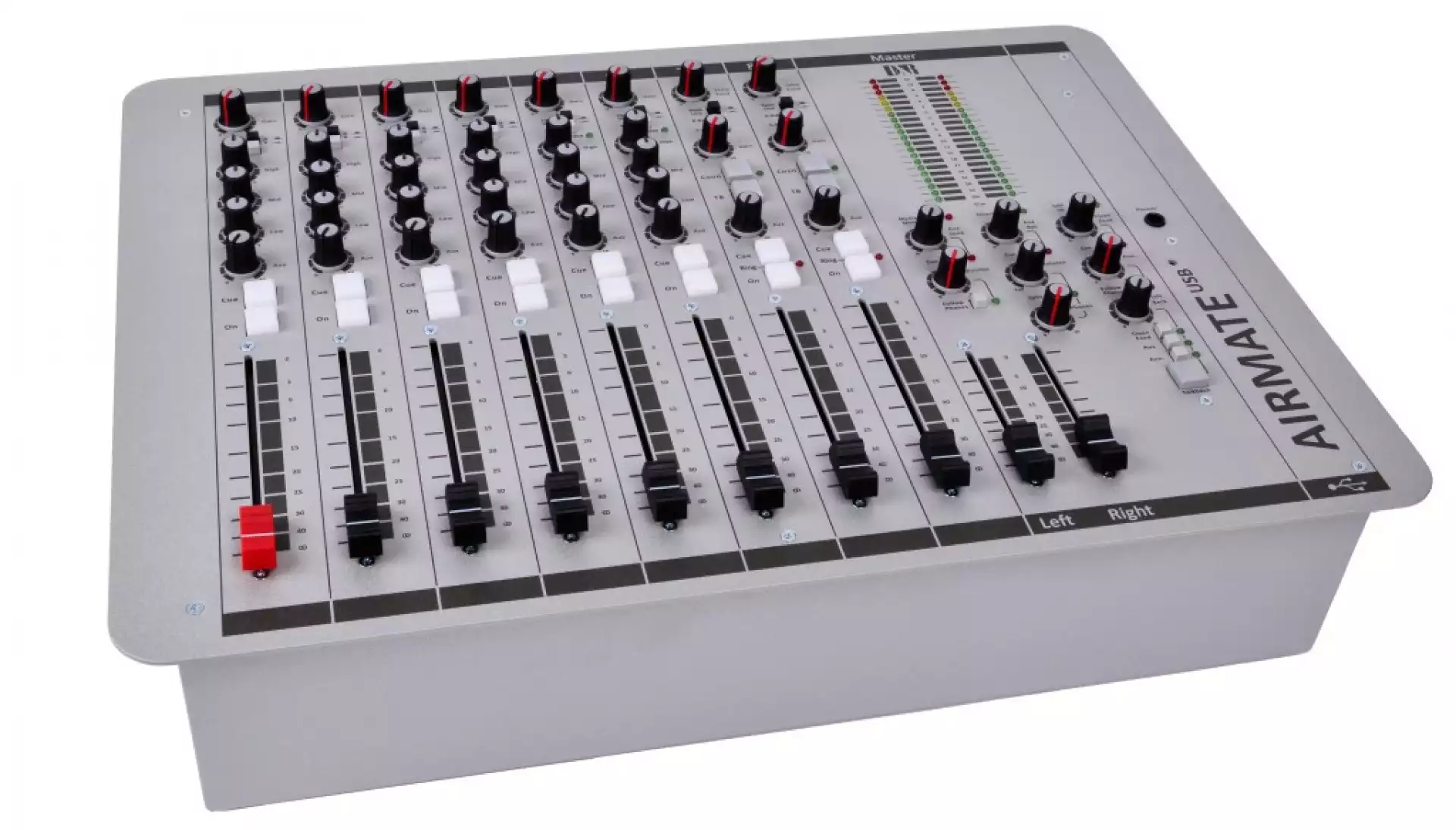

We designed the Airmate-8 to fulfill the requirements for a high grade radio production mixer. This console is the reliable workhorse for the self-op production D.J. that needs an internal two Telephone Hybrid and USB connection to the PC (e.q. for streaming to the web).
A heavy duty 19" rack mounted RF shielded chassis houses 8 vertical triple input modules giving flexibility rarely found in a mixer of this type.

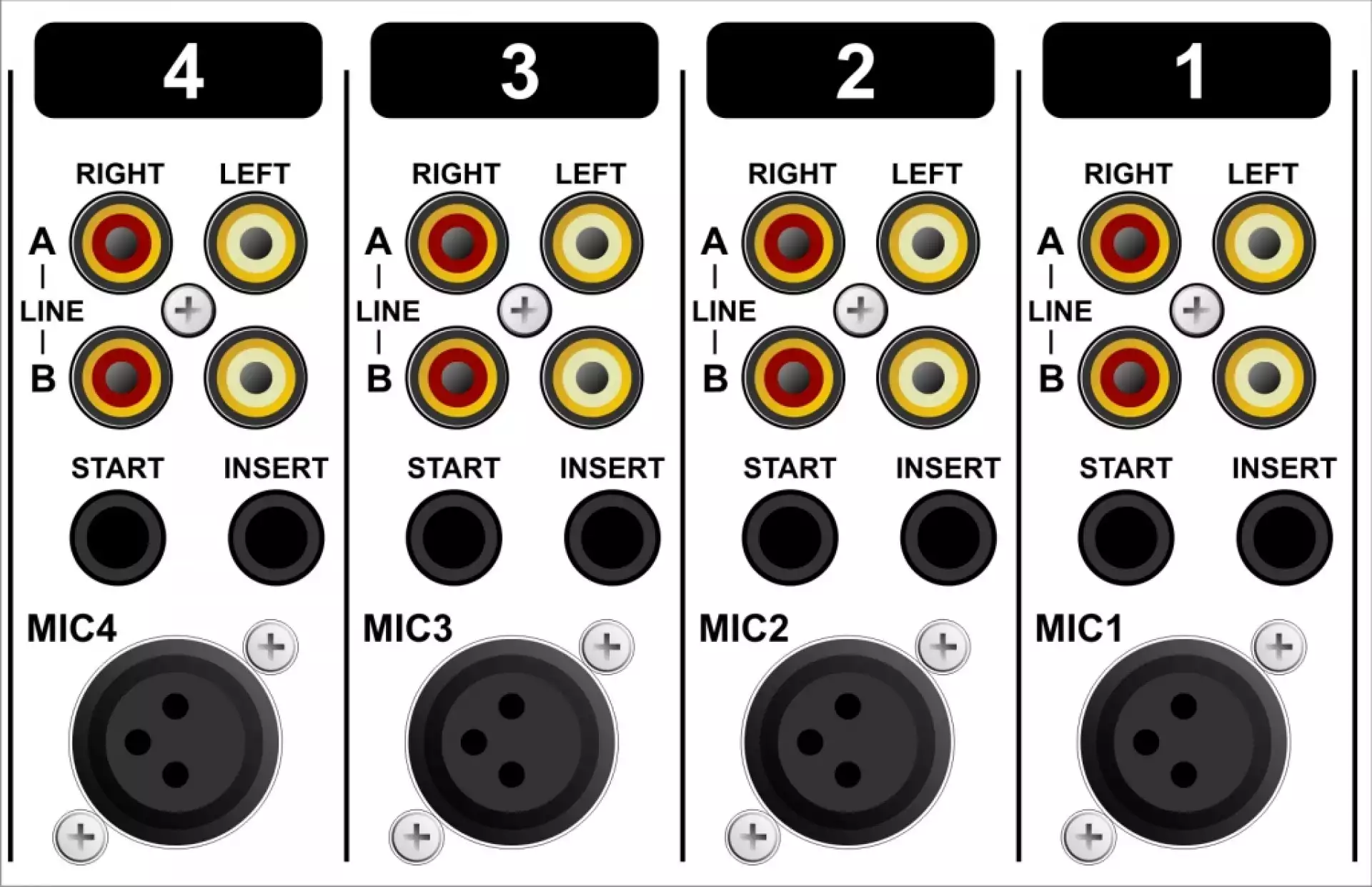

Six input channels with high quality balanced microphone inputs on XLR and two stereo line level inputs on Cinch (RCA) connectors. Every Mic input has an insert for signal processors.
And… every line level line B input can be converted into a phono (record player) channel by simply fitting an optional stereo R.I.A.A. equalized phono pre-amp.
Front panel
The Airmate-8 model has 6 balanced mic inputs with +48 phantom with insert,
12 stereo line inputs, 2 USB and 2 Telephone Hybrids.

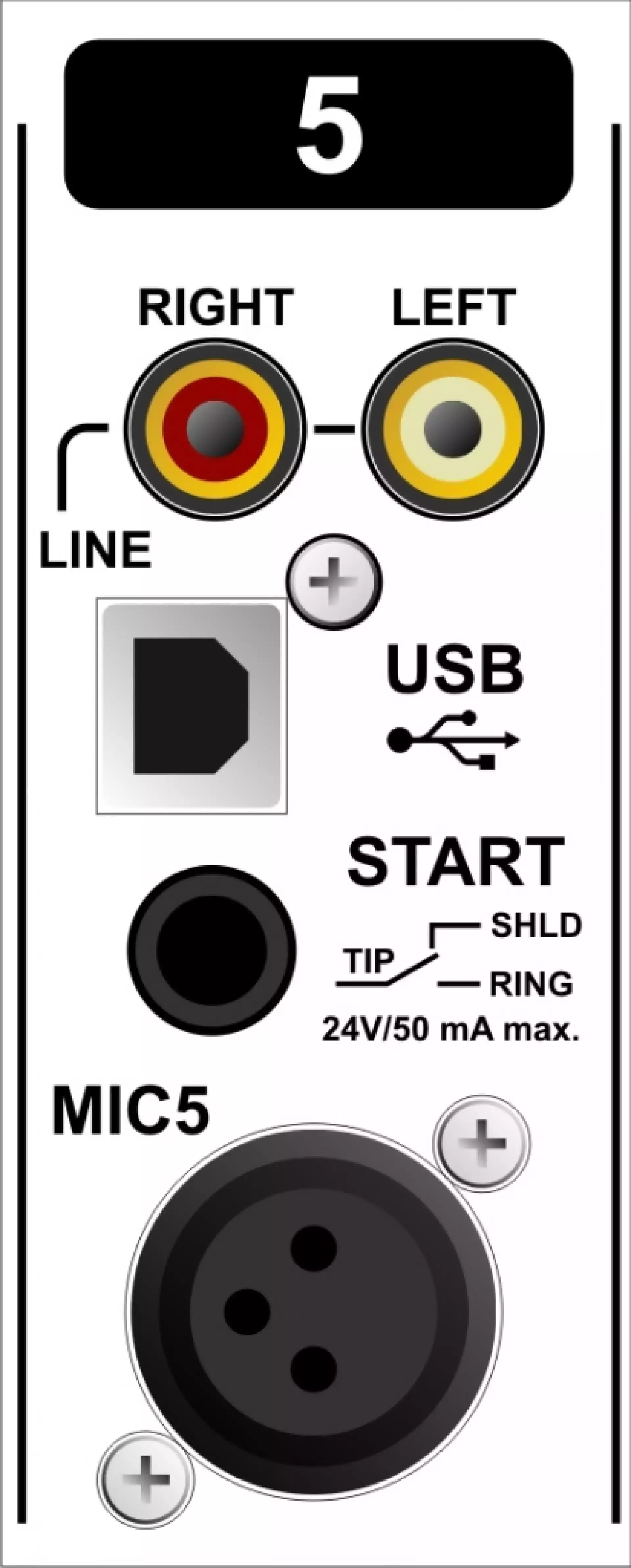

Channel 5 and 6 have Mic/Line and USB interface to transfer audio from and to your PC.
Channel 7 and 8 have, apart from the stereo line input, also RJ-11 connectors to
interface with a old fashioned POT and a Telephone appliance to dial the number
you want to reach.
High quality built in Hybrids and direct Connection and Talkback buttons in the Hybrid
channels makes a conversation with listeners very easy.
With the Telco Send (level to the caller) and Telco Gain (level coming from the caller)
all levels can be easy adjusted.
Fader start can be from the ON switch or FADER. Fader start also switches on ON-AIR lights.
There is a 3 band Equalizer on channel 1-6. The stereo Aux send can be set pre or post fader.
All mic inputs have low cut jumpers. A clean feed send is available for external analog and
digital Hybrids.
back panel

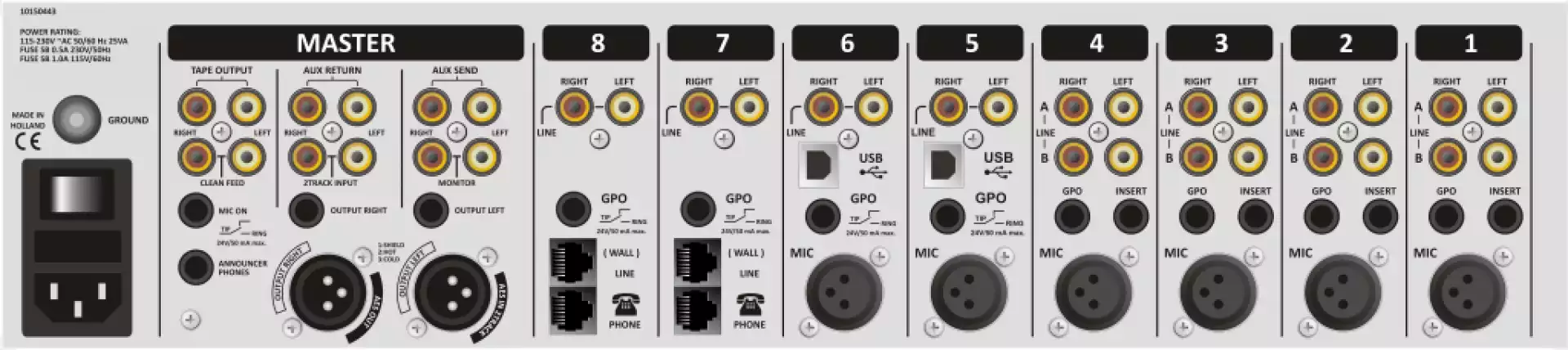

On the back panel you can find two USB connectors to control your USB channels by your computer.
Very simple; your computer will see a new USB device when connecting the Airmate-8 on the moment you connect the unit to your computer.
It's also possible to include VoIP channel(s) inside the Airmate-8 in stead of the standard POT channels. In that case you will get an USB connector on the place of the RJ11, so you can connect your VoIP channel by your computer with any VoIP software.
All in and output connections are on standard Jack / Cinch and XLR connectors.
overview
The Airmate-8 has the usual stereo faders, stereo Aux send and return, monitor master with "follow phones" and a phones output with a split control function.
There is a balance control to continuously adjust the volume between main output and stereo Cue signal.
In addition, there is a special Radio On-air/production section featuring; Selfop switching to automatically cut control room level when the D.J. mic is active; a Clean feed output to also drive
an external Telephone Hybrid for talk shows and interviews, if you need more Hybrid channels than the 2 built in ones; a special announcer output that normally follows main output but can be
switched so that the main output, or any cue signal that is selected, can be heard when in the "follow phones" mode.
A large Talkback switch activates the built-in electret talkback microphone for easy communication with the Clean-feed output, Aux output and/or Announcer output.
specs
INPUTS.
Mic inputs: bal, 2kOhm, XLR. Phantom: 48 volt.
Noise: - 122 dBr (A-weighted).
Sensitivity: - 70dB min, OdB max.
Insert: -10dBv in/out.
Line inputs: unbal., 10kOhm, Cinch.
Gain: range of 40dB.
Phono inputs: unbal. 47kOhm, 5 mV.
2 Track return: - 10 dBV at 10kOhm.
Aux returns: - 10 dBv at 10kOhm stereo
USB.
Fully compliant with USB 2.0 playback and record mode.
HID Functions: Volume/Mute
TELEPHONE HYBRIDS.
RJ-11 connectors for phone line/dialler
Mix Minus rejection @1kHz -60dB.
OUTPUTS.
Left/Right: + 4 dBu bal. XLR.
Monitor/Aux : + 4dBu unbal. on Cinch.
Cleanfeed/Announcer: + 4dBu, Jacks. Tape outp: -10dBv, unbal. Cinch.
Headphone: 16-600 Ohm, Jack.
Announcer: 16-600 Ohm, Jack.
EQUALIZER.
High: + / -12 dB at 12kHz shelving. Mid: + / -12dB at 1 kHz bell curve.
Low: + / -12dB at 60 Hz bell curve.
OPTIONS:
AES/EBU digital stereo output and AES digital 2 track input plus existing
analog outputs on 2 jacks.
RIAA pre-amp on line input B for phono cartridges, 60881597
OVERALL
Frequency response: 10 - 60.000Hz.
Distortion: < 0.009% max at 1 kHz.
Start switch: reed relay.
Ledbars: 21 segment.
Power Consumption: 30VA
START
Stereo jack connector to internal opto coupler 24volt/50mA max.)
The opto coupler switches between tip and ring of the stereo jack
(So tip is shorted to the ring)
MIC ON
Stereo jack connector to internal opto coupler(24volt/50mA max.)
The opto coupler switches between tip and ring of the stereo jack
(So tip is shorted to the ring)
DIMENSIONS
Left-Right 19" rack mountable. (482mm width)
Front-Back: 356mm (8HE).
Height: 105mm.
Space below front panel: 20mm for table top. Weight: 11 kg.
For Drop through mounting (on top) cut a hole of 452x325mm.
For Drop through mounting (milling) cut a hole of 482x355.15mm.
with a radius of R=20 and a depth of 2mm.
THREE MODELS
60890266 AIRMATE-8-USB 2x TELCO
EAN Code: 7436917138179
60890271 AIRMATE-8-USB 2x VoIP
EAN Code: 7444704135195
60890240 AIRMATE-8-USB 1xTELCO + 1x VoIP
EAN Code: 7444704137120
