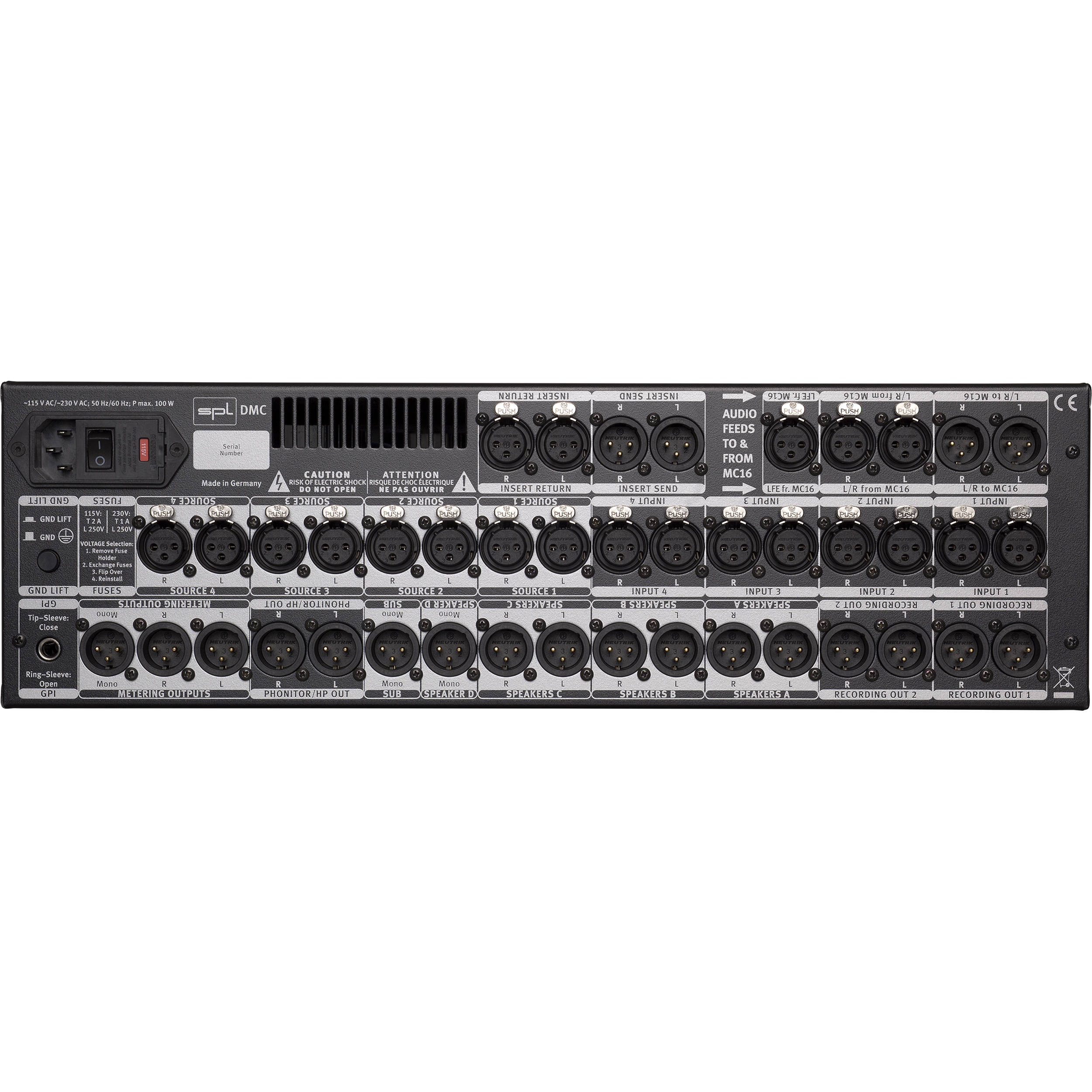

SPL DMC
Šifra: 16119
Mastering Console
Analog inputs & output; XLR (balanced)
Maximum input & output gain
32.5 dB
Input impedance
20 kΩ
Output impedance
75 Ω
Common mode rejection
-82 dBu
Frequency range (-3 dB)
4 Hz to 300 kHz
Noise (A-weighted, +24 dBu, Rec Out, Insert On)
-101.6 dBu
Noise (A-weighted, +24 dBu, Speaker Out)
-103.9 dBu
THD & N (+24 dBu, Rec Out, Insert On)
> 112 dB
THD & N (+24 dBu, Speaker Out)
> 108 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio
+/- 60 V
Operating voltage for relays and LEDs
+ 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber)
230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V
T 1 A
Fuse for 115 V
T 2 A
Power consumption
max. 40 VA
Dimensions & Weight
W x H x D (width x height x depth)
482 x 132 x 300 mm
19 x 5.2 x 11.8 inch
Unit weight
10.2 kg
Shipping weight (incl. packaging)
12.35 kg
