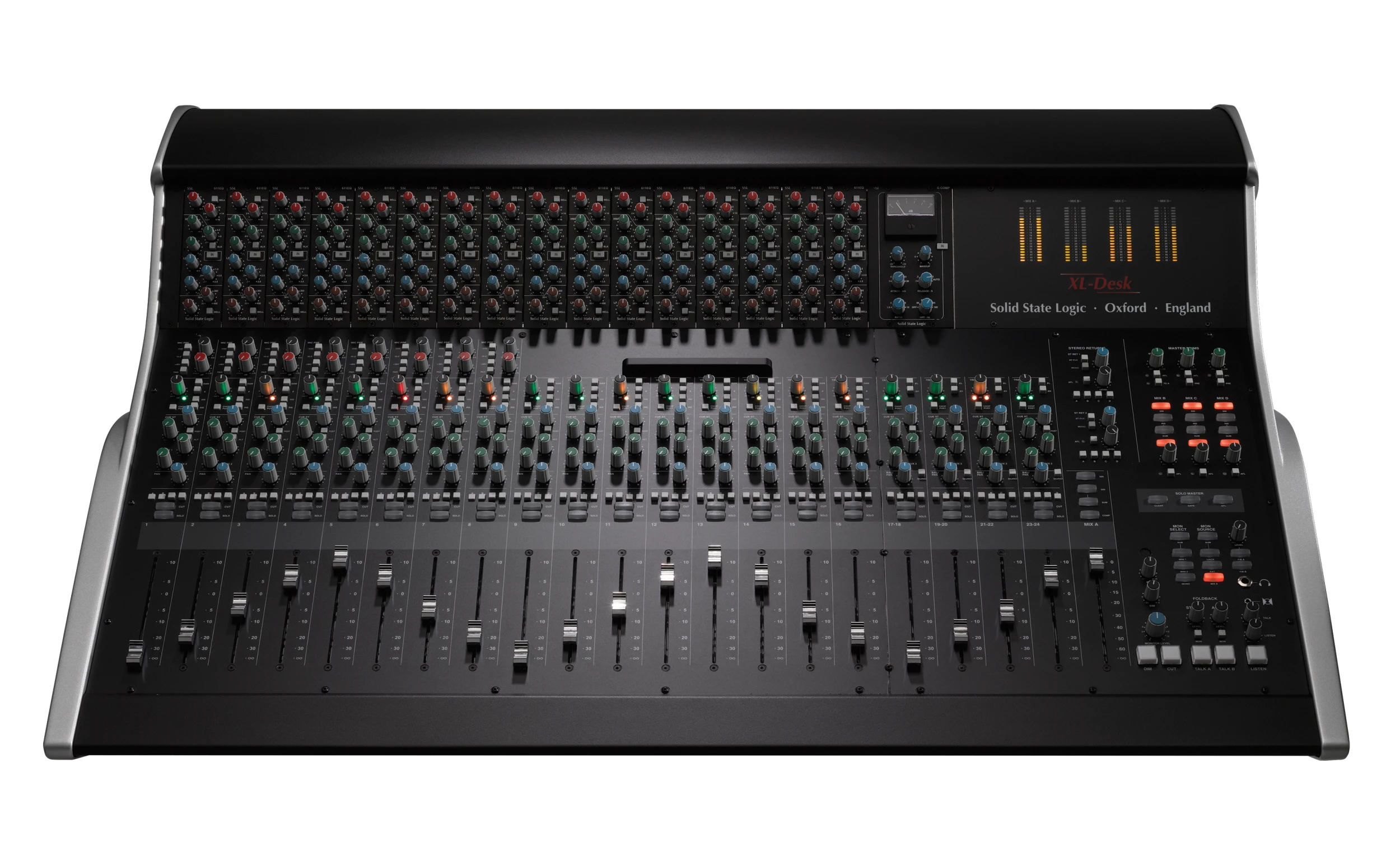

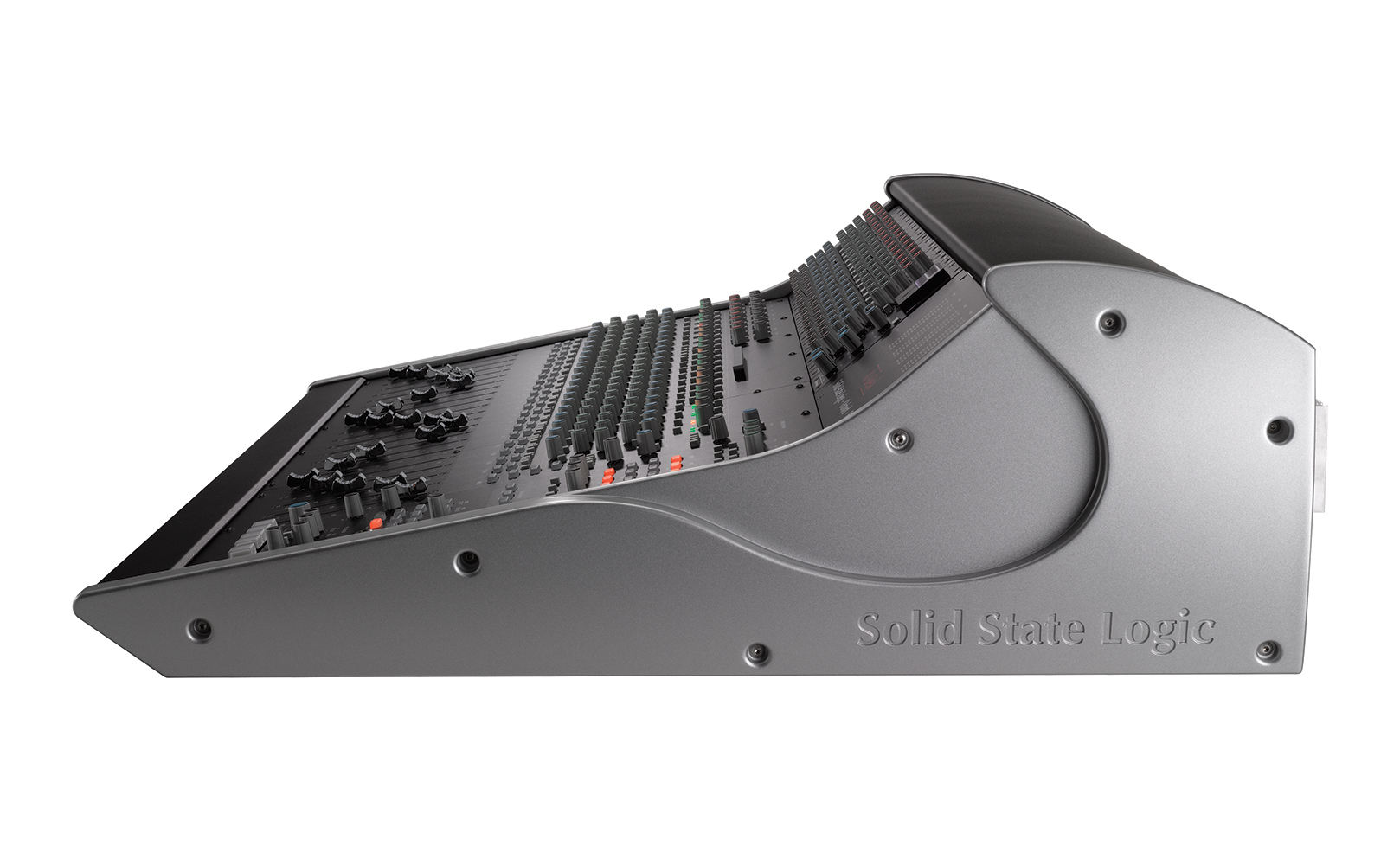

SSL Solid State Logic XL-Desk
XL-Desk is designed for tracking or mixing engineers who require an analogue console within a DAW centric studio, but don't want or need the integrated DAW control and analogue level automation other SSL console products have made the new hybrid studio standard.
20 + 1 fader, over 40 input SuperAnalogueTM SSL console
8-built in Variable Harmonic Drive (VHD) preamps
16 dual input mono channels (switchable between main input or DAW return)
4 stereo channels (switchable to mono for tracking)
The legendary Stereo Bus Compressor, with new high-pass filter sidechain
18-slot 500 format rack built-in, accessible from channels or mix busses
In addition to a 500 rack insert each mono channel also has a standard insert point
4 stereo Mix Busses with their own insert points and access to the 500 rack
One stereo and 2 mono aux sends. Two dedicated stereo return inputs
Direct outputs on every channel, stereo return and mix bus for stem printing
Fully-featured monitoring section with bass management
Foldback A and B with individual talkbacks for headphone mixes
Built in Listen Mic input + classic compressor circuit, with its own direct output
AFL and Solo-In-Place solo modes, with Solo Clear and Solo Safe (Protect) modes

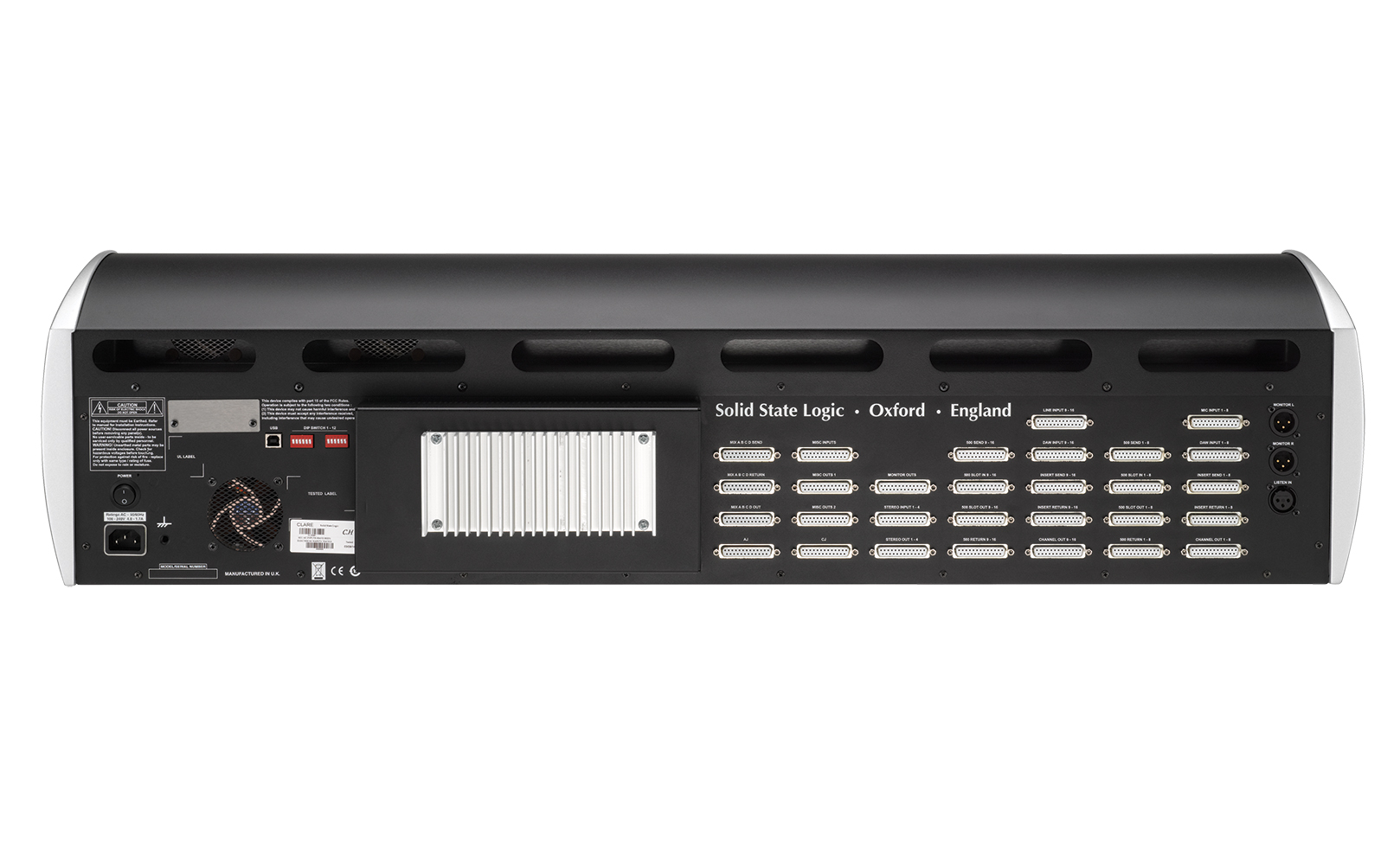

Balanced D-Sub rear panel inputs/outputs & Front panel headphones & iJack sockets
High quality internal PSU
