SPL Hermes
Mastering Router with dual Parallel Mix
Hermes revolutionizes mastering. Now it is possible to have an audio signal processed by up to eight 2-channel processors in any order that can be stored. At the push of a button you can compare up to four complex processing chains.

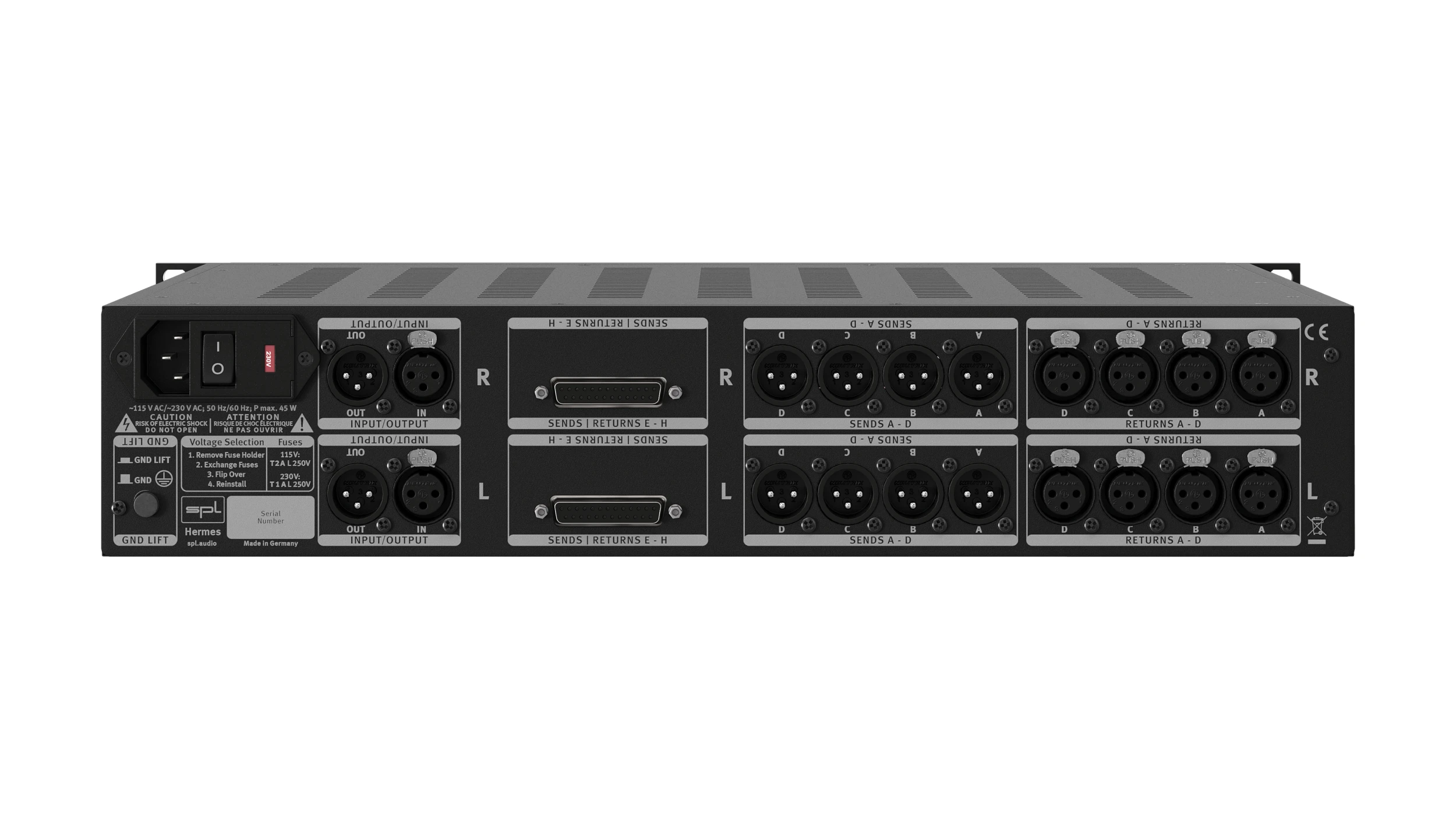

Analog inputs & output; XLR & DB25 (balanced)
Maximum input & output gain: 32.5 dBu
Input impedance: 20 kΩ
Output impedance: 75 Ω
Frequency range (-3 dB): 4 Hz to 300 kHz
Common mode rejection: -75 dBu
Crosstalk (1 kHz, 0dBu): -130 dBu
Crosstalk (1 kHz, 0dBu, P-Mix on): -110 dBu
Noise (A-weighted): -121 dBu
Noise (A-weighted, P-Mix on): -104 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 1 A
Fuse for 115 V: T 2 A
Power consumption: max. 40 VA
Dimensions & Weight
W x H x D (width x height x depth): 482 x 88 x 300 mm
Unit weight: 9 kg
Shipping weight (incl. packaging): 10.65 kg
