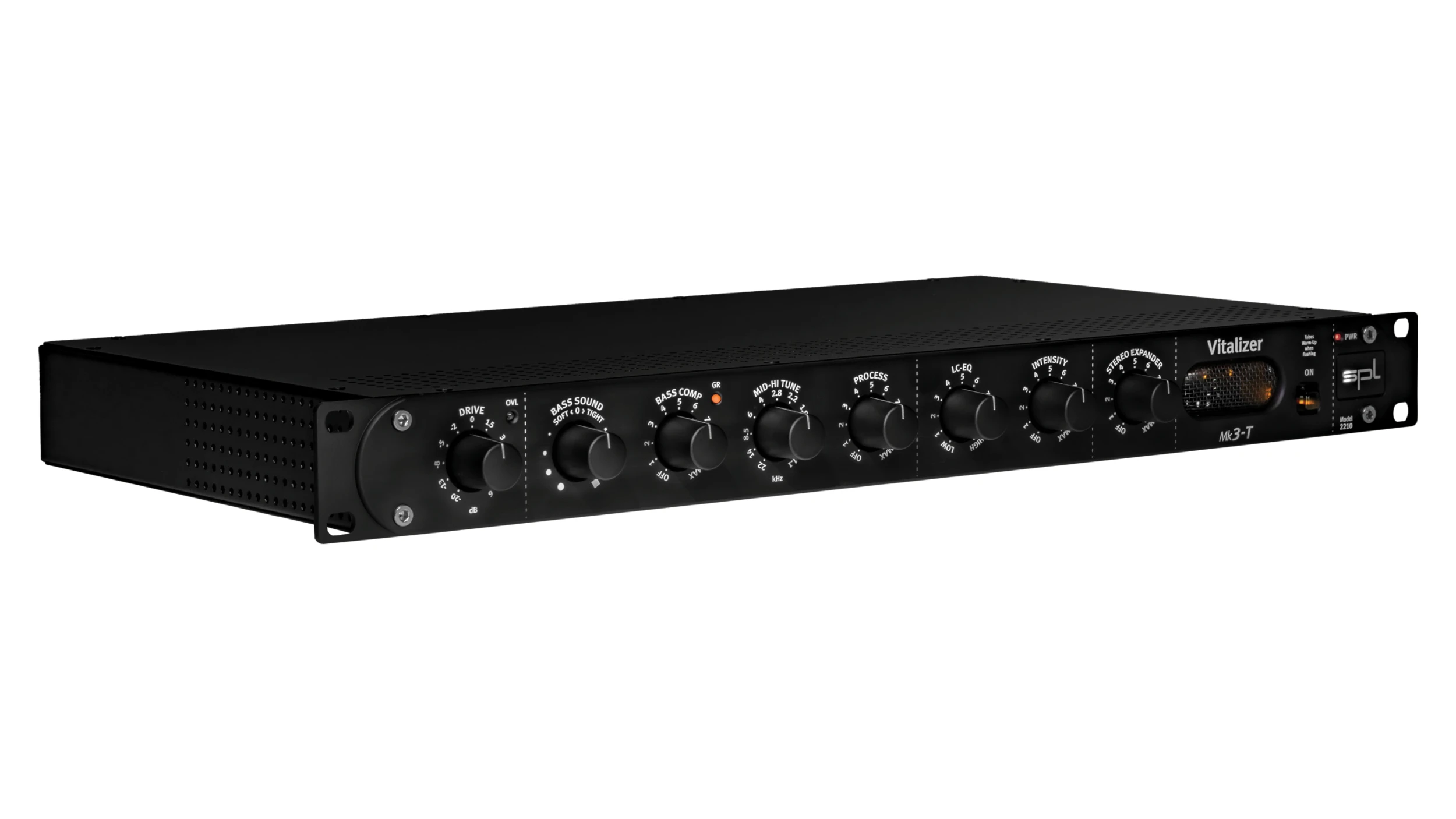

SPL Vitalizer Mk3-T
The patented Vitalizer circuitry makes the Vitalizer Mk3-T an unsurpassed sound designer.
Whether live or in the studio, audio productions sound more alive, have more details, more
transparency, a higher perceived loudness and, if required, an overwhelming bass foundation.
The Vitalizer Mk3-T not only swaps the classic, golden robe of the previous model for the new, black design of the SPL Studio Series – the higher internal audio voltage of +/-18 V elevates this third generation SPL classic to greater sonic results and impresses with an even better and more detailed sound experience.

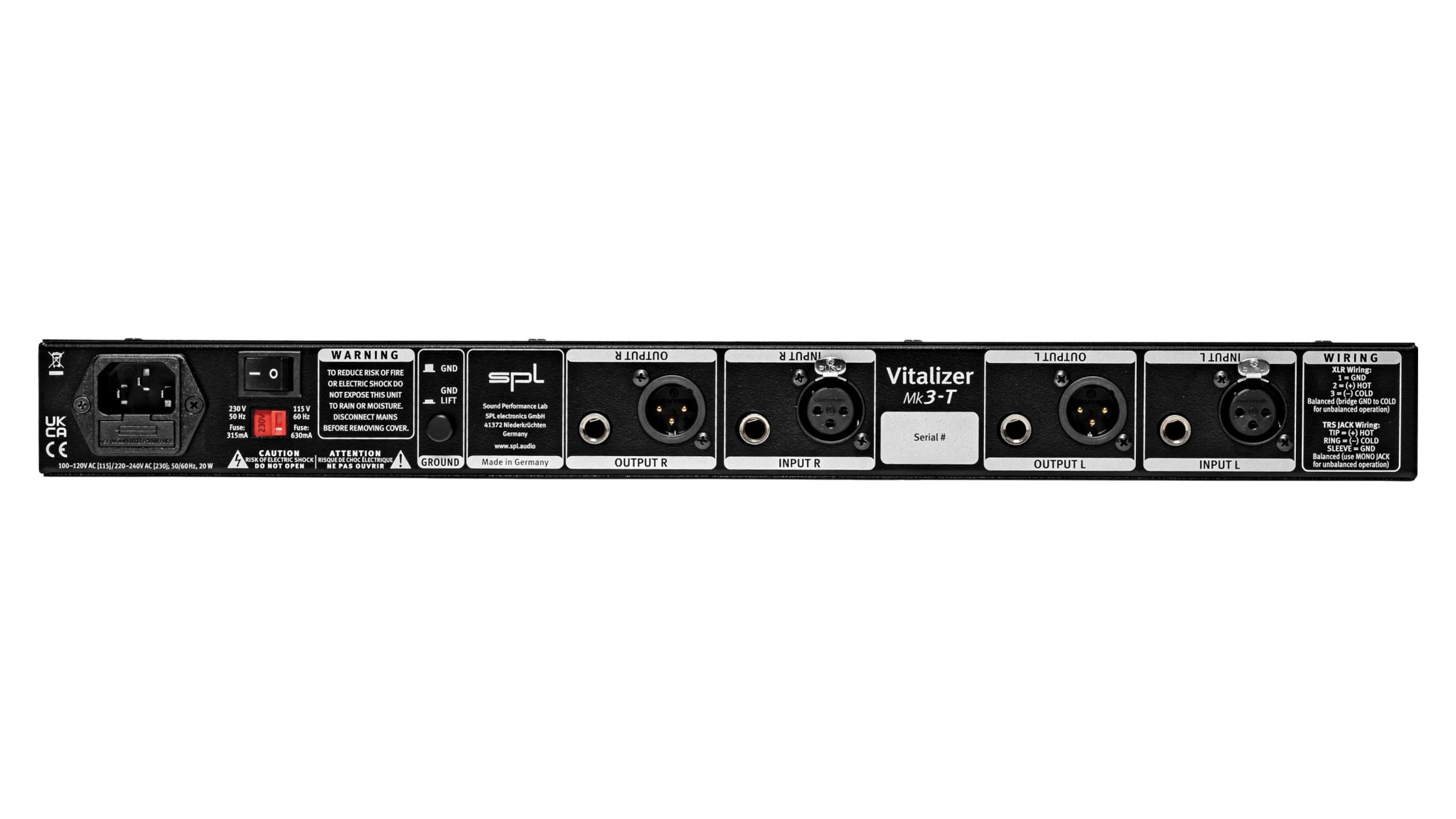

Analog inputs & outputs; XLR & TRS Jack (balanced)
Input impedance: 22 kΩ
Output impedance: 75 Ω
Maximum input level: 22.5 dBu
Common-Mode Rejection Ratio (CMRR): 86 dB
Frequency range (-3 dB): 10 Hz – 100 kHz
THD + N (0 dBu, 10 Hz – 22 kHz): 0.01 %
Noise (A-weighted): -99 dBu
Dynamic range: 122 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: 18 V
Operating voltage for relays and LEDs: 12 V
Tubes anode voltage: 250 V
Tubes heating voltage: 12.6 V
Mains Power Supply
Mains voltage (selectable): 230 V AC, 50; 115 V AC, 60 Hz
Fuse for 230 V: T 400 mA
Fuse for 115 V: T 800 mA
Power consumption: max. 20 W
Dimensions & Weight
W x H x D (width x height x depth):
• 482 x 44 x 237 mm
• 19 x 1.73 x 9.33 inch
Unit weight:
• 3.4 kg
• 7.5 lbs
Shipping weight (incl. packaging):
• 4.75 kg
• 10.47 lbs
