SPL Transient Designer 4 Mk2
Garantujemo najnižu cenu!
The original – redesigned.
In 1998, the SPL Transient Designer created a new breed of dynamic processors.
Level-independent processing of attack and sustain of audio signals has revolutionized
music production in a significant way.

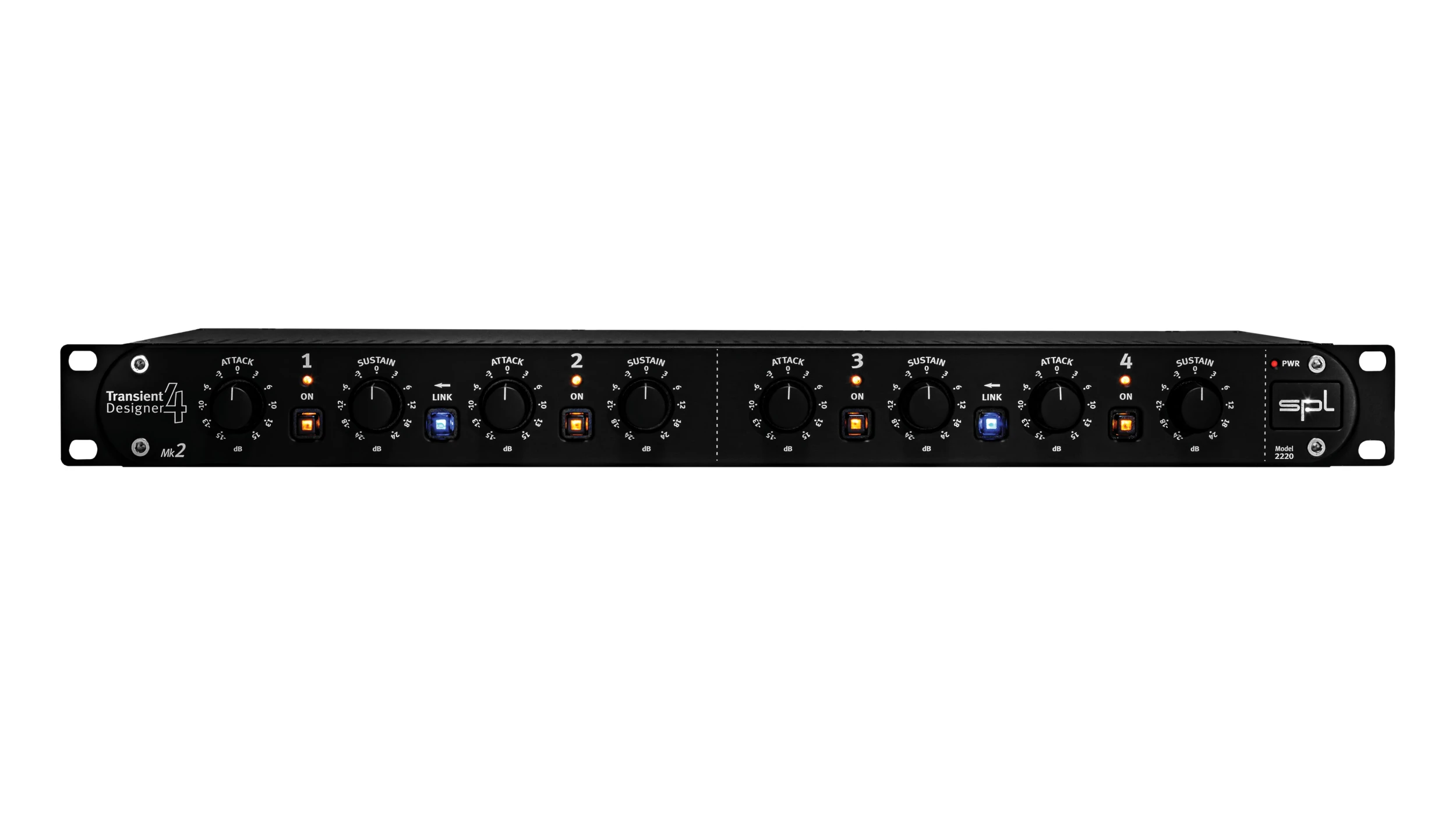

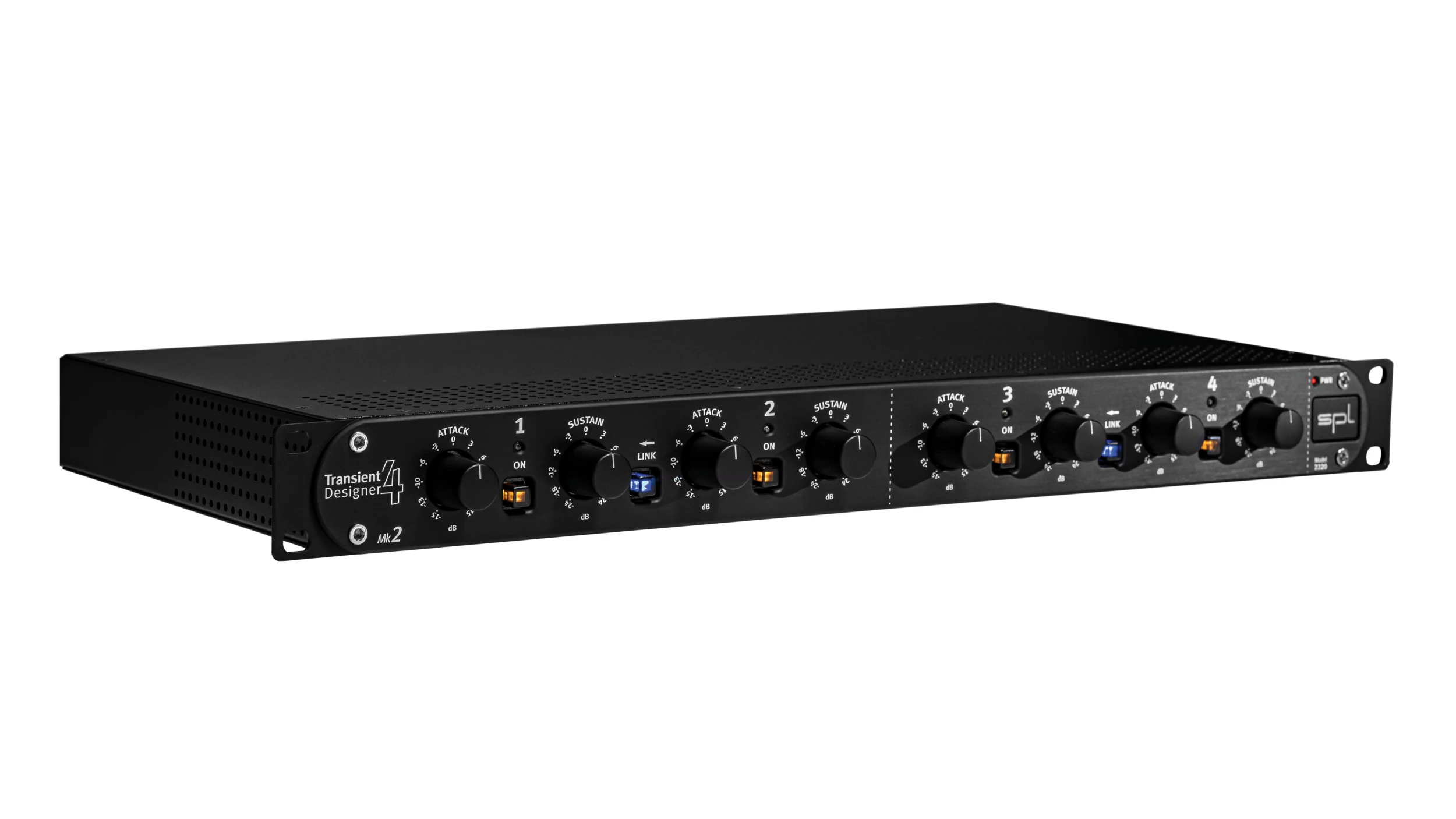

The newest generation of the Transient Designer 4 features the same processing qualities as its predecessor, but comes in a new design and has an even better feel due to the solid aluminum knobs. The Transient Designer 4 Mk2 offers four Transient Designer channels in one 19″ device.

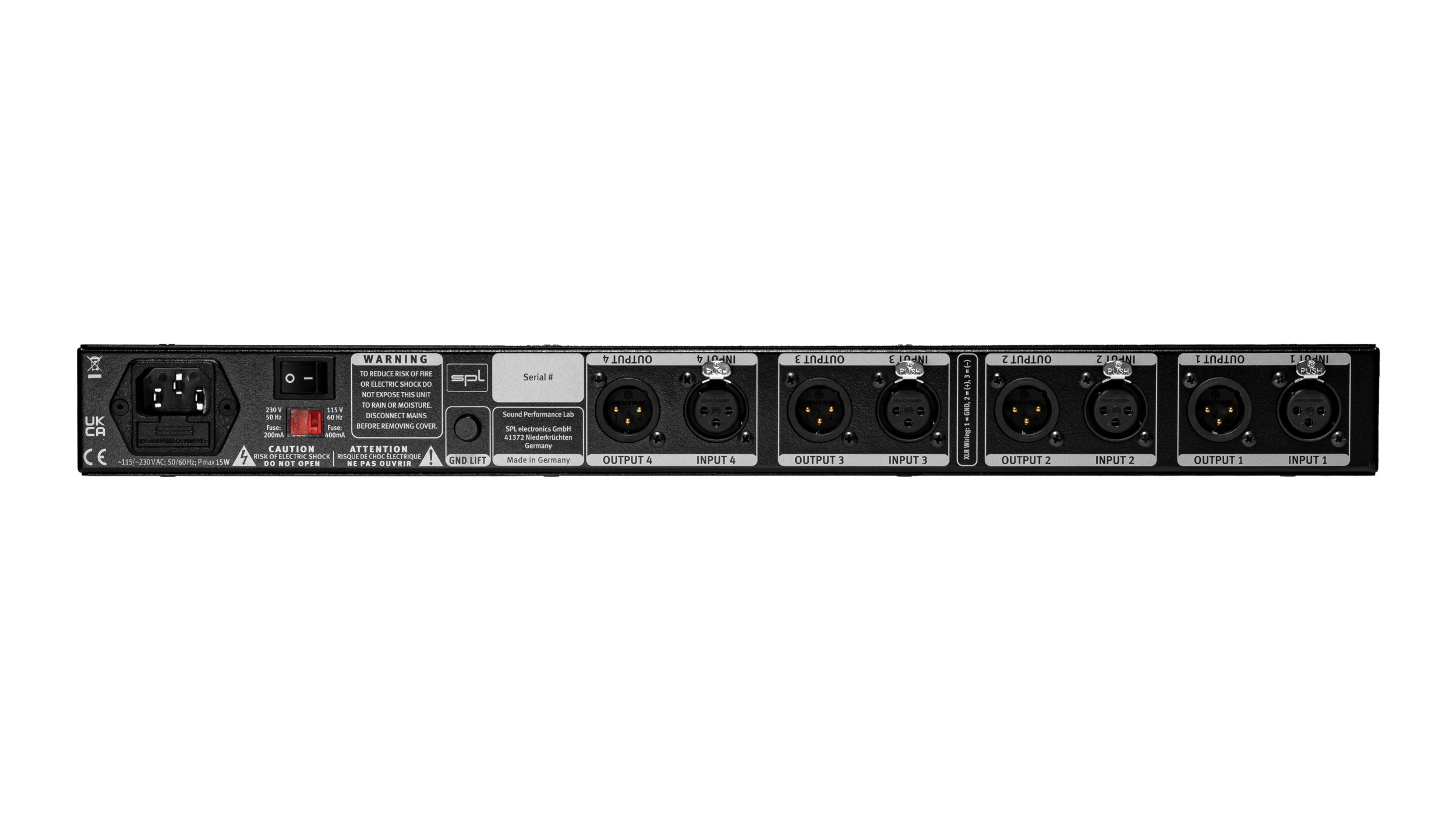

Analog inputs & outputs; XLR (balanced)
Maximum input gain: 21 dBu
Input impedance: 22 kΩ
Maximum output gain: 21 dBu
Output impedance: 100 Ω
Common mode rejection (1 kHz): 80 dB
Frequency range (-3 dB): 10 Hz – 100 kHz
THD + N (0 dBu, 10 Hz – 22 kHz): -90 dB
Noise (A-weighted): -97 dBu
Dynamic range: 118 dB
Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio: +/- 15 V
Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 200 mA
Fuse for 115 V: T 400 mA
Power consumption: max. 15 W
Dimensions & Weight
W x H x D (width x height x depth): 482 x 44 x 237 mm
Unit weight: 3.2 kg
Shipping weight (incl. packaging): 4.45 kg
