Features at a glance

Supported WAV recording formats: 44.1/48/96 kHz, 16/24 bits, WAV/BWF format
Supported MP3 recording format: 44.1/48 kHz, 32–320 kbit/s MP3
Two recording modes:
Normal recording mode (up to 4 tracks) for simple recording
Professional MTR mode for music creation
Wi-Fi connection supports monitoring, transport control, level control, file transfer and more
Easy Wi-Fi direct connection with Android/iOS or through an existing router or access point
Dedicated Wi-Fi file transfer application for Windows/Mac available
Improved internal clock – ideal for filmmaking
Menu language can be selected between English, German, French, Italian, Spanish, Russian, Japanese
Recording hardware

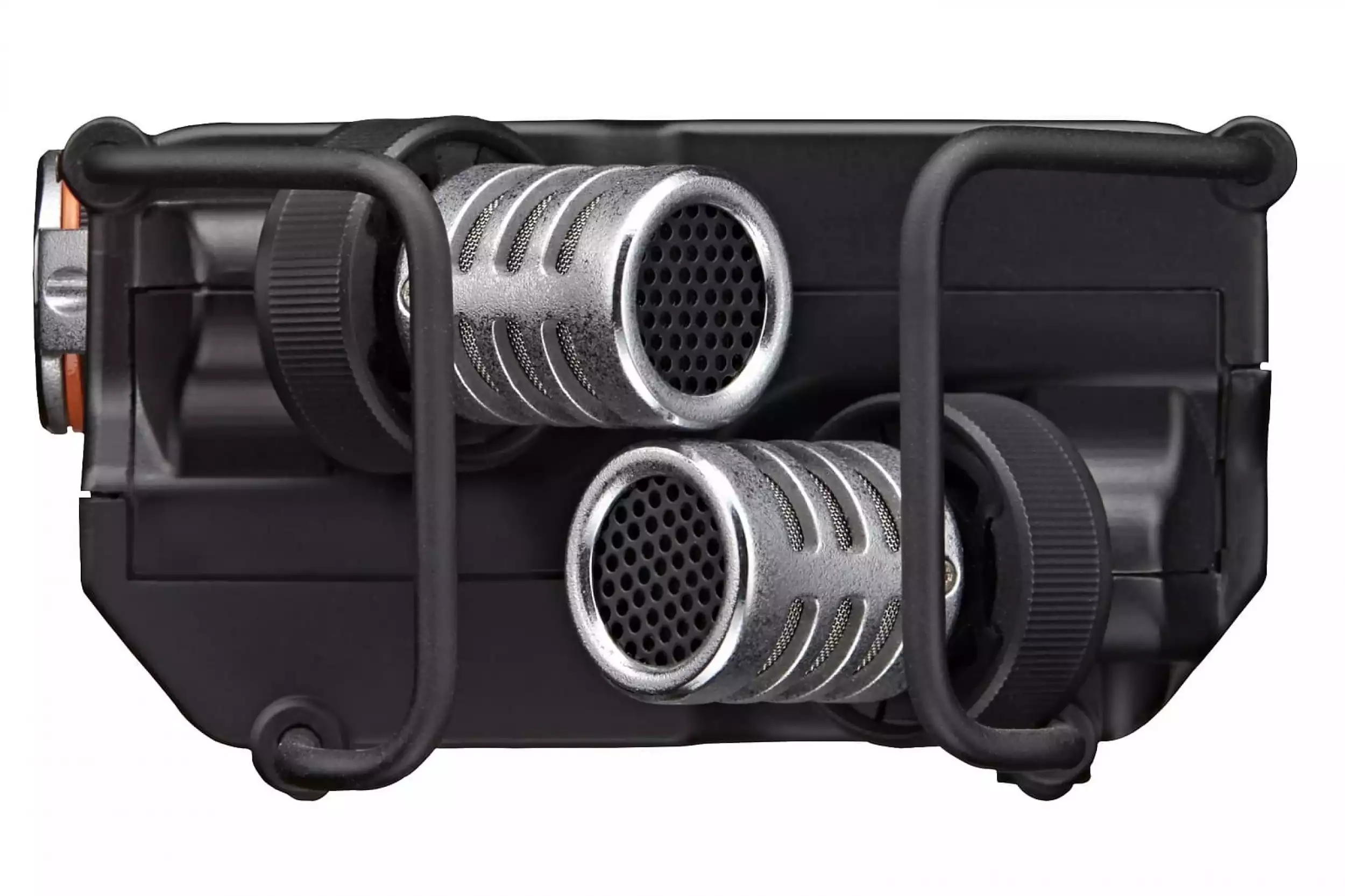

Unidirectional (cardioid) condenser microphones in X-Y configuration
Can handle high sound pressure levels up to 132 dB SPL
Dedicated shock mount system to eliminate handling noise

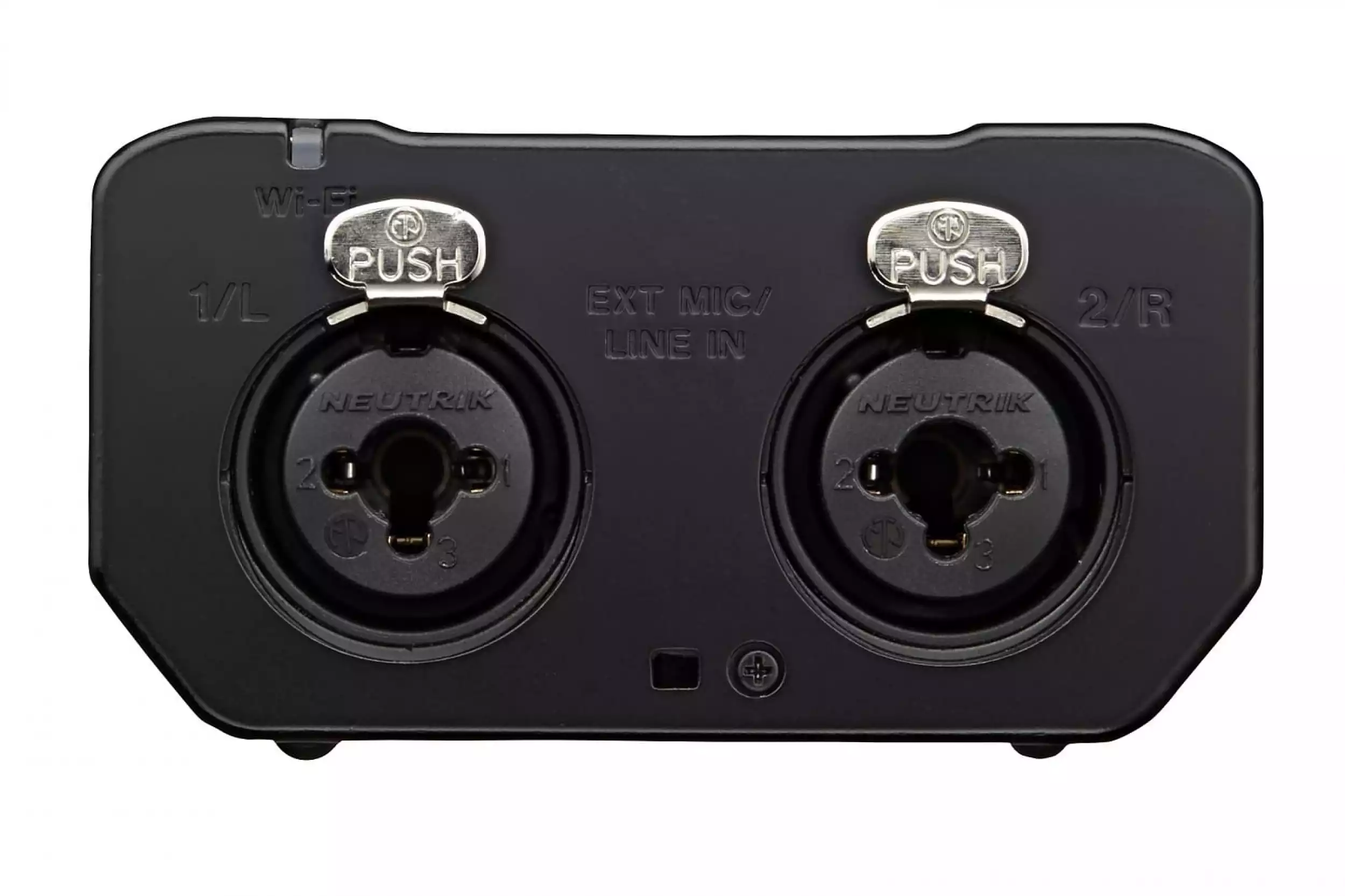

XLR/TRS analogue inputs compatible with +4 dBu line level signals
48V phantom power for condenser microphones
Improved microphone preamps for higher-quality audio
Cirrus Logic AD/DA codec for low-noise, high-performance audio recording and low power consumption
Recording media: SD/SDHC/SDXC card (up to 128GB SDXC card)
Recording functions
QUICK menu button shows convenient features for various recording situations
Dual recording with different level settings or in different formats
Four-position low-cut filter (40/80/120/220 Hz)
Mid/Side decoder for external MS microphone
Peak-reduction function automatically sets the optimal level when peaks are detected in music recordings
Limiter function for overload protection
Auto-recording function to automatically start recording based on input level
Pre-recording function that can record up to 2 seconds prior to actual record start
Self-timer recording function
Mark function (manual or automatic by peak or by time)
Input delay function for adjusting distance/time delay differences between external mic and internal mic
Punch in/out function in MTR mode
Bounce function in MTR mode
Information on the recording settings used and the current GPS position derived from a connected
smartphone can be embedded in BWF files
Playback functions
Variable Speed Audition (VSA) is ideal for practice and arrangement (50–150% change of speed)
Key changing function with fine-tuning (±6 halftones)
I-O loop playback function – ideal for rehearsal
Resume function retains the last stop position when power is turned back on
Audio files created on computer can be played back (only in formats compatible with this product)
Built-in monaural speaker (300 mW)
Editing functions
Divide function (manual or automatic by markers)
Files and empty folders can be deleted
Track division function creates new files during recording (manual or automatic by time or by level)
Mixdown function for 4-track recording
Other features
Reverb effect for acoustic instruments and vocals
Automatic power-saving function that prevents unnecessary use of battery power
Chromatic tuner and metronome for rehearsal
File name format can be set to use a user-defined word or date
Long-time operation of over 16 hours using the internal batteries
Stereo-mini headphones/line output with 20 mW output power per channel
128×128 graphic LCD with backlight
Screw hole for tripod attachment
USB 2.0 high-speed file transfer to/from computer
Powered by four AA batteries, optional AC adapter (Tascam PS-P520U) or USB bus power
Supported Operating Systems
Windows
Windows 10 (May 2020, version 2004)
Windows 8.1
Windows 7
Mac
macOS Catalina (10.15)
macOS Mojave (10.14)
macOS High Sierra (10.13)
