• 32-bit float recording: perfect audio with no need to set gain
• 120 dB SPL 90º XY Mics
• Records up to 96kHZ sample rate
• New OLED Display
• Overdubbing, auto record, pre-record and timer functions
• USB Microphone Function
• Audio guidance function for the blind and visually impaired
• 10 hours of battery life on 2 AAA Batteries or USB-C Bus power

INPUTS

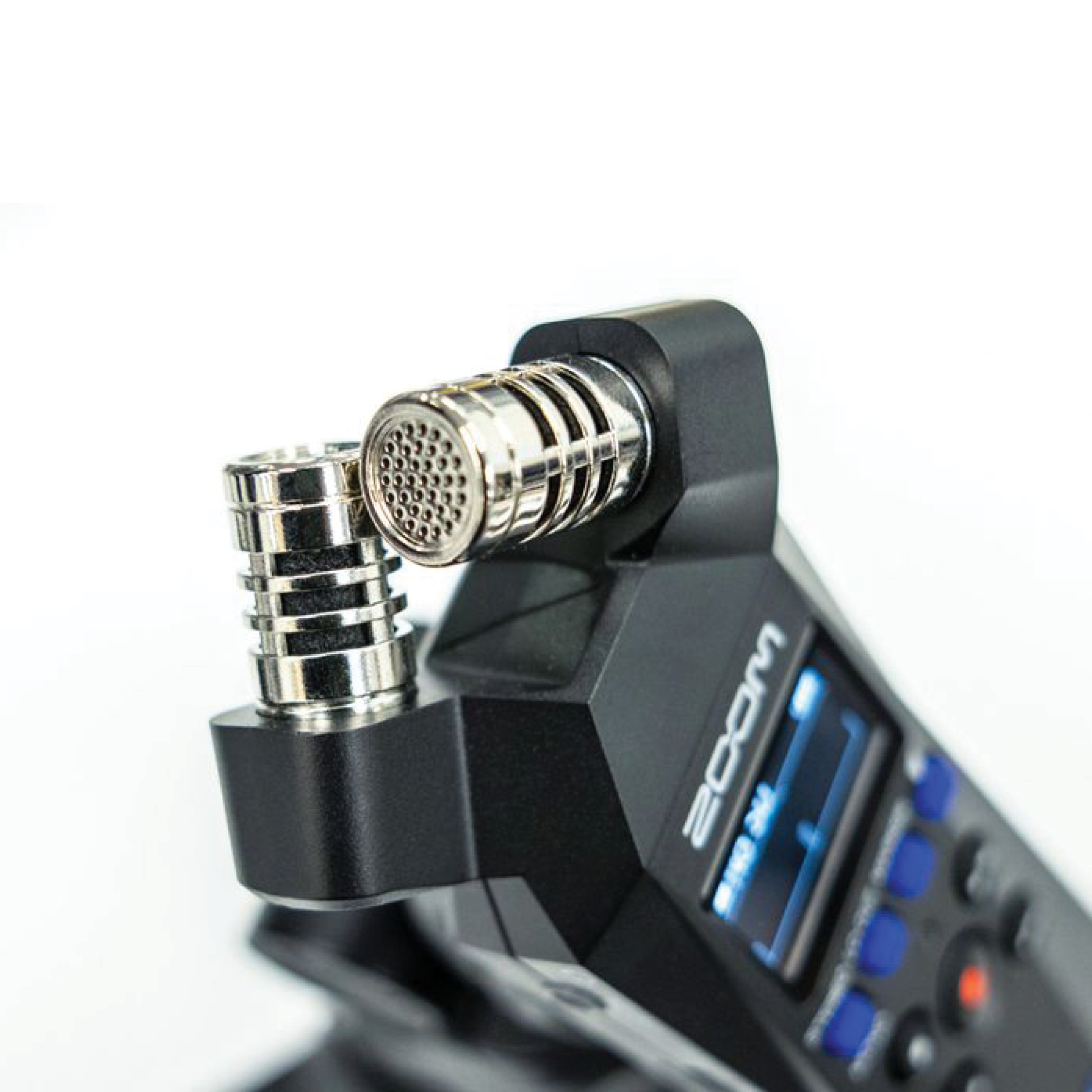

Built-in mic: 90º XY stereo format
Directionality: Unidirectional
Sensitivity: –37 dB/1 Pa at 1 kHz
Maximum sound pressure input: 120 dB SPL
MIC/LINE IN jack
Connector: Stereo mini jack
Input impedance: 2 kΩ or more
Plug-in power: 2.5 V

OUTPUTS
PHONE / LINE OUT jack
Connector: Stereo mini jack
Maximum output level: 20 ｍW + 20 ｍW(into 32Ω load)
Output impedance: 10 Ω or less
Built-in speaker
Type: 20 x 30mm oval dynamic speaker
Practical maximum output: 250mW

RECORDER
Recording formats:
• WAV
• 44.1/48/96 kHz、32-bit Float
• Stereo / Mono
• BWF and iXML formats supported
Recording media:
• 4–32GB cards compatible with the microSDHC specification
• 64GB–1TB cards compatible with the microSDXC specification

DISPLAY
OLED: 128 x 64

USB
Connector:
USB Type-C
• Use a USB cable that supports data transfer.
USB Mic:
USB 2.0 High Speed
48 kHz, 24-bit
File transfer:
USB 2.0 High Speed

POWER
2 AA batteries: Alkaline, Lithium, or Rechargeable NiMH
AC adapter:
• ZOOM AD-17: DC 5 V/1 A
• USB bus power is supported.
