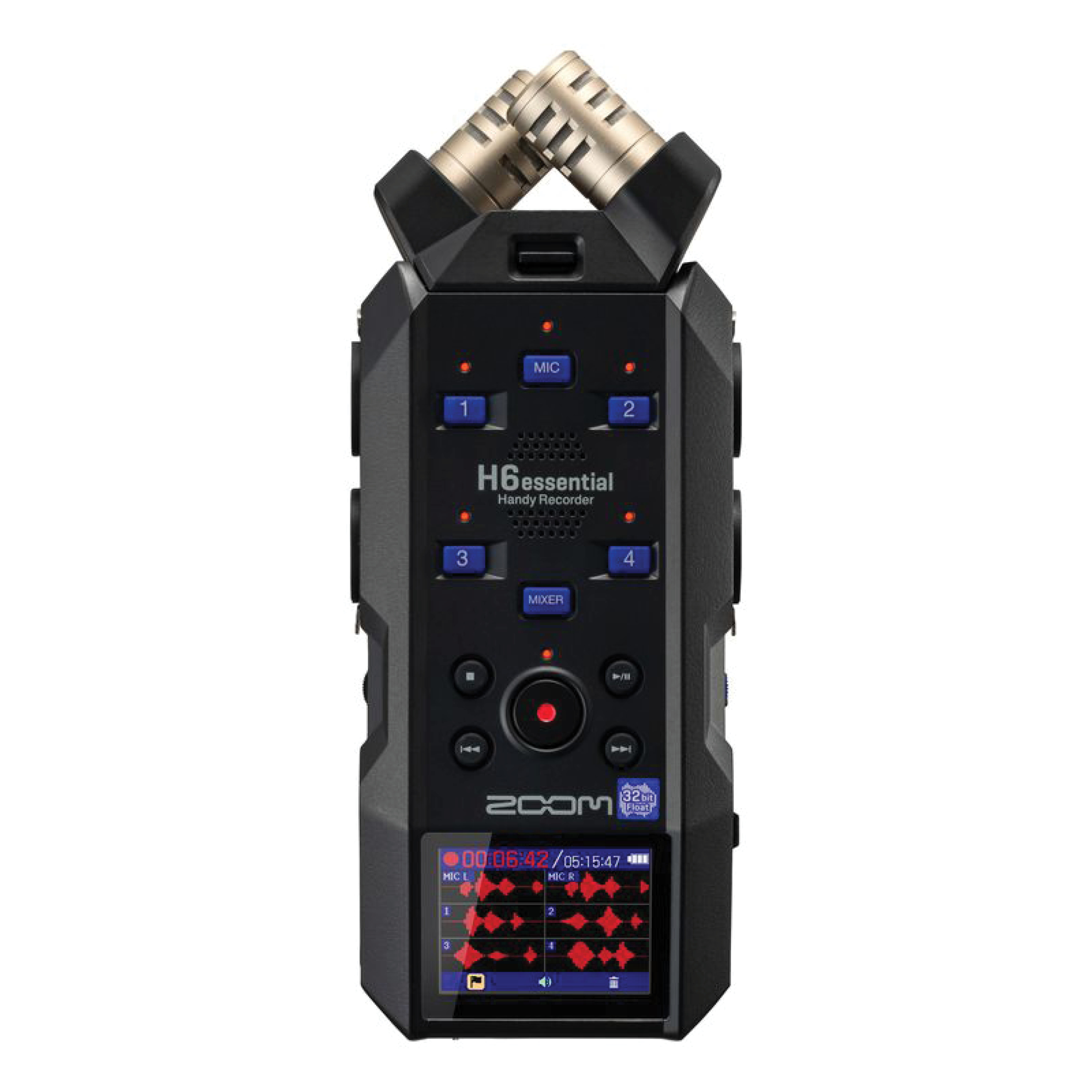

• 6-track 32-bit float recorder with Dual A/D Converters
• Clip-free recording with no need to set gain
• Records up to 96kHZ sample rate
• Interchangable Mic Capsule System 3.0 with 32-bit float support
• Included X/Y Mic Capsule captures up to 135 dB SPL

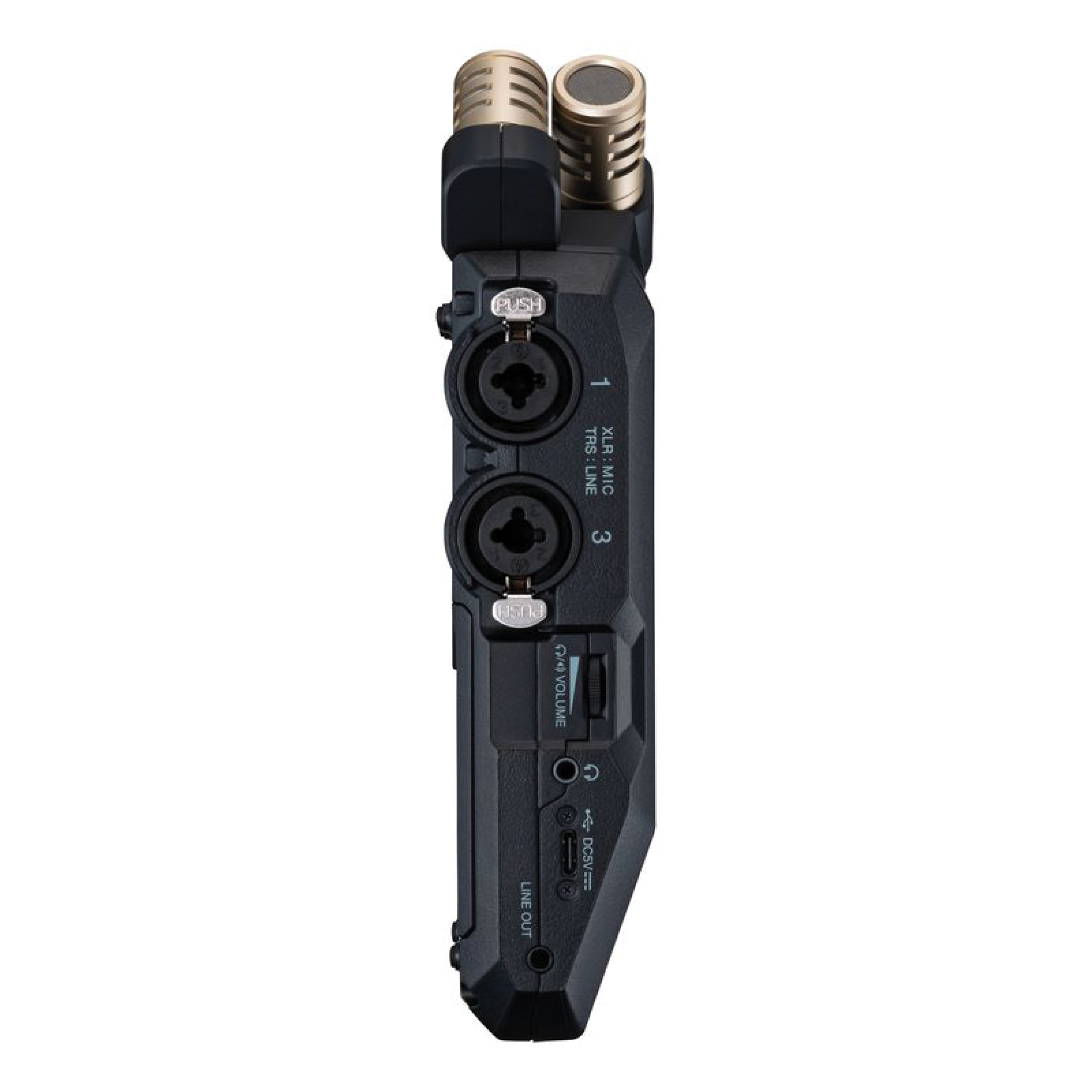

• 4 XLR/TRS combo inputs with locking connector
• Color LCD Screen
• Built-in mixer to adjust each track’s audio level
• Built-in speaker for quick reference playback
• 3.5mm headphone output plus 3.5mm line output
• Voice Guidance accessibility for the visually impaired
• 32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
• Use as an interface and record to SD card simultaneously
• Using the BTA-1* Bluetooth Adapter, sync with wireless timecode devices via bluetooth
• Use the BTA-1* Bluetooth Adapter to pair with the H6essential Control App for iOS
• Record to SD cads up to 1TB
• 10 hours of battery life on AA battery (2x) or USB-C Bus Power
*Please note: BTA-1 Adapter not included

INPUT AND OUTPUT CHANNELS
Inputs
Mic capsule: 1
MIC/LINE (mono): 4
Outputs
LINE OUT: 1
Headphones: 1
Built-in speaker (mono): 1

INPUTS
XY mic: XYH-6e: 90º XY stereo format
Directionality: Unidirectional
Sensitivity: −42dB/1Pa at 1kHz
Maximum sound pressure input: 135 dB SPL

MIC/LINE (mono)
Connectors: 4 XLR/TRS combo jacks (XLR：2 HOT TRS：TIP HOT）
Input gain: Adjustment unnecessary (dual A/D converter circuits used)
Input impedance:
• MIC: 3.8 kΩ or more
• LINE: 39 kΩ or more
Maximum input level:
• MIC: +4 dBu
• LINE: +24 dBu
Phantom power:
• +48 V
• Channel total 32 mA or less
Equivalent input noise:
• MIC: -120 dBu or less（IHF-A) @150 Ω input
• LINE: -95 dBu or less（IHF-A) @600 Ω input

OUTPUTS
LINE OUT
Connector: Stereo mini jack
Maximum output level: +1 dBu
Output impedance: 110 Ω or less
Headphones
Connector: Stereo mini jack
Maximum output level: 20 ｍW + 20 ｍW（when 32 Ω load）
Output impedance: 10 Ω or less
Built-in speaker
Type: 20 mm x 30mm elliptical dynamic speaker
Effective maximum output: 250mW

RECORDER
Maximum simultaneous recording tracks: 8
Maximum simultaneous playback tracks: 6
Recording formats:
• WAV
• 44.1/48/96 kHz,
• 32-bit float mono/stereo
• BWF and iXML formats supported
Recording media:
• 4-32GB cards compatible with the microSDHC specification
• 64GB–1TB cards compatible with the microSDXC specification

DISPLAY
2.0-inch full-color LCD: 360 x 240

USB
Connector:
• USB Type-C
• Use a USB cable that supports data transfer.
Audio Interface:
USB 2.0 High Speed
Input and output channels:
• 6 in / 2 out (Multi)
• 2 in / 2 out (Stereo)
Sampling frequency:
• 44.1/48/96 kHz (AIF only)
• 44.1/48 kHz (AIF + onboard recording)
Bit depth: 24-bit, 32-bit float
File transfer: USB 2.0 High Speed

REMOTE
Dedicated wireless adapter: ZOOM BTA-1

POWER
4 AA batteries: Alkaline, lithium or rechargeable NiMH batteries
AC Adapter:
• ZOOM AD-17 (DC 5 V/1 A)
• USB bus power is supported.
