ZOOM L-20-R
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!

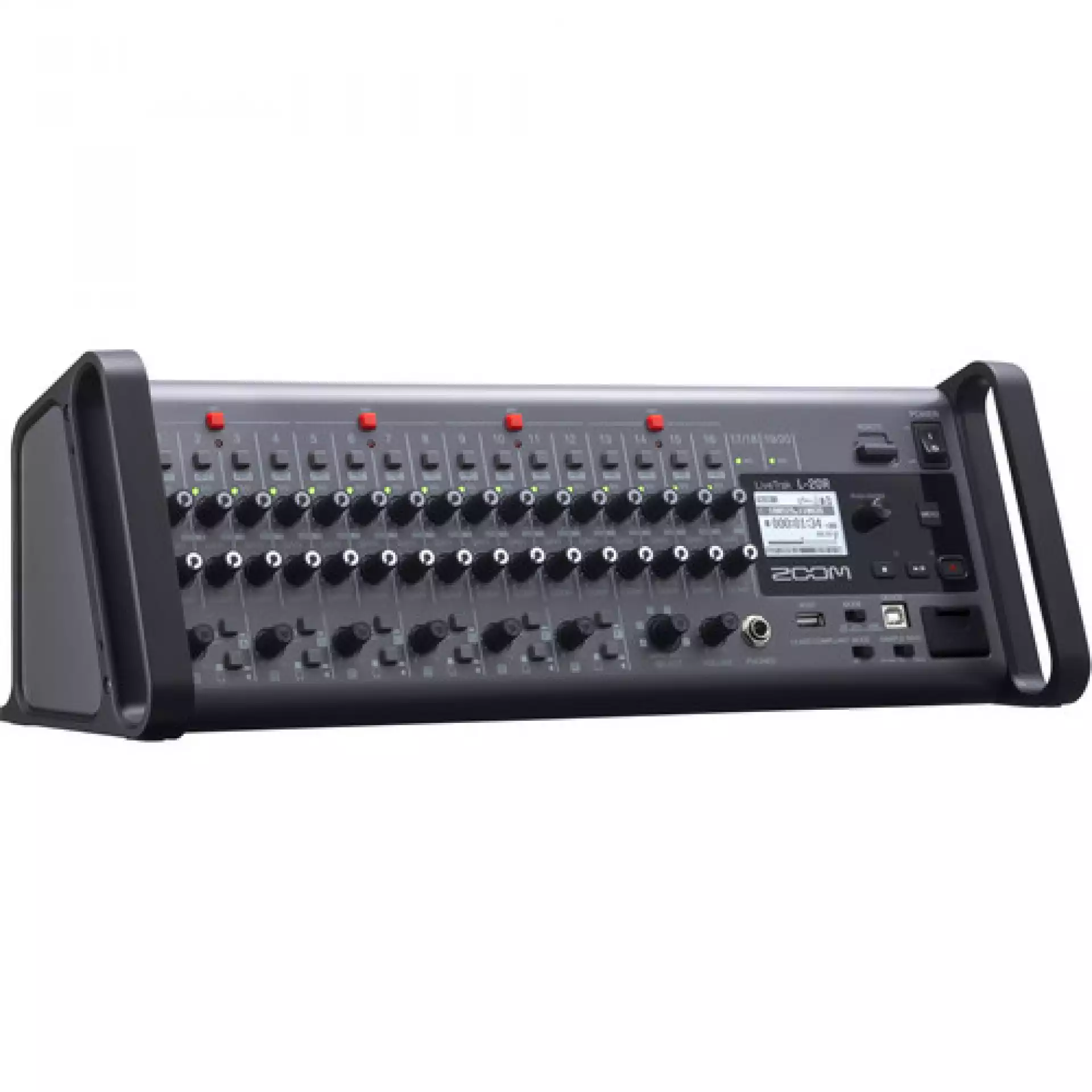

The highly flexible Zoom LiveTrak L-20R is a 20-input digital mixer and multi-track recorder well suited for live performances, studio recording, band rehearsals, podcasts, and more. Eschewing the faders of the similar L-20 without sacrificing much else, the L-20R is both portable and rack-mountable, even supplying rack ears for mounting the mixer in your rack case. Also, the L-20R sports iPad control. The FOH engineer and up to six musicians can control their own discrete monitor mix over iPads, changing levels, EQ, channel effects, and more.
The mixer features 16 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, a one-knob compressor knob, and +48V phantom power. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. Two stereo inputs offer dual 1/4" and RCA inputs. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor.

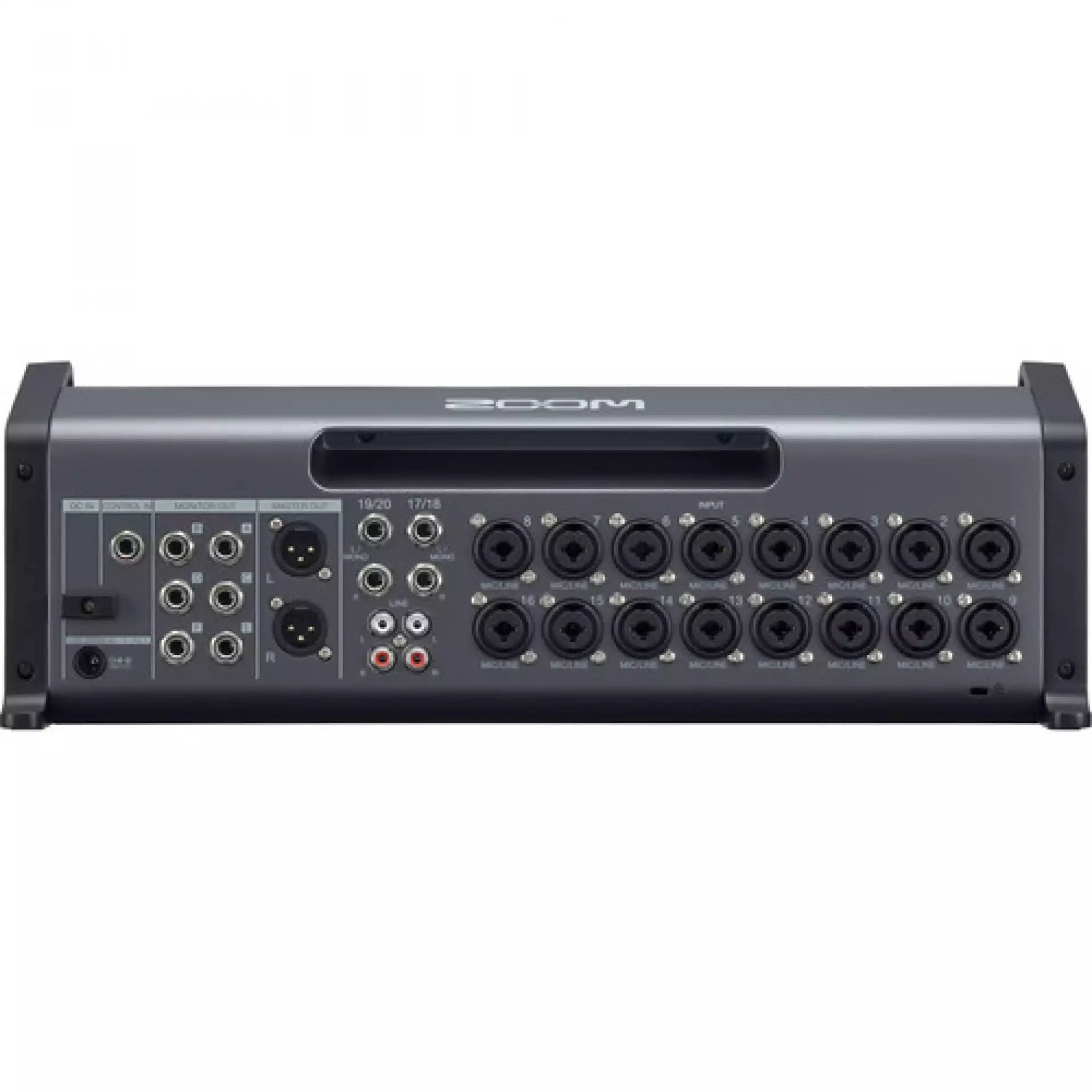

The LiveTrak L-20R features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set-up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. Furthermore, by connecting remotely over iOS devices, musicians can adjust their own monitor mixes on stage.
The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/96 kHz. Files can easily be copied to a computer and used in a DAW. The L-20R can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. The Zoom LiveTrak L-20R ships with a power cord a BTA-1 Bluetooth cable to connect your master iPad (other iPads connect to the master via Wi-Fi).
Key Features at a Glance
- 20 discrete channels (16 mono plus 2 stereo) with XLR or 1/4" connectivity
- 22-track simultaneous recording, 20-track playback
- 22-in/4-out USB audio interface connectivity
- Footswitch input for optional footswitches
- Records up to 24-bit/96 kHz audio to SD card
- Built-in compression control (Channels 1-16)
- Main XLR outputs
- 6 customizable monitor outputs
- Dedicated headphone output for sound engineer
- Scene saving function (up to 9 scenes saved at a time)
- 20 built-in effects
- Compatible with Remote Mixer app for iPad
- Encoder knob and backlit LCD screen
- FOH enginer and up to six musicians can control their own monitor mix over USB
Zoom L-20R Specs
| Number of Inputs | Mono (Mic/Line): 16 x Combo XLR-1/4" Stereo (Line): 4 x 1/4" TS, 4 x RCA (2 x Stereo Pairs) Control: 1 x 1/4" |
| Number of Outputs | Master Out: 2 x XLR Monitor/Headphone Output (A-F): 6 x 1/4" / 6.35 mm TRS Headphone: 1 x 1/4" / 6.35 mm |
| Input Gain | Pad Off: +16 to +60 dB Pad On: -10 to +34 dB Hi-Z ON: +6 to +50 dB |
| Input Impedance | XLR: 3 kOhms TRS: 10 kOhms/1 MOhm (when Hi-Z On) |
| Maximum Input Levels | Mono (Mic/Line) Pad Off: 0 dBu (at 0 dBFS) Pad On: +26 dBu (at 0 dBFS) Stereo (Line): +14 dBu |
| Phantom Power | 48 V |
| Maximum Output Levels | Master Out: +14.5 dBu Monitor A-F (TRS): +14.5 dBu Monitor A-F (Headphones): 42 mW + 42 mW at 60 Ohms |
| Output Impedances | 100 Ohms |
| Buses | Master: 1 Monitor: 6 Send EFX: 2 |
| Channel Control | Channel Strip Comp: Yes, Channels 1 to 16 Low Cut: 40 to 600 Hz, 12 dB/oct EQ High: 10 kHz, ±15 dB, Shelving Mid: 100 Hz to 8 kHz, ±15 dB, Peaking Low: 100 Hz, ±15 dB, Shelving |
| Level Meters | 12-Segment |
| Effects | 20 Types |
| Recorder | Maximum Simultaneous Recording Tracks: 22 at 44.1/48/96 kHz Maximum Simultaneous Playback Tracks: 20 Recording Format: WAV 44.1, 48, 96 kHz, 16/24-Bit, Mono/Stereo Recording Media: 16 MB to 2 GB SD Cards 4 to 32 GB SDHC Cards 64 to 512 GB SDXC Cards |
| Audio Interface | 44.1 / 48 kHz Recording: 22 Channels Playback: 4 Channels Bit Depth: 24-Bit Interface: USB 2.0 |
| System Requirements (Windows) | Windows 7 SP1 or Later / 8.1 / 10 (32-/64-Bit) Intel Core i3 or Later USB 3.0/USB 2.0 |
| System Requirements (Mac) | Mac OS X 10.11 and Later Intel Core i3 or Faster USB: USB 3.0/USB 2.0 |
| System Requirements for Mobile | iOS 9, 10, and 11 |
| Sampling Frequencies | 44.1 / 48 / 96 kHz |
| Frequency Characteristics | 44.1 kHz: 20 Hz to 20 kHz (±1.0 dB) 96 kHz: 20 Hz to 40 kHz (±3.0 dB) |
| Equivalent Input Noise | −128 dB (IHF-A) at +60 dB/150 Ohms |
| Display | LCD with Backlight (128×64 Resolution) |
| Power Supply | AD-19 AC Adapter: 12 VDC / 2 A |
| Package Weight | 7.96 lb |
| Box Dimensions (LxWxH) | 21 x 8.3 x 8.2" |
