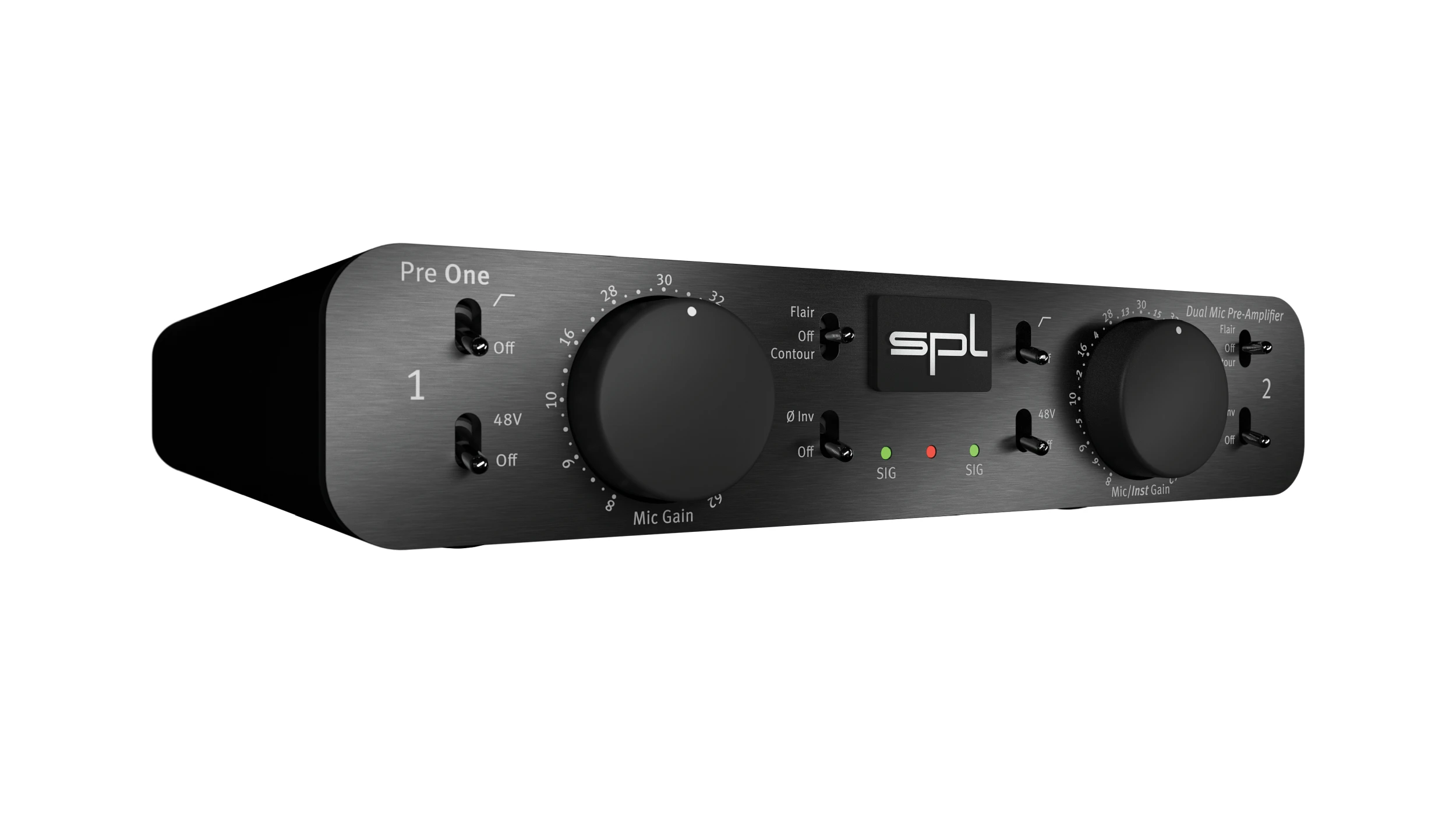

SPL Pre One
Garantujemo najnižu cenu!
The Dual-Channel Microphone Preamplifier with discrete technology for outstanding sound.
For us the sound is always in the foreground. When it sounds good, we like to listen. To get such a sound, you need experience and technical finesse. We have incorporated both into the Series One.
Analog inputs & outputs; XLR & Jack (balanced)
Maximum Input level (Mic, Gain +8 dB): +13.5 dBu
Maximum Input level (Instrument, Gain -6 dB): +23.5 dBu
Input impedance (Mic): 10 kΩ
Input impedance (Inst): 1.1 MΩ
Output impedance: 75 Ω
Frequency range (30 dB Gain): 10 Hz–200 kHz
THD+N (Mic, 30 dB Gain): 0.0028 %
THD+N (Mic, 50 dB Gain): 0.014 %
THD+N (Mic, 62 dB Gain): 0.017 %
THD+N (Instrument, 0 dB Gain): 0.0039 %
Equivalent Input Noise (EIN): 126 dBu
Dynamic range: 117 dB
Noise (Mic, A-weighted, 150 Ω load, 30 dB Gain): -95 dBu
Noise (Mic, A-weighted, 150 Ω load, 50 dB Gain): -77 dBu
Noise (Mic, A-weighted, 150 Ω load, 62 dB Gain): -68 dBu
(CMMR) Common mode rejection Mic Input: >75 dB
Internal Power Supply
Operating voltage for analog audio: +/- 17 V
Operating voltage for relays and LEDs: +12 V
Phantom power: +48 V
Power consumption: 7,0 VA VA
External Power Supply
AC/DC switching adapter: Mean Well GE18/12-SC
DC plug: Innen-Pin 2,1mm (+); Außen-Ring 5,5mm (-)
Input: 100 - 240 V AC; 50 - 60 Hz; 0.7 A
Output: 12 V DC; 1.5 A
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 210 x 49.6 x 220 mm
Unit weight: 1.45 kg
Shipping weight (incl. packaging): 2 kg
