SPL HPm
Šifra: 14979

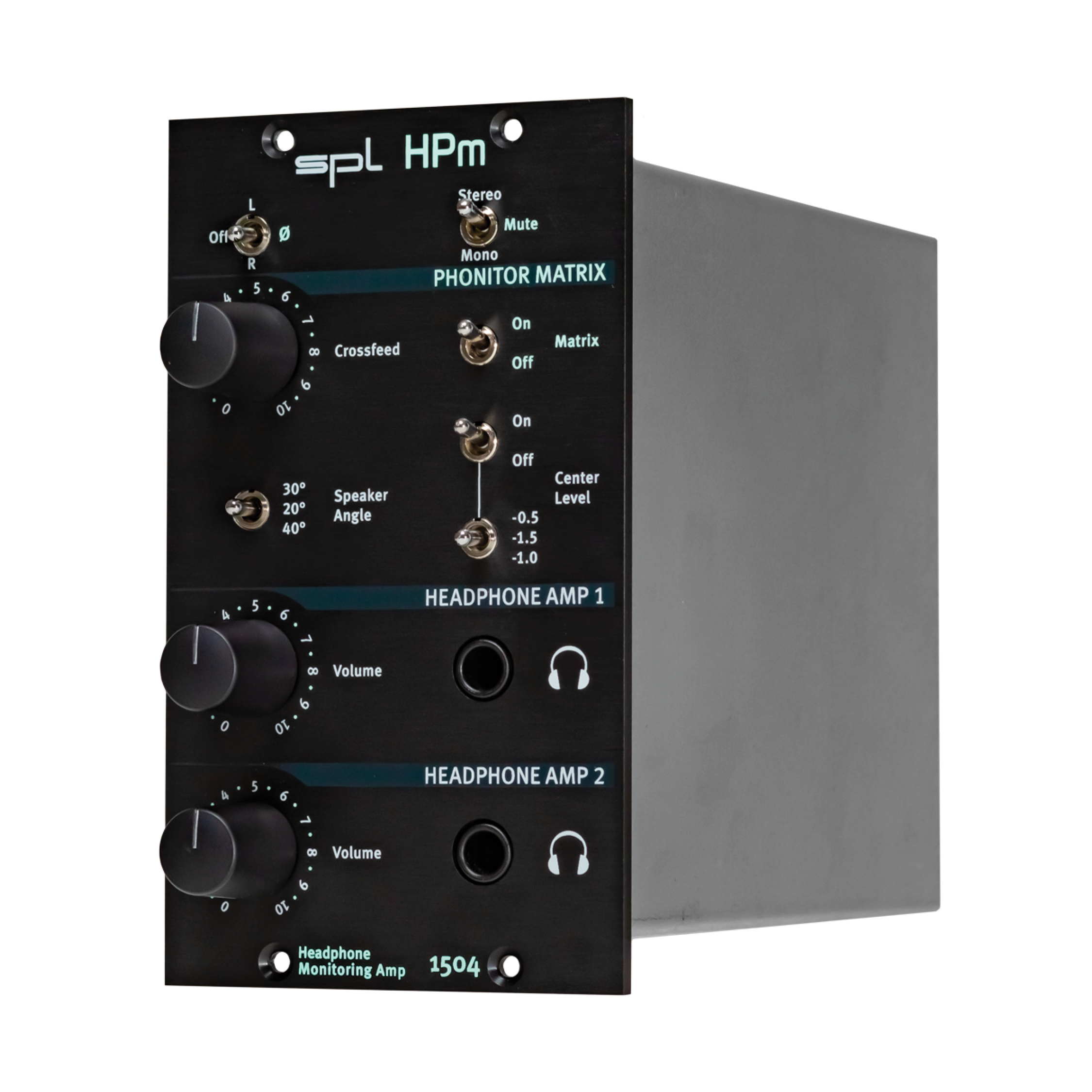

The Headphone Monitoring Amplifier for 500 Series.
500 Series double-slot module headphone monitoring amplifier with Phonitor Matrix for two
headphones.
Input & Output; balanced
Maximum input & output gain: 21 dBu
Input impedance: 10 kΩ
Output impedance: 150 Ω
Common mode rejection: > 82 dB
Frequency range (-3 dB): 10 Hz – 100 kHz
THD & N (0 dBu, 10 Hz – 22 kHz): 0.03 %
Noise (A-weighted): -92.3 dB
Dynamic range: 113 dB
Headphone Outputs, 1/4" (6,35 mm) TRS Jacks
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Max output power (600 Ω): +18 dBu
Max output power (300 Ω): +15 dBu
Max output power (32 Ω): +5 dBu
Dimensions & Weight

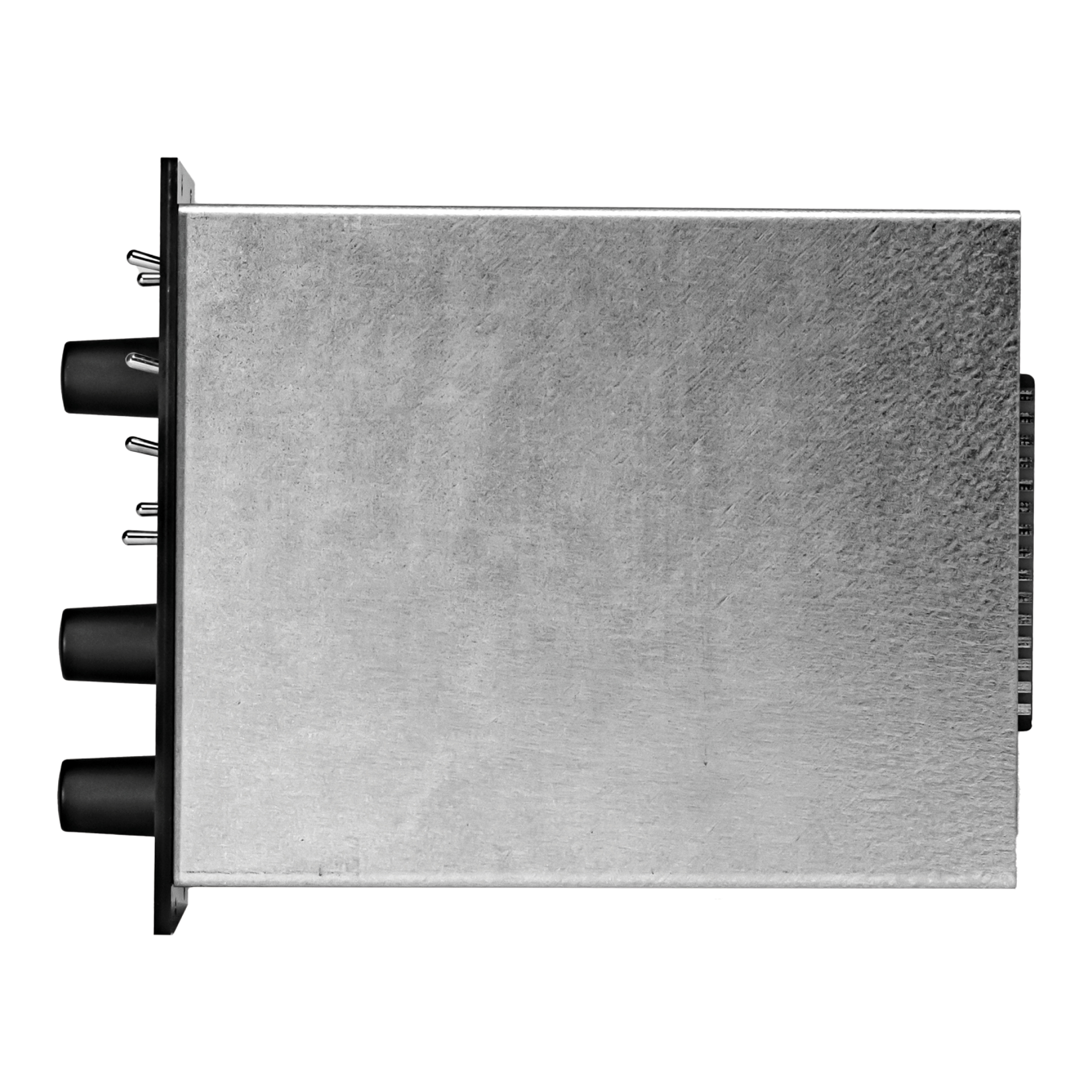

Double-spaced module for 500 Series
Unit weight: 0.8 kg
Shipping weight (incl. packaging): 0.9 kg
