NEUMANN KM D
OUTPUT STAGE KM D / KM D NX

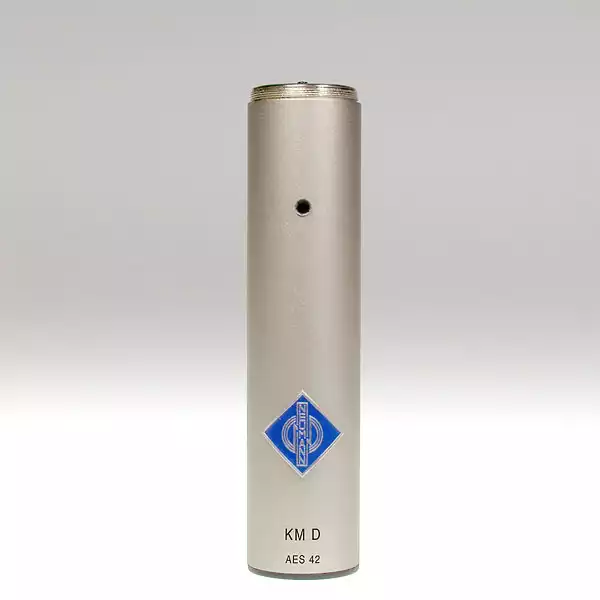

The KM D digital output stage converts the signal from the capsule directly into a digital signal. The result is an AES/EBU signal with 24 bits and a large dynamic range. The integrated digital signal processor (DSP) permits remote control of the microphones, including the digital gain, pre-attenuation (6 dB, 12 dB or 18 dB) and low-cut filter (0 Hz, 40 Hz, 80 Hz or 160 Hz). An integrated peak limiter and compressor/limiter with additional de-esser function prevents any overloading of the audio signal.
The dimensions (diameter 22 mm, length 93 mm) of the analog KM A and digital KM D output stages are identical. As a result, all accessories can be used in combination with both output stages.
Upon request, a mechanical adapter AR 100 KA can be supplied to adapt microphone capsules of the KM 100 system (AK series) to the KM A and KM D output stages.
The digital Neumann microphone technology (Solution-D) will no longer be part of the Neumann product portfolio from 2021. Last order date for dealers will be 31 July 2020. After that, the products will be available as long as stock lasts. Service for all Solution-D hardware products is guaranteed until 31 Dec 2030.
The Remote Control Software (32 Bit, available also as VST plug-in) for the digital Neumann microphones is compatible with Windows 98SE – Windows 10 and Mac OS 8.6 – Mac OS X 10.14.6. There will be no further updates of the RCS software.
