With its dual-membrane, dual-output construction, the microphone offers multiple polar patterns while facilitating accurate on- and off-axis response, one that you can better tweak across two channels thanks to its multiple outputs. An included oxygen-free copper cable makes the connection from the mic's 5-pin output to two 3-pin XLR terminations. Additionally, it comes with a vibration-inhibiting shockmount and a pop filter that helps reduce pops from vocal plosives.
Built for High Resolution

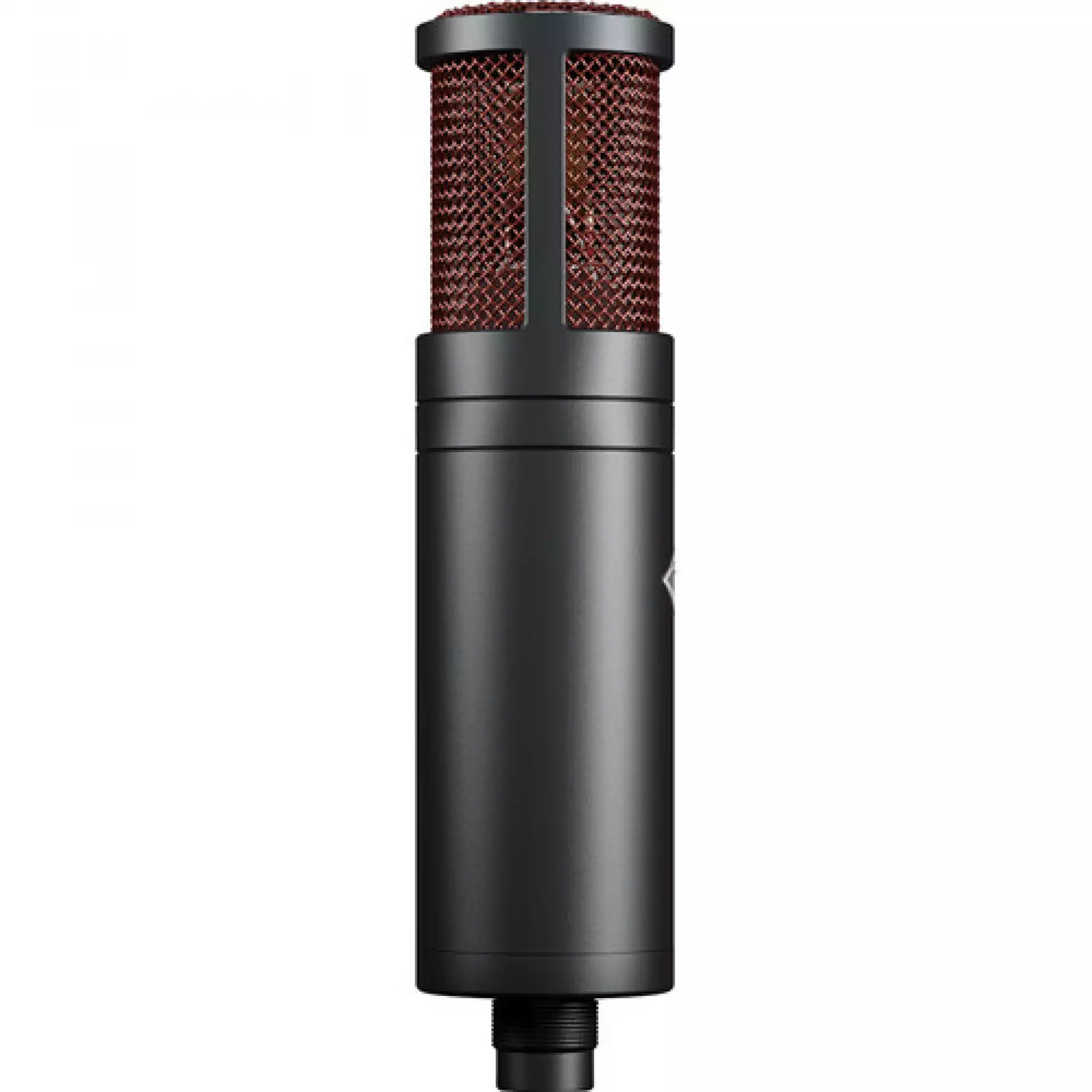

The Edge Duo is a multipattern, large dual-diaphragm condenser microphone, capable of 3-dimensional, high-resolution sound recordings. This innovative device can transform its behavior, color, frequency, and transient response into 18 different iconic microphones that are still used in some of the most sophisticated recording studios. Thanks to its dual-diaphragm design and unique Modeling Engine, the Edge Duo allows for real-time polar pattern alterations during recording and mixing.
Dual-Diaphragm Condenser Capsule
Even before loading any emulations, the Edge Duo is designed to effortlessly deliver an intimately detailed presence that can push any track to the front of your mix. The capsule is fitted with two of Antelope's signature 6-micron, gold-sputtered membranes and the body is equipped with custom electronics for high-grade sound performance and flexibility.
Virtual Mic Locker

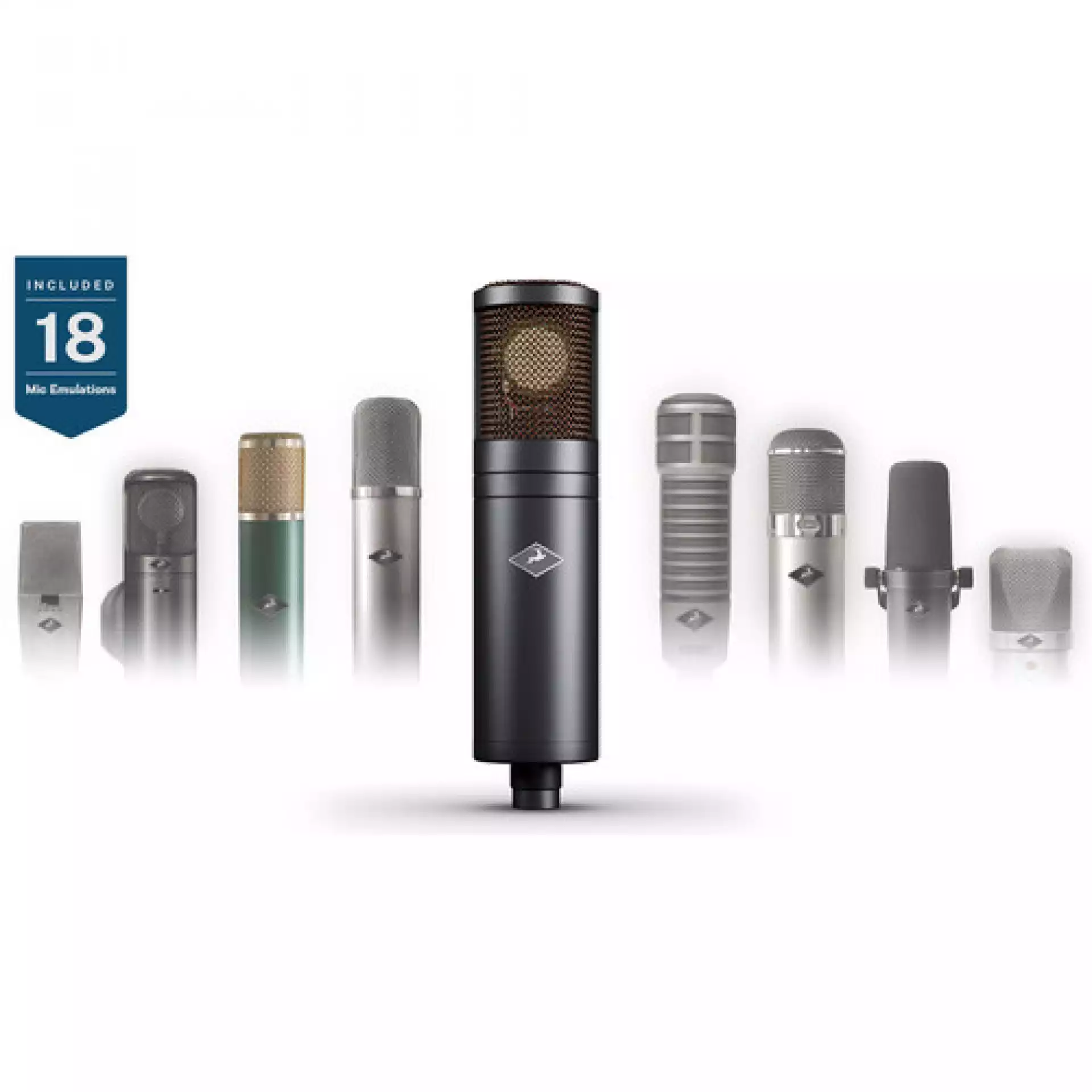

The Edge Duo gives you access to 18 carefully selected classic microphones. We've assembled a diverse collection of revered models that were hand-selected as the top picks for many award-winning engineers and producers. The Edge Duo will elevate your tracking capabilities on par with studios that have invested thousands in rare vintage microphone collections, while Antelope's ever-growing library of emulations will continue to expand your home studio.
Modeling Engine
What makes the Edge Duo such a special recording tool is the Modeling Engine, a futuristic technology that brings a selection of timeless classics to your studio. To develop it, Antelope worked with several revered European facilities, making rigorous measurements and testing multiple exquisitely preserved vintage microphones as well as modern high-end classics. The accuracy of their mic emulations keeps the frequency response and color of the originals in a complete 360° coverage. The dual-diaphragm design of the Edge Duo is what allows you to adjust the polar patterns of the emulations directly from the software in real time.
Choose Your Workflow
The Edge Duo has been designed for efficiency and versatility. The Modeling Engine saves studio time and maintains the creative dynamic in fast-paced recording sessions. It lets you change your choice of microphone in real time with a click of a button, without ever having to disturb the recording process, or record clean and try out different models in the mixing phase.

Although the Edge Duo works with any preamp, pairing it with the Discrete preamps of Antelope's Synergy Core interfaces unlocks the full potential of the real-time microphone emulations. When processed by their onboard Synergy Core platform, you can track with the emulations while enjoying imperceptible latency and zero CPU load.
Flexible Tools
The Edge Duo works with any preamp with 48V phantom power and is for anyone that needs one microphone to record a variety of sources. It excels with any type of audio, from vocals, guitars, and drum overheads to speech applications, such as voice over, dubbing, and audio books.

The microphone emulations are available in VST, AU, and AAX plug-in formats for all popular DAWs under both macOS and Windows, regardless of the audio interface being used. An iLok 2 or 3 USB dongle is required.
Emulations Included:
BERLIN 47FT
BERLIN 47TU
BERLIN 49T
BERLIN 57
BERLIN 67
BERLIN 87
BERLIN K86
BERLIN/HALSKE M25
BERLIN M251
BERLIN V563
BERLIN M103
ILLINOIS 7B
MINNESOTA 20
OXFORD 4038
TOKYO 800T
VIENNA 12
VIENNA 414
SACRAMENTO 121R
Features at a Glance
Studio condenser microphone with cardioid, omnidirectional, figure-8, and in-between polar patterns selectable in real time via software
Dual 1.3" gold-sputtered membranes
Precision software models of 18 coveted dynamic mics, ribbon mics, solid-state condenser mics, and tube condenser mics
Mic emulations work with Antelope audio interfaces or macOS/Windows DAWs that support VST, AU, or AAX plug-in formats (iLok 2 or iLok 3 USB dongle required for plug-in use)

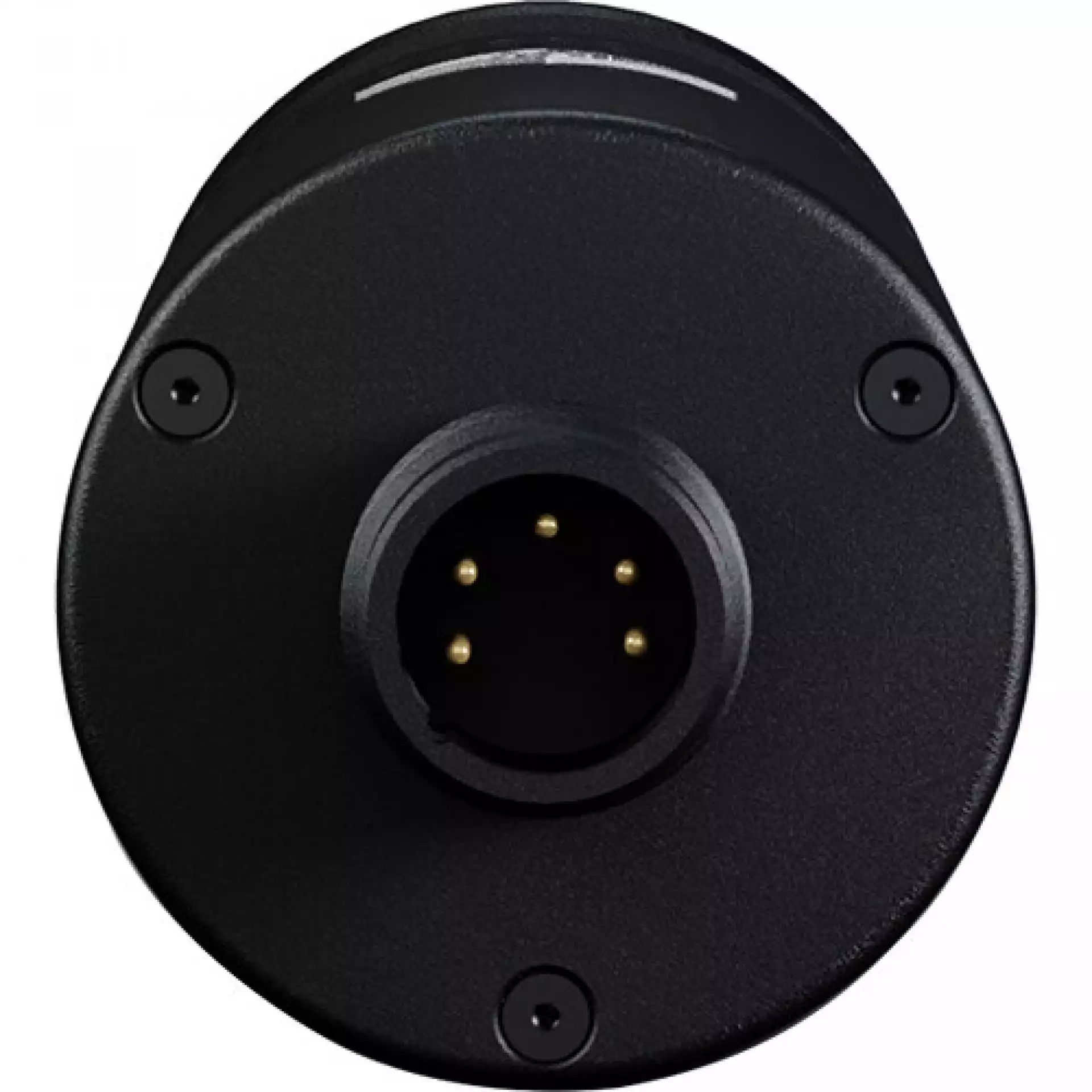

XLR 5-pin output connector
XLR 5-pin to dual XLR 3-pin breakout cable
Runs on 48V phantom power

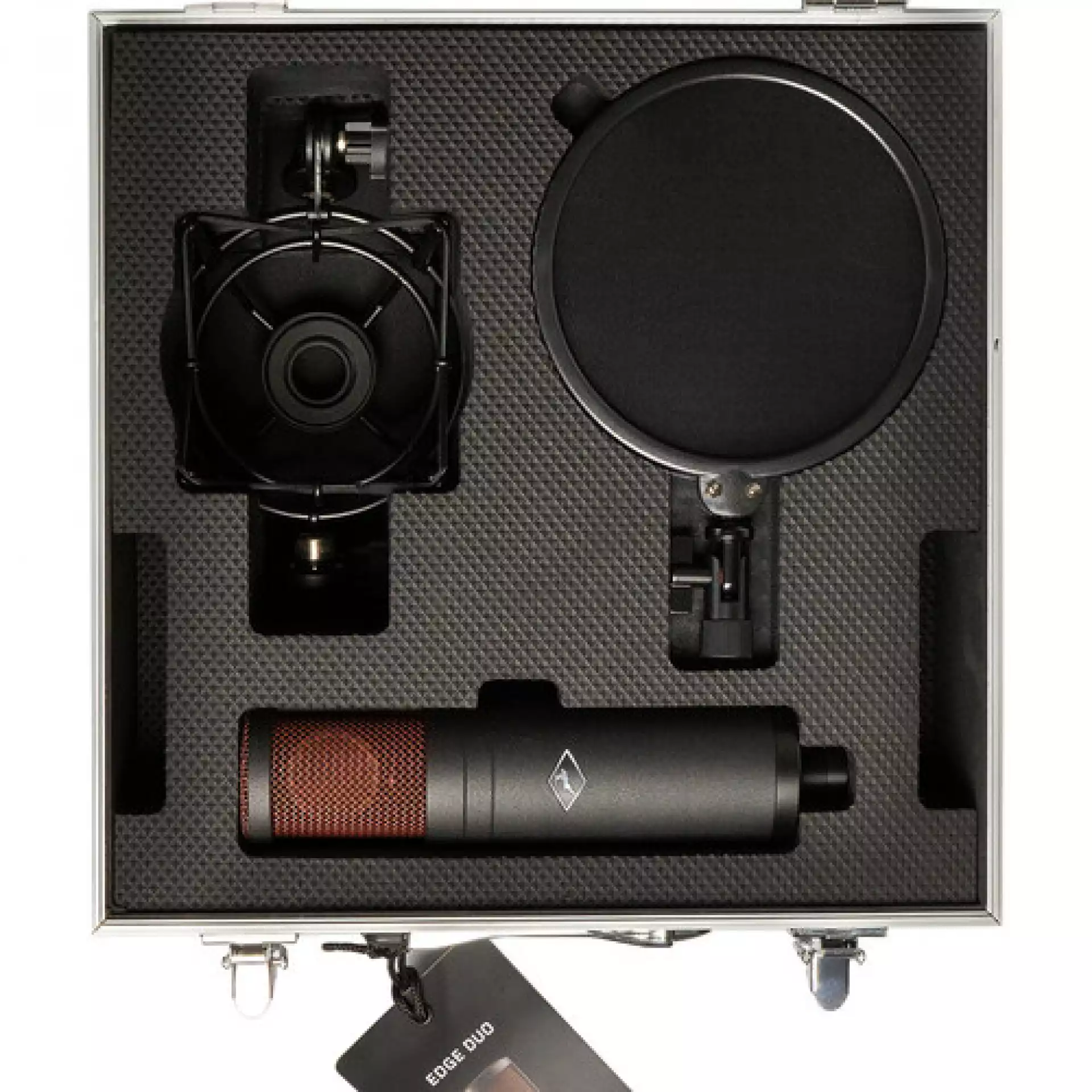

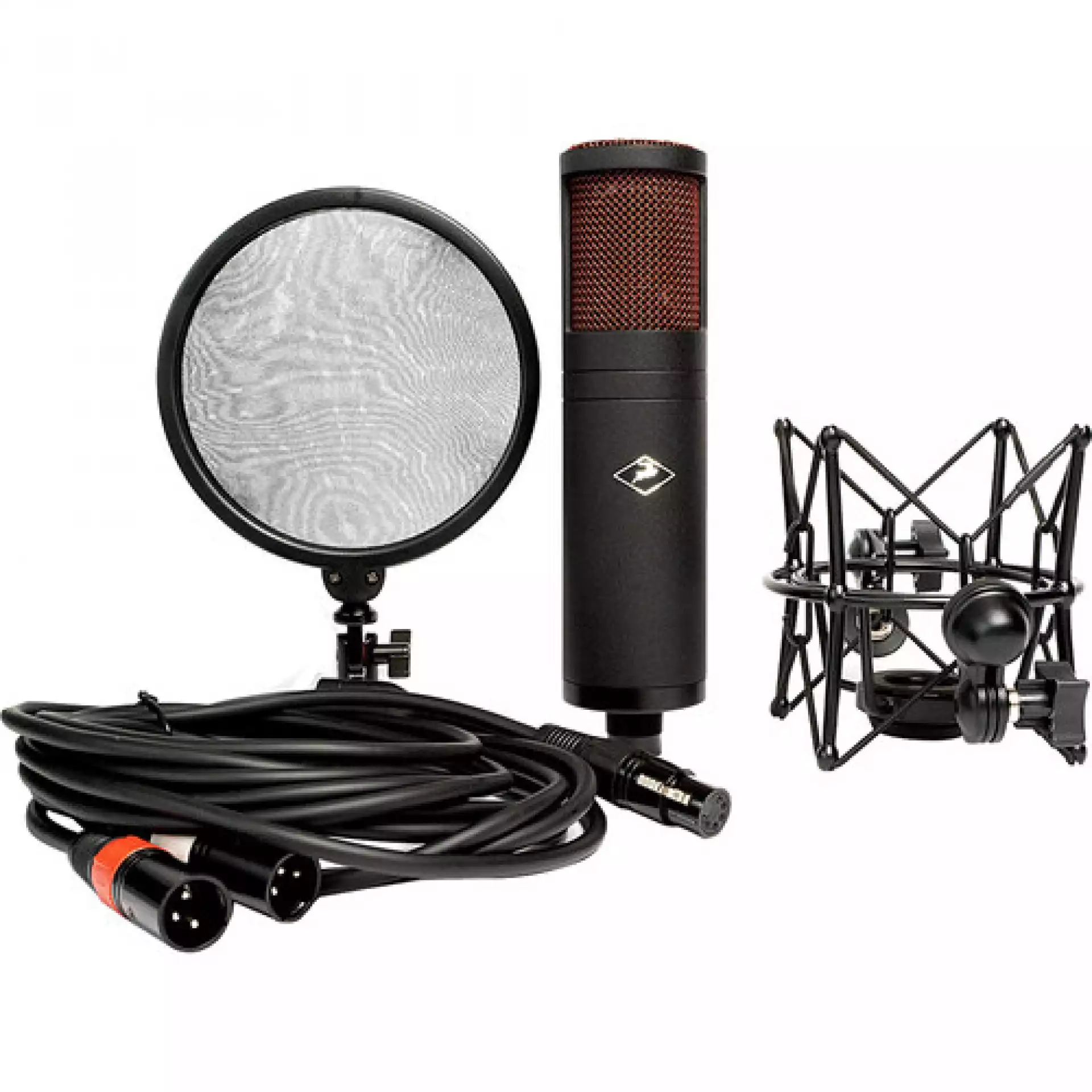

Includes shockmount, pop filter, and hard storage case

Microphone
Primary Applications Studio Recording
Form Factor Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources Vocals, Speech/Voice Over, Instrument
Sound Field Mono
Operating Principle Pressure Gradient
Capsule Condenser
Diaphragm 1.34" / 34 mm (Condenser)
Polar Pattern Cardioid, Figure-8, Omnidirectional
Pattern Selection Continuously Variable
Orientation Side Address
Circuitry Solid-State
Pad None
High-Pass Filter None
Tone Adjustment None
Gain Adjustment None
Indicators None
On-Board Controls None
Windscreen None
Performance
Frequency Range 20 Hz to 20 kHz
Impedance 50 Ohms at 1 kHz
Sensitivity -35 dB
Signal-to-Noise Ratio 75 dB A-Weighted
Equivalent Noise Level 19 dB A-Weighted
Connectivity
Output Connectors (Analog) 1 x XLR 5-Pin Male (on Mic)
2 x XLR 3-Pin Male (on Detachable Cable)
Headphone Connector None
Cable Length 16.4' / 5.00 m
Power
Bus Power None
Operating Voltage 48 V (Phantom Power)
Physical
Color Black
Mounting Shockmount (Included)

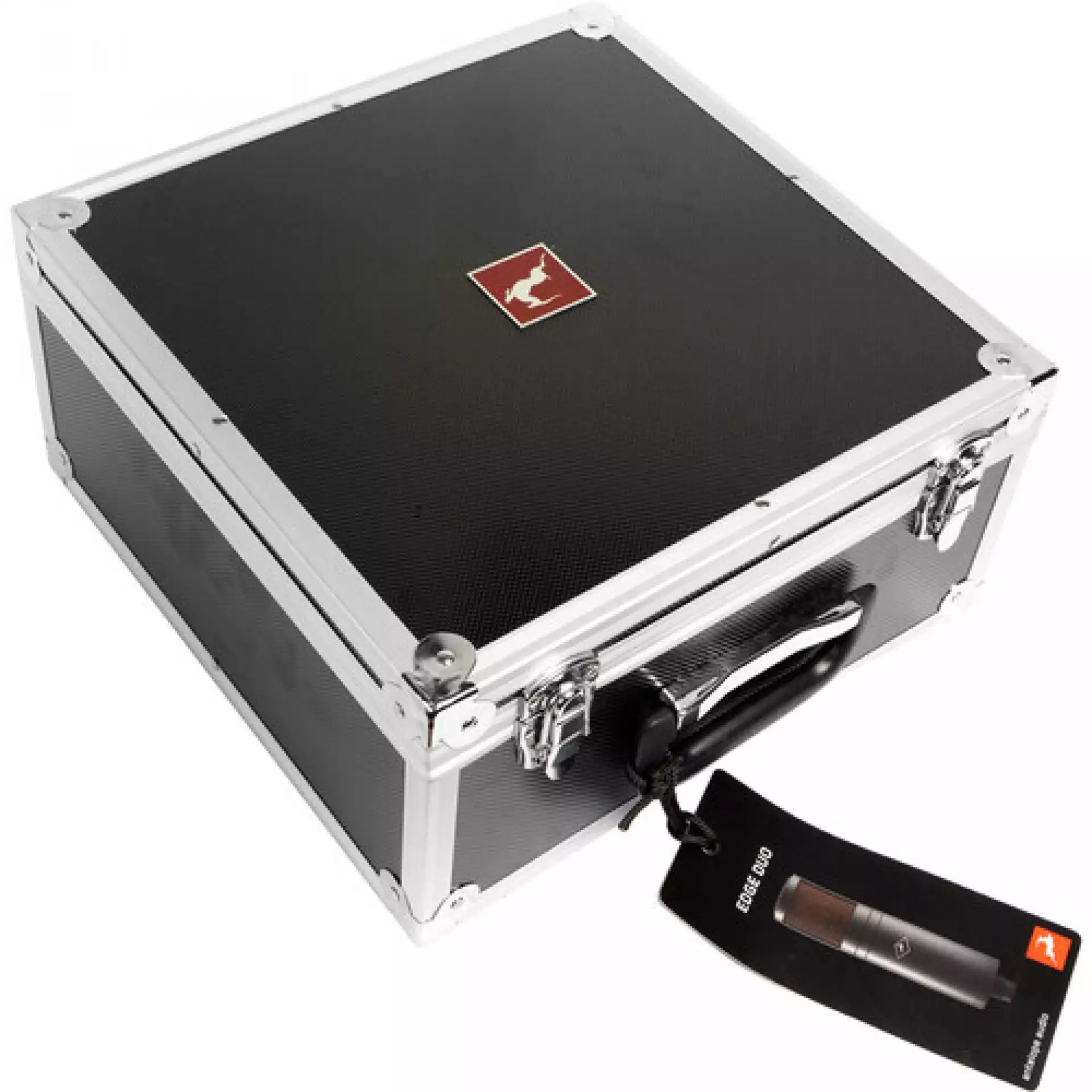

Included Case Hard Case
Included Filters Pop Filter
Dimensions ø: 2.1 x L: 8.6" / ø: 5.3 x L: 21.8 cm
Weight 1.23 lb / 0.56 kg
Packaging Info
Package Weight 7.365 lb
Box Dimensions (LxWxH) 13.4 x 12.8 x 6.4"
