Antelope Edge Quadro

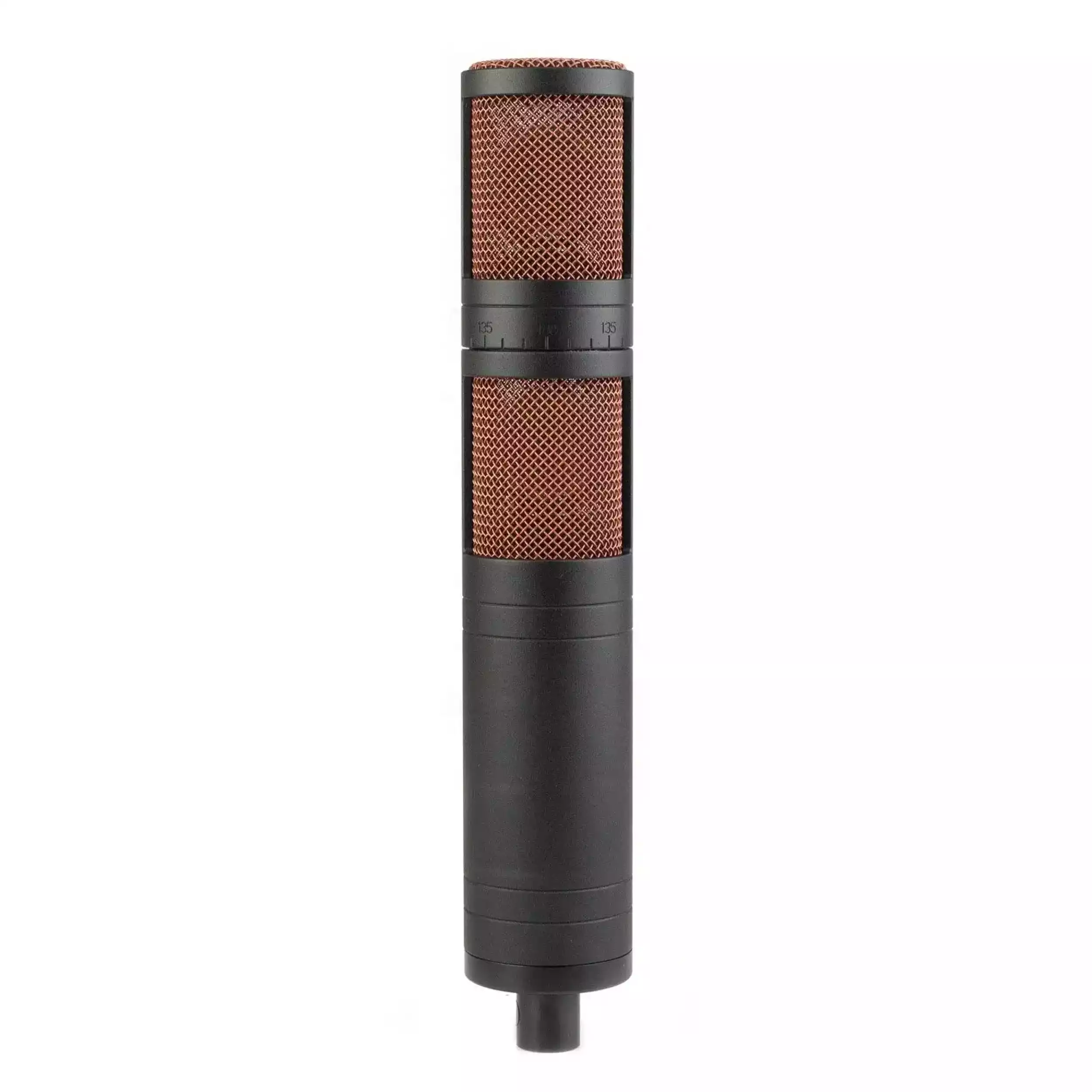

The Antelope Edge Quadro is a stereo large-diaphragm condenser microphone offering versatile configurability and flexible software processing for accurate sonic reproduction of vocals and instruments. With two 1.3" dual-membrane capsules—each capable of cardioid, figure-8, omnidirectional, or variant polar patterns—in a stacked setup, it can be used for mono or multiple stereo configurations. Thanks to a rotatable top head with degree marks, X/Y and Mid-Side positioning are easily and precisely achieved.
Dual XLR 5-pin outputs split to four independent XLR 3-pin channels via the supplied 16.4' oxygen-free copper XLR Y-cables, allowing independent level adjustment and effects processing for each membrane. Using Antelope's AFX plug-ins or their FPGA-equipped audio interfaces, per-head microphone emulation and polar pattern manipulation are provided along with a straightforward and informative GUI.
The extensive library of mic emulations boasts models of sought-after tube and solid-state condensers, as well as popular ribbon mics. All models are optimized for the Edge Quadro's low resonance and full 20 Hz to 20 kHz frequency response. The capsules are operated via 48 VDC phantom power; no bulky external power supply is required. The Edge Quadro includes a custom shockmount and a custom wooden case.
Quadrosonic Modeling Microphone
Large-diaphragm condenser capsules
Double-sided, 6-micron, gold-sputtered 34mm membranes
Audio signal splits into four independent XLR output channels for optimum control and re-miking
Switchable cardioid, figure-8, and omnidirectional polar patterns
Individual mic emulation and polar pattern selection for each head

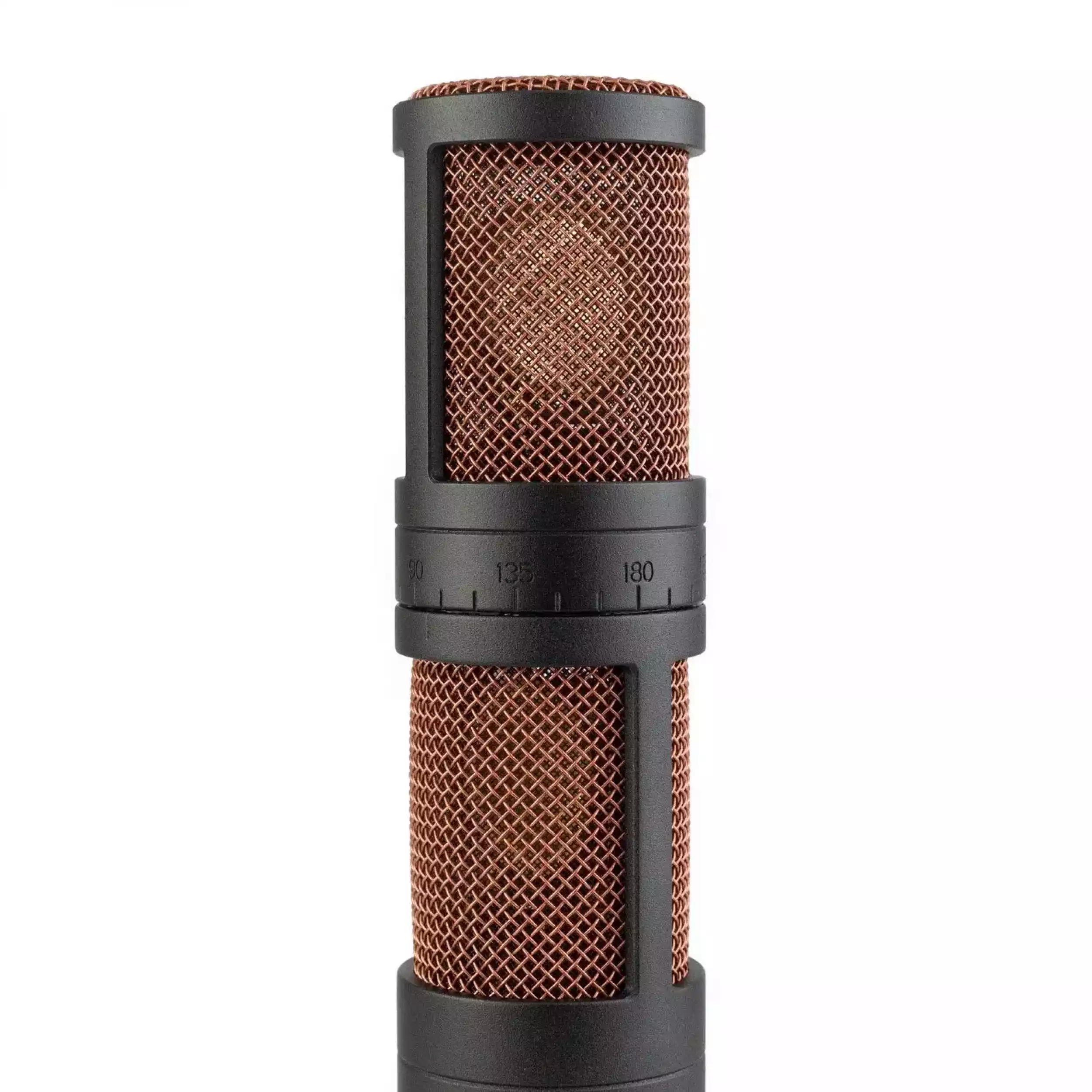

Infinite top head rotation for maximum flexibility
Low-reflection, symmetrical top and bottom heads
Includes a custom shockmount, two oxygen-free copper Y-cables, and a custom handmade wooden case
Flexible Configurability
X/Y Setup: Set both capsules to cardioid, then offset the heads by 90°
Mid-Side Setup: Set the top capsule to cardioid, and the bottom capsule to figure-8
Blumlein Setup: Set both capsules to figure-8, then offset the heads by 90°

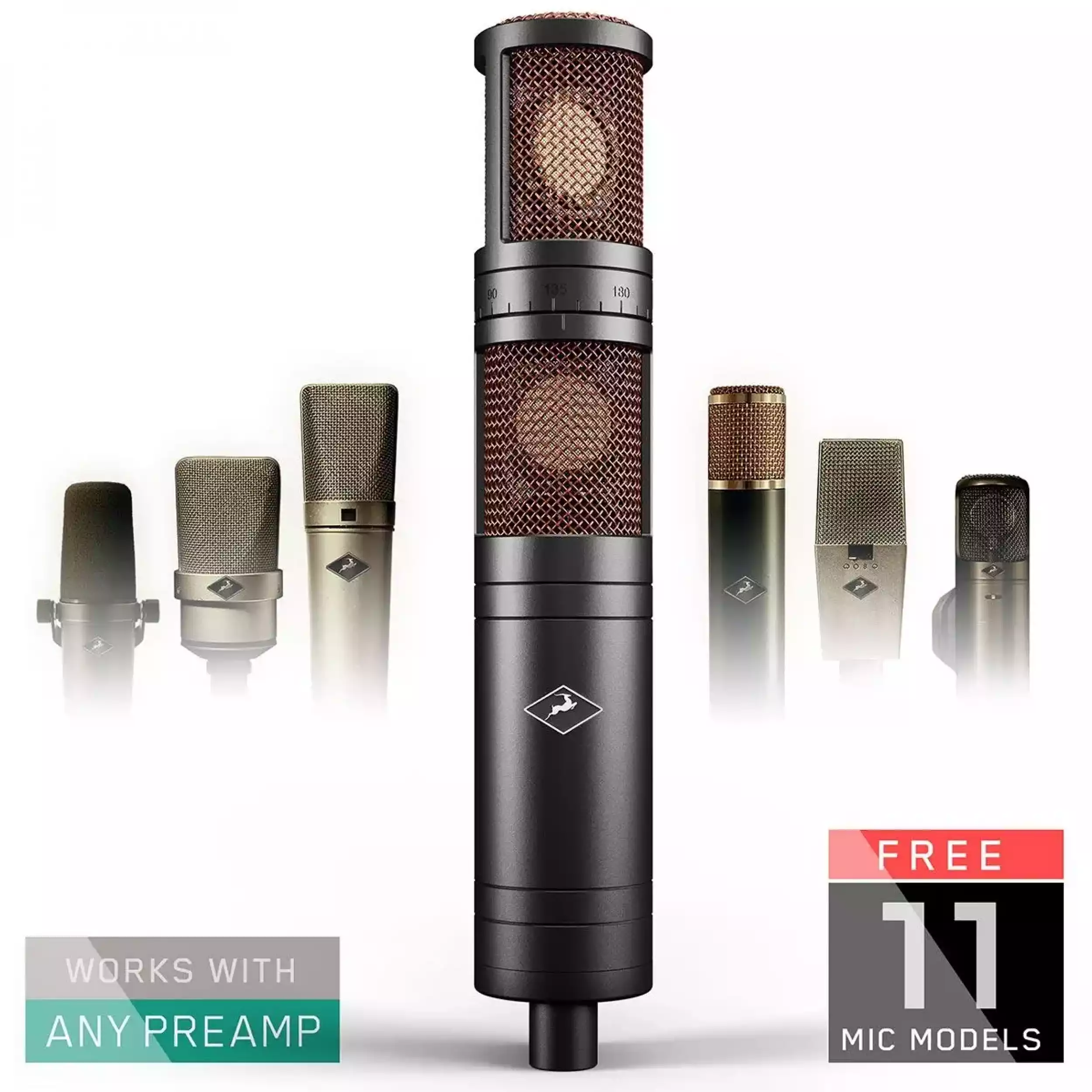

Emulations Included
Berlin 47 FT
Berlin 49T
Berlin 57
Berlin 87
Berlin 67
Berlin M103
Vienna 12
Vienna 414
Tokyo 800T
Oxford 4038
Sacramento 121R
System Requirements for AFX Plug-Ins
Mac OS X 10.11
macOS 10.12 or later
Intel Core 2 Duo minimum, Core i3, i5, i7, or Xeon recommended
4 GB RAM minimum, 8 GB RAM recommended
Host software that supports AAX Native, Audio Units, or VST formats
Internet connection for product activation
iLok 2 or iLok 3 USB license key
Windows 10
Intel Core 2 Duo minimum, Core i3, i5, i7, or Xeon recommended
4 GB RAM minimum, 8 GB RAM recommended
Host software that supports AAX Native or VST formats
Internet connection for product activation
iLok USB license key
Antelope Edge Quadro Specs
Microphone
Sound Field Mono, Stereo
Operating Principle Pressure Gradient
Pressure Operated
Capsule Condenser
Diaphragm 1.34" / 34 mm
1.34" / 34 mm
Polar Pattern Cardioid, Figure-8, Omnidirectional
Pattern Selection Continuously Variable
Circuitry Solid-State
High-Pass Filter None
Performance
Frequency Range 20 Hz to 20 kHz
Impedance 50 Ohms at 1 kHz
Sensitivity -35 dB
Signal-to-Noise Ratio 75 dB A-Weighted
Equivalent Noise Level 19 dB A-Weighted
Connectivity

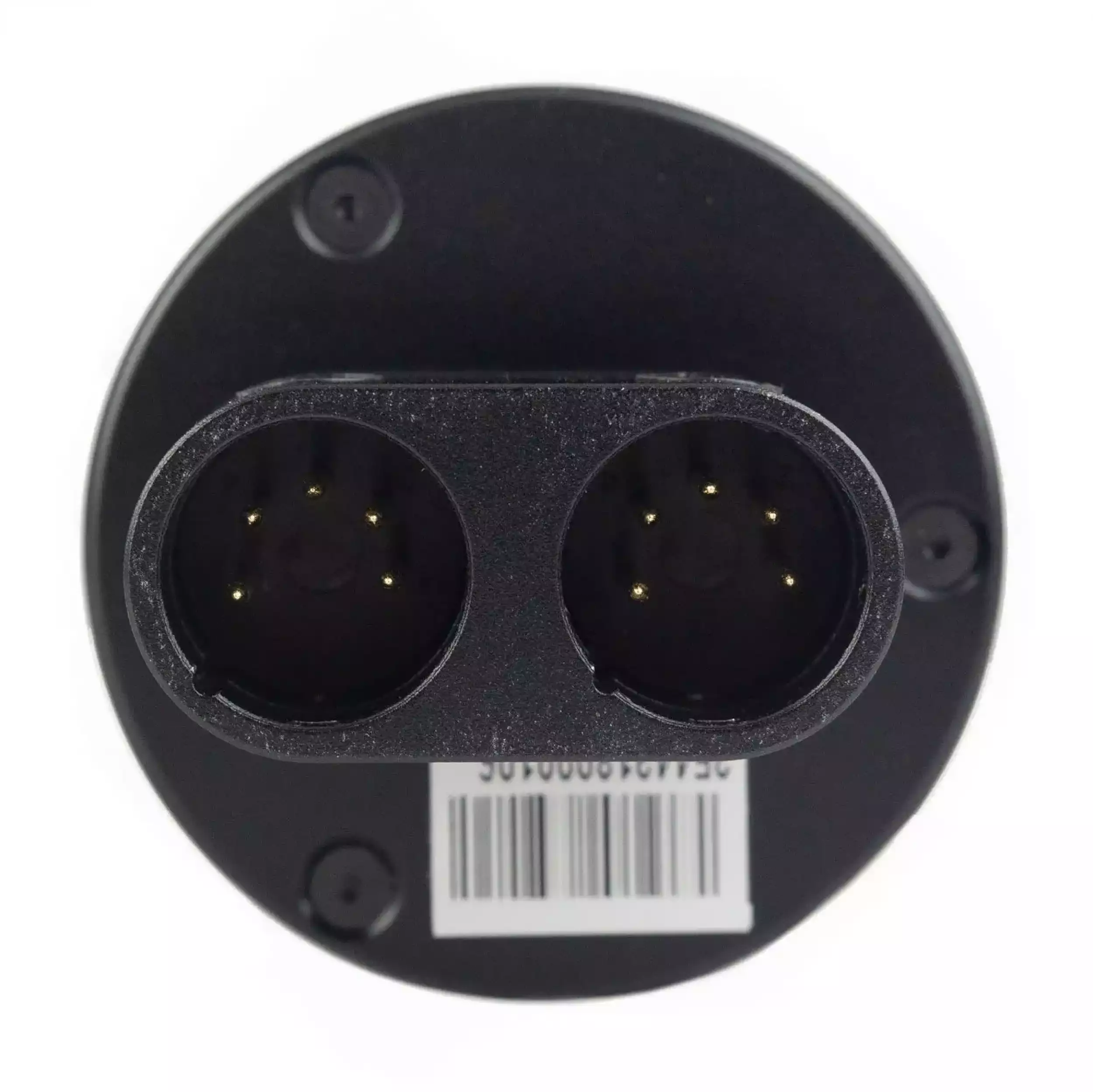

Output Connectors (Analog) 2 x XLR 5-Pin
Cable Length 16.4' / 5.00 m
Power
Operating Voltage 48 V
Physical
Dimensions ø: 2.09 x L: 11.93" / ø: 53 x L: 303 mm
Weight 1.7 lb / 0.77 kg
